Product Introduction

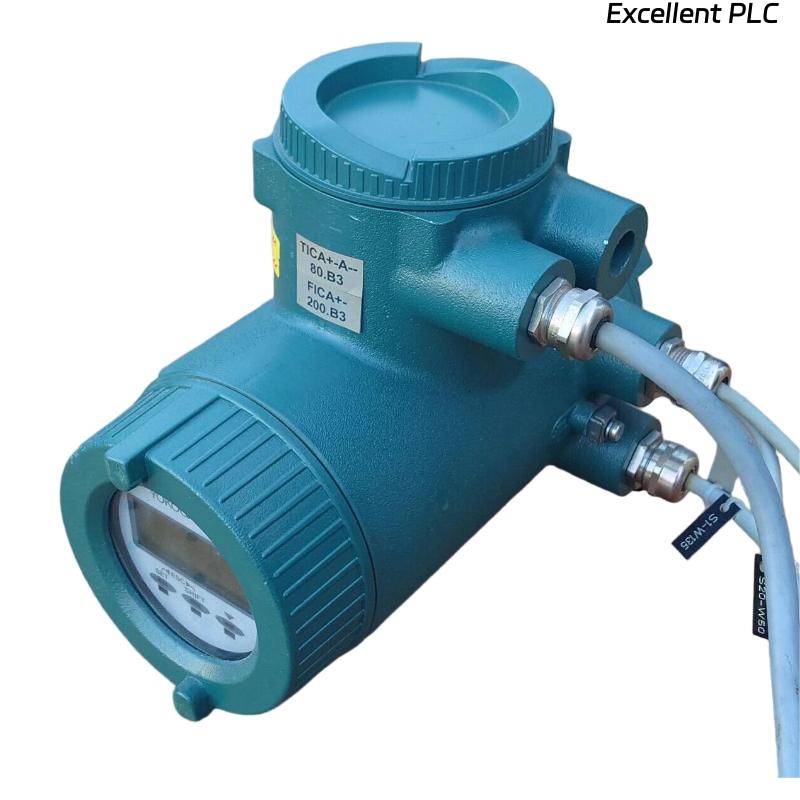

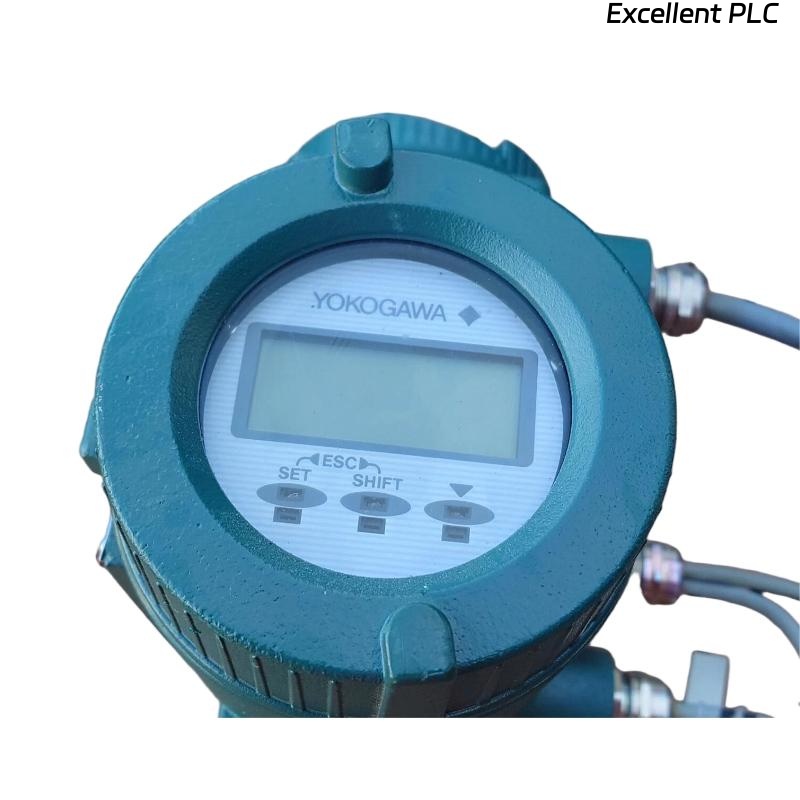

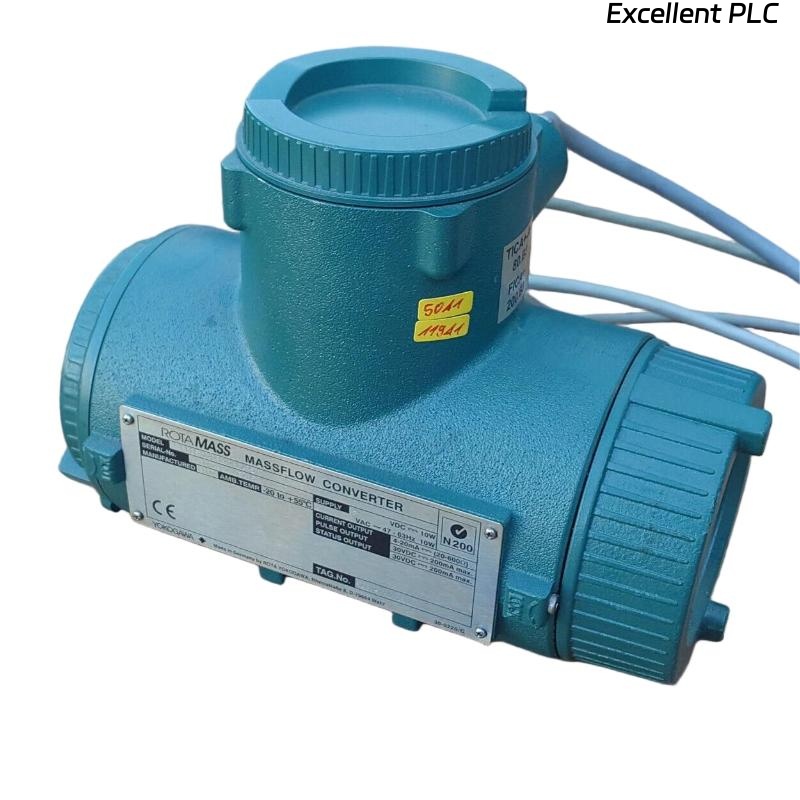

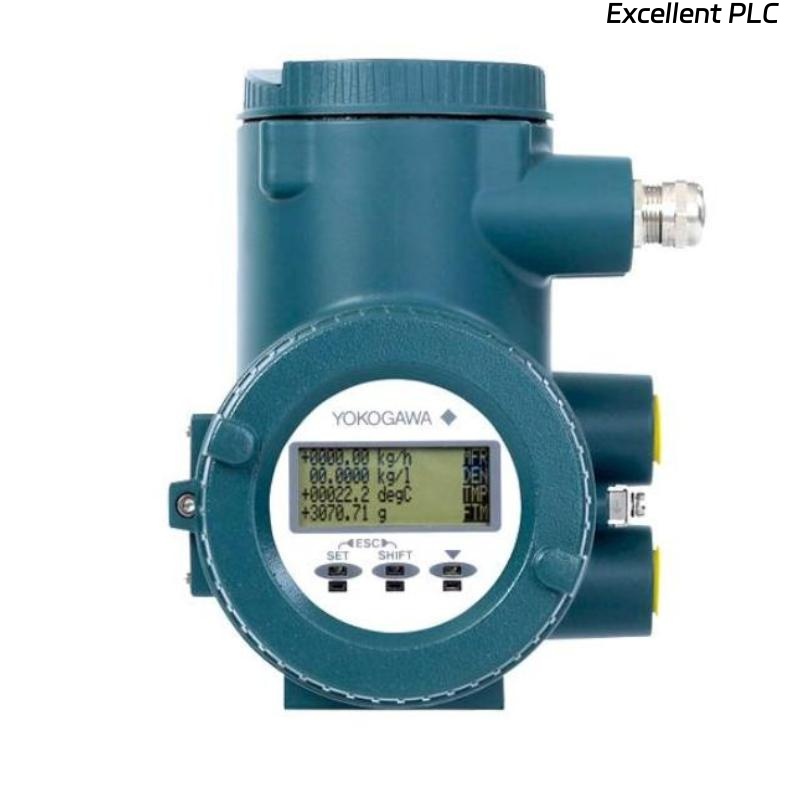

The Yokogawa RCCF31 is a high-performance, industrial-grade mass flow meter specifically designed for precise measurement of gas and liquid flow rates in a variety of applications. Known for its advanced technology, the RCCF31 delivers reliable and accurate readings even under fluctuating process conditions. The meter’s ability to operate in extreme conditions, combined with its robust construction, makes it suitable for a wide range of industries including chemical processing, energy, and food & beverage sectors.
With a diameter of 102mm and a weight of 5.5kg, the RCCF31 is designed to be both compact and durable, offering long-term stability and performance. The meter uses cutting-edge Coriolis technology, making it ideal for high-accuracy measurements and mass flow determinations.
Product Specifications
| Feature | Specification |
|---|---|
| Model | RCCF31 |
| Type | Coriolis Mass Flow Meter |
| Diameter | 102mm |
| Weight | 5.5kg |
| Flow Measurement | Mass Flow of Gas and Liquid |
| Operating Principle | Coriolis Effect |
| Accuracy | ±0.1% of Reading |
| Operating Pressure | Up to 100 MPa (depending on application) |
| Temperature Range | -40°C to +150°C |
| Output Signal | Pulse, Analog (4-20 mA), Digital (HART) |
| Application Compatibility | Liquids and gases (including corrosive fluids) |
| Power Supply | 24 VDC (standard) |
Product Applications
The Yokogawa RCCF31 Mass Flow Meter is suitable for a variety of industries and applications, particularly where accurate and reliable flow measurement is critical:
-
Chemical Processing: Measures the flow of chemicals, including corrosive and high-viscosity fluids, ensuring safety and consistency in chemical production lines.
-
Oil & Gas: Used for precise measurement of liquid and gas flow in pipelines, ensuring proper custody transfer and accurate data for regulatory compliance.
-
Food & Beverage: Helps in the accurate measurement of liquid ingredients in food processing, optimizing production and maintaining quality control.
-
Pharmaceutical: Ideal for high-precision flow measurement in the manufacturing of pharmaceutical products, ensuring consistent ingredient dosing.
-
Energy and Utilities: Monitors and controls the flow of gas, oil, and other fluids in energy production facilities, contributing to efficient resource management.
-
Water Treatment: Provides precise measurements for water and wastewater treatment systems, ensuring proper chemical dosing.
Product Advantages
-
High Accuracy: Provides mass flow measurements with an accuracy of ±0.1% of reading, ideal for critical applications.
-
Versatile Measurement: Suitable for both liquids and gases, including highly corrosive and high-viscosity fluids.
-
Wide Operating Range: Supports a temperature range of -40°C to +150°C, making it adaptable to extreme environments.
-
Low Maintenance: The Coriolis principle ensures that there are no moving parts, reducing the need for frequent maintenance and extending operational life.
-
Flexible Output Options: Offers multiple output signals, including pulse, analog (4-20mA), and digital (HART) for compatibility with various control systems.
-
Durable Construction: Built to withstand high pressures up to 100 MPa, ensuring reliable performance in challenging conditions.
-
Compact Design: With a diameter of 102mm and a weight of 5.5kg, the meter is compact, making it suitable for tight installation spaces.
-
Ease of Integration: Easily integrates with existing automation systems, offering smooth communication and control.
FAQ
1. What type of fluids can the RCCF31 measure?
It can measure both liquid and gas flows, including highly corrosive, high-viscosity, and difficult-to-handle fluids.
2. What is the accuracy of the RCCF31?
The RCCF31 offers ±0.1% of reading accuracy, ensuring precise flow measurements.
3. What is the maximum operating pressure for the RCCF31?
The meter can operate at pressures of up to 100 MPa depending on the application.
4. What temperature range can the RCCF31 handle?
It is designed for a wide temperature range, from -40°C to +150°C.
5. What output signals are supported by the RCCF31?
The device supports pulse, analog (4-20mA), and digital (HART) output signals for flexible integration with control systems.
6. What is the typical diameter and weight of the RCCF31?
The RCCF31 has a diameter of 102mm and weighs approximately 5.5kg.
7. Can the RCCF31 measure both liquids and gases?
Yes, the RCCF31 is capable of measuring both liquid and gas flows, including challenging fluids like corrosive chemicals.
8. Is the RCCF31 suitable for use in explosive environments?
The RCCF31 does not have specific explosion-proof certifications but can be used in hazardous environments when paired with suitable safety measures.
9. What power supply does the RCCF31 require?
The meter operates on a 24 VDC power supply.
10. Can the RCCF31 be used in custody transfer applications?
Yes, with its high accuracy, the RCCF31 is ideal for custody transfer applications in industries like oil & gas.
Related Models from the Same Series
| Model | Description |
|---|---|
| RCCF32 | A variant offering higher flow range for industrial applications. |
| RCCF33 | Designed for very high-temperature applications up to +250°C. |
| RCCF34 | Compact version optimized for smaller flow rates and tighter spaces. |
| RCCF35 | Features enhanced pressure capabilities for high-pressure systems. |
| RCCF36 | Explosion-proof version for hazardous environments. |
| RCCF37 | High-performance model for clean fluid applications, with better handling of viscous materials. |
