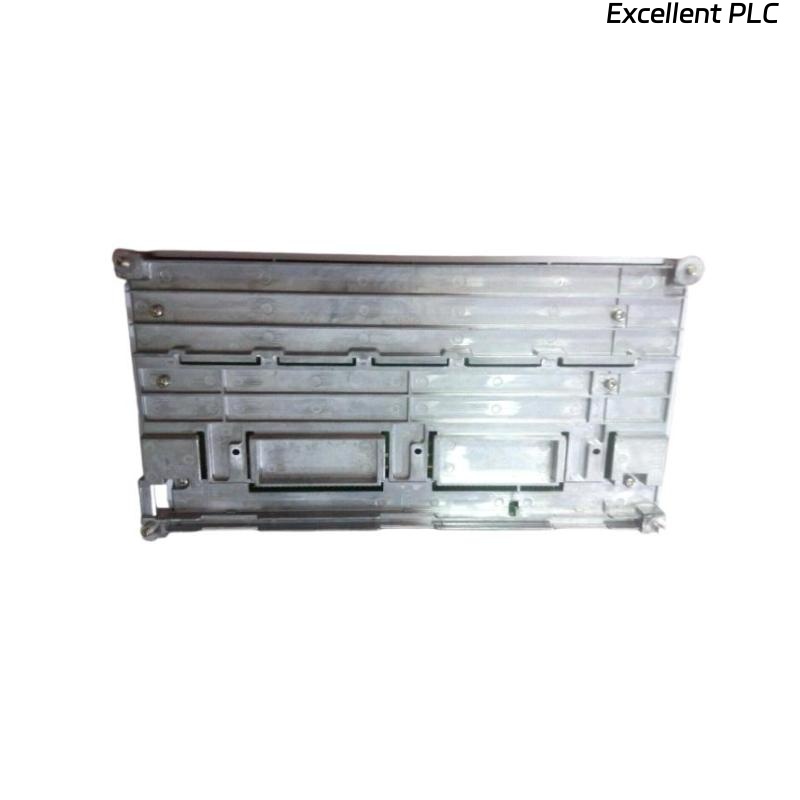

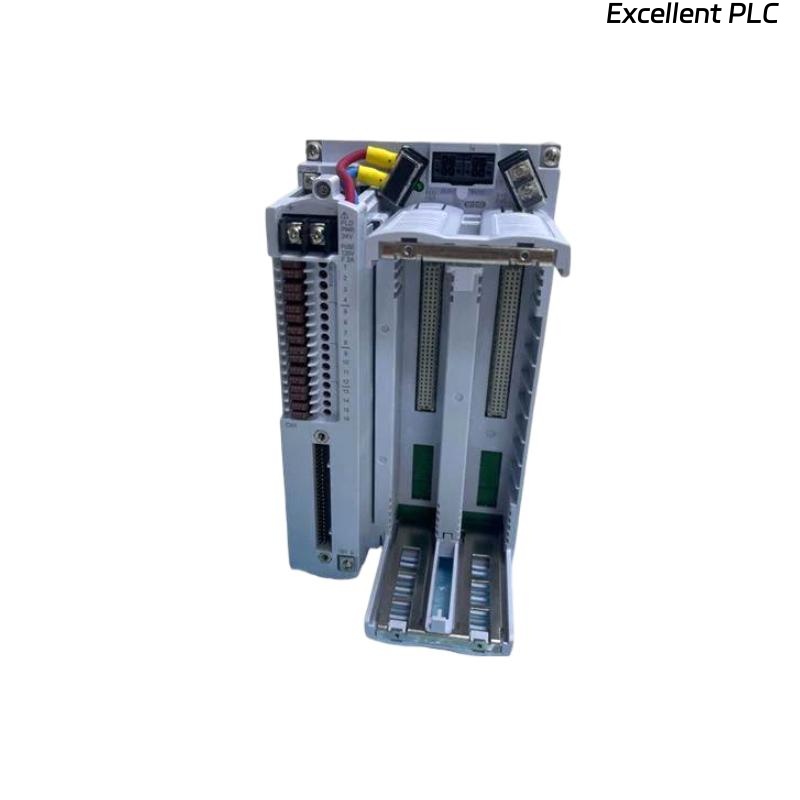

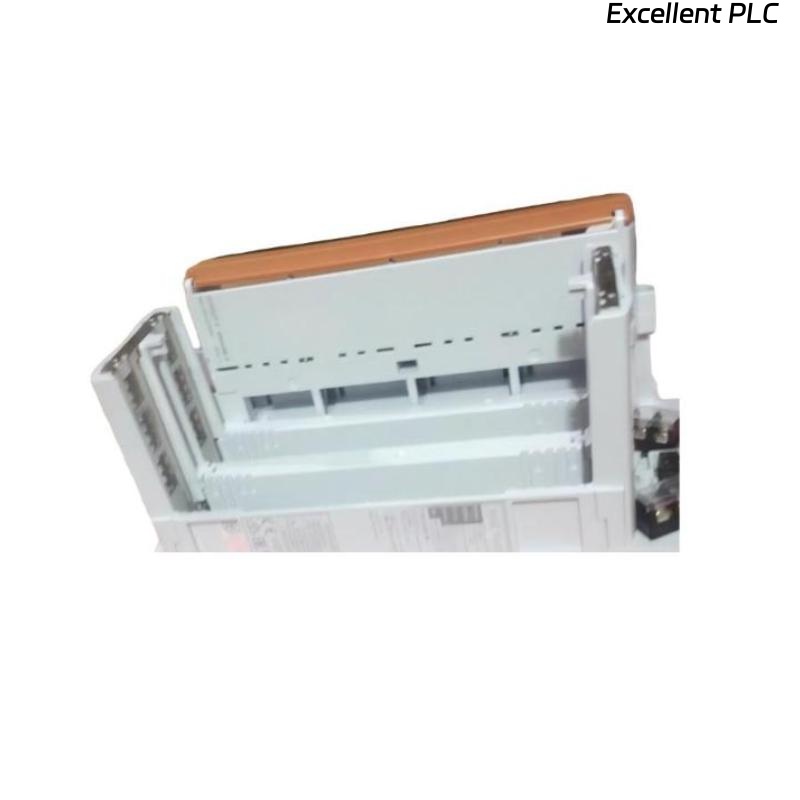

Yokogawa S2BN1D-11130 Terminal Block Baseplate with Disconnect Terminals

Product Introduction

The Yokogawa S2BN1D-11130 is a high-quality baseplate designed to support field wiring for various control systems. It features disconnect terminals that allow for easy wiring connections and disconnections without affecting the integrity of the system. This baseplate is a critical component for integrating different devices within Yokogawa’s automation platforms, facilitating seamless control system design and maintenance.

Designed with precision and durability, the S2BN1D-11130 is widely used in industrial environments for connecting field devices, offering enhanced ease of use and system reliability. The compact design with its dimensions of 248 x 134 x 212.7 mm and weight of 1.4 kg ensures easy installation and integration into control panels, providing a solid foundation for secure wiring connections.


Product Specifications

Feature Specification
Model S2BN1D-11130
Type Terminal Block Baseplate with Disconnect Terminals
Dimensions 248 x 134 x 212.7 mm
Weight 1.4 kg
Termination Type Disconnect terminals
Material High-quality, durable industrial-grade materials
Mounting Type Panel mount, DIN rail compatible
Connection Type Screw-type terminal connections
Temperature Range -20°C to +60°C
Rated Voltage 250 V AC/DC
Rated Current 10 A
Insulation Resistance > 100 MΩ at 500 V DC

Product Applications

The S2BN1D-11130 terminal block baseplate is used extensively in various industries for wiring and electrical connections. Its applications include:

  • Industrial Automation: Serves as a connection hub for control systems and field devices in automation setups.

  • Control Panel Construction: Integral part of control panels, ensuring secure and reliable connections for industrial controls.

  • Process Control Systems: Used in process control systems where easy disconnection and reconnection of wiring are necessary for maintenance.

  • Building Management Systems: Facilitates field wiring for HVAC and lighting control systems in building management setups.

  • Power Distribution Systems: Provides a secure interface for wiring connections in power distribution systems, ensuring safe operations.

  • Energy Management: Helps with wiring for energy meters and control systems in energy management solutions.


Product Advantages

  1. Easy Wiring Disconnection: The disconnect terminals allow for easy and safe disconnection of wiring during maintenance, minimizing system downtime.

  2. Durable Construction: Built with high-quality materials, ensuring longevity and reliable performance in industrial environments.

  3. Space-Efficient Design: The 248 x 134 x 212.7 mm footprint allows for efficient use of space within control panels, maximizing panel capacity.

  4. Wide Temperature Range: Operates efficiently across a broad temperature range of -20°C to +60°C, suitable for diverse environments.

  5. High Current Rating: Rated for 10 A, making it suitable for a variety of industrial applications requiring moderate current handling.

  6. Reliable Insulation Resistance: Provides >100 MΩ at 500 V DC insulation resistance, ensuring secure connections and preventing electrical faults.

  7. Universal Compatibility: Compatible with DIN rail mounting systems, allowing for versatile integration into various installations.

  8. Robust Termination Type: Screw-type terminals provide a secure and robust connection for wire terminations, reducing the chance of loose connections.
