Product Introduction

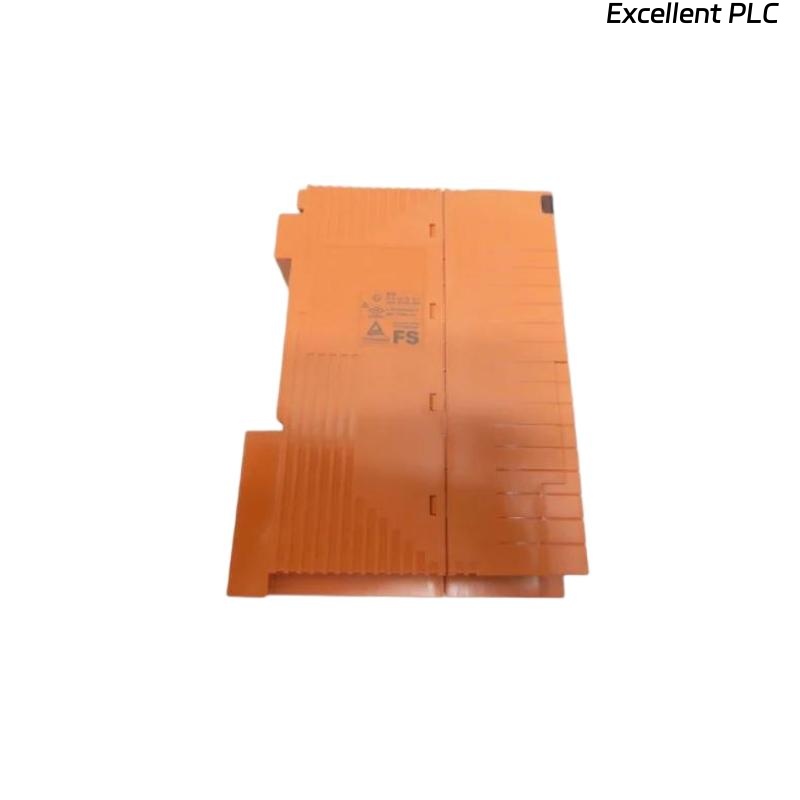

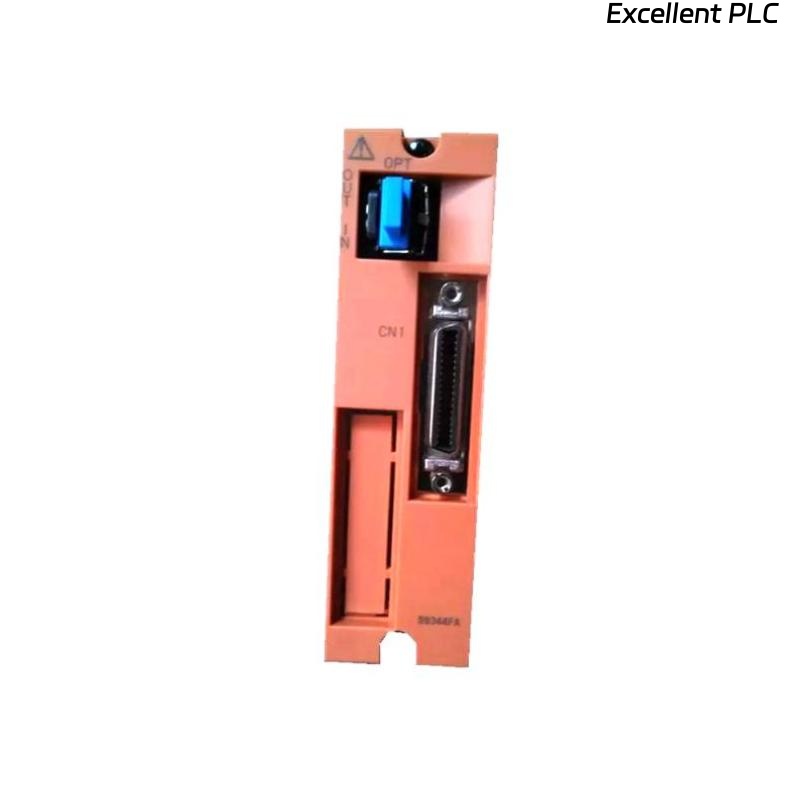

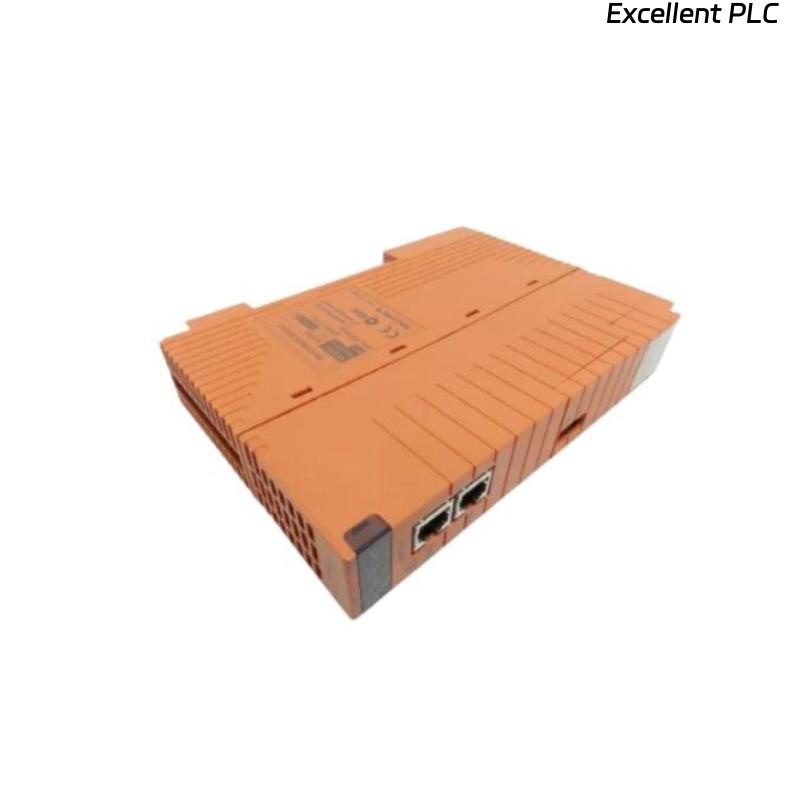

The Yokogawa S9344FA Bus Connector Unit is designed for seamless integration within Yokogawa’s distributed control systems (DCS). This module serves as a critical interface component, enabling communication between various I/O modules and the central processing unit (CPU) over the ESB (Extended SuperBus) or N-ESB (New Extended SuperBus) networks. Its robust design ensures reliable data transmission, essential for maintaining the integrity and efficiency of industrial automation processes.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | S9344FA |
| Type | Bus Connector Unit |
| Supported Bus | ESB / N-ESB |
| Channels | 2 independent bus channels |
| Connector Type | Multi-pin connector |
| Isolation | Opto-isolated between bus and module |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5 – 95% RH, non-condensing |
| Mounting | Rack / Terminal board |
| Dimensions | 50 × 32.8 × 107.5 mm |
| Weight | 0.2 kg |
Applications
The S9344FA module is utilized in various industrial applications, including:
-
Redundant System Configurations: Facilitates dual-channel communication, enhancing system reliability.
-
Distributed Control Systems: Integrates with Yokogawa DCS for efficient process control.
-
Critical Data Transmission: Ensures uninterrupted data flow between I/O modules and CPU.
-
Industrial Automation: Supports automation in sectors like oil & gas, chemical processing, and power generation.
Product Advantages
-
Dual-Channel Redundancy: Supports two independent bus channels, ensuring continuous operation.
-
Opto-Isolation: Provides electrical isolation between the bus and module, protecting against surges and noise.
-
Compact Design: Space-saving form factor suitable for various rack configurations.
-
High Compatibility: Designed to work seamlessly with other Yokogawa DCS components.
-
Enhanced Reliability: Built to withstand industrial environments, ensuring long-term performance.
FAQ
-
Q: How many bus channels does the S9344FA support?
A: It supports two independent ESB/N-ESB bus channels. -
Q: What type of connector is used in the S9344FA?
A: The module utilizes a multi-pin connector compatible with Yokogawa systems. -
Q: Is the S9344FA electrically isolated?
A: Yes, it features opto-isolation between the bus and module electronics. -
Q: Can the S9344FA be used in redundant system configurations?
A: Absolutely, it is designed to support dual-channel communication for redundancy. -
Q: What is the operating temperature range of the S9344FA?
A: –20°C to +60°C. -
Q: What is the storage temperature range?
A: –40°C to +85°C. -
Q: What is the humidity tolerance of the S9344FA?
A: 5 – 95% relative humidity, non-condensing. -
Q: How is the S9344FA mounted?
A: Rack or terminal board installation. -
Q: What are the dimensions of the S9344FA?
A: 50 × 32.8 × 107.5 mm. -
Q: What is the weight of the S9344FA?
A: 0.2 kg.
