Product Overview

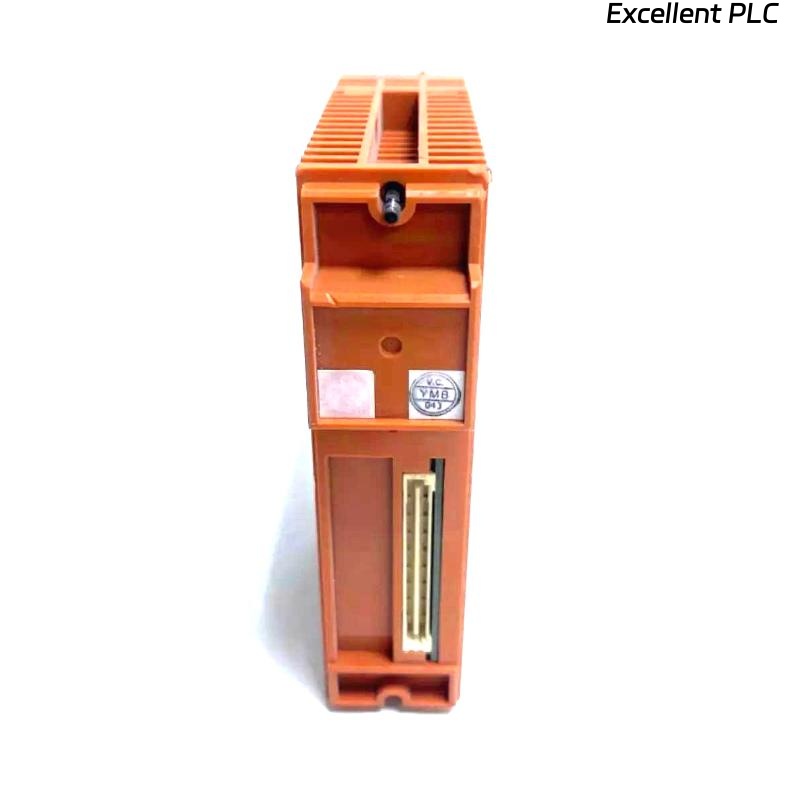

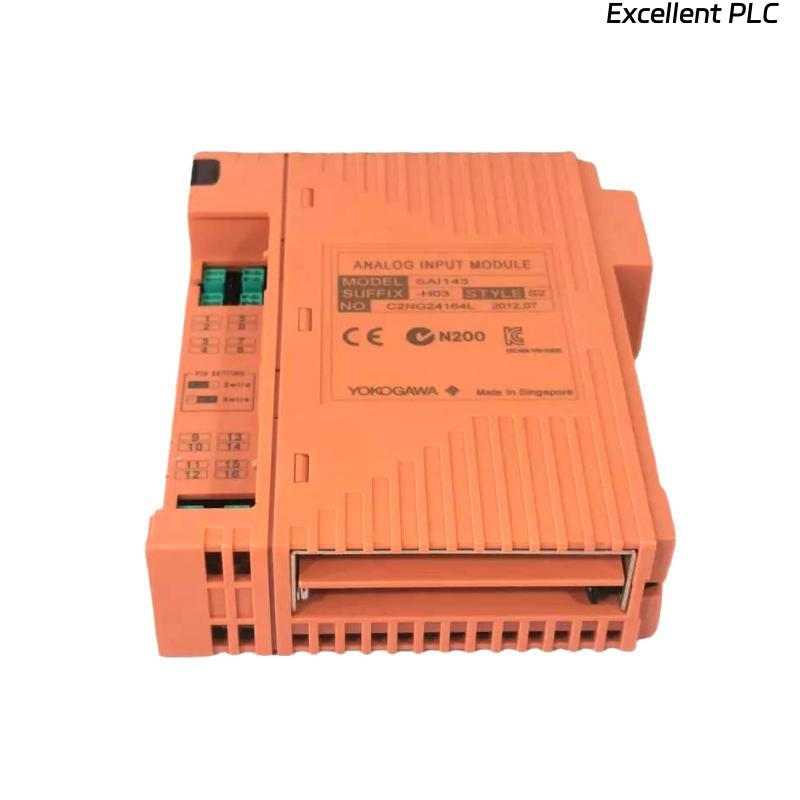

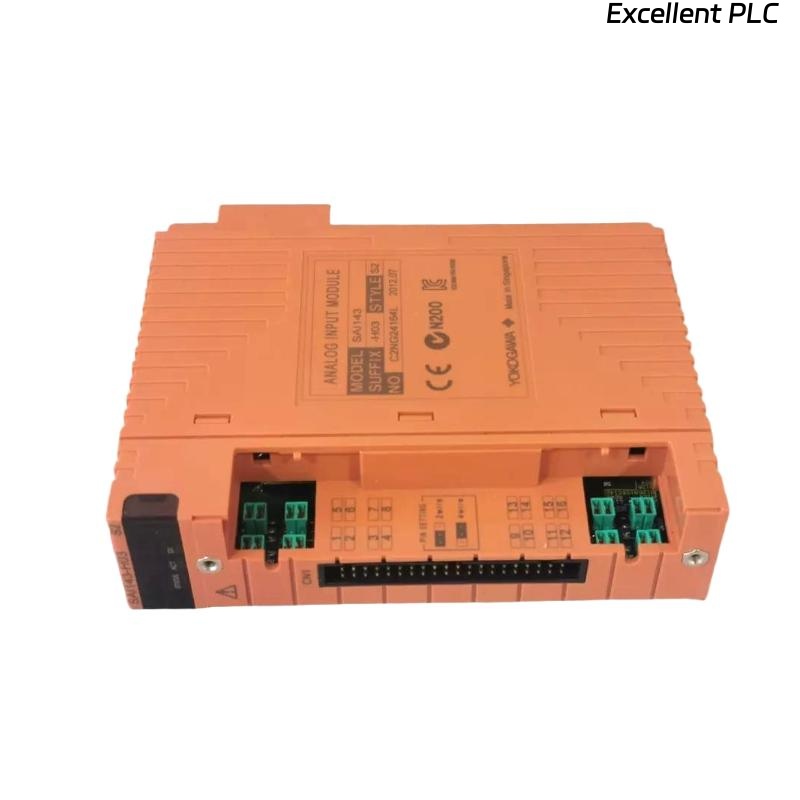

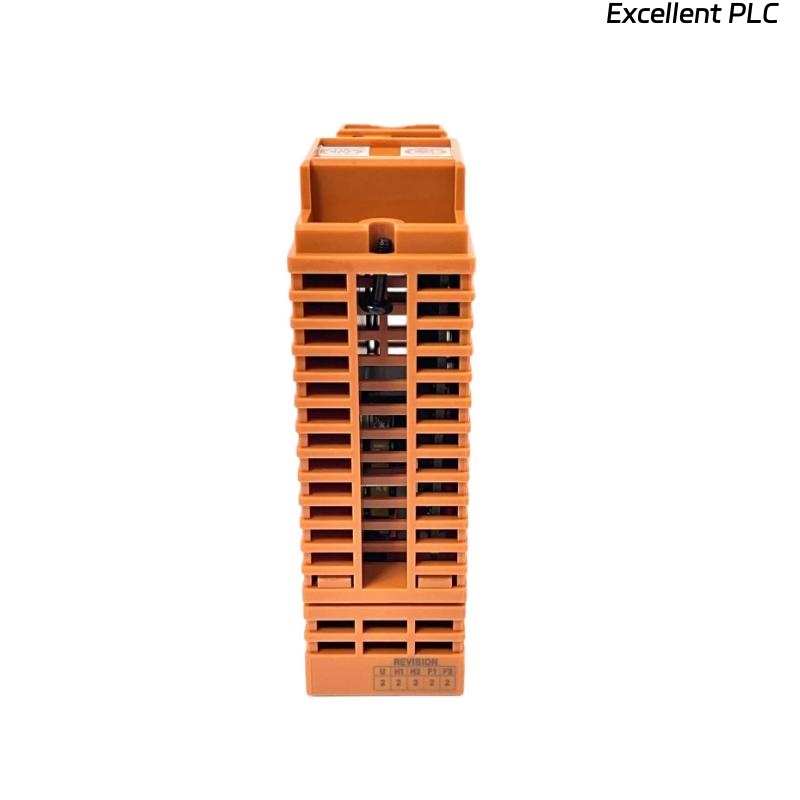

The Yokogawa SAI143-H53/A4D00 is a precision analog input module designed for industrial process control systems. It ensures accurate measurement of voltage and current signals and integrates seamlessly with Yokogawa DCS systems, providing reliable performance in demanding environments.
Technical Specifications
Parameter | Specification |
---|---|
Module Type | Analog Input Module |
Input Channels | 4 channels |
Input Signal Type | Voltage / Current |
Accuracy | ±0.1% of full scale |
Resolution | 16-bit |
Isolation | Channel-to-channel and channel-to-system |
Communication | Fieldbus compatible |
Power Supply | 24 V DC |
Operating Temperature | 0–55 °C |
Storage Temperature | -20–70 °C |
Dimensions | 130 × 107.5 × 32.8 mm |
Weight | 0.34 kg |
Applications
-
Process monitoring in chemical, petrochemical, and pharmaceutical plants
-
Precision signal acquisition for SCADA systems
-
Integration with Yokogawa DCS and PLC platforms
-
Data logging and control in industrial automation
Advantages
-
High accuracy and stable signal acquisition
-
Lightweight and compact for easy installation
-
Supports multiple input types simultaneously
-
Enhanced isolation for safe operation
-
Full compatibility with Yokogawa control systems
FAQ
1. What input signals are supported?
Supports voltage and current signals including 0–10 V, 4–20 mA, and configurable ranges.
2. How many input channels does it have?
Four channels.
3. What is the module’s accuracy?
±0.1% of full scale.
4. What is the operating temperature range?
0–55 °C.
5. Is the module suitable for hazardous areas?
Yes, when installed following Yokogawa’s safety guidelines.
6. How does it integrate with Yokogawa DCS?
Via fieldbus or standard communication protocol for seamless system integration.
7. What is the power requirement?
24 V DC.
8. Is it isolated?
Yes, both channel-to-channel and channel-to-system.
9. Can it handle voltage and current simultaneously?
Yes, it supports multiple signal types at the same time.
10. What maintenance is needed?
Routine inspection of signal stability and connections; minimal calibration required.
Recommended Related Models (from your provided list)
Model | Channels | Input Type | Dimensions (mm) | Weight (kg) |
---|---|---|---|---|
A2SDV105-S000 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
A2SDV505-S000 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAB841-S00 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAB841-S03/M4A00 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AALR121-S00 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAM10-S1 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
Popular Yokogawa Models (from your list)
Model | Channels | Input Type | Dimensions (mm) | Weight (kg) |
---|---|---|---|---|
AAP135-S00 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAP149-S50 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAR145-S50 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAR181-S50 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAT141-S50 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
AAV144-S50 | 4 | Voltage/Current | 130 × 107.5 × 32.8 | 0.34 |
