Product Description

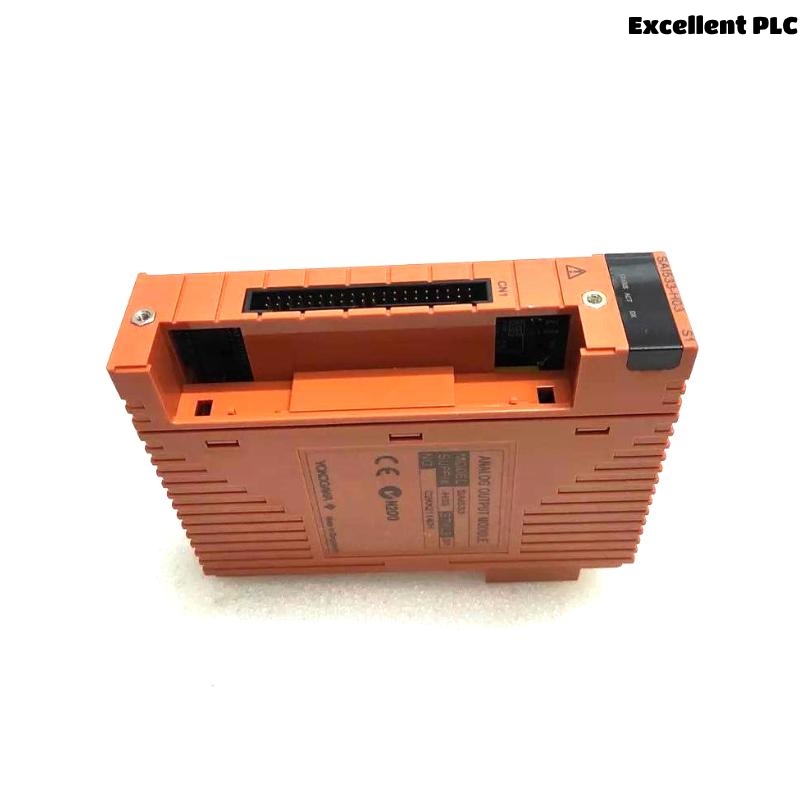

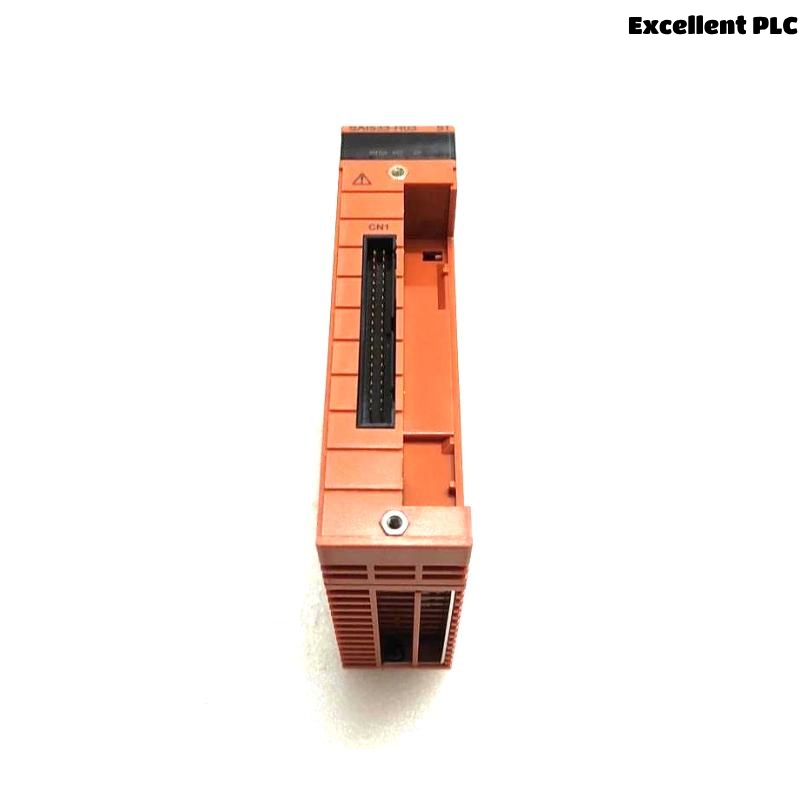

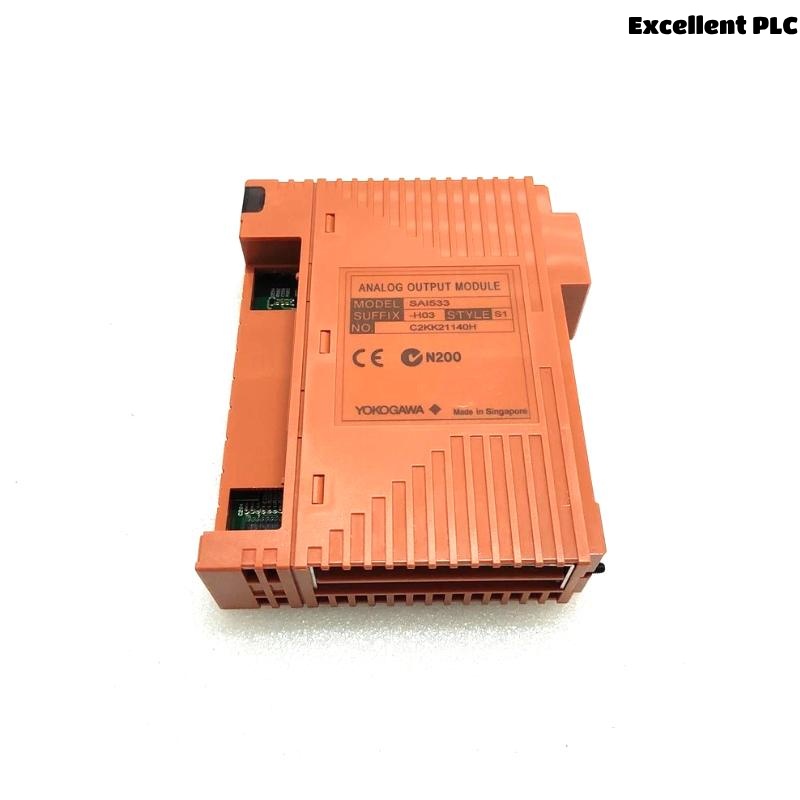

The Yokogawa SAI533 is a current output module designed for precise analog signal transmission within the CENTUM VP and ProSafe-RS systems. It ensures high stability, accuracy, and secure communication in demanding industrial automation applications.
Product Features
-
4 isolated analog output channels (4–20 mA)
-
HART communication support
-
Built-in diagnostics and self-diagnostics
-
Hot-swappable without system interruption
-
High accuracy and reliability for continuous operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SAI533 |
| Type | Analog Output Module (Current Output) |
| Channels | 4 isolated channels |
| Output Signal | 4–20 mA |
| Communication | HART supported |
| Isolation | Channel-to-channel and channel-to-ground |
| Accuracy | ±0.1% of span |
| Operating Temperature | 0–60°C |
| Storage Temperature | -20–70°C |
| Power Supply | Supplied via base unit |
| Dimensions (W x H x D) | 130 x 124 x 32.8 mm |
| Weight | 0.33 kg |
Applications
-
Distributed control systems (DCS)
-
Process automation in chemical and oil & gas industries
-
Power plant instrumentation
-
Water treatment and distribution
-
Pharmaceutical manufacturing
Advantages
-
Accurate and stable current output for sensitive instrumentation
-
Reliable isolation reduces interference and cross-talk
-
Easy replacement and maintenance
-
HART support enables remote diagnostics and configuration
-
Compact size for space-saving installation
Frequently Asked Questions (FAQ)
Q1: What type of output does the SAI533 provide?
A: The SAI533 provides 4–20 mA analog current outputs.
Q2: Does it support HART communication?
A: Yes, it supports HART protocol for communication and diagnostics.
Q3: Can the module be hot-swapped?
A: Yes, it can be replaced without shutting down the system.
Q4: How many channels does the module have?
A: It has four isolated output channels.
Q5: What isolation does it offer?
A: It provides isolation between channels and from channels to ground.
Q6: What systems is the SAI533 compatible with?
A: It is compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems.
Q7: What is the accuracy level of the module?
A: The module offers ±0.1% span accuracy.
Q8: What diagnostic functions are available?
A: It features self-diagnostics and error detection capabilities.
Q9: What is the operating temperature range?
A: It operates within a range of 0 to 60°C.
Q10: Is the module compact enough for limited space?
A: Yes, with dimensions of 130 x 124 x 32.8 mm, it’s suitable for compact installations.
