Product Introduction

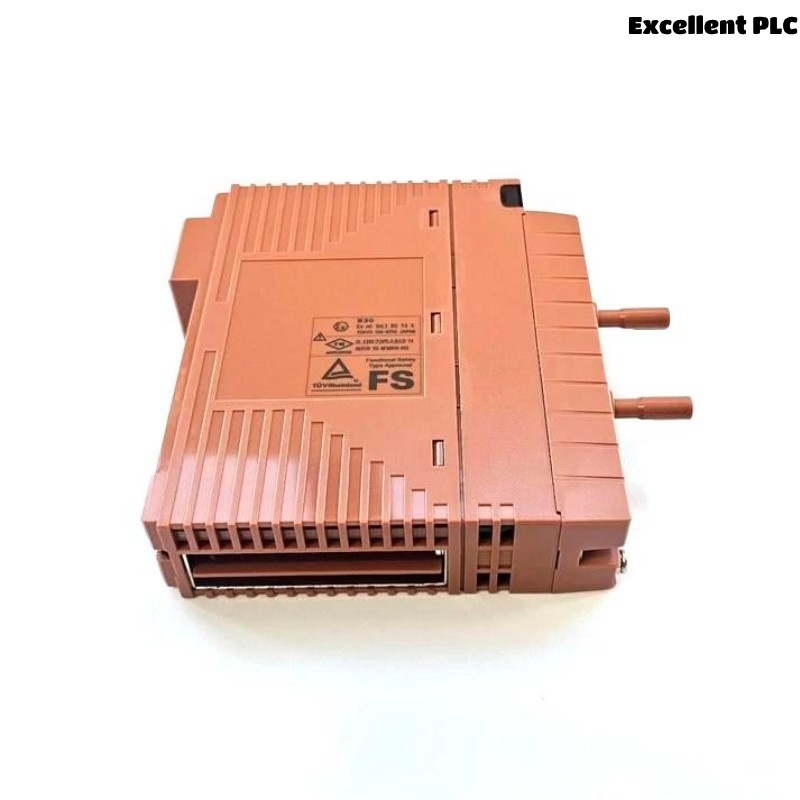

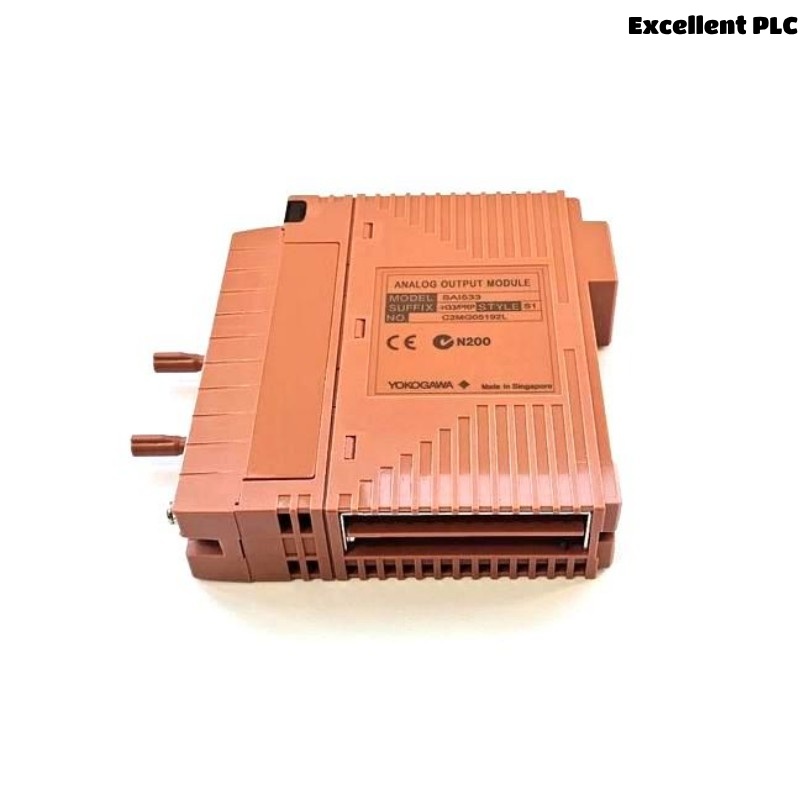

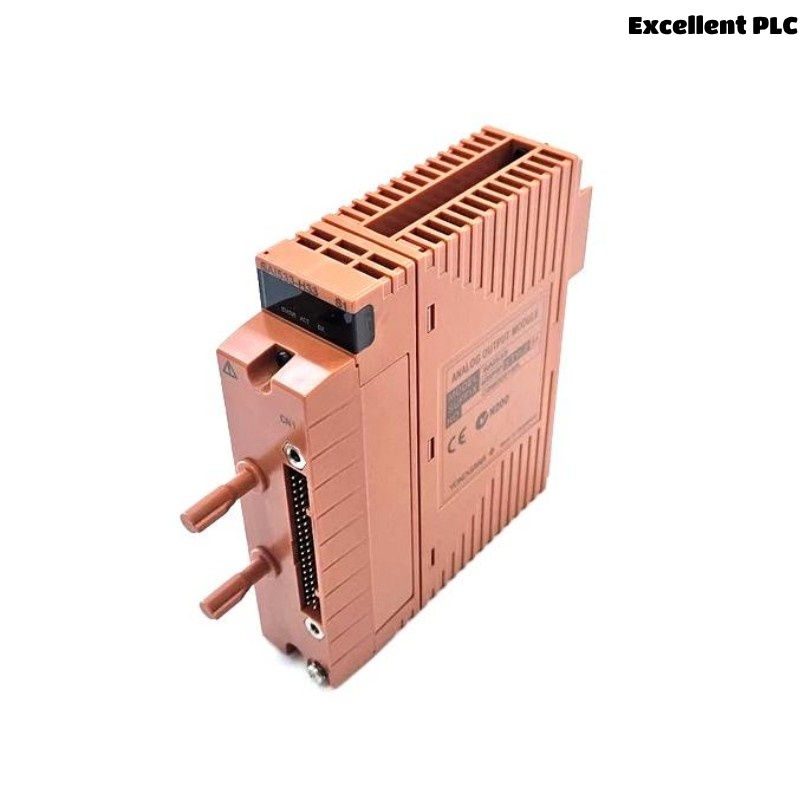

The Yokogawa SAI533-H33 Analog Output Module is designed to provide high-performance analog signal output for a variety of industrial control systems. It is primarily used in applications where precise analog control and signal transmission are required, including process automation and instrumentation. The module ensures reliable and accurate conversion from digital control systems to analog signals, making it an essential component in complex industrial systems.
Product Parameters
| Parameter | Value |
|---|---|
| Model | SAI533-H33 |
| Type | Analog Output Module |
| Signal Output | 4-20 mA |
| Dimensions | 130 x 124 x 32.8 mm |
| Weight | 0.33 kg |
| Power Supply | 24 VDC |
| Operating Temp | -10 to +55°C |
| Communication | Modbus RTU |
| Mounting | DIN Rail Mounted |
Product Applications
The Yokogawa SAI533-H33 Analog Output Module is ideal for:
-
Process Control: Used in systems requiring high precision in controlling analog signals for industrial machinery.
-
Automation Systems: Commonly integrated with SCADA (Supervisory Control and Data Acquisition) systems for real-time control.
-
Power Generation: Used to transmit control signals to various process units like turbines and boilers.
-
Chemical Processing: Controls and adjusts variables such as flow, pressure, and temperature within chemical production processes.
Product Advantages
-
High Precision: Ensures accurate output signal transmission, ideal for industries demanding strict control.
-
Wide Temperature Range: Capable of operating in extreme environments from -10°C to +55°C.
-
Easy Integration: Compatible with popular communication protocols like Modbus RTU, simplifying integration into existing systems.
-
Compact Design: Space-saving with a compact size of 130 x 124 x 32.8 mm and weighing only 0.33 kg, making it easy to install in tight spaces.
-
Reliable Operation: Built to withstand harsh industrial conditions, ensuring long-term reliability.
-
Low Power Consumption: The module operates efficiently, requiring minimal power (24 VDC), making it energy-efficient.
FAQs
1. What is the output signal range of the SAI533-H33 module?
The module provides a 4-20 mA analog output signal.
2. What is the operating temperature range for this module?
The module operates between -10°C to +55°C.
3. How does the module communicate with other systems?
It communicates using the Modbus RTU protocol.
4. What is the power supply requirement for the SAI533-H33 module?
The module requires a 24 VDC power supply.
5. Is the SAI533-H33 module easy to install?
Yes, it is designed for DIN rail mounting, making installation simple and secure.
6. What is the size of the Yokogawa SAI533-H33 module?
The module’s dimensions are 130 x 124 x 32.8 mm.
7. How much does the SAI533-H33 module weigh?
It weighs 0.33 kg.
8. Can the SAI533-H33 be used in hazardous environments?
It is designed for industrial environments, but you should check the specific requirements for hazardous areas.
9. What industries typically use this analog output module?
It is commonly used in process control, automation systems, power generation, and chemical processing industries.
10. Can this module be integrated with other Yokogawa devices?
Yes, it is fully compatible with other Yokogawa automation and control systems.
Related and Popular Models
Related Models
| Model | Signal Output | Power Supply | Dimensions | Weight |
|---|---|---|---|---|
| SAI533-H31 | 4-20 mA | 24 VDC | 130 x 124 x 32.8 mm | 0.33 kg |
| SAI533-H32 | 0-10 VDC | 24 VDC | 130 x 124 x 32.8 mm | 0.33 kg |
| SAI533-H34 | 0-5 VDC | 24 VDC | 130 x 124 x 32.8 mm | 0.33 kg |
| SAI533-H35 | 0-20 mA | 24 VDC | 130 x 124 x 32.8 mm | 0.33 kg |
| SAI533-H36 | 4-20 mA (loop powered) | 24 VDC | 130 x 124 x 32.8 mm | 0.33 kg |
| SAI533-H37 | 4-20 mA with HART | 24 VDC | 130 x 124 x 32.8 mm | 0.33 kg |
