Product Description

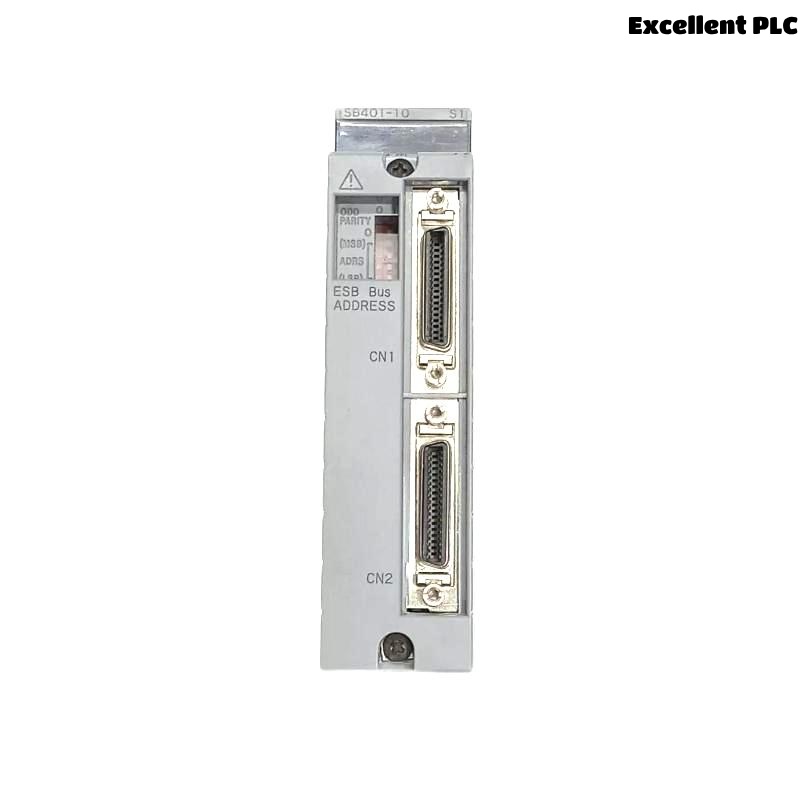

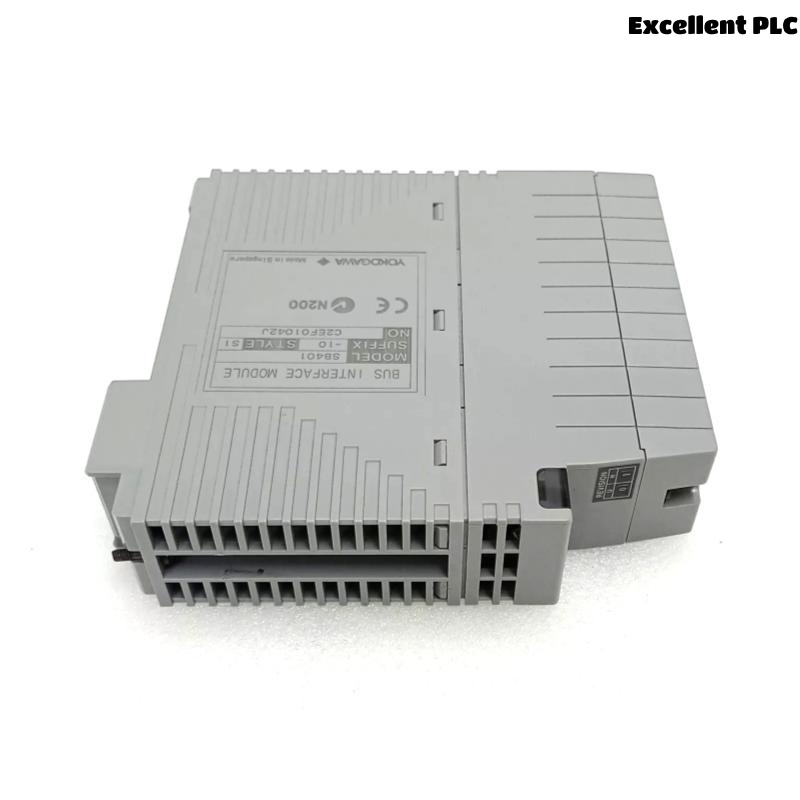

The Yokogawa SB401-10 is an ESB Bus Interface Slave Module used within the Field I/O (FIO) system architecture of Yokogawa’s CENTUM VP platform. It functions as a communication interface between the Field Control Unit (FCU) and the I/O modules through the ESB bus. It supports high-speed data transfer and reliable operation in both single and dual-redundant configurations. As part of the ESB Bus Node Unit (model ANB10S or ANB10D), the SB401 ensures efficient power and signal communication for analog and digital I/O modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SB401-10 |
| Function | ESB Bus Interface Slave Module |
| System | Yokogawa CENTUM VP (FIO/N-IO systems) |
| Bus Communication | ESB Bus |
| Redundancy Support | Yes (Dual-redundant configuration supported) |
| Mounting | 19-inch rack mounting |
| Dimensions (W x H x D) | 130 x 142.5 x 32.8 mm |
| Weight | 0.45 kg |
| Operating Temperature Range | -20°C to +70°C (G3 option available) |
| Compatible Node Units | ANB10S / ANB10D |
| Power Source | Supplied through node unit |
| Standards Compliance | ISA G3, ATEX/IECEx (with proper options) |
Applications
-
Industrial process automation
-
Power generation control systems
-
Oil and gas processing plants
-
Petrochemical industries
-
Pharmaceutical automation systems
-
Chemical processing systems
Product Advantages
-
High-speed and stable ESB bus communication
-
Supports redundant configuration for high system reliability
-
Compact design, suitable for 19-inch rack mounting
-
Compatible with various I/O modules
-
Suitable for use in harsh industrial environments with optional G3 coating
-
Simplified maintenance with modular design
FAQ – Frequently Asked Questions
Q1: What is the main function of the SB401-10 module?
A1: It acts as an ESB bus interface for communication between the Field Control Unit and I/O modules.
Q2: Can SB401-10 be used in redundant configurations?
A2: Yes, it supports dual-redundant configurations for increased system reliability.
Q3: Is the SB401-10 compatible with both ANB10S and ANB10D node units?
A3: Yes, it is compatible with both single and dual-redundant node unit models.
Q4: What is the weight of the SB401-10?
A4: The module weighs approximately 0.45 kg.
Q5: What are the supported power input options?
A5: The module draws power from the node unit, which supports 100–120V AC, 220–240V AC, or 24V DC.
Q6: What is the operating temperature range for this module?
A6: With the G3 option, it operates from -20°C to +70°C.
Q7: What rack size is the SB401-10 mounted on?
A7: It is mounted on a standard 19-inch rack.
Q8: How many I/O modules can be connected to a node with SB401-10?
A8: Up to 8 I/O modules can be installed per node unit.
Q9: Is the SB401-10 suitable for hazardous environments?
A9: Yes, explosion protection options are available when properly configured.
Q10: What type of bus is used for communication?
A10: The ESB bus is used for high-speed internal communication.
