Product Description

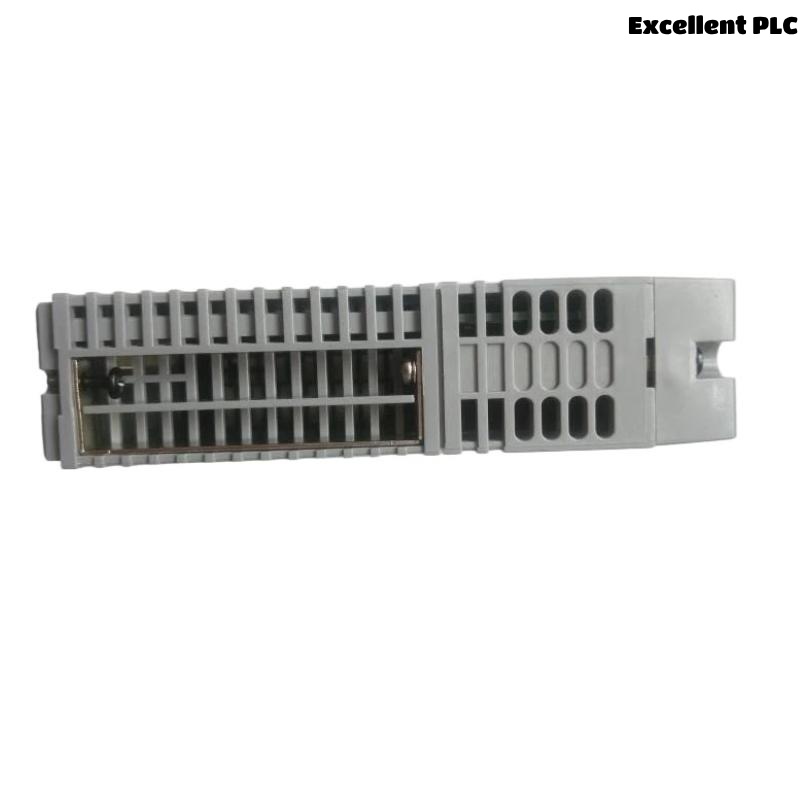

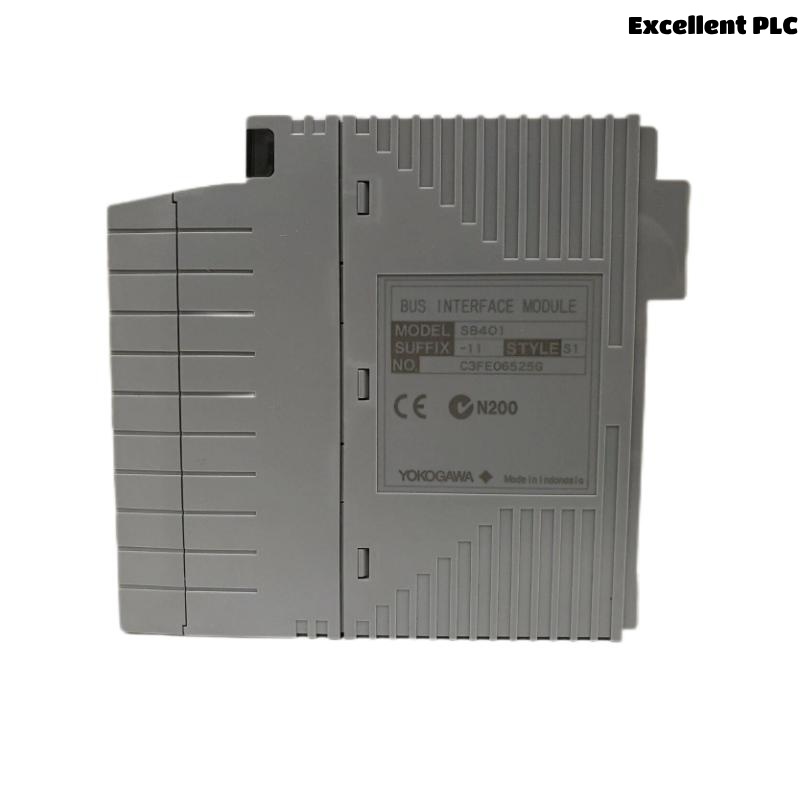

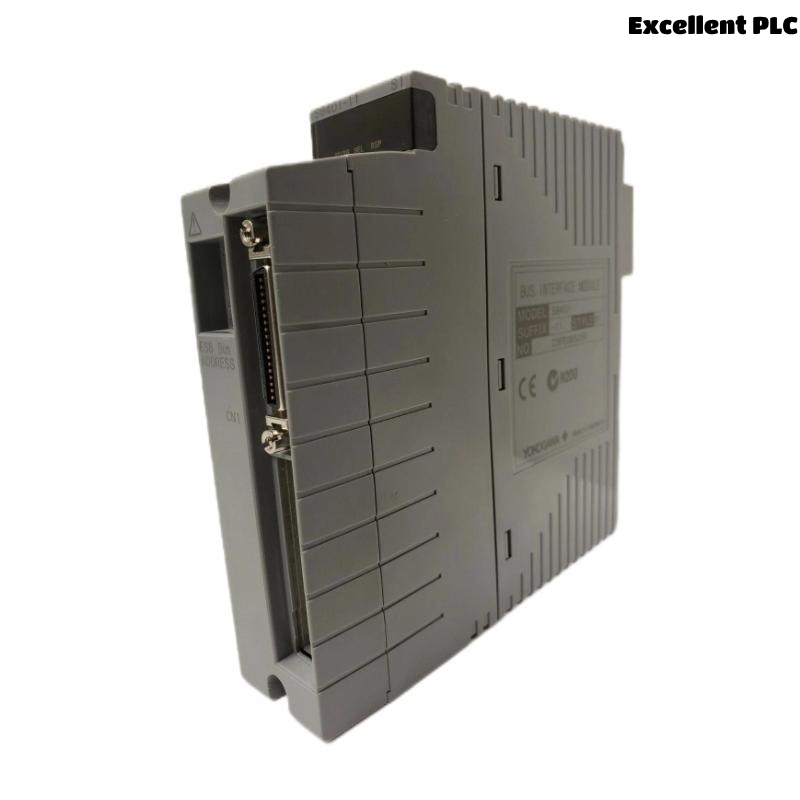

The Yokogawa SB401-11 S1 is an ESB Bus Interface Slave Module designed for use within the Field Control Unit (FCU) systems of the CENTUM VP distributed control system. It is mounted in ESB bus node units (e.g., ANB10S or ANB10D) and serves as the critical communication bridge between the FCU and various I/O modules via the ESB bus. The SB401-11 S1 supports high-speed and reliable communication and can be used in single or dual-redundant configurations depending on system design.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SB401-11 S1 |
| Function | ESB Bus Interface Slave Module for Node Units |
| Installation | 19-inch rack mount (within ANB10S or ANB10D node units) |
| Configuration Support | Dual-redundant or Single mode |
| Interface Type | ESB Bus (Extended System Bus) |
| Communication Role | Communicates I/O signals with Field Control Unit (FCU) |
| Applicable Systems | CENTUM VP Integrated Production Control System |
| Dimensions | 130 x 142.5 x 32.8 mm |
| Weight | 0.45 kg |
| Mounting Position | Dedicated slot within ESB Node Unit |
| System Compatibility | Supports modules like ALR111, ALE111, ALF111, ALP121, etc. |
| Operating Environment | -20°C to +70°C (with G3 option) |
Applications
-
Process control systems in chemical, oil & gas, and power plants
-
Communication interface between I/O modules and FCU
-
Reliable industrial data transmission over ESB bus
-
Enhancing system redundancy and fault tolerance in critical operations
Advantages
-
Seamless integration with CENTUM VP systems
-
Enables dual-redundant communication setup for high reliability
-
Compact form factor for efficient rack utilization
-
Ensures consistent data communication from I/O to FCU
-
Supports wide operating temperature range with optional enhancements
FAQ – Frequently Asked Questions
-
Q: What system is the SB401-11 S1 compatible with?
A: It is designed for Yokogawa’s CENTUM VP control system. -
Q: Can this module be used in a redundant configuration?
A: Yes, it supports both single and dual-redundant configurations. -
Q: What type of bus does it use for communication?
A: It uses the ESB (Extended System Bus). -
Q: Which node units does the SB401-11 S1 install into?
A: It is installed in ANB10S or ANB10D node units. -
Q: How many SB401 modules are required in a redundant setup?
A: Two modules are used in a dual-redundant setup. -
Q: Does it support barrier-type I/O modules?
A: Yes, but requires an insulating partition when used. -
Q: Is this module hot-swappable?
A: No, system shutdown is recommended during replacement. -
Q: What communication modules are supported with this module?
A: Modules such as ALR111, ALE111, ALF111, ALP121, etc. -
Q: What is its mounting method?
A: Mounted on a 19-inch rack using M5 screws. -
Q: What temperature range can it operate in?
A: -20°C to +70°C with G3 and temperature option.
Related or Same-Series Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| ANB10S | ESB Bus Node Unit (Single) | 482.6 x 221.5 x 205 | ~10 kg |
| ANB10D | ESB Bus Node Unit (Dual-redundant) | 482.6 x 221.5 x 205 | ~10 kg |
| PW481 | Power Supply Module | 130 x 142.5 x 32.8 | ~0.45 kg |
| PW482 | Power Supply Module (24 V DC) | 130 x 142.5 x 32.8 | ~0.45 kg |
| ADCV01 | Dummy Cover for I/O Slot | N/A | N/A |
| T9083NA | Insulating Partition for Barrier Modules | N/A | N/A |
