Product Overview

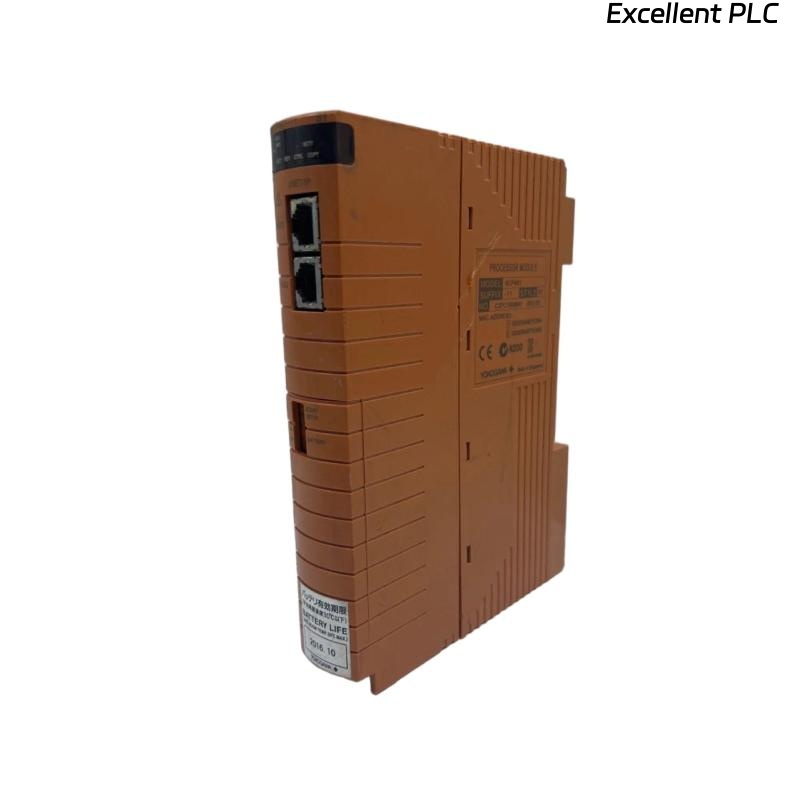

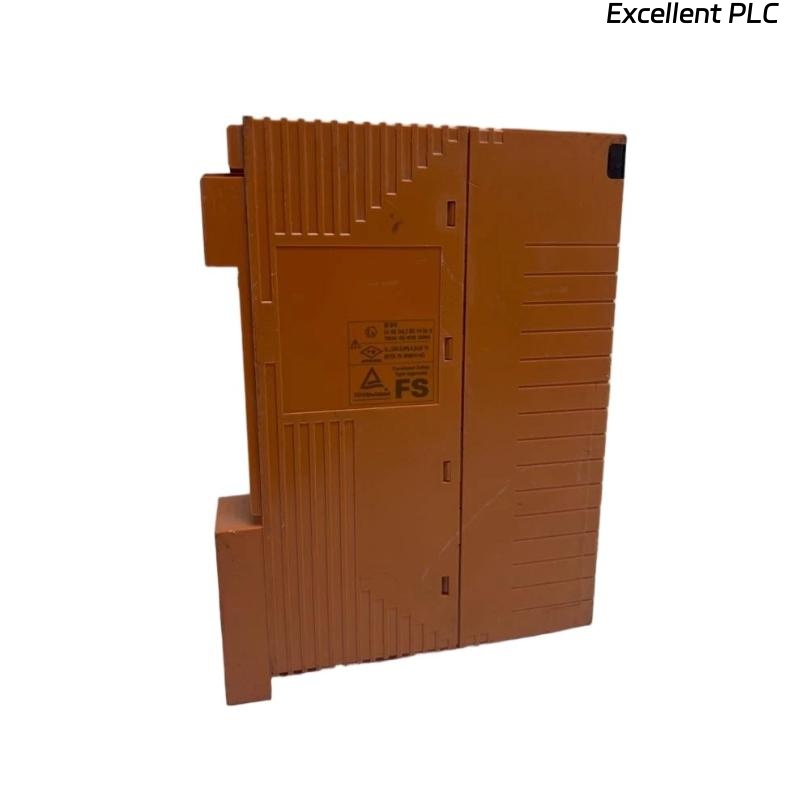

The Yokogawa SCP461-11 Processor Module is a high-performance core processing unit designed for the F3 series control system. It executes real-time process control, data processing, and communication management, forming the central component of distributed control applications.
Key Features
-
High-speed processor for real-time process control
-
Integrates with F3 series Basic, I/O, and communication modules
-
Compact and rugged design suitable for industrial environments
-
Supports modular system configuration and expansion
-
Enables redundant configurations for critical applications
-
Simplifies system maintenance and upgrades
-
Ensures reliable and accurate data processing
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | SCP461-11 |
| Series | Yokogawa F3 Processor Modules |
| Function | Central processor for F3 series control systems |
| CPU | High-speed industrial processor |
| Memory | Built-in system memory for control and data processing |
| Communication | Supports internal F3 bus and network interfaces |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 199.5 × 146.5 × 32.8 mm |
| Weight | 0.7 kg |
| Mounting | DIN-rail or rack-mounted |
| Compliance | CE, UL, CSA |
Industry Applications
-
Power generation: control of turbines, boilers, and auxiliary systems
-
Oil & gas: real-time monitoring and automation in refineries and pipelines
-
Chemical & petrochemical: process control for reactors and pipelines
-
Manufacturing: industrial automation and process monitoring
-
Water & wastewater treatment: real-time control and monitoring
-
Food & beverage: automated process control
-
Any industrial automation system requiring reliable centralized processing
Advantages
-
High-speed processing ensures accurate and real-time control
-
Compatible with a wide range of F3 series modules
-
Rugged design suitable for industrial environments
-
Supports system redundancy and modular expansion
-
Simplifies maintenance and reduces operational downtime
Frequently Asked Questions (FAQ)
Q1: What is the main function of this module?
It serves as the central processor for F3 series control systems, executing real-time process control and data processing.
Q2: Which modules is it compatible with?
It integrates with F3 Basic, I/O, communication, and power modules.
Q3: What is the operating temperature range?
0 °C to +55 °C.
Q4: How is it mounted?
DIN-rail or rack-mounted.
Q5: What power supply does it require?
24 VDC.
Q6: Is it suitable for industrial environments?
Yes, it is designed for rugged and continuous operation.
Q7: What is the weight of the module?
Approximately 0.7 kg.
Q8: Does it support redundancy?
Yes, it can be configured for redundant operation in critical systems.
Q9: What kind of communication interfaces does it support?
Internal F3 bus and network interfaces for module integration.
Q10: Why choose this processor module?
It ensures reliable, high-speed centralized processing for F3 control systems, supporting modularity, redundancy, and seamless system integration.
