Product Overview

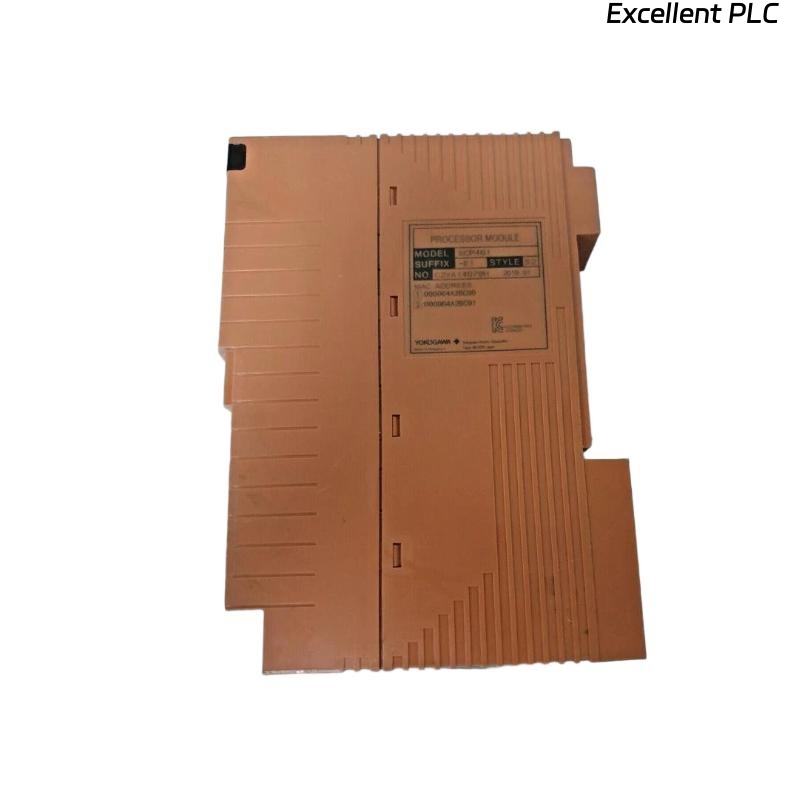

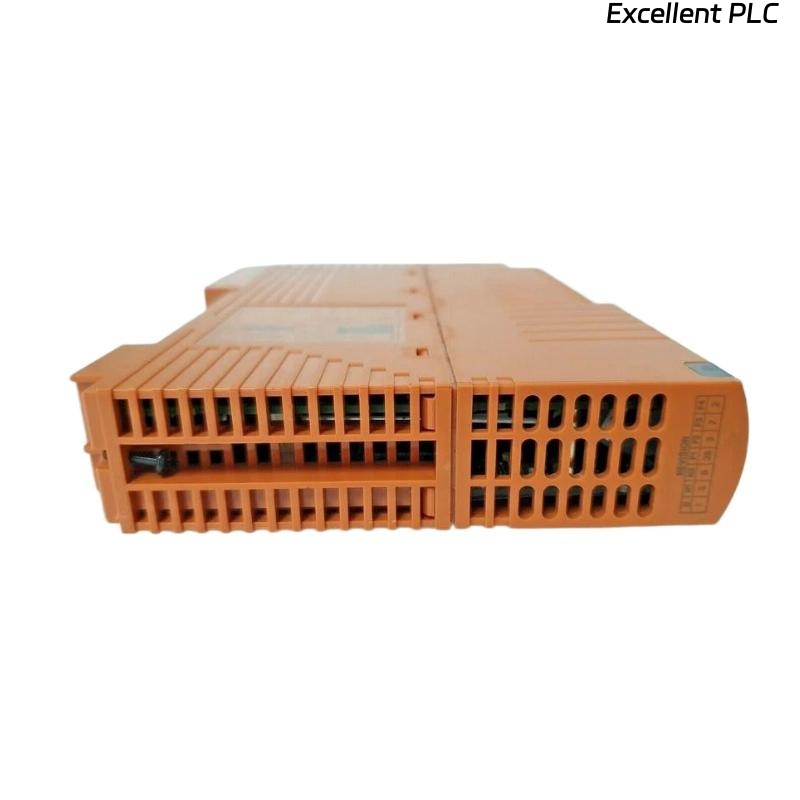

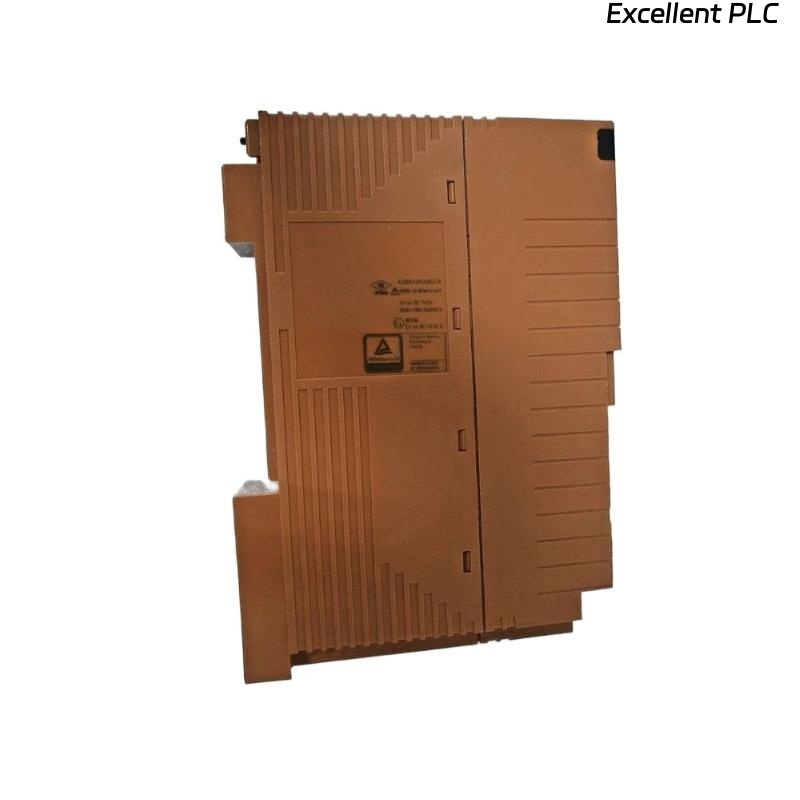

The Yokogawa SCP461-E1 Processor Module is a high-performance core processing unit for the F3 series control system, providing fast and reliable execution of real-time process control, data management, and communication tasks. It forms the central hub of distributed control systems, enabling seamless integration with I/O, power, and communication modules.
Key Features
-
High-speed processor for real-time process control
-
Compatible with F3 series Basic, I/O, and communication modules
-
Compact and rugged industrial design
-
Supports modular system configuration and expansion
-
Redundancy support for critical applications
-
Simplifies system maintenance and upgrades
-
Ensures accurate and reliable data processing
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | SCP461-E1 |
| Series | Yokogawa F3 Processor Modules |
| Function | Central processor for F3 series control systems |
| CPU | High-speed industrial processor |
| Memory | Built-in system memory for control and data processing |
| Communication | Supports internal F3 bus and network interfaces |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 199.5 × 146.5 × 32.8 mm |
| Weight | 0.7 kg |
| Mounting | DIN-rail or rack-mounted |
| Compliance | CE, UL, CSA |
Industry Applications
-
Power generation: turbine and boiler control
-
Oil & gas: real-time monitoring and automation
-
Chemical & petrochemical: process control for reactors and pipelines
-
Manufacturing: industrial automation and process monitoring
-
Water & wastewater treatment: process control and monitoring
-
Food & beverage: automated process control
-
Any industrial system requiring centralized high-speed processing
Advantages
-
Provides fast, reliable, and accurate centralized processing
-
Integrates seamlessly with F3 series modules
-
Rugged design suitable for industrial environments
-
Supports system redundancy and modular expansion
-
Simplifies maintenance and reduces downtime
Frequently Asked Questions (FAQ)
Q1: What is the main function of this module?
It serves as the central processor for F3 series control systems, handling real-time process control and data processing.
Q2: Which modules is it compatible with?
It integrates with F3 Basic, I/O, communication, and power modules.
Q3: What is the operating temperature range?
0 °C to +55 °C.
Q4: How is it mounted?
DIN-rail or rack-mounted.
Q5: What power supply does it require?
24 VDC.
Q6: Is it suitable for industrial environments?
Yes, it is designed for rugged, continuous operation.
Q7: What is the weight of the module?
Approximately 0.7 kg.
Q8: Does it support redundancy?
Yes, it can be configured for redundant operation in critical systems.
Q9: What communication interfaces does it support?
Internal F3 bus and network interfaces for module integration.
Q10: Why choose this processor module?
It ensures reliable, high-speed centralized processing for F3 control systems, supporting modularity, redundancy, and seamless system integration.
