Product Overview

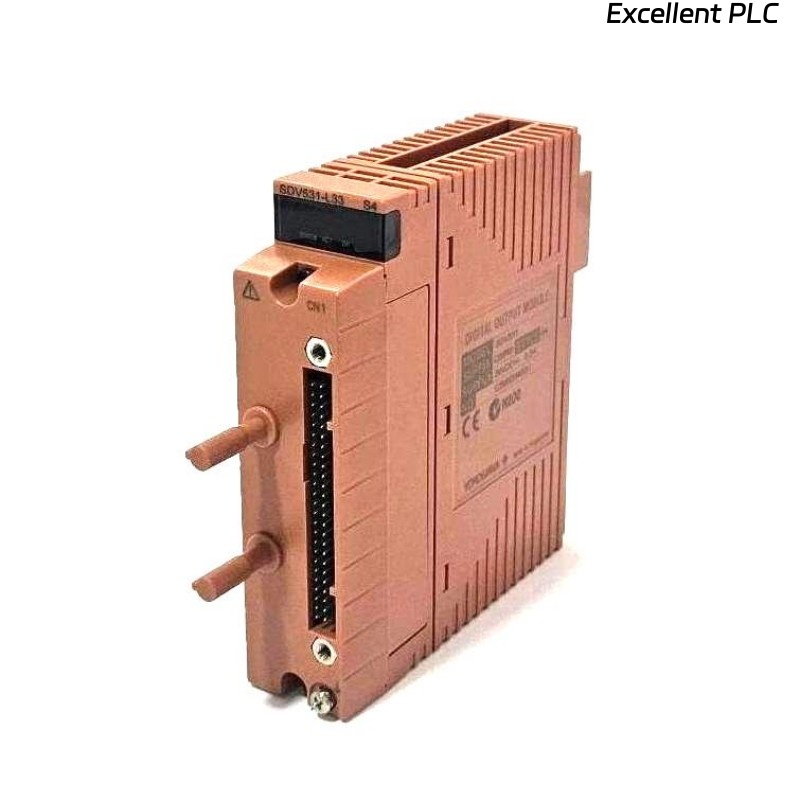

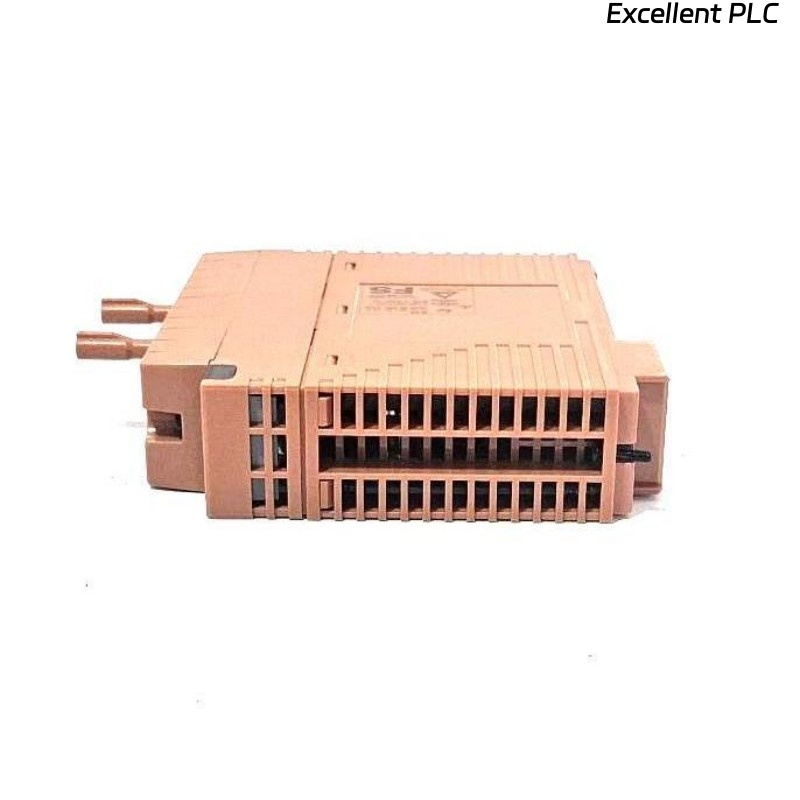

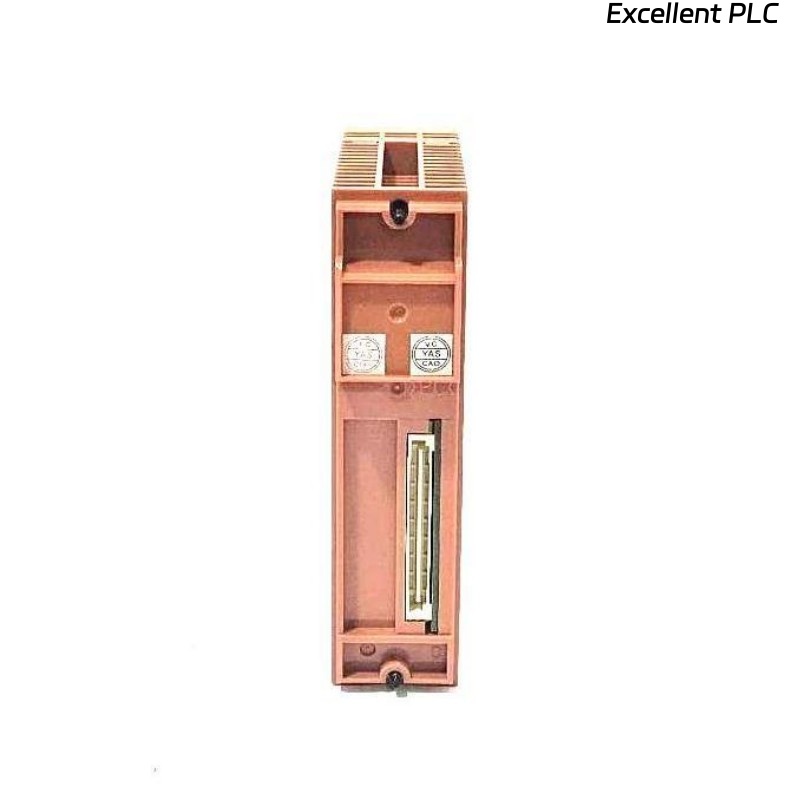

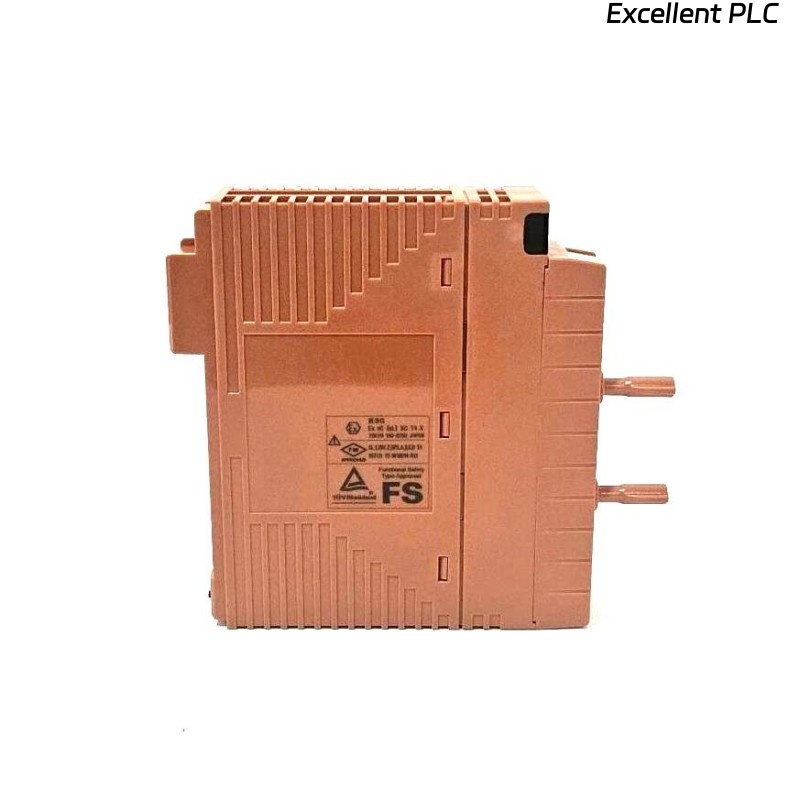

The Yokogawa SDV531-L33/PRP is a high-performance 32-channel digital output module designed for integration with Yokogawa Centum DCS systems. It provides reliable relay outputs for various field devices, ensuring precise and rapid control in industrial automation applications. The module supports dual-redundant configurations and offers built-in diagnostics for efficient operation and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 32 |
| Output Type | Relay |
| Output Voltage | 24 V DC |
| Output Current per Channel | 2 A |
| Response Time | 1 ms |
| Operating Temperature Range | -20°C to 60°C |
| Field Wiring Diagnostics | Integrated |
| Redundancy Support | Dual-redundant configuration |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.28 kg |
Applications
-
Industrial process control systems
-
Automation of actuators and relays
-
Integration with sensors and PLCs
-
Redundant DCS configurations for critical systems
-
Fast-response digital output requirements
Advantages
-
High Reliability: Dual-redundant support ensures continuous operation.
-
Fast Response: 1 ms response time enables precise control of field devices.
-
Diagnostic Capability: Built-in diagnostics reduce downtime and maintenance effort.
-
Compact Design: Small dimensions facilitate space-efficient panel installation.
-
Versatile Connectivity: Compatible with a wide range of actuators, relays, and sensors.
-
Durable Construction: Robust design for demanding industrial environments.
FAQ
1. What is the maximum output current of the module?
The SDV531-L33/PRP supports up to 2 A per channel.
2. How many output channels does it have?
It has 32 relay output channels.
3. Can it be used in redundant DCS systems?
Yes, it supports dual-redundant configurations for high reliability.
4. What is the response time for outputs?
The module provides a fast response time of 1 ms.
5. What types of devices can it control?
It can control actuators, relays, sensors, and compatible PLC devices.
6. What is the operating temperature range?
It operates reliably between -20°C and 60°C.
7. Does it have built-in diagnostics?
Yes, field wiring diagnostics are integrated for quick troubleshooting.
8. What is the module’s size and weight?
Dimensions are 130 x 107.5 x 32.8 mm and it weighs 0.28 kg.
9. Can the module handle both AC and DC outputs?
No, the outputs are 24 V DC relay type.
10. Is installation complex?
Installation is straightforward with standard Centum system procedures.
Related Models
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| SDV531-L31/PRP | 16 | Relay | 24 V DC | 130 x 107.5 x 32.8 | 0.28 |
| SDV531-L32/PRP | 32 | Relay | 24 V DC | 130 x 107.5 x 32.8 | 0.28 |
| SDV531-L34/PRP | 32 | Relay | 24 V DC | 130 x 107.5 x 32.8 | 0.28 |
| SDV531-L33/S3 | 32 | Relay | 24 V DC | 130 x 107.5 x 32.8 | 0.28 |
| SDV531-L35/PRP | 16 | Relay | 24 V DC | 130 x 107.5 x 32.8 | 0.28 |
| SDV531-L36/PRP | 32 | Relay | 24 V DC | 130 x 107.5 x 32.8 | 0.28 |
