Product Description

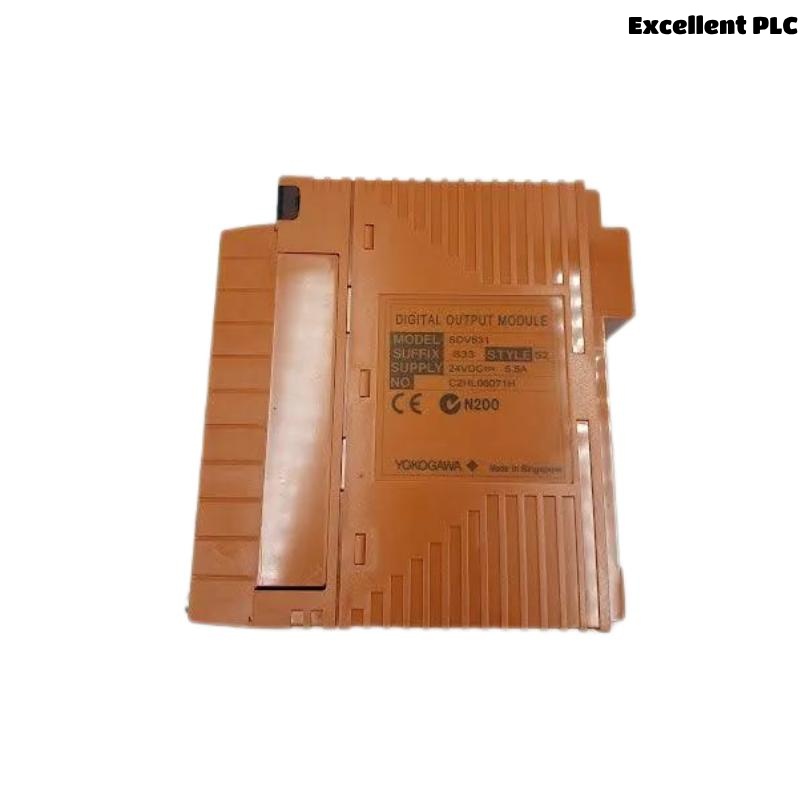

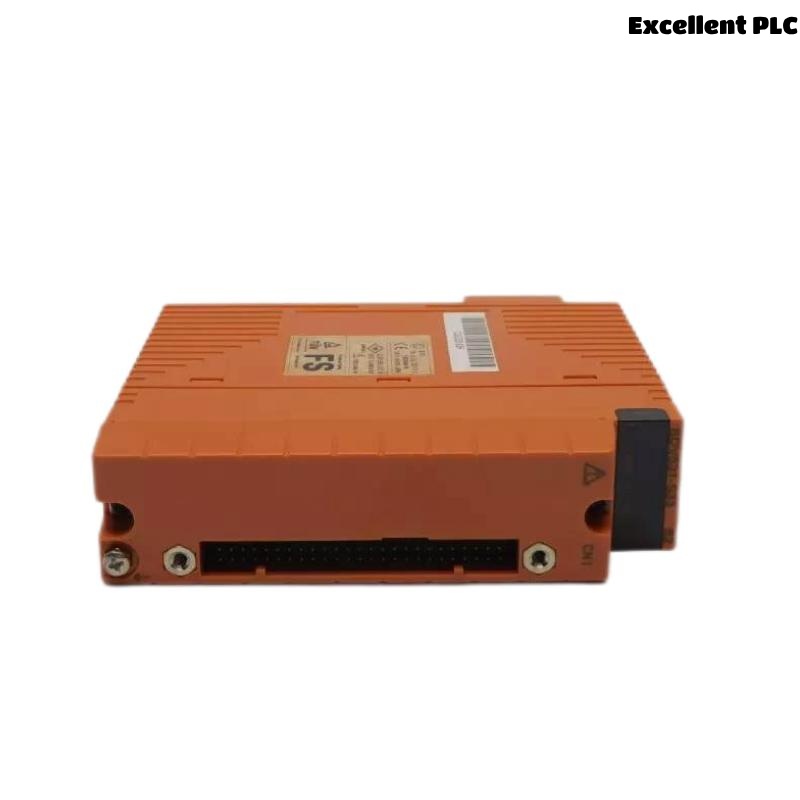

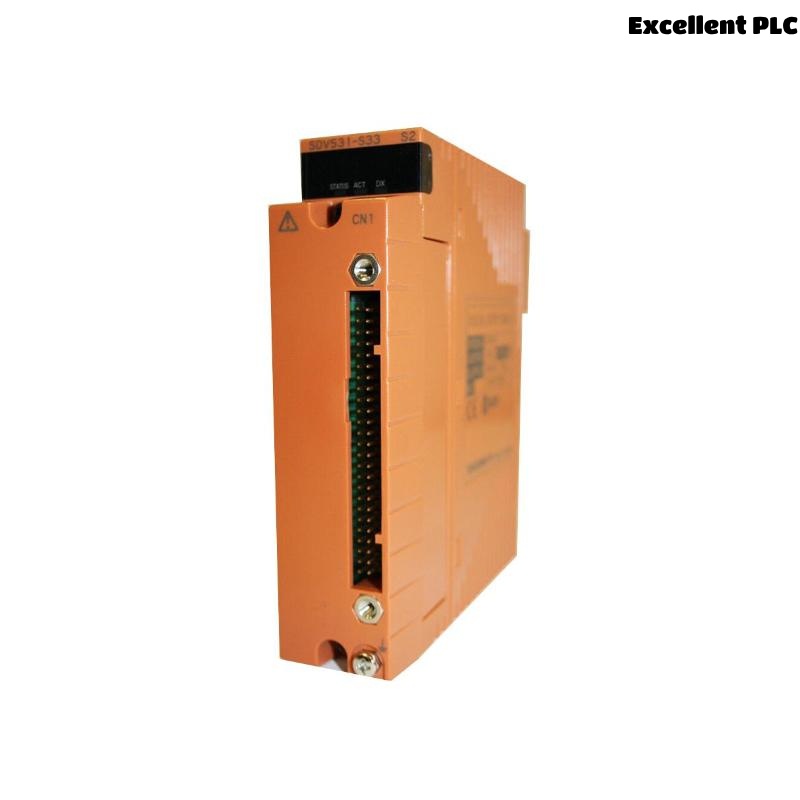

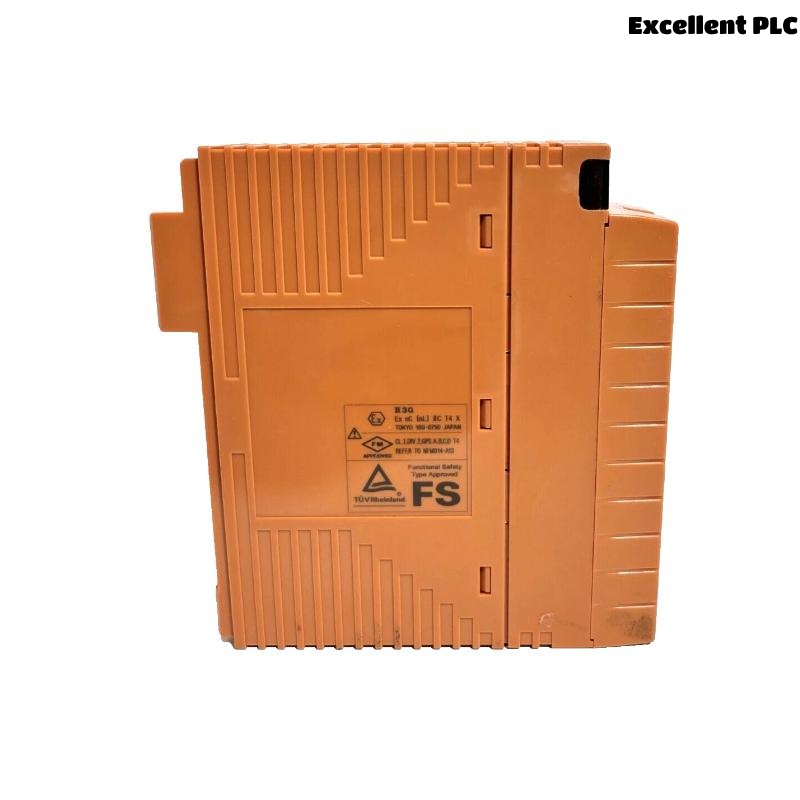

The Yokogawa SDV531-S33 is an 8-channel digital output module designed for use with ProSafe-RS safety systems. It outputs discrete on/off signals to field devices and offers isolated outputs to ensure safe and reliable operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDV531-S33 |
| Number of Output Channels | 8 channels, module isolation |
| Output Voltage | 24 V DC |
| Output Voltage Drop | ≤ 1 V |
| Output Format | Current source |
| Maximum Load Current | 0.6 A per output (4.8 A total) |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 40 – 685 Ω |
| Output Response Time | ≤ 30 ms |
| Maximum Leakage Current (OFF) | 1.6 mA |
| External Power Supply | 24 V DC ±20%, 5 A minimum |
| Power Consumption | 280 mA (5 V DC), 140 mA (24 V DC) |
| Withstand Voltage | 2 kV AC (1 min) between output & system |
| External Connection Options | Pressure clamp, MIL cable, or AKB331 |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.28 kg |
Applications
-
Emergency shutdown systems
-
Fire & gas detection systems
-
Process control interlocks
-
Safety-critical field actuation
-
Redundant control in high-integrity systems
Advantages
-
High Safety Integrity: Designed for use in SIL-rated safety systems.
-
Fast Switching: 30 ms max response time for rapid control.
-
Robust Isolation: 2 kV AC withstand voltage between outputs and system.
-
Flexible Wiring: Compatible with multiple connector types.
-
Redundancy Support: Can be configured in dual-redundant setups.
Frequently Asked Questions (FAQs)
Q1: What is the rated output voltage of the SDV531-S33?
A1: It provides 24 V DC output voltage.
Q2: How many channels are supported?
A2: The module supports 8 isolated output channels.
Q3: Can this module be used in SIL-rated safety systems?
A3: Yes, it is designed for ProSafe-RS, which supports SIL applications.
Q4: What is the maximum load current per output?
A4: Each channel can handle up to 0.6 A.
Q5: What types of external connections are supported?
A5: It supports pressure clamps, MIL connectors, and dedicated signal cables.
Q6: Is the module suitable for redundant configurations?
A6: Yes, it supports dual-redundant installations.
Q7: What is the output response time?
A7: The module responds in 30 milliseconds or less.
Q8: Does it provide short circuit detection?
A8: No external diagnosis components are needed as internal diagnostics are built in.
Q9: What is the module’s size and weight?
A9: Dimensions are 130 x 107.5 x 32.8 mm and weight is 0.28 kg.
Q10: What is the recommended power supply rating?
A10: 24 V DC with a minimum of 5 A current capacity.
Related or Similar Models
| Model | Channels | Output Voltage | Max Load/Channel | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| SDV521 | 4 | 24 V DC | 2 A | 130 x 107.5 x 32.8 | 0.36 kg |
| SDV541 | 16 | 24 V DC | 0.2 A | 130 x 107.5 x 32.8 | 0.29 kg |
| SDV526 | 4 | 100-120 V AC | 0.5 A | 159.8 x 94 x 32.8 | 0.36 kg |
| SDV53A | 8 | 48 V DC | 0.6 A | 159.8 x 94 x 32.8 | 0.46 kg |
| SDV531-L33 | 8 | 24 V DC | 0.6 A | 130 x 107.5 x 32.8 | 0.28 kg |
| SDV531-SF3 | 8 | 24 V DC | 0.6 A | 130 x 107.5 x 32.8 | 0.34 kg |
