Product Introduction

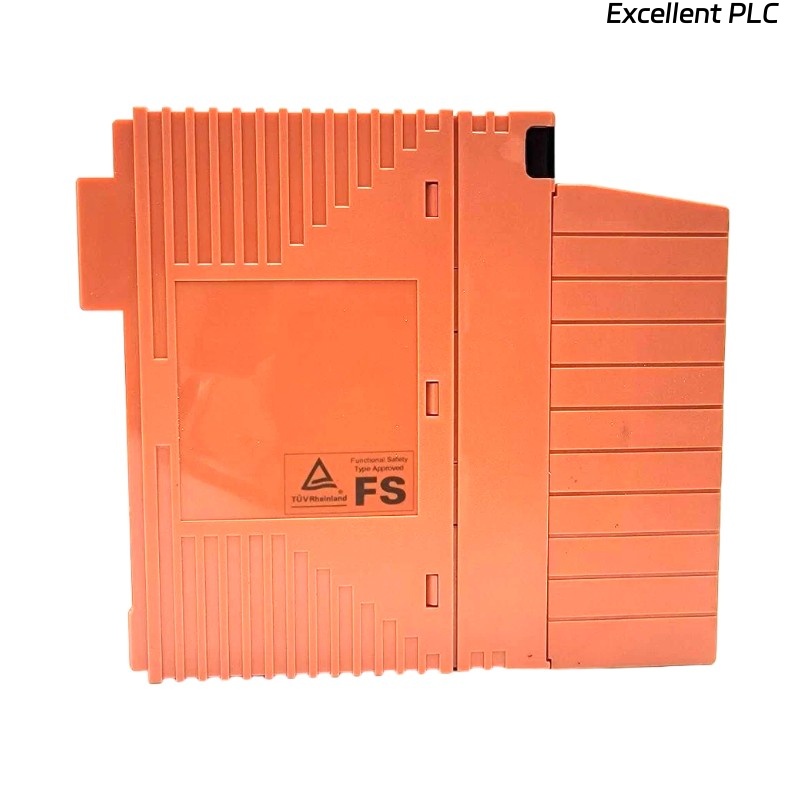

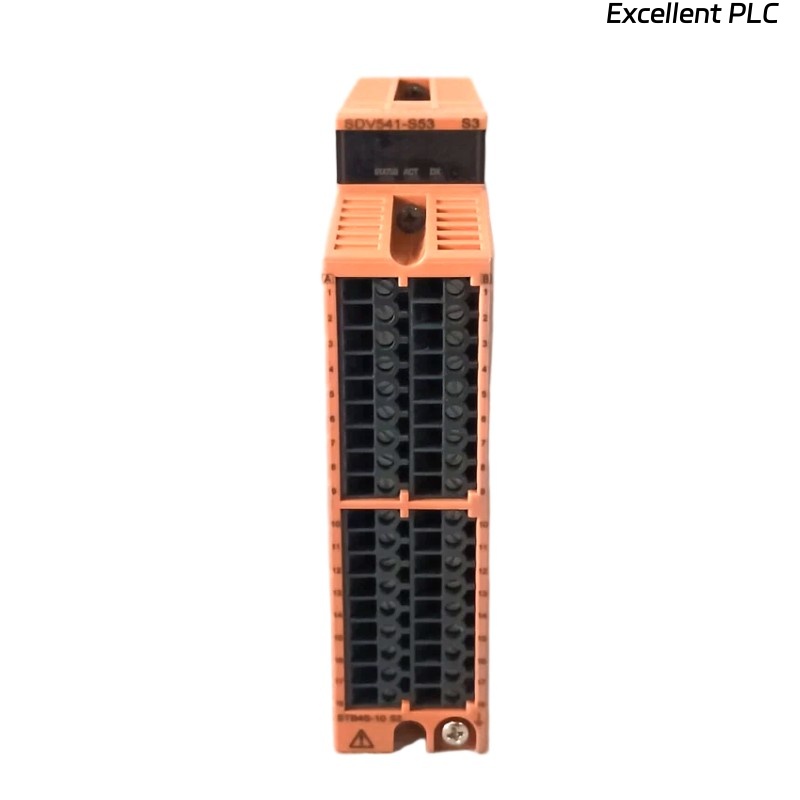

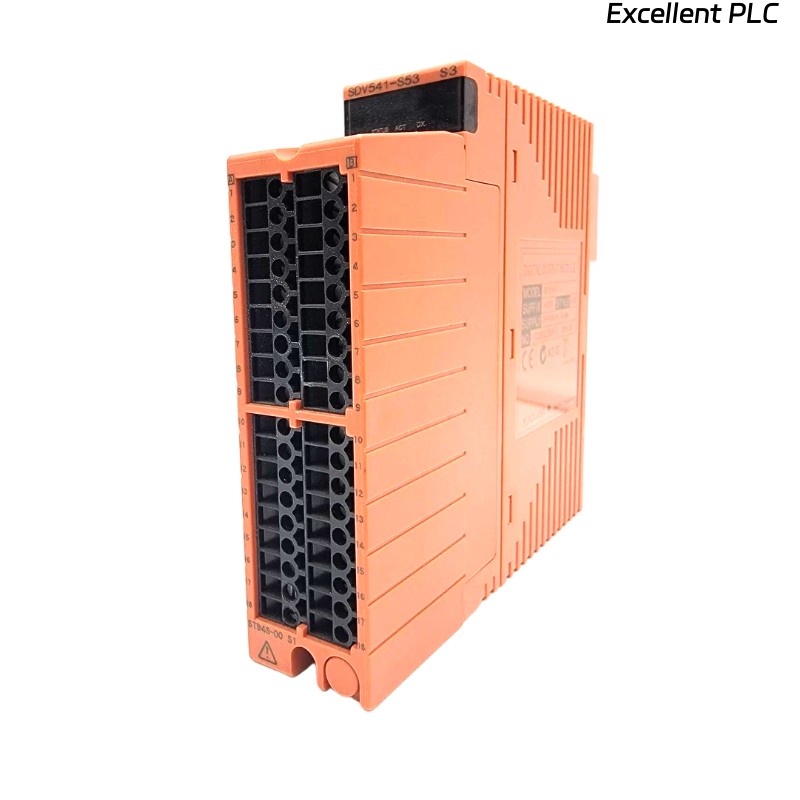

The Yokogawa SDV541-S53/B4D00 Digital Output Module is a high-performance I/O component designed for integration within the Yokogawa CENTUM VP and ProSafe-RS control systems. It provides reliable and precise digital output signals to field devices such as relays, solenoids, and actuators. With robust construction and enhanced diagnostic features, this module ensures consistent performance in critical industrial applications where high availability and accuracy are required.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | SDV541-S53/B4D00 |
| Module Type | Digital Output Module |
| Output Channels | 16 channels |
| Output Signal Type | 24 VDC (nominal), transistor output |
| Isolation | Channel-to-bus and channel-to-channel isolation provided |
| Response Time | < 1 ms (typical) |
| Power Supply Requirement | 24 VDC (redundant supported) |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity Range | 10% to 90% RH (non-condensing) |
| Diagnostic Functions | Output monitoring, self-diagnostics, communication error detection |
| Mounting | Installed in standard Yokogawa V-net or FCS I/O rack |
| Dimensions | 130 x 129.5 x 32.8 mm |
| Weight | 0.24 kg |
Product Applications
-
Distributed Control Systems (DCS) for process industries
-
Emergency shutdown systems (ESD) in petrochemical and oil & gas plants
-
Power plant control systems for turbine and auxiliary equipment
-
Pharmaceutical and chemical manufacturing for precise output control
-
Water treatment facilities requiring reliable digital actuation
-
Any critical application requiring redundancy and high reliability
Product Advantages
-
High Reliability: Built to Yokogawa’s industrial standards, ensuring stable long-term operation.
-
Fast Response: Provides rapid digital output switching suitable for time-critical operations.
-
Advanced Diagnostics: Offers built-in monitoring for fault detection, improving system maintenance.
-
System Integration: Seamlessly integrates into Yokogawa control architectures (CENTUM VP and ProSafe-RS).
-
Compact Design: Saves cabinet space while delivering high channel density.
-
Redundancy Support: Compatible with redundant configurations for increased system availability.
FAQ
Q1: What type of isolation is provided by the SDV541-S53/B4D00?
A1: It provides channel-to-bus and channel-to-channel isolation to prevent fault propagation.
Q2: Can this module be used in redundant configurations?
A2: Yes, it fully supports redundant power and system configurations for high availability.
Q3: What is the nominal output voltage of this digital output module?
A3: The nominal output voltage is 24 VDC.
Q4: How fast is the response time of the output channels?
A4: The response time is typically less than 1 millisecond.
Q5: Does the module provide self-diagnostic functions?
A5: Yes, it includes diagnostics such as communication error detection and output monitoring.
Q6: Which Yokogawa control systems are compatible with this module?
A6: It is designed for use with CENTUM VP and ProSafe-RS systems.
Q7: What kind of loads can be driven by the digital output channels?
A7: The outputs can drive devices such as solenoids, relays, and small actuators.
Q8: Is hot-swapping supported for this module?
A8: Yes, the module can be replaced online without shutting down the system rack.
Q9: What is the operating temperature range for reliable use?
A9: The operating temperature range is from 0 °C to 55 °C.
Q10: How does the module detect and handle communication errors?
A10: It continuously monitors data exchange with the system bus and triggers alarms in case of errors.
