Product Overview

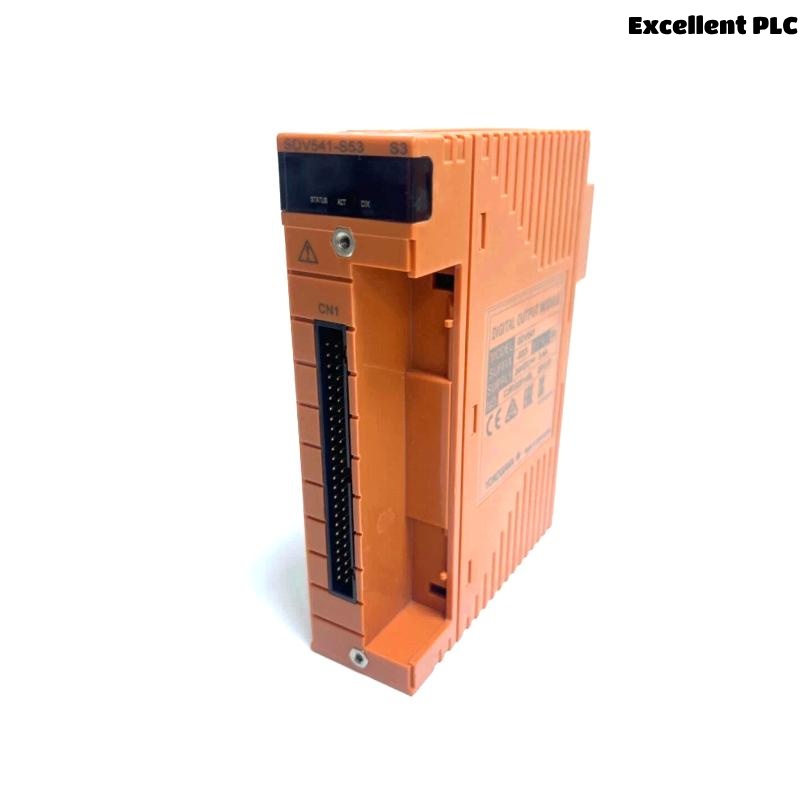

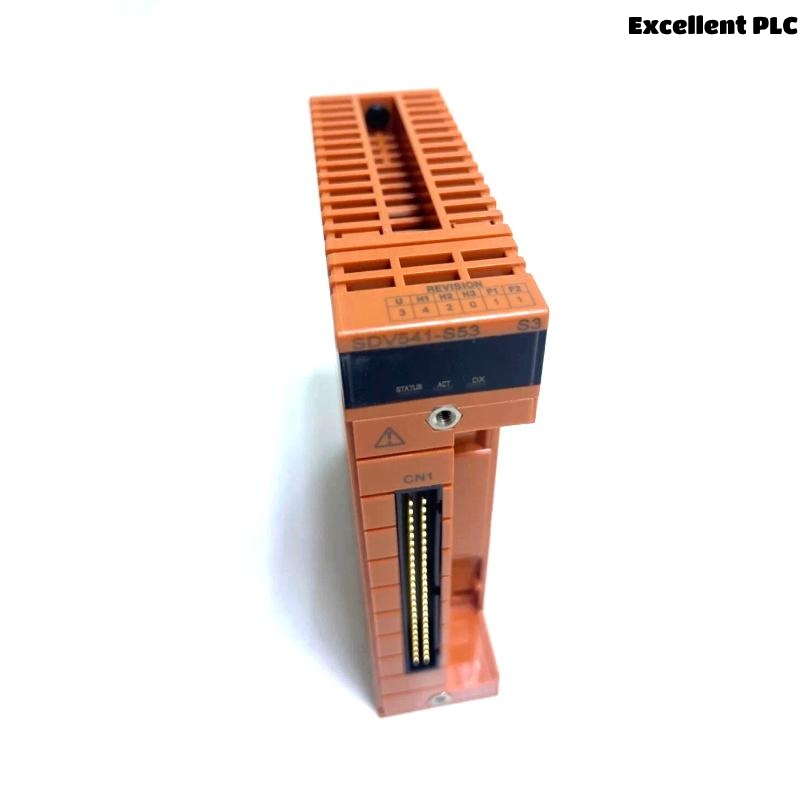

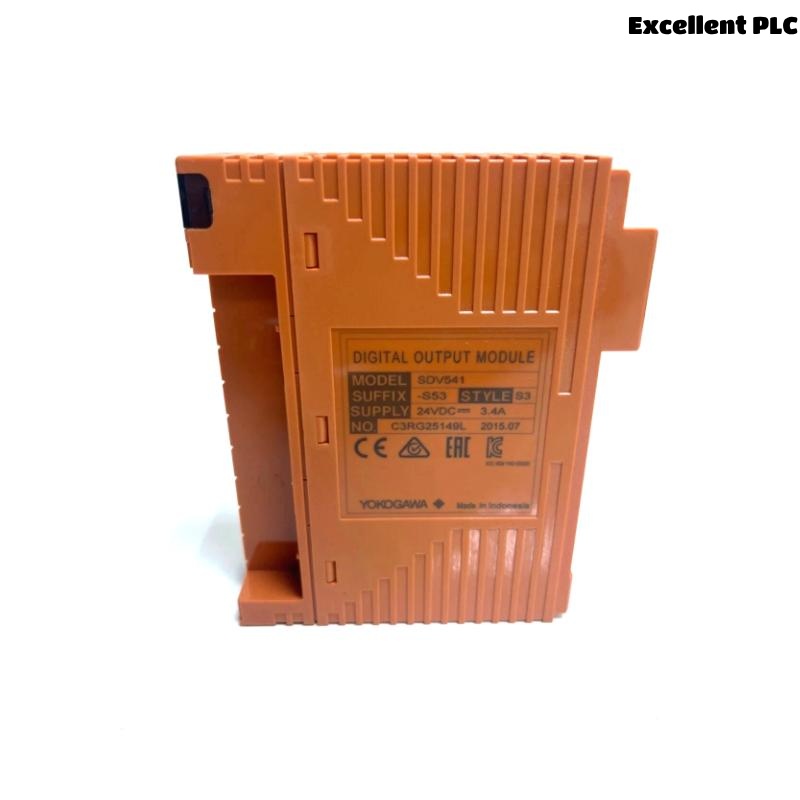

The Yokogawa SDV541-S53 Digital Output Module is a high-performance digital output unit designed for use in Yokogawa’s CENTUM VP and ProSafe-RS systems. It offers 16 channels of NPN open collector outputs for reliable control of actuators such as relays and solenoids. The module is engineered for harsh industrial environments, providing reliable performance in safety and process automation applications.

---

Technical Specifications

---

Applications

• Emergency shutdown systems (ESD)

• Distributed control systems (DCS)

• Power plant automation

• Oil & gas process control

• Batch process control systems

• Chemical and petrochemical plant operations

---

Advantages

• Compact form factor with high-density 16-channel output

• Fast switching suitable for demanding automation tasks

• Integrated diagnostics for enhanced operational reliability

• Optical isolation improves electrical noise immunity

• Seamless integration into Yokogawa control systems

• Designed for high-temperature and rugged environments

---

FAQ

Q1: How many outputs does the SDV541-S53 provide?
A1: It provides 16 digital output channels.

Q2: What is the maximum current capacity per output?
A2: Each output can handle up to 0.5 A.

Q3: Is it suitable for safety-related systems?
A3: Yes, it can be used with Yokogawa’s ProSafe-RS systems.

Q4: What type of output does it use?
A4: NPN open collector transistor (sink type) output.

Q5: Does it support diagnostics?
A5: Yes, it supports output diagnostics for fault detection.

Q6: What isolation method is used?
A6: Optical isolation is used per channel.

Q7: What is the operating temperature range?
A7: It operates from -20°C to +70°C.

Q8: How much power does the module consume?
A8: It consumes approximately 3.5 W.

Q9: Can it be used in a ProSafe-RS safety loop?
A9: Yes, it is designed for safety system integration.

Q10: What are the physical dimensions and weight?
A10: Dimensions are 130 x 107.5 x 32.8 mm, and weight is 0.29 kg.

---

Related Models (Same Series or Functionality)

---

Popular Yokogawa Models

FAQ

Q1: How many outputs does the SDV541-S53 provide?
A1: It provides 16 digital output channels.

Q2: What is the maximum current capacity per output?
A2: Each output can handle up to 0.5 A.

Q3: Is it suitable for safety-related systems?
A3: Yes, it can be used with Yokogawa’s ProSafe-RS systems.

Q4: What type of output does it use?
A4: NPN open collector transistor (sink type) output.

Q5: Does it support diagnostics?
A5: Yes, it supports output diagnostics for fault detection.

Q6: What isolation method is used?
A6: Optical isolation is used per channel.

Q7: What is the operating temperature range?
A7: It operates from -20°C to +70°C.

Q8: How much power does the module consume?
A8: It consumes approximately 3.5 W.

Q9: Can it be used in a ProSafe-RS safety loop?
A9: Yes, it is designed for safety system integration.

Q10: What are the physical dimensions and weight?
A10: Dimensions are 130 x 107.5 x 32.8 mm, and weight is 0.29 kg.
