Product Overview

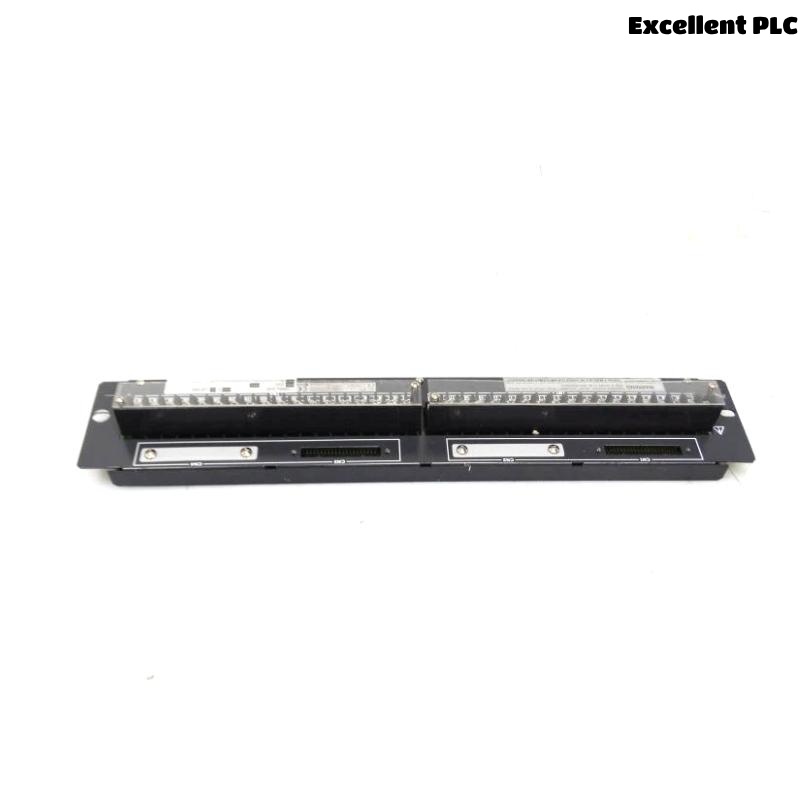

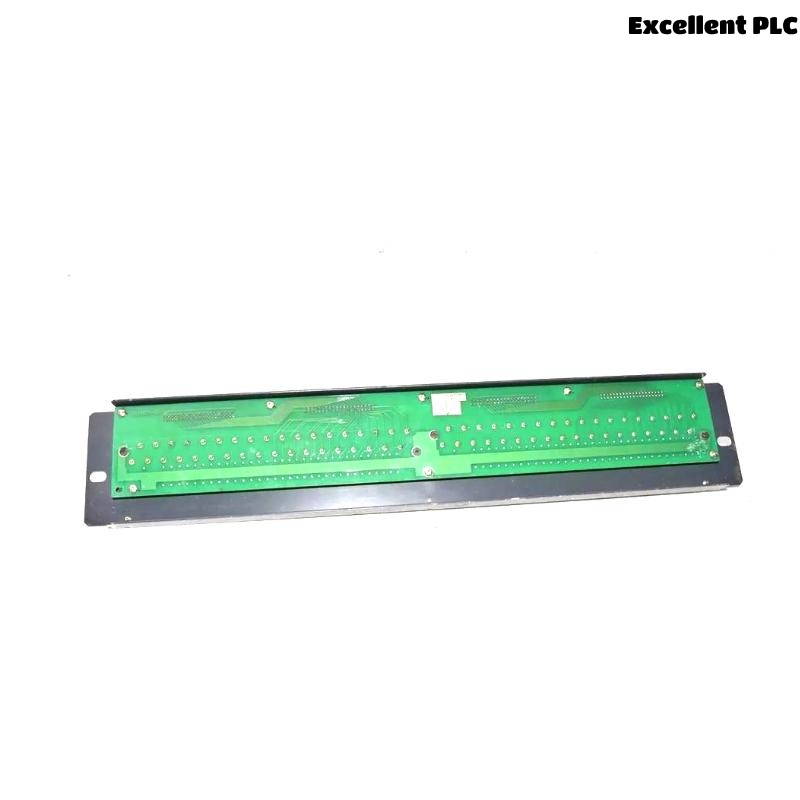

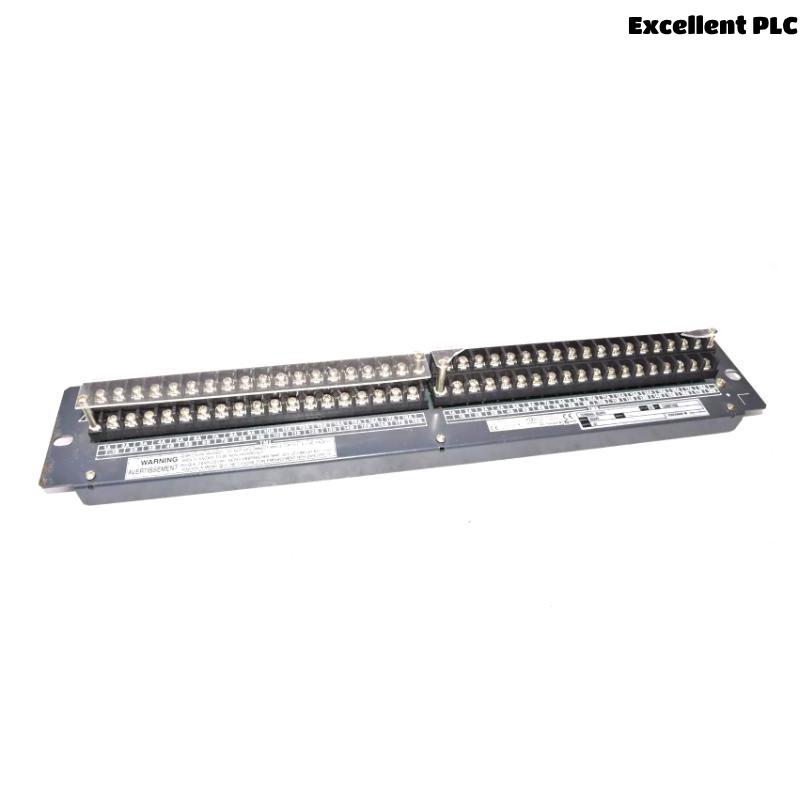

The Yokogawa SEA4D-01 is a high-performance analog output module designed for use in the Yokogawa STARDOM automation system. This unit plays a crucial role in process control systems by converting digital control signals into analog outputs for controlling actuators such as valves and variable speed drives. Known for its precision, durability, and compatibility within distributed control systems, the SEA4D-01 enhances operational efficiency in both industrial and infrastructure automation scenarios.
Its robust design ensures long-term reliability even in harsh environments. The SEA4D-01 supports multi-channel analog output and provides accurate, isolated signals which are vital for maintaining system stability and precision.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | SEA4D-01 |
| Function | Analog Output Module (4 channels) |
| Output Signal Type | 4–20 mA or 0–10 V (configurable per channel) |
| Resolution | 12-bit |
| Number of Output Channels | 4 |
| Isolation | Channel-to-channel and channel-to-ground |
| Load Resistance | 600 Ω max (current output) |
| Accuracy | ±0.1% of full scale |
| Update Rate | 10 ms |
| Power Supply Voltage | 24 V DC ±10% |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Humidity Range | 5 to 95% RH (non-condensing) |
| Dimensions | 482.6 x 88.1 x 85mm |
| Weight | 1.5kg |
| Mounting Type | DIN rail mounting |
| Compatible Systems | Yokogawa STARDOM FCN/FCJ series |
Product Applications
-
Industrial Process Control: Manages analog signal outputs to actuators in refineries, chemical plants, and food production.
-
Power Generation: Outputs control signals to regulate voltage and turbine operations.
-
Water Treatment Plants: Controls pumps and valves through analog signal actuation.
-
HVAC Systems: Adjusts damper positions and valve operations in climate control systems.
-
Building Automation: Integrated into BMS (Building Management Systems) for analog control outputs.
-
Oil & Gas Facilities: Provides control for pressure valves and motorized actuators.
Product Advantages
-
High Signal Accuracy: Ensures precise output control with minimal deviation.
-
Channel Isolation: Prevents signal interference and enhances operational safety.
-
Compact Design: Saves space in panel installations with a slim, DIN-rail-mountable body.
-
Flexible Configuration: Each channel can be independently set for current or voltage output.
-
Robust Environmental Tolerance: Performs reliably in wide temperature and humidity ranges.
-
Seamless Integration: Fully compatible with Yokogawa’s STARDOM system for plug-and-play deployment.
-
Reduced Maintenance: Designed with long-term reliability, reducing operational downtime.
Frequently Asked Questions (FAQ)
Q1: What signal types does the SEA4D-01 support?
A1: It supports both 4–20 mA current outputs and 0–10 V voltage outputs per configurable channel.
Q2: Can the output channels be configured independently?
A2: Yes, each of the 4 output channels can be configured independently for voltage or current output.
Q3: What is the accuracy of the analog output?
A3: The output accuracy is ±0.1% of the full scale.
Q4: Is the module isolated?
A4: Yes, each channel is isolated from the others and from ground to prevent cross-talk and improve safety.
Q5: Which systems is SEA4D-01 compatible with?
A5: It is compatible with Yokogawa’s STARDOM FCN and FCJ series controllers.
Q6: How is the module mounted?
A6: It is DIN-rail mountable for easy and secure installation in control panels.
Q7: What is the power requirement for this module?
A7: It operates at 24 V DC ±10%, consuming approximately 4.5 watts.
Q8: Can the module be used in outdoor environments?
A8: The module should be housed in a protective enclosure if used outdoors, as it is not IP-rated on its own.
Q9: What kind of maintenance does it require?
A9: It is designed for long-term use with minimal maintenance. Periodic calibration checks are recommended.
Q10: Is software configuration required?
A10: Yes, initial configuration is done through Yokogawa’s engineering tool or STARDOM configurator software.
6 Related or Same-Series Models
| Model | Function |
|---|---|
| SEA4S-01 | Analog input module (4 channels) |
| SEA4D-02 | Analog output module (8 channels) |
| SEB5D-01 | Digital output module |
| SEB5S-01 | Digital input module |
| SED2D-01 | Pulse output module |
| SEC1S-01 | Communication interface module |
