Product Introduction

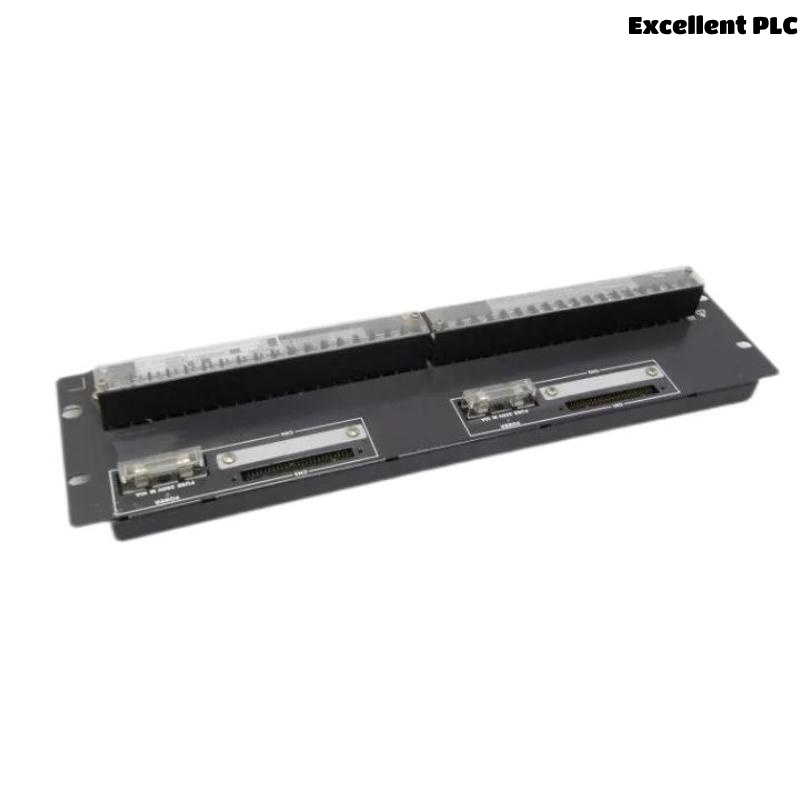

The Yokogawa SED4D-01 is a high-performance digital terminal board designed to support industrial automation systems with efficient signal processing and terminal management. As an essential component in Yokogawa’s extensive automation portfolio, the SED4D-01 is engineered for applications that require secure and stable connections between digital inputs, outputs, and control systems.
This terminal board is equipped with advanced features for digital signal integration and provides a reliable interface between field devices and control equipment. Designed to enhance system reliability and simplify maintenance, the SED4D-01 can manage multiple terminal connections with ease. Its robust design ensures continuous operation even under demanding conditions, making it a crucial piece for industrial setups in various sectors.
The SED4D-01 comes with a size of 482.6 x 132.5 x 85 mm and weighs 1.5 kg, ensuring easy integration into most automation racks and control cabinets.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | SED4D-01 |
| Product Type | Digital Terminal Board |
| Dimensions | 482.6 x 132.5 x 85 mm |
| Weight | 1.5 kg |
| Input Type | Digital Inputs (24 V DC) |
| Output Type | Digital Outputs (Relay or Transistor) |
| Power Supply | 24 V DC (Nominal) |
| Operating Temperature | -10°C to +60°C |
| Mounting | DIN Rail or Panel Mount |
| Communication Interface | SCADA, DCS, PLC systems |
| Status Indication | LED Indicators for Power and Signal Status |
| Protection | Overcurrent and Overvoltage Protection |
Product Applications
The Yokogawa SED4D-01 digital terminal board is suitable for a wide range of industrial applications. It is primarily used to interface between digital field devices and control systems, offering a versatile solution for various automation systems. The key applications of this terminal board include:
-
Process Automation Systems: The SED4D-01 enables seamless integration of digital inputs and outputs in process automation setups, allowing for efficient control and monitoring of industrial processes.
-
Building Automation: In building management systems, this terminal board facilitates the connection of digital sensors, actuators, and controllers, enhancing the efficiency of systems like HVAC and lighting control.
-
SCADA Systems: The board is often deployed in SCADA (Supervisory Control and Data Acquisition) systems, where it acts as a critical interface for digital data communication between field devices and central control systems.
-
Control Systems for Manufacturing: In manufacturing plants, the SED4D-01 is used for reliable digital signal transmission, enabling control systems to process inputs and outputs from a wide array of factory devices such as pumps, motors, and sensors.
-
Energy Management Systems: The terminal board integrates energy meters and actuators into energy management systems, enabling precise data acquisition and real-time energy monitoring.
-
Water Treatment Plants: For applications in water treatment, the SED4D-01 interfaces with digital sensors and valves, contributing to the efficient operation of the treatment processes.
Product Advantages
-
High Compatibility:
The SED4D-01 supports a wide range of digital inputs and outputs, making it highly compatible with various field devices and control systems. This ensures a seamless integration into existing automation systems. -
Reliable Operation:
With robust features like overcurrent and overvoltage protection, the SED4D-01 ensures reliable operation even under harsh industrial conditions, enhancing system uptime and reducing maintenance costs. -
Easy Installation and Maintenance:
The board can be easily mounted on a DIN rail or panel mount, making it ideal for installation in control cabinets and automation racks. The LED indicators provide real-time status monitoring, simplifying troubleshooting and maintenance. -
Wide Temperature Range:
With an operating temperature range of -10°C to +60°C, the SED4D-01 can withstand challenging environments, ensuring continuous operation in demanding industrial settings. -
Efficient Digital Signal Processing:
The board is designed to efficiently handle digital signal processing, reducing the load on the main control system and enhancing overall performance. -
Compact Design:
The SED4D-01 boasts a compact design of 482.6 x 132.5 x 85 mm and weighs only 1.5 kg, which makes it ideal for systems with limited space. -
Versatile Communication Interface:
The board supports SCADA, DCS, and PLC communication protocols, providing versatility in various industrial control systems. -
Improved System Reliability:
With its rugged construction and built-in protections, the SED4D-01 minimizes the risk of system failures, ensuring continuous operation in critical applications. -
Enhanced Control Integration:
The SED4D-01 ensures smooth and effective integration of field devices into automation systems, improving the overall control and monitoring of industrial operations. -
Cost-Effective:
The board provides a cost-effective solution for managing digital inputs and outputs without compromising on performance, offering a great balance between cost and reliability.
Frequently Asked Questions (FAQ)
-
Q: What is the Yokogawa SED4D-01?
A: The SED4D-01 is a digital terminal board that provides reliable connectivity between field devices and control systems in automation environments. -
Q: What is the weight of the SED4D-01?
A: The SED4D-01 weighs approximately 1.5 kg. -
Q: What is the temperature range for the SED4D-01?
A: The SED4D-01 operates within a temperature range of -10°C to +60°C. -
Q: How is the SED4D-01 mounted?
A: The module can be mounted on DIN rails or panel mounts, offering flexibility in installation. -
Q: What types of inputs and outputs are supported by the SED4D-01?
A: The SED4D-01 supports digital inputs (24V DC) and digital outputs (relay or transistor). -
Q: What communication protocols are compatible with the SED4D-01?
A: The board is compatible with SCADA, DCS, and PLC systems for communication. -
Q: Can the SED4D-01 be used in hazardous environments?
A: Yes, it is designed for use in industrial environments, including hazardous settings, with protection against overcurrent and overvoltage. -
Q: What are the dimensions of the SED4D-01?
A: The SED4D-01 has dimensions of 482.6 x 132.5 x 85 mm. -
Q: What is the power supply requirement for the SED4D-01?
A: The SED4D-01 requires a 24 V DC power supply. -
Q: How does the SED4D-01 help with troubleshooting?
A: The board is equipped with LED indicators that provide real-time status monitoring, which simplifies troubleshooting and maintenance.
Recommended Related Models
| Model Number | Description |
|---|---|
| SED4D-02 | Advanced Digital Terminal Board with enhanced I/O capabilities |
| SED4D-03 | Compact terminal board for smaller automation systems |
| SED4D-04 | High-performance terminal board with integrated protection features |
| SED4D-05 | Flexible I/O terminal for multi-protocol communication |
| SED4D-06 | Terminal board with support for analog inputs and outputs |
| SED4D-07 | Extended I/O board with higher communication speeds |
