Product Overview

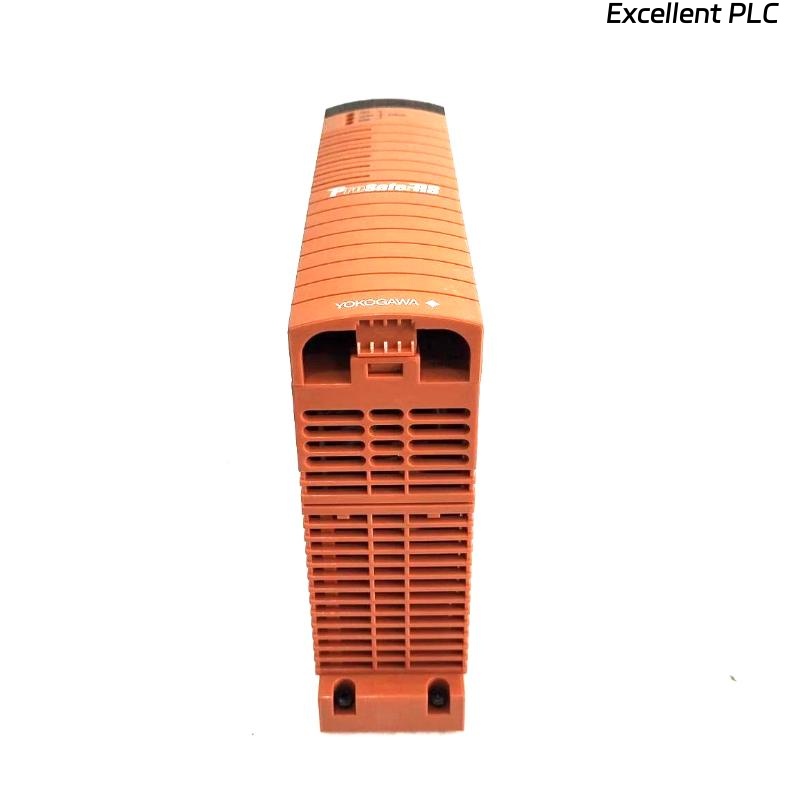

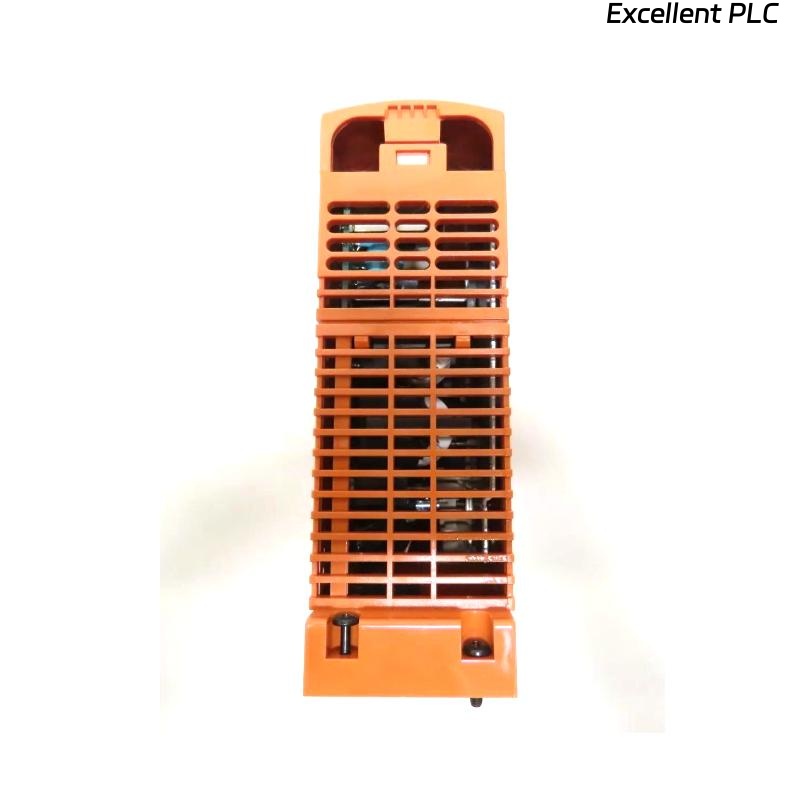

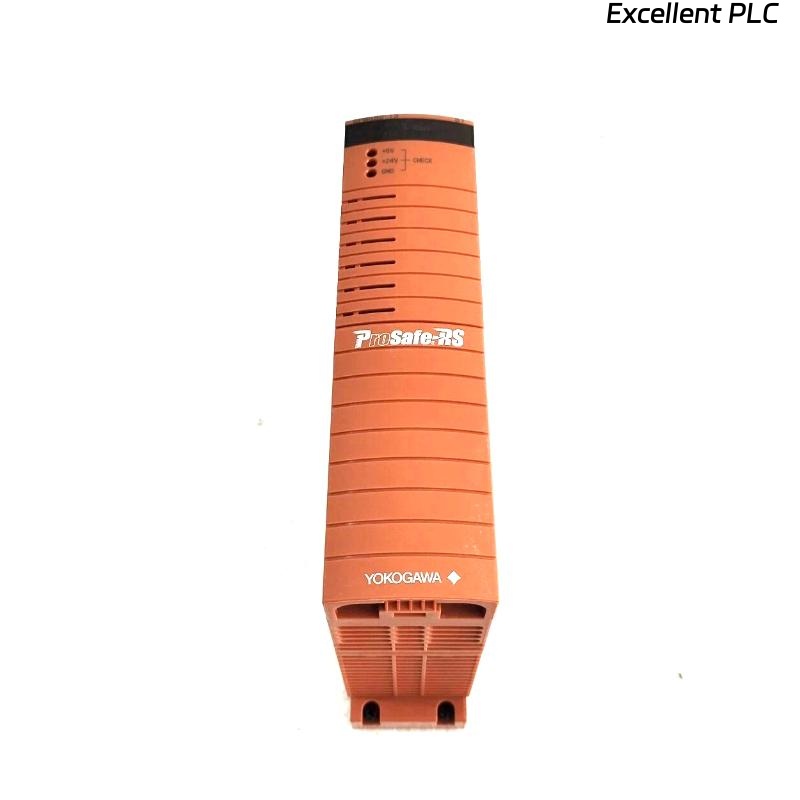

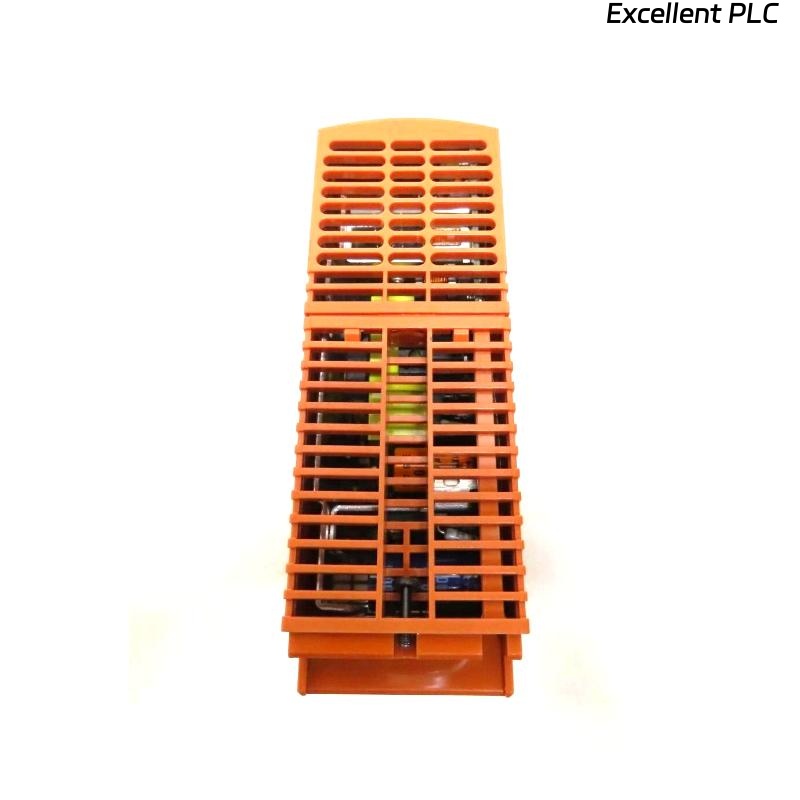

The Yokogawa SPW482-13 S1 is a high-performance dual-output power supply module designed for the ProSafe-RS safety instrumented system. It delivers reliable power for critical industrial processes, featuring high efficiency, redundancy capability, and protection against electrical faults.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 220–240V AC, 50/60 Hz |
| Output Voltage | 5.1V DC at 7.8A, 24V DC at 1.7A |
| Power Consumption | 160W |
| Efficiency | 85% |
| Protection | Short circuit, overload, overvoltage, undervoltage |
| Dimensions (W × H × D) | 44.45 × 264.2 × 186 mm |
| Weight | 1.4 kg |
| Mounting | DIN rail mountable |
| Operating Temperature | -10°C to +55°C |
| Protection Class | IP20 |
Applications
-
Safety Instrumented Systems (SIS) in process control
-
Redundant power systems for industrial automation
-
Critical process plants requiring reliable power delivery
-
Hot-swappable power modules in continuous operation environments
Advantages
-
High efficiency and low heat generation
-
Dual-output design for versatile system compatibility
-
Hot-swappable for minimal downtime
-
Redundancy support enhances system reliability
-
Comprehensive electrical protection for fault prevention
Frequently Asked Questions (FAQ)
1. What is the main purpose of the SPW482-13 S1 module?
It provides stable dual-output power for ProSafe-RS safety systems, ensuring uninterrupted operation.
2. Can it operate in redundant configurations?
Yes, it supports dual-redundant setups to increase system reliability.
3. What protection features does it offer?
It includes short-circuit, overload, overvoltage, and undervoltage protection.
4. Is it hot-swappable?
Yes, it can be replaced without shutting down the system.
5. What is the operating temperature range?
The module operates safely between -10°C and +55°C.
6. What type of mounting is required?
It is designed for DIN rail mounting.
7. What are the output specifications?
5.1V DC at 7.8A and 24V DC at 1.7A.
8. How efficient is the module?
The efficiency is rated at 85%.
9. What industrial applications is it suitable for?
It is ideal for process control, safety instrumented systems, and critical power supply setups.
10. What are the module’s dimensions and weight?
Dimensions: 44.45 × 264.2 × 186 mm; Weight: 1.4 kg.
Recommended Related Models
| Model | Description | Output Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| SPW482-11 | Single-output module for ProSafe-RS | 24V DC at 3A | 44.45 × 264.2 × 186 | 1.3 kg |
| SPW482-12 | Dual-output module | 5V DC at 5A, 24V DC at 1.5A | 44.45 × 264.2 × 186 | 1.35 kg |
| SPW482-14 | High-capacity dual-output module | 5V DC at 10A, 24V DC at 3A | 44.45 × 264.2 × 186 | 1.6 kg |
| SPW482-15 | Redundant module for safety systems | 24V DC at 2A | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-16 | Advanced power module for ProSafe-RS | 5V DC at 7A, 24V DC at 2A | 44.45 × 264.2 × 186 | 1.45 kg |
| SPW482-17 | Enhanced reliability power module | 24V DC at 3A | 44.45 × 264.2 × 186 | 1.5 kg |
