Product Overview

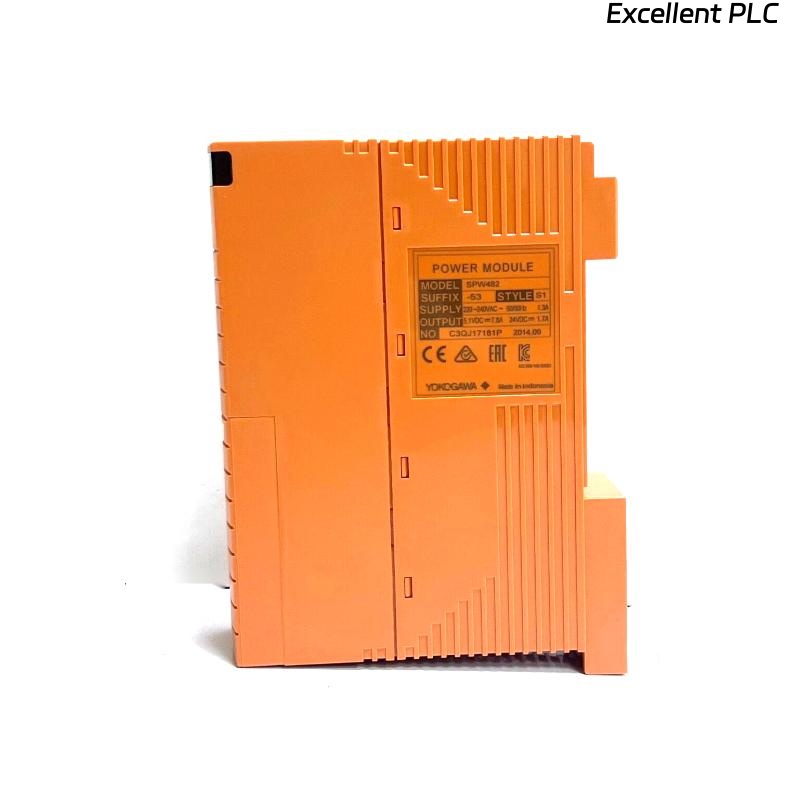

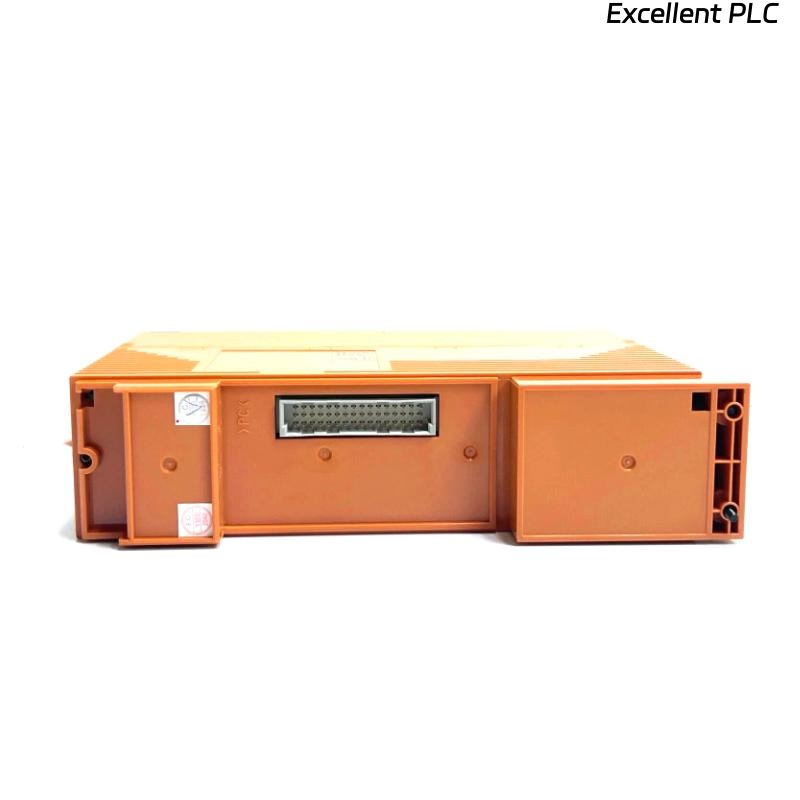

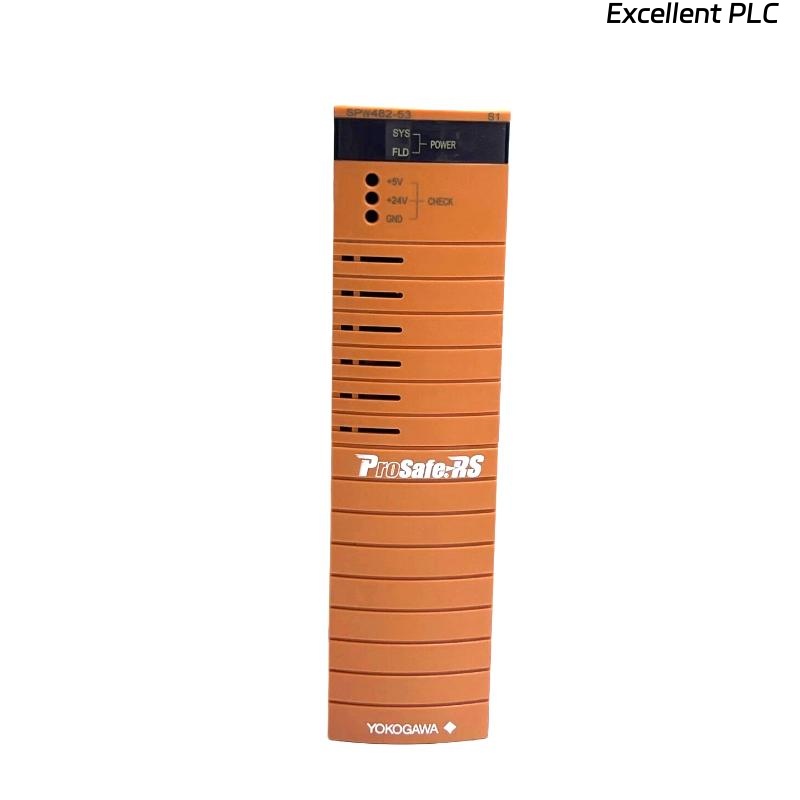

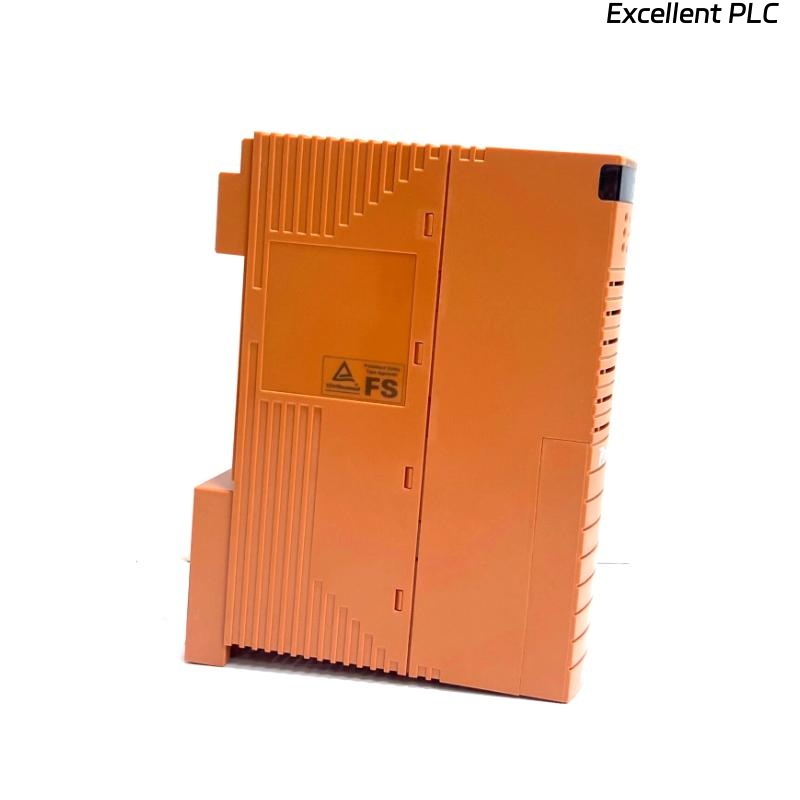

The Yokogawa SPW482-53 S1 is a high-performance industrial power supply module designed for Yokogawa Field Control Units (FCU) and Node Units. It delivers stable and reliable DC power, ensuring continuous and efficient operation of automation and control systems in industrial environments. Its compact design and robust construction make it suitable for various demanding applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 100–240 VAC |
| Output Voltage | 24 VDC |
| Output Power | 53 W |
| Efficiency | 95% |
| Input Frequency | 47–63 Hz |
| Protection Class | IP20 |
| Mounting | Panel mount |
| Dimensions (L × W × H) | 264.2 × 186 × 44.45 mm |
| Weight | 1.4 kg |
| Operating Temperature | -20°C to 70°C |
| Certifications | CE, UL, CSA |
| Model Type | Standard S1 |
Applications
The SPW482-53 S1 Power Supply Module is suitable for:
-
Industrial automation systems
-
Field Control Units (FCU) and Node Units
-
Process control environments requiring stable DC supply
-
Continuous operation in harsh industrial conditions
-
Integration with distributed control systems (DCS)
Advantages
-
High efficiency (95%) reduces energy consumption
-
Wide input voltage range ensures compatibility with industrial power sources
-
Compact and lightweight design for flexible installation
-
Reliable IP20 protection against dust and solid objects
-
Certified for international industrial standards (CE, UL, CSA)
-
Robust operation across a wide temperature range (-20°C to 70°C)
FAQ
1. What is the output voltage of the SPW482-53 S1?
The module outputs a stable 24 VDC.
2. What is the power rating?
The SPW482-53 S1 provides 53 W of output power.
3. What are the input voltage requirements?
It operates with an input range of 100–240 VAC.
4. Can it be used outdoors?
No, it is rated IP20 and should be used in controlled indoor environments.
5. What is the operating temperature range?
The module functions reliably between -20°C and 70°C.
6. What certifications does it have?
It is CE, UL, and CSA certified.
7. How is it mounted?
The module is panel mountable.
8. What is the module’s weight?
It weighs 1.4 kg.
9. Can it power multiple devices simultaneously?
Yes, as long as the total load does not exceed 53 W.
10. Is it compatible with other Yokogawa control units?
Yes, it is specifically designed for FCU and Node Units.
Related or Similar Models
| Model | Output Power | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|
| SPW482-24 S1 | 24 W | 264.2 × 186 × 44.45 | 1.4 kg | Standard type |
| SPW482-48 S1 | 48 W | 264.2 × 186 × 44.45 | 1.4 kg | Standard type |
| SPW482-60 S1 | 60 W | 264.2 × 186 × 44.45 | 1.4 kg | High output variant |
| SPW482-75 S1 | 75 W | 264.2 × 186 × 44.45 | 1.4 kg | Extended load support |
| SPW482-53 S2 | 53 W | 264.2 × 186 × 44.45 | 1.4 kg | S2 variant with extended temp |
| SPW482-53 EX | 53 W | 264.2 × 186 × 44.45 | 1.4 kg | Explosion-proof version |
