Product Overview

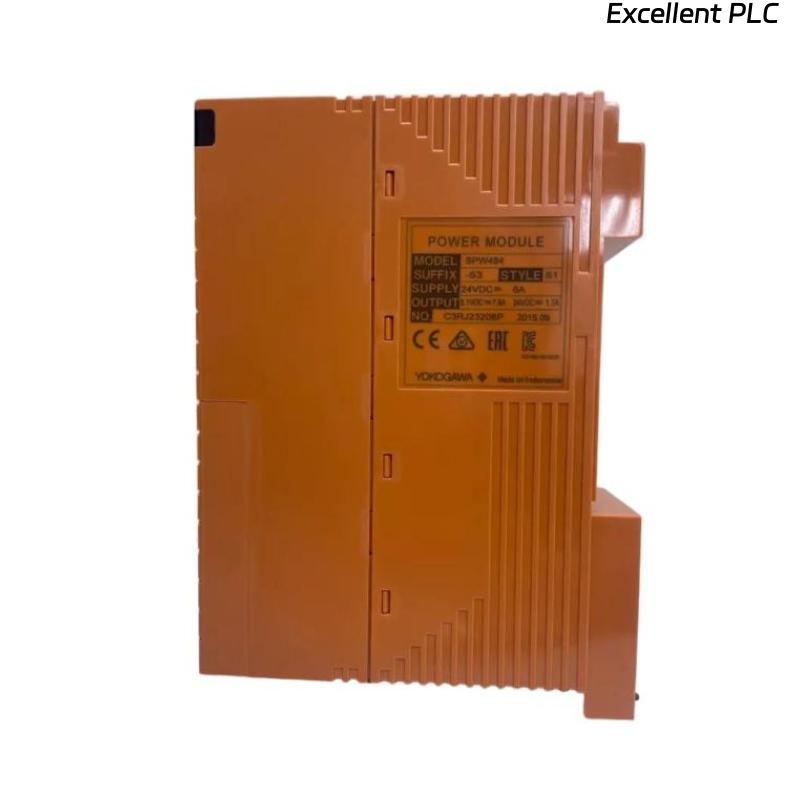

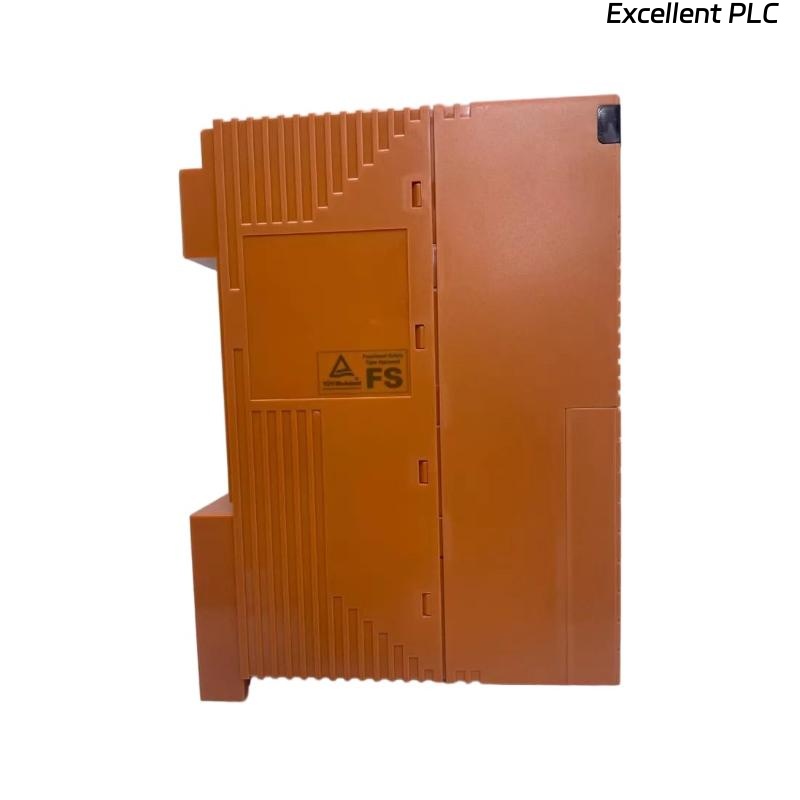

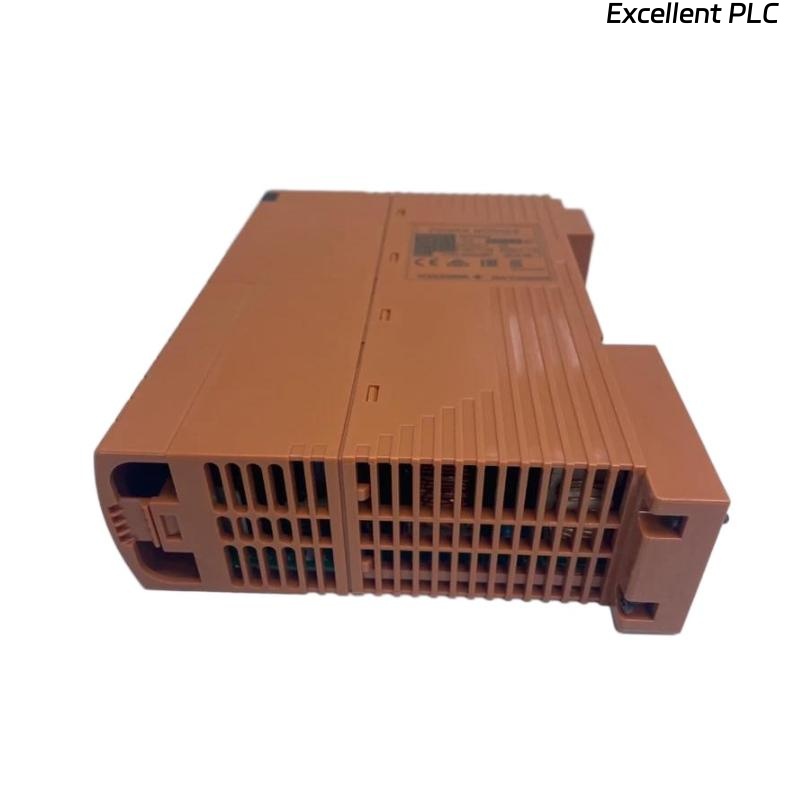

The Yokogawa SPW484-53 is an S1 Power Module designed to provide stable and reliable power to Yokogawa S1 automation and I/O systems. It delivers consistent voltage and current for critical control and monitoring applications, ensuring uninterrupted operation of industrial processes.Engineered for high efficiency and durability, the SPW484-53 integrates seamlessly into Yokogawa S1 systems and supports a wide range of industrial automation needs.
Key Features
-
Provides stable 24 VDC power to S1 modules and connected devices
-
High-efficiency design for reliable energy usage
-
Protection against overvoltage, overcurrent, and short circuits
-
Compact and robust design for DIN rail or panel mounting
-
Supports diagnostic monitoring of power status
-
Ensures continuous operation in demanding industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | SPW484-53 |
| Type | S1 Power Module |
| Output Voltage | 24 VDC nominal |
| Output Current | 10 A maximum |
| Ripple & Noise | < 100 mVp-p |
| Efficiency | > 85% typical |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Power Consumption | 240 W maximum |
| Mounting | DIN rail or panel mount |
| Dimensions | 150 x 120 x 50 mm |
| Weight | 1.2 kg |
| Compliance | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas – field automation and control systems
-
Power Generation – turbines, generators, and plant automation
-
Petrochemical & Chemical – process control and monitoring
-
Water & Wastewater – pump and valve control
-
Manufacturing – machinery and process automation
-
Food & Beverage – automation systems requiring reliable power
Advantages
-
Provides high-capacity, stable power for critical automation systems
-
Protects connected devices with overcurrent and short-circuit safeguards
-
Compact and robust design for flexible installation
-
Monitors module status for predictive maintenance
-
Ensures uninterrupted operation in industrial environments
-
Fully compatible with Yokogawa S1 modules
Frequently Asked Questions (FAQ)
Q1: What is the main function of the SPW484-53?
It provides stable 24 VDC power to Yokogawa S1 modules and connected field devices.
Q2: What is the maximum output current?
10 A maximum.
Q3: Can it be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting.
Q4: What is the operating temperature range?
0 °C to +55 °C.
Q5: Does it provide protection for connected devices?
Yes, it includes overvoltage, overcurrent, and short-circuit protection.
Q6: What are its dimensions and weight?
150 mm x 120 mm x 50 mm, approximately 1.2 kg.
Q7: Is it energy efficient?
Yes, typical efficiency is over 85%.
Q8: Can it be used in industrial environments?
Yes, it is designed for harsh industrial conditions.
Q9: Does it support status monitoring?
Yes, it provides diagnostic signals for monitoring.
Q10: Which industries typically use this module?
Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage.
