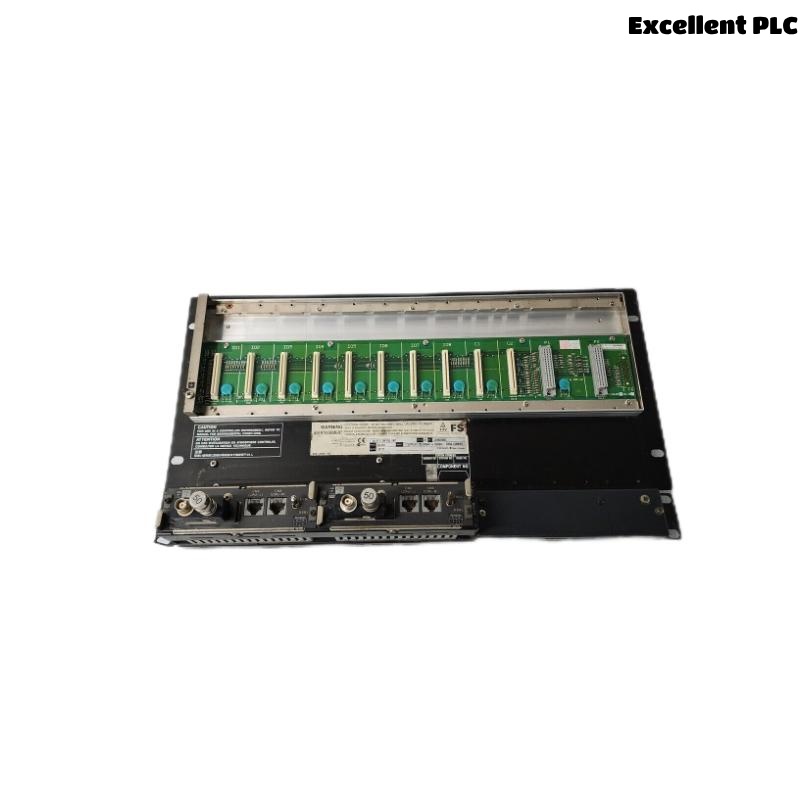

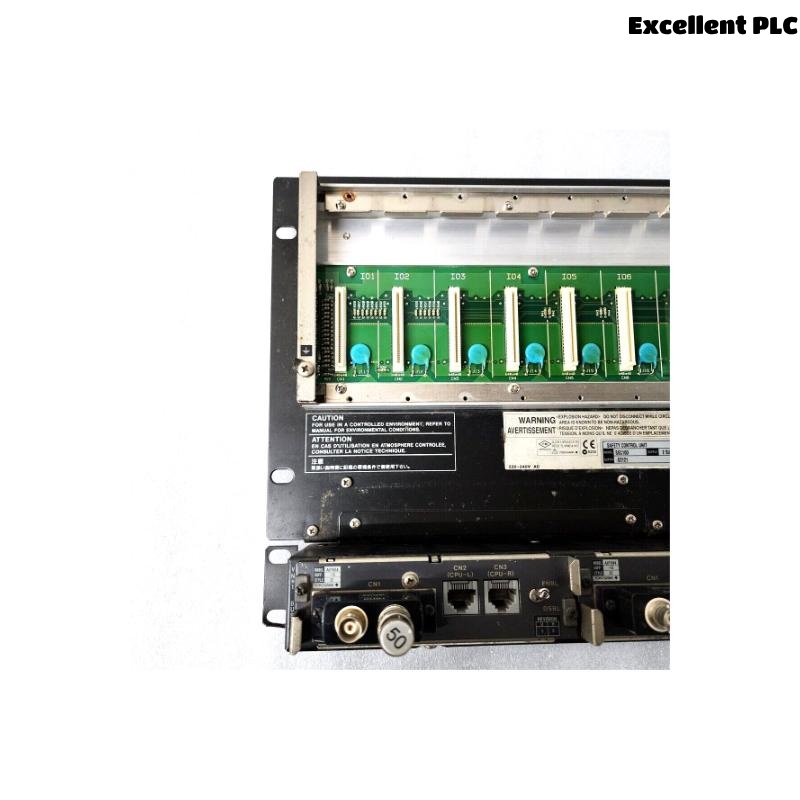

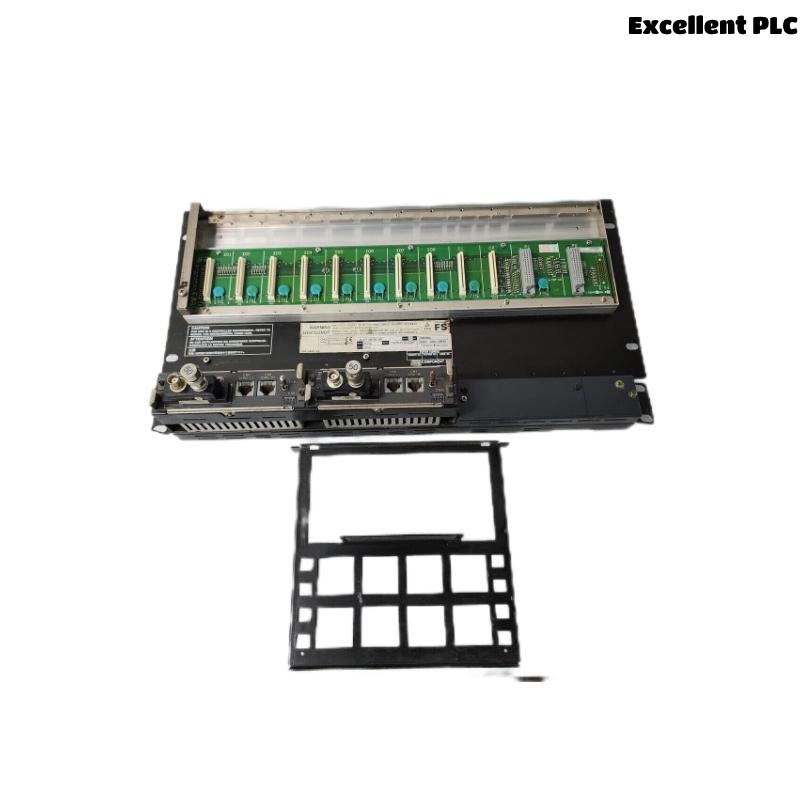

Yokogawa SSC10D Duplex Safety Control Unit

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Yokogawa SSC10D Duplex Safety Control Unit is a robust and highly reliable system designed for ensuring safety and operational continuity in critical industrial applications. As part of Yokogawa’s safety instrumented system (SIS), the SSC10D plays a pivotal role in monitoring and controlling safety processes within industries such as oil & gas, chemical processing, power generation, and petrochemicals.

This duplex safety control unit is engineered for redundancy and fail-safe operation, guaranteeing that even in the event of a system failure, operations continue securely and without disruption. The SSC10D operates using two identical, independent channels that communicate in parallel, offering both high availability and fault tolerance. This design allows it to meet the stringent requirements of functional safety standards like IEC 61508 and IEC 61511, making it suitable for environments that demand the highest level of safety performance.

With its 482.6 × 266 mm form factor and 1.2 kg weight, this system integrates easily into existing setups, ensuring seamless scalability and flexibility.

---

Key Features:

• Redundant Channels: The SSC10D features dual-channel functionality, with independent communication between channels for maximum reliability and redundancy.

• High Availability: Designed to ensure constant safety control even in the event of component failure, enhancing system uptime.

• Dual Safety: It provides fail-safe protection by automatically switching to backup modes during malfunctions.

• Ease of Integration: Compatible with various Yokogawa safety systems and control platforms for easy integration and quick deployment.

• High Compliance: Meets the IEC 61508 and IEC 61511 standards for functional safety in process industries.

• Rugged Design: Built to operate in industrial environments, the SSC10D is resistant to extreme conditions, including temperature variations and electromagnetic interference.

• Compact and Efficient: Despite its high-performance capabilities, it is compact, measuring 482.6 × 266 mm and weighing 1.2 kg, facilitating efficient use of space in control panels.

• User-Friendly Interface: The system offers easy-to-use diagnostics and configuration interfaces for fast setup and troubleshooting.

---

Product Parameters:

---

Product Applications:

The Yokogawa SSC10D Duplex Safety Control Unit is designed for use in a variety of mission-critical applications where safety is paramount. Some of the most common uses include:

• Oil & Gas: Used for safeguarding critical assets in the oil and gas industry, such as drilling rigs, pipelines, and offshore platforms, ensuring that emergency shutdown systems function correctly.

• Chemical Processing: In chemical plants, the SSC10D monitors hazardous processes and ensures that safety systems remain operational in the event of a process fault or emergency.

• Power Generation: Ensures continuous operation of power plants by protecting equipment and ensuring safety during both normal operations and emergency shutdowns.

• Petrochemical Industry: Monitors and controls processes where the risk of catastrophic events like explosions or toxic releases must be mitigated, ensuring safe operation of refineries and petrochemical plants.

• Industrial Automation: Integrated within complex industrial systems to ensure that automated processes meet high safety standards while preventing unsafe conditions or equipment failure.

• Mining and Metallurgical Industry: Safeguards machinery and processes in mining and metallurgy plants by providing critical failure detection and protection to prevent accidents.

---

Advantages of the Product:

1. Redundancy for High Reliability: With dual-channel redundancy, the system offers continuous protection even in case of one channel’s failure.

2. Enhanced Safety Compliance: Meets the highest international safety standards (IEC 61508, IEC 61511), ensuring compliance for high-risk applications.

3. Fail-Safe Operation: The system automatically switches to backup modes if a failure is detected, ensuring continued operation without compromising safety.

4. Compact Design: Despite its powerful capabilities, the SSC10D is compact and easily fits into existing control panels, saving valuable space.

5. Rugged Build: Designed to withstand harsh industrial conditions, the SSC10D operates reliably even in extreme temperatures and environments with high electromagnetic interference.

6. Easy Integration: The SSC10D integrates seamlessly with other Yokogawa safety systems, reducing implementation time and improving system cohesion.

7. User-Friendly Interface: The system provides a simple and intuitive interface for configuration, diagnostics, and troubleshooting, making it easy for operators to monitor and maintain safety processes.

8. Energy Efficiency: With a low power consumption of 30 W, the SSC10D is an energy-efficient solution that helps reduce operational costs.

9. Global Support: Being a Yokogawa product, the SSC10D is supported by a robust global service and support network, ensuring assistance wherever you operate.

10. Scalability: The SSC10D can be integrated into larger safety systems, allowing it to scale as needed to meet the demands of complex and growing industrial environments.

---

Frequently Asked Questions (FAQ):

1. What does the “duplex” feature in the SSC10D mean?

   • The SSC10D features dual redundant channels for higher reliability and safety, ensuring continued operation in the event of failure in one channel.

2. What are the main industries that use the SSC10D?

   • The SSC10D is primarily used in oil & gas, chemical processing, power generation, and petrochemicals, but it is also widely used in any industry requiring high-level safety control.

3. What are the typical dimensions of the SSC10D?

   • The SSC10D measures 482.6 × 266 mm, making it suitable for installation in standard industrial racks and control panels.

4. How much does the SSC10D weigh?

   • The unit weighs 1.2 kg, making it easy to install and transport without adding significant weight to the overall system.

5. What safety standards does the SSC10D comply with?

   • The SSC10D complies with IEC 61508 and IEC 61511, the international standards for functional safety in industrial applications.

6. How is the SSC10D mounted?

   • It is designed for rack mounting, making it easy to integrate into standard industrial control panels or cabinets.

7. What is the power consumption of the SSC10D?

   • The SSC10D has a typical power consumption of 30 W, contributing to overall energy efficiency.

8. How does the SSC10D handle system failures?

   • It automatically switches to the backup channel in case of failure, ensuring continuous operation and maintaining system safety.

9. Is the SSC10D suitable for use in extreme environments?

   • Yes, the SSC10D is built to operate in harsh industrial conditions, including temperature fluctuations and electromagnetic interference.

10. Can the SSC10D be integrated with existing Yokogawa systems?

    • Yes, the SSC10D can be easily integrated into existing Yokogawa SIS and DCS systems for enhanced safety and operational continuity.

---
