Product Introduction

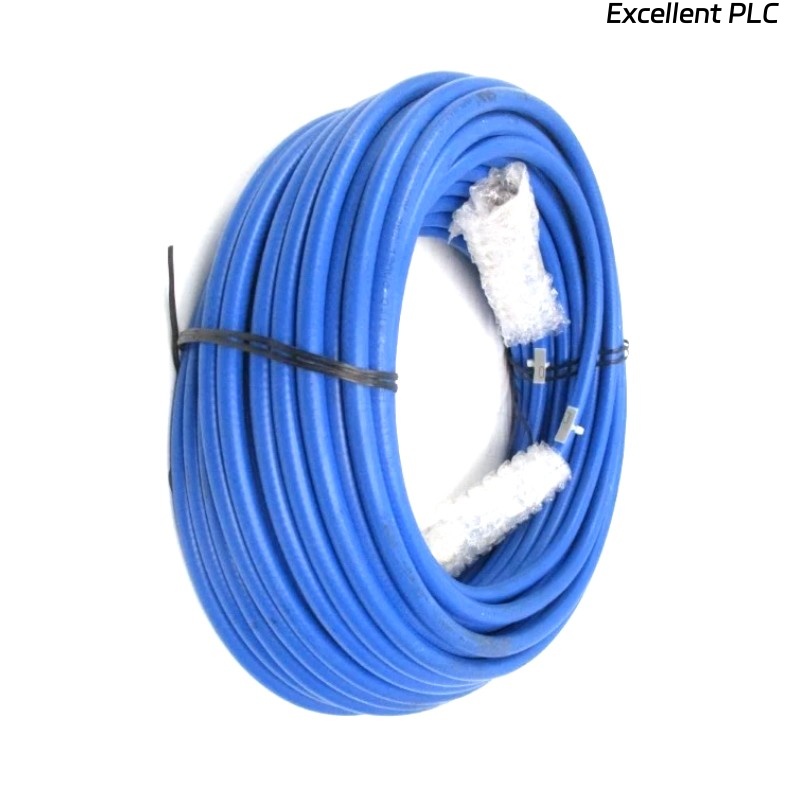

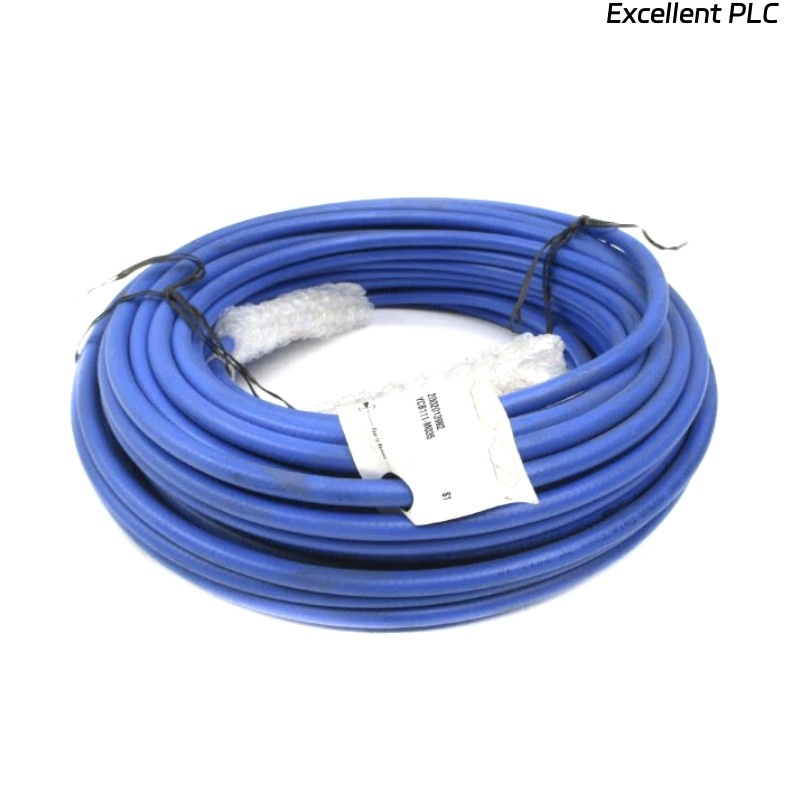

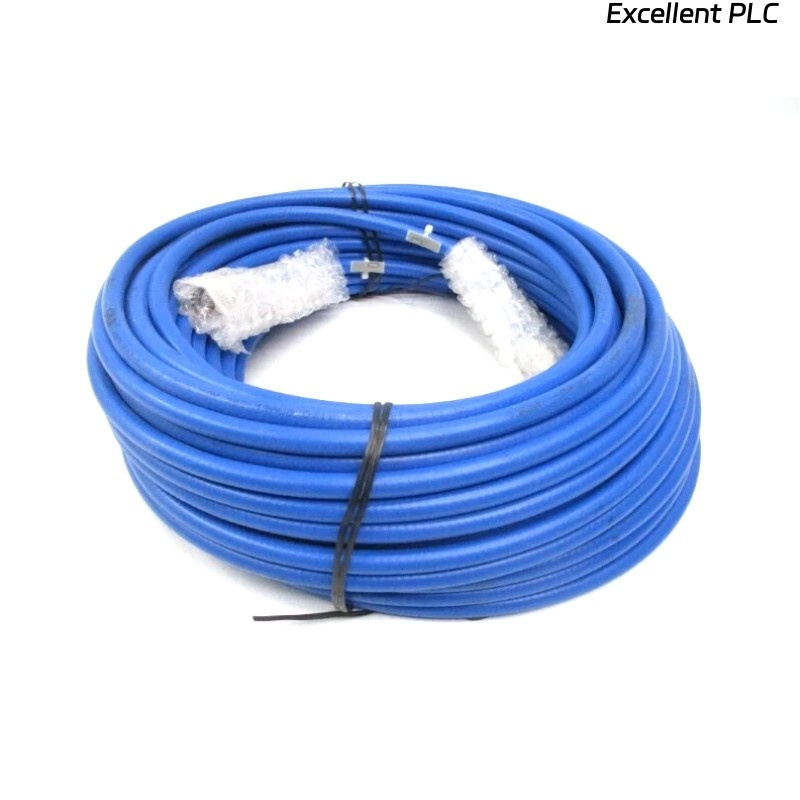

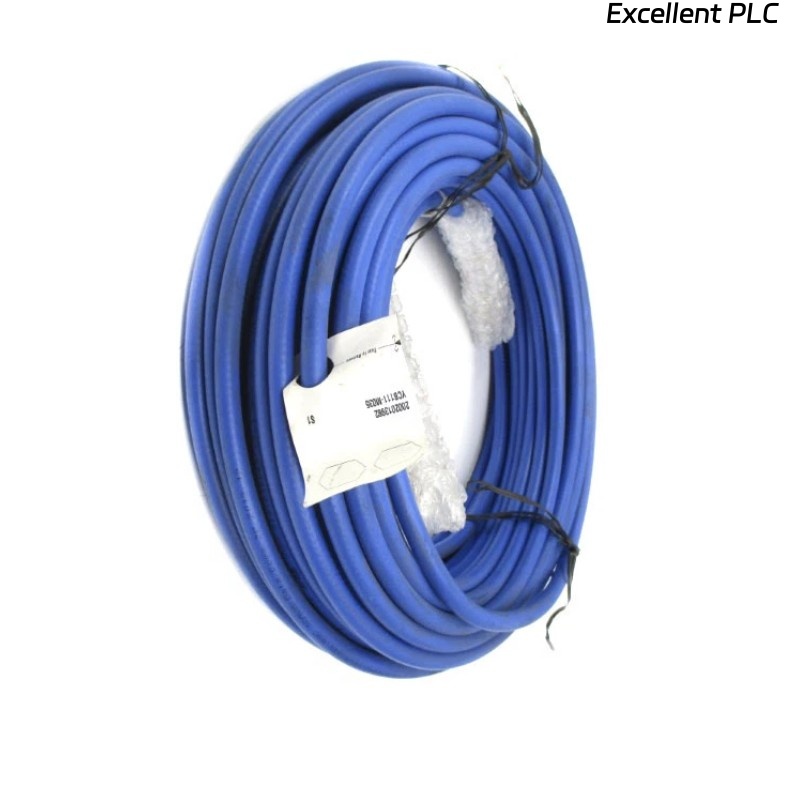

The Yokogawa YCB141-M035 Coaxial Cable is a high-performance transmission cable designed for industrial control systems, instrumentation, and signal communication networks. Engineered with precision and strict quality standards, it ensures low-loss signal transfer, reliable shielding against electromagnetic interference, and stable performance in harsh industrial environments. Its construction focuses on durability, flexibility, and electrical stability, making it suitable for long-term use in automation and process control infrastructures.
Product Parameters
| Parameter | Description |
|---|---|
| Model | Yokogawa YCB141-M035 |
| Cable Type | Coaxial Cable |
| Conductor Material | High-purity copper |
| Insulation Material | Polyethylene (PE) |
| Shielding | Double braided + foil shielding |
| Impedance | 75 Ω (nominal) |
| Capacitance | 67 pF/m (typical) |
| Attenuation | ≤ 22 dB/100m at 100 MHz |
| Operating Temperature | -20°C to +80°C |
| Flame Resistance | IEC 60332-1 compliant |
| Weight | 3 kg |
| Cable length | 35 m |
Product Applications
-
Signal interconnection in distributed control systems (DCS)
-
V-net communication in Yokogawa systems
-
Process automation data transfer
-
Integration of measurement and monitoring devices
-
Industrial instrumentation requiring EMI-shielded transmission
-
Reliable cabling in mission-critical process plants (oil, gas, chemical, power generation)
Product Advantages
-
Excellent Signal Integrity – Designed to minimize attenuation and distortion.
-
Strong Shielding Performance – Double shield structure protects against EMI and RFI interference.
-
Durability in Harsh Environments – Flame-resistant and robust insulation.
-
Compatibility with Yokogawa Systems – Optimized for Yokogawa control network applications.
-
Ease of Installation – Flexible jacket and precise dimensions allow easy routing and secure connections.
-
Stable Impedance – Maintains consistent impedance characteristics to ensure high reliability in communication systems.
FAQ
Q1: What is the characteristic impedance of the YCB141-M035 cable?
A1: The nominal characteristic impedance is 75 Ω, which is stable across the operating frequency range.
Q2: Does this cable support high-frequency signal transmission?
A2: Yes, it supports stable signal transmission up to several hundred MHz, with low attenuation at 100 MHz.
Q3: How effective is the shielding in reducing electromagnetic interference?
A3: The double-braided plus foil shielding structure provides high protection against EMI and RFI, ensuring signal integrity.
Q4: What type of connectors are compatible with the YCB141-M035?
A4: It is compatible with industry-standard BNC and SMA connectors, depending on the termination requirements.
Q5: Can the cable be used outdoors?
A5: The cable is designed for indoor industrial use, but with additional protective conduit or jacket, it can be used outdoors in controlled conditions.
Q6: How does the cable perform in long-distance transmission?
A6: Over long distances, the cable maintains good signal quality due to low attenuation, especially when paired with proper impedance matching.
Q7: Is the insulation material resistant to chemical exposure?
A7: The polyethylene insulation offers resistance against common industrial chemicals but should be protected from direct long-term chemical exposure.
Q8: Does the cable comply with international flame-resistance standards?
A8: Yes, it complies with IEC 60332-1 flame-resistance standards, ensuring safety in industrial installations.
Q9: Can the cable be used for analog and digital signals?
A9: Yes, it supports both analog and digital signal transmission, making it versatile for control and monitoring systems.
Q10: What is the recommended bending radius for installation?
A10: The recommended minimum bending radius is 10 times the outer diameter, to avoid mechanical stress and maintain performance.
Recommended Same-Series or Related Models
| Model | Description | Length |
|---|---|---|
| YCB141-M010 | Coaxial Cable, 10m | 10 m |
| YCB141-M020 | Coaxial Cable, 20m | 20 m |
| YCB141-M025 | Coaxial Cable, 25m | 25 m |
| YCB141-M030 | Coaxial Cable, 30m | 30 m |
| YCB141-M050 | Coaxial Cable, 50m | 50 m |
| YCB141-M100 | Coaxial Cable, 100m | 100 m |
Popular Yokogawa Models
| Model | Product Type | Key Feature |
|---|---|---|
| YS1700 | Programmable Controller | Advanced control with high reliability |
| CP451-10 | CPU Module | Core processing unit for DCS systems |
| ADV151-P00 | V-net Communication Module | Data communication interface |
| AMM22 S3 | Analog Input Module | Multi-channel analog input |
| PW482-10 | Power Supply Module | Stable power for Yokogawa systems |
| AAM50 | Multiplexer Module | Signal conditioning and multiplexing |
