Product Introduction

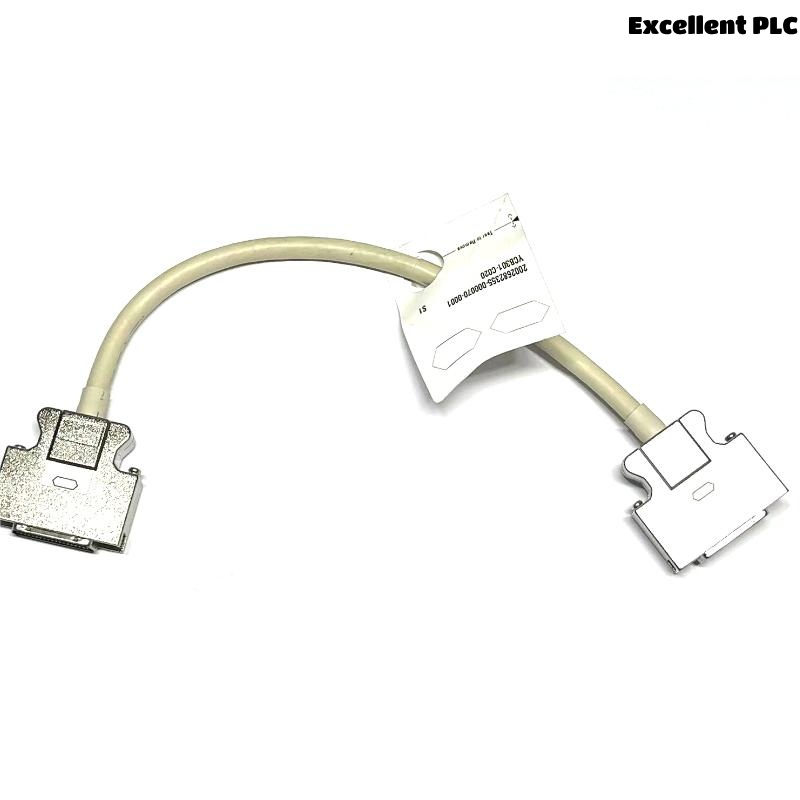

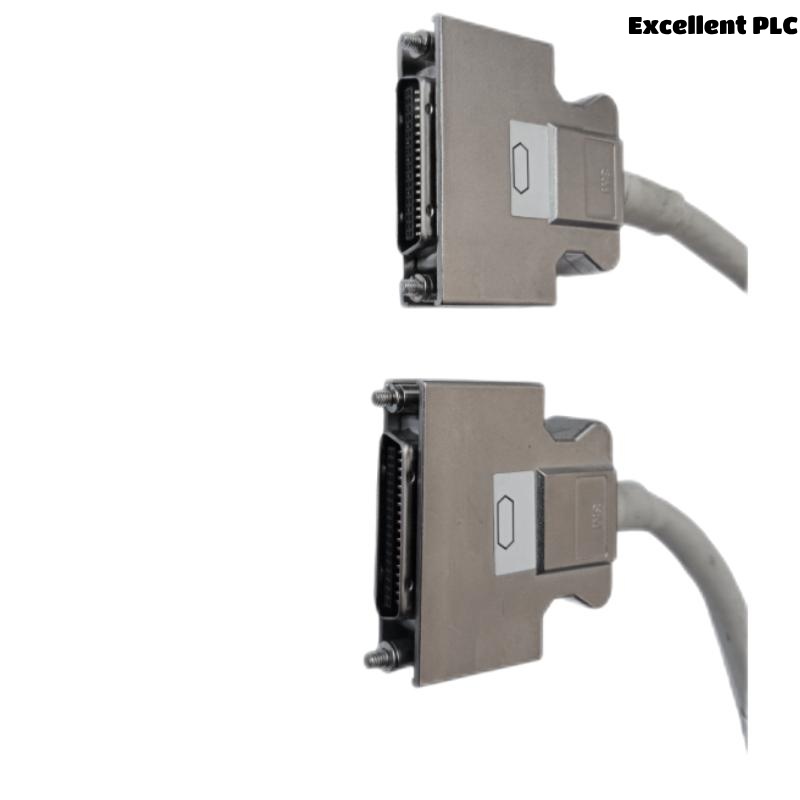

The Yokogawa YCB301-C100 ESB Bus Cable is a premium quality communication cable designed for use in process automation systems. Manufactured by Yokogawa Electric Corporation, this cable is part of the ESB series, which is essential for facilitating reliable and high-speed communication within Yokogawa’s Distributed Control Systems (DCS).
Engineered to meet the rigorous demands of modern industrial processes, the YCB301-C100 is perfect for applications requiring a robust, durable, and efficient method of linking control systems with field devices, sensors, and other automation components. The 1-meter cable length offers a versatile solution for both short and medium-range interconnections, making it an excellent choice for tight spaces or systems where only moderate distance is needed.
This cable is not only designed to provide high-speed data transfer, but it also ensures a stable signal with minimal interference. The YCB301-C100 is built with premium materials, including copper conductors and PVC insulation, ensuring high performance even under challenging conditions. Additionally, the cable’s foil shielding minimizes the impact of electromagnetic interference (EMI), ensuring clean communication in electrically noisy environments.
With an emphasis on longevity and reliability, this cable provides long-term performance, reducing the frequency of replacements and maintenance. It is particularly suited for use in sectors like chemical processing, power generation, oil & gas, and pharmaceuticals, where precise and continuous control is crucial.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | YCB301-C100 |
| Manufacturer | Yokogawa Electric Corporation |
| Cable Type | ESB Bus Cable |
| Cable Length | 1 m |
| Weight | 3 kg |
| Conductor Material | Copper, High conductivity |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Shielding | Foil Shielding |
| Operating Temperature Range | -20°C to +75°C |
| Maximum Voltage | 30V DC |
| Maximum Current | 2A |
| Color | Black |
| Standards Compliance | IEC 60228 (Class 5 Conductors) |
| Usage | For use with Yokogawa Distributed Control Systems (DCS) |
| Connector Type | Bus Connector (compatible with ESB systems) |
| Cable Jacket | Flame retardant PVC |
Product Applications
The Yokogawa YCB301-C100 ESB Bus Cable serves as a critical component in various industrial automation systems, providing the backbone for communication between control systems and field devices. Below are key applications of this cable:
-
Distributed Control Systems (DCS): Essential for connecting control systems with sensors, actuators, and other devices in Yokogawa’s CENTUM VP and ProSafe-RS systems.
-
Process Automation: Widely used in industries like chemical processing, oil and gas, and power generation, enabling seamless communication for process control.
-
Fieldbus Networks: Ideal for use in Foundation Fieldbus or PROFIBUS systems, enabling effective communication between devices like valves, transmitters, and controllers.
-
Remote Monitoring Systems: Provides reliable communication for remote devices, ensuring accurate data transfer for decision-making in real-time.
-
Energy Management Systems: Facilitates data exchange between energy meters, monitoring devices, and control systems for real-time energy consumption analysis.
-
Industrial Safety Systems: Integral to safety instrumented systems (SIS), ensuring stable communication for critical safety monitoring and shutdown systems.
Product Advantages
-
High-Quality Construction: The YCB301-C100 is built with high-conductivity copper conductors and PVC insulation, making it both durable and highly efficient for transmitting signals over long periods.
-
Compact and Flexible: With a length of 1 meter, this cable is highly versatile and perfect for installations in tight spaces or for interconnecting devices that are in close proximity to each other.
-
Enhanced Shielding: The foil shielding on the cable effectively reduces the impact of electromagnetic interference (EMI), which is crucial in environments with significant electrical noise.
-
Wide Temperature Range: The cable is capable of withstanding temperature ranges from -20°C to +75°C, making it suitable for use in both harsh, cold environments and high-temperature industrial settings.
-
Flame Retardant: The PVC outer jacket is flame retardant, ensuring a high level of safety in case of fire hazards, particularly in hazardous industrial environments.
-
Reliability and Longevity: Designed for continuous, high-performance operation, the YCB301-C100 offers a long lifespan, helping to reduce maintenance and replacement costs.
-
Low Signal Attenuation: Ensures high-quality, clear communication between devices, with minimal signal degradation, even over longer distances.
-
Easy Integration: Fully compatible with Yokogawa’s DCS and fieldbus systems, ensuring easy installation and integration into existing setups.
-
Cost-Effective: Despite its high-performance features, the YCB301-C100 offers excellent value for money, providing reliable communication at an affordable price.
-
Environmentally Safe: The materials used in this cable comply with environmental safety standards, ensuring its safe use in various regulated industrial applications.
Frequently Asked Questions (FAQ)
-
What is the primary use of the YCB301-C100 ESB Bus Cable?
This cable is designed to connect control systems and field devices in Yokogawa Distributed Control Systems (DCS) and fieldbus networks. -
How long is the YCB301-C100 cable?
The cable is 1 meter in length, making it ideal for medium-range connections. -
What is the weight of the YCB301-C100 cable?
The weight of the cable is approximately 3 kg. -
What is the maximum operating temperature range of the YCB301-C100?
The cable can operate within a temperature range of -20°C to +75°C. -
Does the YCB301-C100 have shielding?
Yes, the cable is equipped with foil shielding to protect against electromagnetic interference (EMI). -
What materials are used for the cable’s construction?
The cable features copper conductors for high conductivity and PVC insulation for durability. -
Is the YCB301-C100 flame retardant?
Yes, the cable has a flame retardant PVC jacket, which provides additional safety in fire-prone industrial environments. -
Can the YCB301-C100 be used outdoors?
The cable is designed for indoor use in controlled environments, though it may be used outdoors with additional protective measures. -
What types of systems is the YCB301-C100 compatible with?
It is fully compatible with Yokogawa CENTUM VP, ProSafe-RS, and other Yokogawa process control systems. -
Is the YCB301-C100 suitable for high-speed data transfer?
Yes, the cable provides high-speed, stable communication, ideal for applications requiring real-time data transfer.
Related Models (Same Series or Bus Cables)
| Model | Description |
|---|---|
| YCB301-C050 | 50 cm ESB Bus Cable for medium-range connections |
| YCB302-C100 | ESB Bus Cable with enhanced shielding for high-noise environments |
| YCB303-C150 | 150 cm ESB Bus Cable for long-range applications |
| YCB304-C200 | 200 cm ESB Bus Cable with superior durability |
| YCB305-C250 | 250 cm ESB Bus Cable for large-scale systems |
| YCB306-C300 | 300 cm ESB Bus Cable designed for industrial environments |
