Product Overview

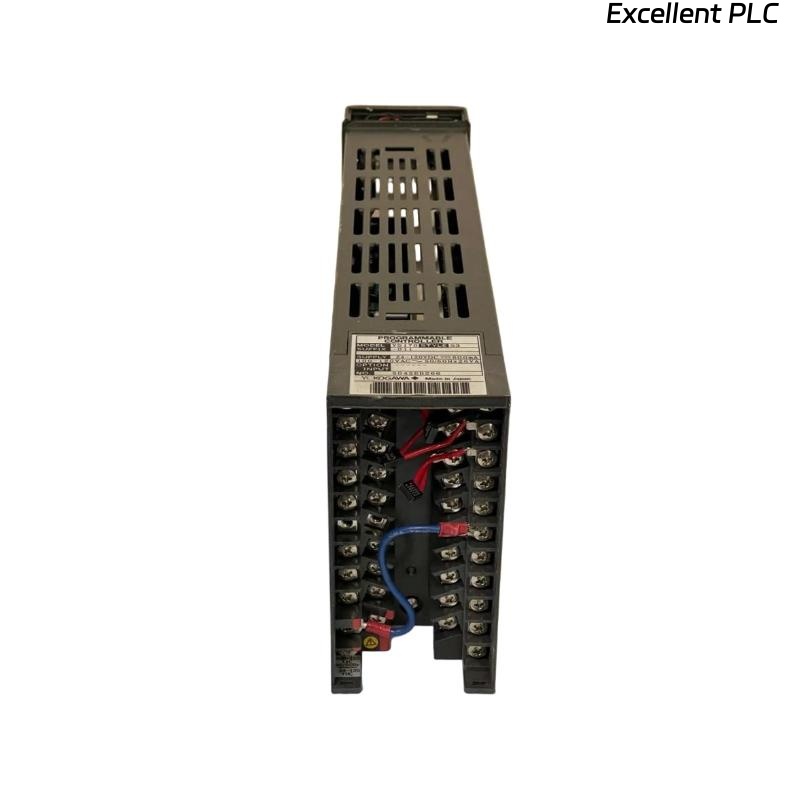

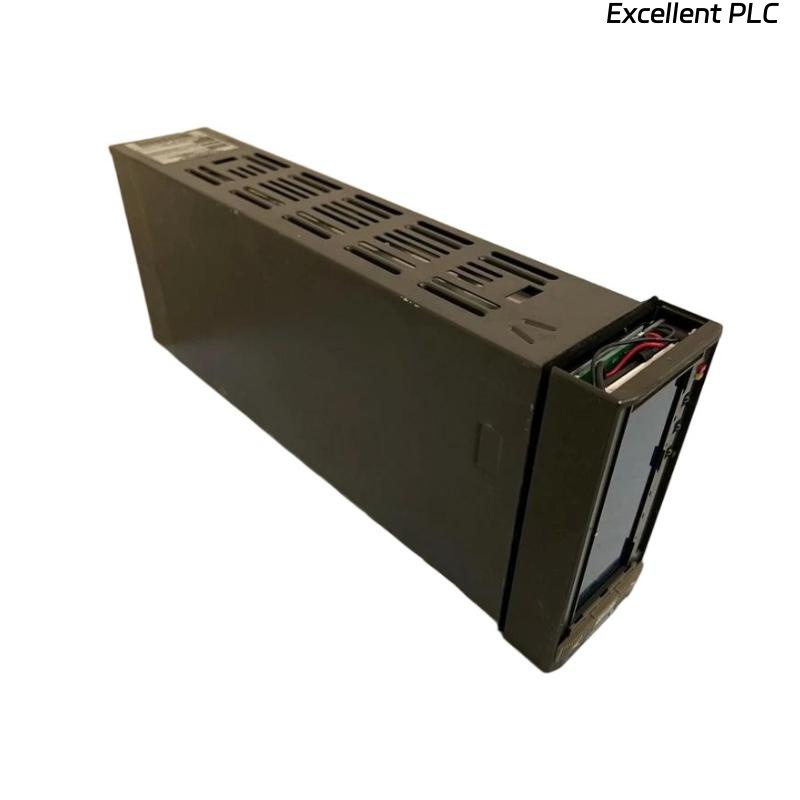

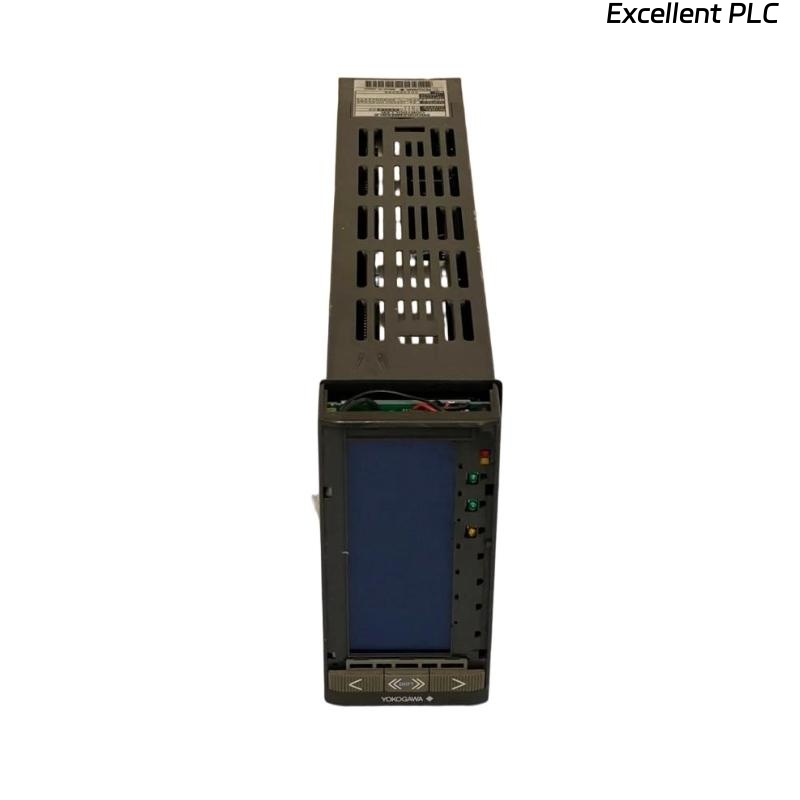

The Yokogawa YS170-011 Programmable Controller is a high-performance, versatile controller designed for industrial automation systems. It provides advanced control capabilities and is highly configurable to meet the specific needs of various industrial processes. The YS170-011 is equipped with a rich set of features, including multiple I/O capabilities, flexible communication options, and support for complex control strategies, making it ideal for applications requiring precise and reliable automation.
Key Features
-
Advanced Control Capabilities – Supports PID, ON/OFF, and other advanced control strategies.
-
Flexible I/O – Extensive input/output capabilities for diverse applications.
-
Communication Options – Supports various industrial communication protocols for seamless system integration.
-
High Performance – Offers fast processing speeds and high reliability for critical control functions.
-
Expandable – Modular design allows easy expansion to meet growing application needs.
-
User-Friendly Interface – Intuitive interface for easy programming and operation.
-
Durable Design – Built for harsh industrial environments, ensuring long-term stability and performance.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | YS170-011 |
| Module Type | Programmable Controller |
| System Compatibility | Yokogawa Automation Systems |
| Input/Output | Digital/Analog I/O (depending on configuration) |
| Communication Protocol | Modbus, Profibus, Ethernet/IP, DeviceNet |
| Control Modes | PID, ON/OFF, Manual |
| CPU Speed | High-speed processing |
| Power Supply | 24V DC (Nominal) |
| Mounting | DIN rail or panel mounting |
| Dimensions | 250 x 144 x 72 mm |
| Weight | 2.13 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Used for controlling machines, processes, and systems in various industrial sectors.
-
Power Generation – Ideal for controlling critical equipment like turbines, generators, and cooling systems.
-
Oil & Gas – Automation of production processes and equipment monitoring in upstream and downstream facilities.
-
Chemical & Petrochemical – Real-time control for chemical reactions, mixing processes, and monitoring.
-
Manufacturing – Ensures efficient, automated control in production lines and manufacturing processes.
Advantages
-
High Flexibility – Supports a wide range of input/output types and communication protocols, allowing for versatile integration.
-
Advanced Control – Suitable for complex control applications such as PID and manual modes.
-
Modular Design – Offers expandability to accommodate future needs and system growth.
-
Reliable and Durable – Designed for continuous operation in harsh industrial conditions.
-
Easy Integration – Seamless integration into existing systems using widely adopted industrial protocols like Modbus and Profibus.
Frequently Asked Questions (FAQ)
Q1: What are the main control modes supported by the YS170-011?
The YS170-011 supports PID, ON/OFF, and Manual control modes.
Q2: What communication protocols are available for the YS170-011?
It supports multiple protocols, including Modbus, Profibus, Ethernet/IP, and DeviceNet.
Q3: What is the power supply requirement for the YS170-011?
The controller operates on a 24V DC power supply (Nominal).
Q4: Can I expand the system by adding more I/O modules?
Yes, the YS170-011 has a modular design, allowing for easy expansion to accommodate additional I/O modules.
Q5: What is the operating temperature range for the YS170-011?
The module operates in the range of 0 °C to 60 °C.
Q6: How is the YS170-011 mounted?
It can be mounted on DIN rails or directly onto control panels.
Q7: What is the weight of the YS170-011?
The controller weighs approximately 2.13 kg.
Q8: What industries is the YS170-011 suitable for?
It is suitable for industrial automation, oil and gas, power generation, chemical processing, and manufacturing.
Q9: What types of I/O does the YS170-011 support?
The controller supports digital and analog I/O, depending on the configuration and modules used.
Q10: Is the YS170-011 easy to program?
Yes, it has a user-friendly interface for easy programming and configuration of control systems.
Related Modules
| Model Number | Description |
|---|---|
| YS170-011 | Programmable Controller |
| AAI143 | Analog Input Module, 4-20mA |
| ADO143 | Analog Output Module, 4-20mA |
| DDI144 | Digital Input Module, 24VDC |
| DDO144 | Digital Output Module, 24VDC |
| F3KX00-0N | Field Termination Assembly |
