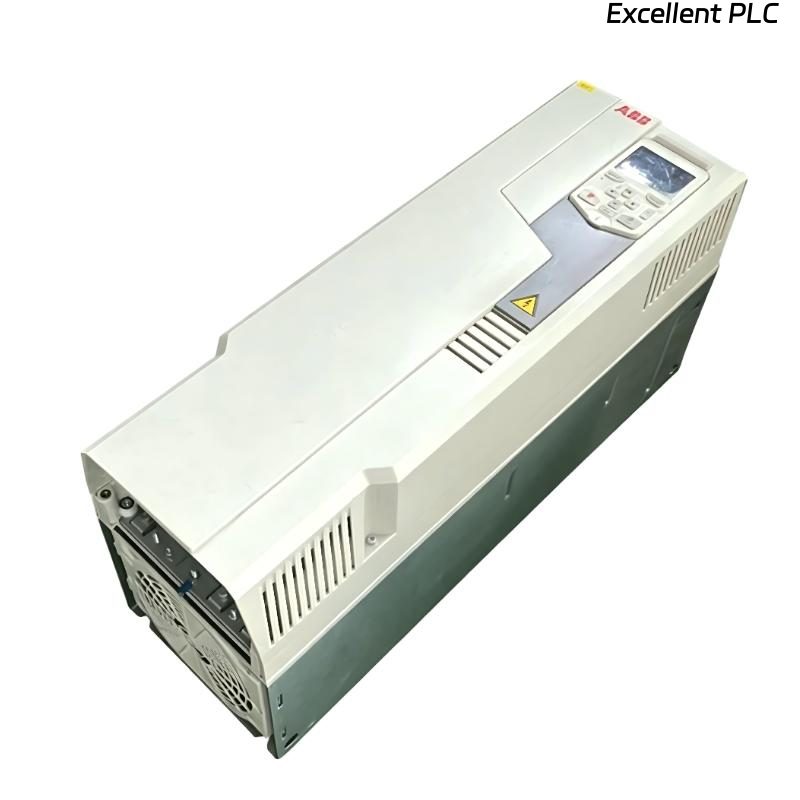

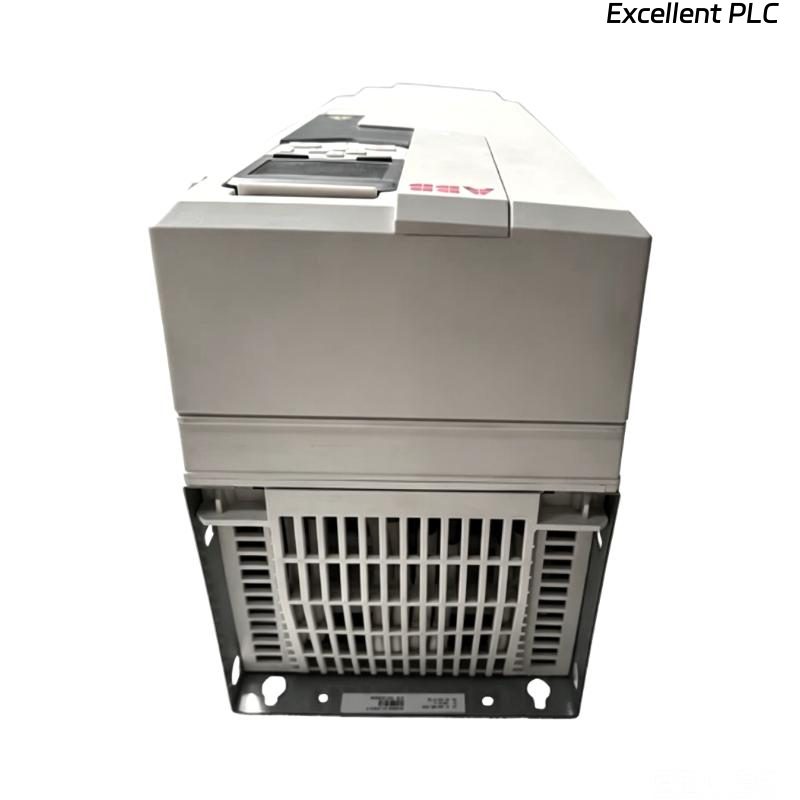

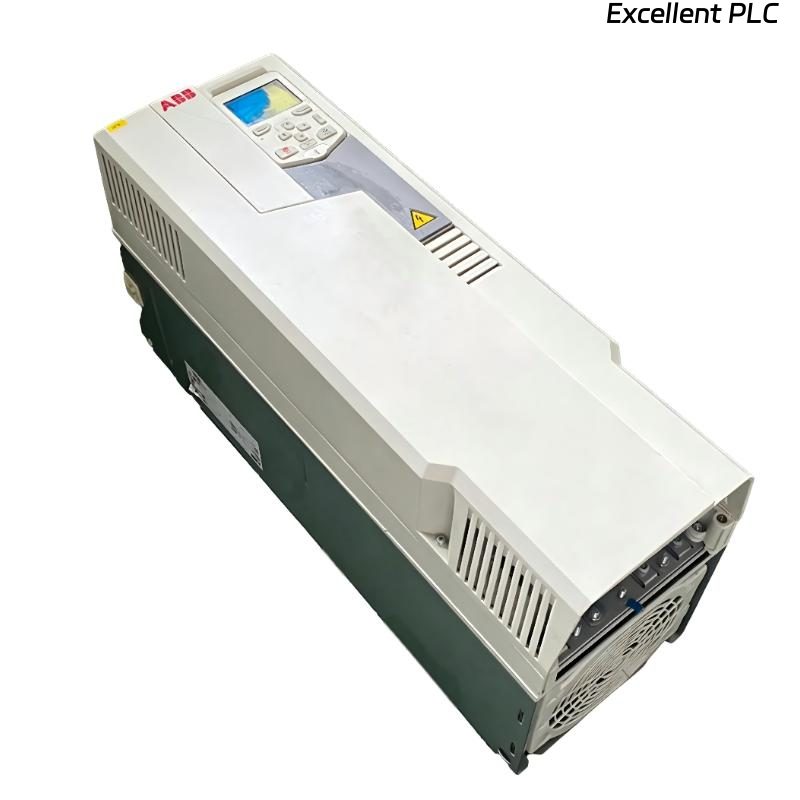

ABB ACS580-01-106A-4 3ABD00045436-D Frequency Converter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ABB ACS580-01-106A-4 3ABD00045436-D Frequency Converter is a powerful industrial variable frequency drive designed for efficient motor control, reliable operation, and improved energy management in demanding automation environments. As part of the ABB ACS580 series, it provides precise speed and torque control for a wide range of industrial motor applications.
Designed for three-phase 380…480 V power systems, this frequency converter delivers 106 A normal duty output current and 55 kW normal application output power, making it suitable for medium to high-power industrial machinery. The R5 frame size and wall-mounted configuration provide a practical installation solution for industrial control systems.
Featuring IP21 protection, NEMA Type 1 enclosure, and IE2 efficiency level, the ACS580-01-106A-4 offers dependable performance, simplified maintenance, and energy-efficient operation for pumps, fans, compressors, conveyors, and other industrial equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Frequency Converter |
| Brand | ABB |
| Model | ACS580-01-106A-4 |
| Part Number | 3ABD00045436-D |
| Number of Phases | 3 Phase |
| Protection Class | IP21 |
| NEMA Enclosure Type | Type 1 |
| Frequency | 47.5 … 63 Hz |
| Frame Size | R5 |
| Input Voltage | 380…480 V |
| Mounting Type | Wall Mounting |
| Output Current, Normal Use (In) | 106 A |
| Output Current, Light Overload Use (ILD) | 100 A |
| Output Current, Heavy-Duty Use (IHD) | 87 A |
| Output Power, Normal Use (Pn) | 55 kW |
| Output Power, Light Overload Use (PLD) | 55 kW |
| Output Power, Heavy-Duty Use (PHD) | 45 kW |
| Efficiency Level | IE2 |
| Dimensions | 732 × 203 × 295 mm |
| Weight | 37 kg |
Applications
● Industrial Motor Control – Provides precise speed regulation and reliable control for medium and high-power AC motors.
● Pump Systems – Suitable for industrial water pumps, process pumps, and circulation systems requiring variable speed operation.
● Fan and HVAC Equipment – Helps optimize airflow control while improving energy efficiency.
● Compressor Applications – Supports stable operation of industrial compressor systems.
● Conveyor Systems – Provides smooth acceleration, deceleration, and speed adjustment for material handling equipment.
● Manufacturing Automation – Ideal for production equipment requiring dependable motor performance and efficient operation.
Advantages
● High Power Capability – Supports 106 A normal output current and 55 kW normal power applications.
● Reliable Industrial Performance – Designed for continuous operation in demanding automation environments.
● Energy Efficient Control – IE2 efficiency level helps improve overall system energy utilization.
● Flexible Installation – Wall-mounted design simplifies integration into industrial control systems.
● Strong Protection Design – IP21 protection and NEMA Type 1 enclosure provide dependable indoor protection.
● Wide Application Range – Suitable for pumps, fans, compressors, conveyors, and various industrial machines.
FAQ
- What is the main function of the ABB ACS580-01-106A-4 frequency converter?
It regulates AC motor speed and torque by controlling output frequency and voltage. - What type of power supply does this frequency converter require?
It requires a three-phase 380…480 V input power supply. - What is the normal output current of this model?
The normal use output current is 106 A. - What is the rated normal application power of this frequency converter?
The normal application output power is 55 kW. - What frame size does this frequency converter use?
It uses an R5 frame size. - What protection class does the ACS580-01-106A-4 provide?
It provides IP21 protection with a NEMA Type 1 enclosure. - Can this model be used for heavy-duty applications?
Yes. It supports heavy-duty operation with 87 A output current and 45 kW output power. - Which industrial equipment can use this frequency converter?
It can be used for pumps, fans, compressors, conveyors, and other motor-driven equipment. - What mounting method is used for this frequency converter?
It is designed for wall-mounted installation. - What are the main benefits of the ACS580 series?
The series provides reliable motor control, energy efficiency, easy installation, and stable industrial performance.
