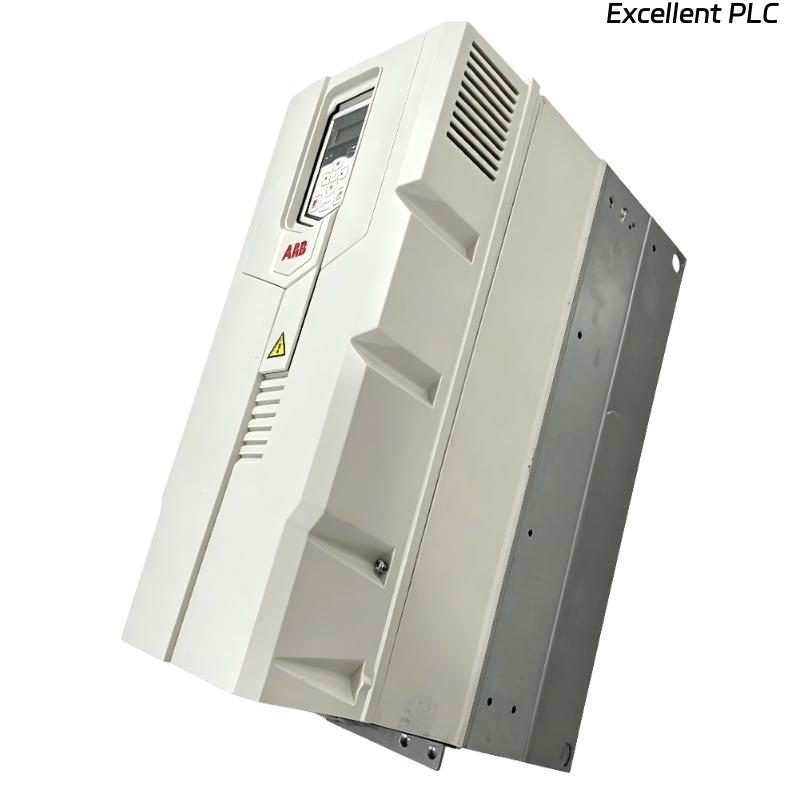

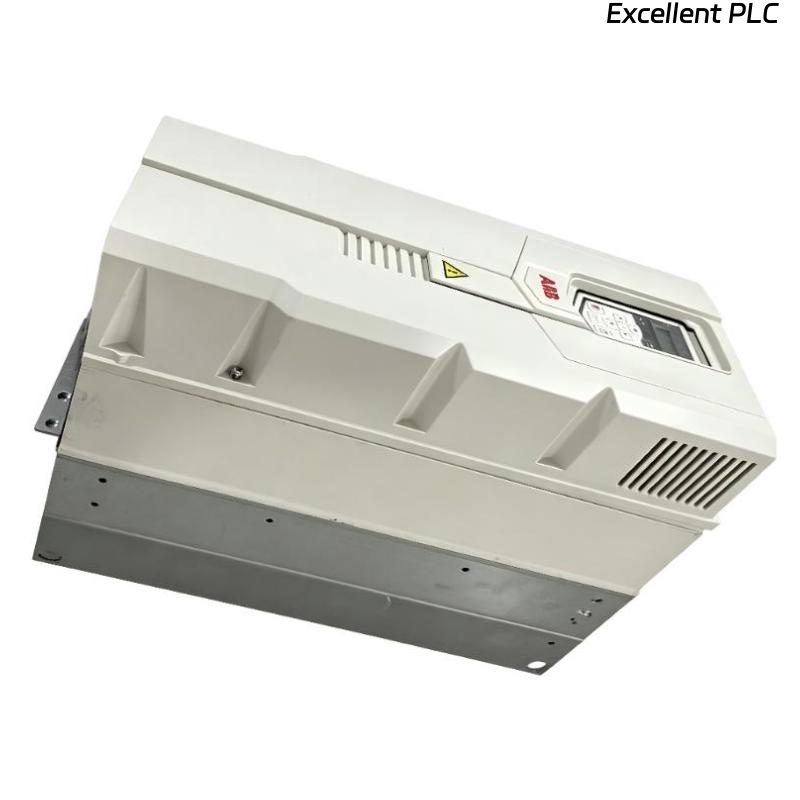

ABB ACS580-01-145A-4 3ABD00045437-D Frequency Converter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ABB ACS580-01-145A-4 3ABD00045437-D Frequency Converter is a high-performance variable frequency drive engineered for efficient motor control in demanding industrial environments. As a member of the ABB ACS580 series, it provides reliable speed regulation, smooth motor operation, and energy-efficient performance for a wide range of industrial automation applications.
Designed for three-phase 380…480 V power systems, this frequency converter delivers 145 A normal application output current and 75 kW normal application output power, making it suitable for heavy-duty motor-driven equipment such as pumps, fans, compressors, conveyors, and processing machinery. Its R6 frame size and wall-mounted design simplify installation while ensuring dependable long-term operation.
Featuring IP21 protection, NEMA Type 1 enclosure, and IE2 efficiency level, the ACS580-01-145A-4 offers reliable performance, simplified maintenance, and excellent operating efficiency for modern industrial facilities.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Frequency Converter |
| Brand | ABB |
| Model | ACS580-01-145A-4 |
| Part Number | 3ABD00045437-D |
| Number of Phases | 3 Phase |
| Protection Class | IP21 |
| NEMA Enclosure Type | Type 1 |
| Frequency | 47.5 … 63 Hz |
| Frame Size | R6 |
| Input Voltage | 380…480 V |
| Mounting Type | Wall Mounting |
| Output Current, Normal Use (In) | 145 A |
| Output Current, Light Overload Use (ILD) | 138 A |
| Output Current, Heavy-Duty Use (IHD) | 105 A |
| Output Power, Normal Use (Pn) | 75 kW |
| Output Power, Light Overload Use (PLD) | 75 kW |
| Output Power, Heavy-Duty Use (PHD) | 55 kW |
| Efficiency Level | IE2 |
| Dimensions | 727 × 252 × 369 mm |
| Weight | 45 kg |
Applications
● Industrial Motor Control – Provides stable speed regulation for three-phase AC motors.
● Pump Systems – Suitable for water treatment, circulation, and process pumping applications.
● Fan and Ventilation Systems – Optimizes airflow control and improves operating efficiency.
● Compressor Equipment – Supports reliable operation of industrial air compressor systems.
● Conveyor Systems – Delivers smooth motor control for material handling and production lines.
● Industrial Automation – Ideal for manufacturing, processing, mining, and general industrial machinery.
Advantages
● High Power Performance – Suitable for demanding industrial motor control applications.
● Reliable Operation – Designed for stable performance during continuous industrial operation.
● Energy-Efficient Design – IE2 efficiency level helps improve overall system efficiency.
● Flexible Installation – Wall-mounted configuration simplifies installation and maintenance.
● Industrial Protection – IP21 protection and NEMA Type 1 enclosure provide dependable indoor operation.
● Wide Application Range – Suitable for numerous industrial motor-driven systems.
FAQ
- What is the primary purpose of the ABB ACS580-01-145A-4?
It is designed to provide reliable motor control for industrial equipment and automation systems. - What types of equipment can this frequency converter be used with?
It is suitable for pumps, fans, compressors, conveyors, mixers, and many other motor-driven machines. - How does this product improve industrial operations?
It helps provide smooth motor operation, better process control, and improved energy management. - Is this frequency converter suitable for continuous industrial use?
Yes. It is designed for reliable long-term operation in industrial environments. - Can this drive be integrated into automation systems?
Yes. It is designed for seamless integration with industrial automation and control systems. - What industries commonly use this type of frequency converter?
It is widely used in manufacturing, water treatment, mining, HVAC, food processing, and general industrial applications. - Does this product help support equipment reliability?
Yes. It helps maintain stable motor operation and supports effective equipment management. - Is this model suitable for wall-mounted installation?
Yes. It is designed for convenient wall-mounted installation in industrial control cabinets. - What are the advantages of the ABB ACS580 series?
The series offers reliable motor control, energy-efficient operation, flexible installation, and dependable industrial performance. - Why choose the ABB ACS580-01-145A-4 Frequency Converter?
It provides dependable operation, efficient motor management, and reliable performance for a wide variety of industrial applications.
