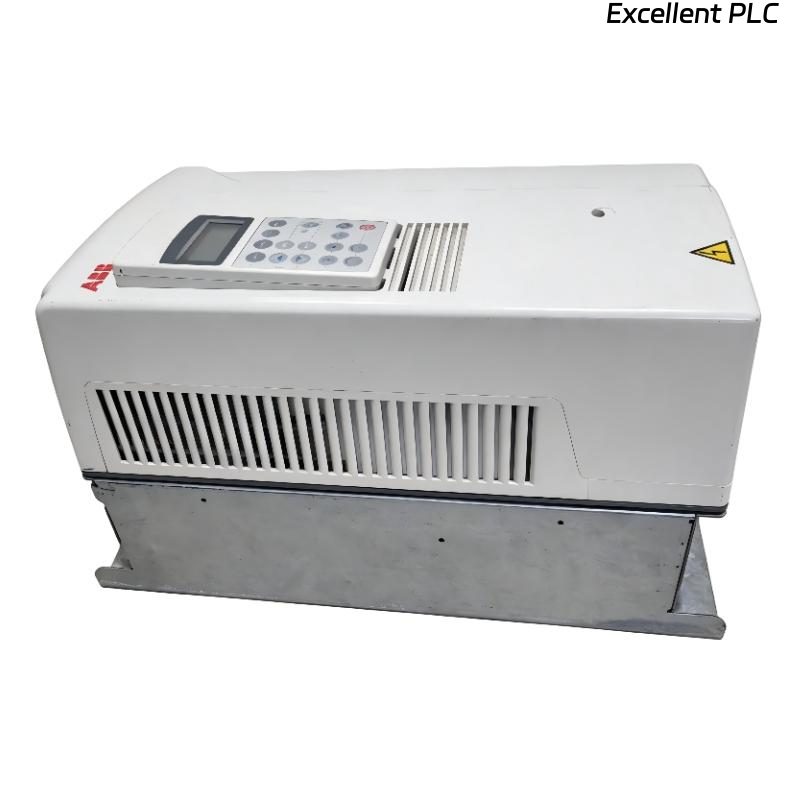

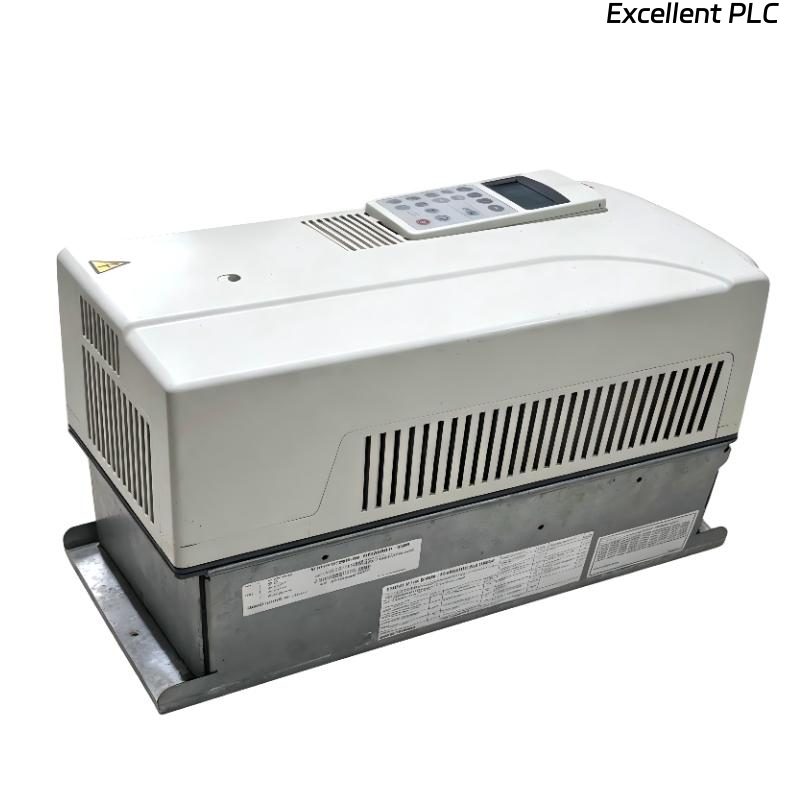

ABB ACS800-01-0025-3 64576283 Frequency Converter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
ABB ACS800-01-0025-3 64576283 Frequency Converter is a reliable industrial drive designed for precise motor control in various automation and process applications. It provides stable speed regulation, efficient power management, and dependable performance for industrial equipment.
With a three-phase 380…415 V input voltage and 44 A normal duty output current, this frequency converter is suitable for medium-power motor applications. The wall-mounted design allows convenient installation in industrial control systems.
The ACS800-01-0025-3 supports normal duty, light overload, and heavy-duty operation modes, providing flexible performance for pumps, fans, conveyors, and machinery requiring accurate motor control.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | ABB ACS800-01-0025-3 |
| Part Number | 64576283 |
| Product Type | Frequency Converter |
| Brand | ABB |
| Number of Phases | Three-phase |
| Frequency (f) | 48 … 63 Hz |
| Frame Size | R4 |
| Input Voltage (U in) | 380…415 V |
| Mounting Type | Wall-mounted |
| Output Current, Normal Use (I n) | 44 A |
| Output Current, Light Overload Use (ILD) | 41 A |
| Output Current, Heavy Duty Use (I HD) | 32 A |
| Output Power, Normal Use (Pn) | 22 kW |
| Output Power, Light Overload Use (PLD) | 18.5 kW |
| Output Power, Heavy Duty Use (PHD) | 15 kW |
| Apparent Output Power | 30 kVA |
| Efficiency Level | IE2 |
| Standby Loss | 49 W |
| Temperature Class | Maximum 50 °C |
| Dimensions | 607 × 240 × 274 mm |
| Weight | 26 kg |
Applications
• Industrial Machinery
Suitable for production equipment requiring accurate motor speed and torque control.
• Pump Systems
Provides efficient operation for water pumps and process pumping applications.
• Fan and Ventilation Systems
Helps optimize motor speed according to system requirements and improves energy efficiency.
• Material Handling Equipment
Supports conveyors and machinery requiring smooth acceleration and stable operation.
• Automation Systems
Provides reliable motor control for industrial automation and manufacturing processes.
Advantages
• Reliable Motor Control
Provides accurate speed and torque regulation for stable equipment performance.
• Flexible Operation Modes
Supports normal duty, light overload, and heavy-duty applications for different load requirements.
• Energy Efficient Performance
IE2 efficiency helps reduce operational losses and improve system efficiency.
• Compact Wall-Mounted Design
The wall-mounted structure simplifies installation in industrial control cabinets and systems.
• ABB Proven Technology
Offers reliable performance based on ABB industrial drive technology.
FAQ
- How does the ACS800-01-0025-3 control motor speed?
The converter adjusts output frequency and voltage to achieve accurate motor speed regulation and smooth operation. - What types of applications are suitable for this frequency converter?
It is suitable for pumps, fans, conveyors, industrial machinery, and automation equipment requiring stable motor control. - How does the converter improve energy efficiency?
It reduces energy consumption by allowing motors to operate according to actual load requirements instead of running continuously at full speed. - What overload capabilities does this model support?
The converter supports normal duty, light overload, and heavy-duty operation modes to meet different application requirements. - How does the drive protect the motor during operation?
The system monitors operating conditions and helps maintain safe performance under changing electrical and load conditions. - Why is wall-mounted installation beneficial?
The wall-mounted design provides convenient installation and saves space in industrial control environments. - Can this converter be used for continuous industrial operation?
Yes, it is designed for reliable operation in industrial systems requiring stable motor control. - What power supply does this frequency converter require?
It requires a three-phase input supply of 380…415 V with a frequency range of 48…63 Hz. - How does the converter improve equipment performance?
It provides smoother acceleration, controlled operation, and improved process stability. - What factors should be considered when selecting this drive?
Users should consider motor power, load characteristics, application requirements, and installation conditions.
Related Models
| Model | Description |
|---|---|
| ABB ACS800-01-0020-3 | Industrial frequency converter for medium-power motor control applications. |
| ABB ACS800-01-0025-5 | Similar ACS800 drive model designed for industrial automation systems. |
| ABB ACS800-01-0030-3 | Reliable drive solution for pumps, fans, and machinery applications. |
| ABB ACS800-01-0040-3 | High-performance converter for variable speed motor control. |
| ABB ACS800-01-0050-3 | Industrial drive designed for demanding process applications. |
| ABB ACS800-01-0060-3 | Powerful converter model for larger industrial motor systems. |
Popular Models
| Model | Description |
|---|---|
| ABB ACS880-01-046A-3 | Advanced industrial frequency converter for precise motor control applications. |
| ABB ACS580-01-046A-4 | General-purpose drive widely used in pumps, fans, and industrial equipment. |
| ABB ACS550-01-045A-4 | Reliable frequency converter for automation and process control systems. |
| ABB ACS355-03E-44A0-4 | Compact drive for machinery and OEM applications. |
| ABB ACS380-04-039A-4 | Flexible industrial converter for automation equipment. |
| ABB ACH580-01-062A-4 | Efficient drive solution for HVAC and pump control applications. |
