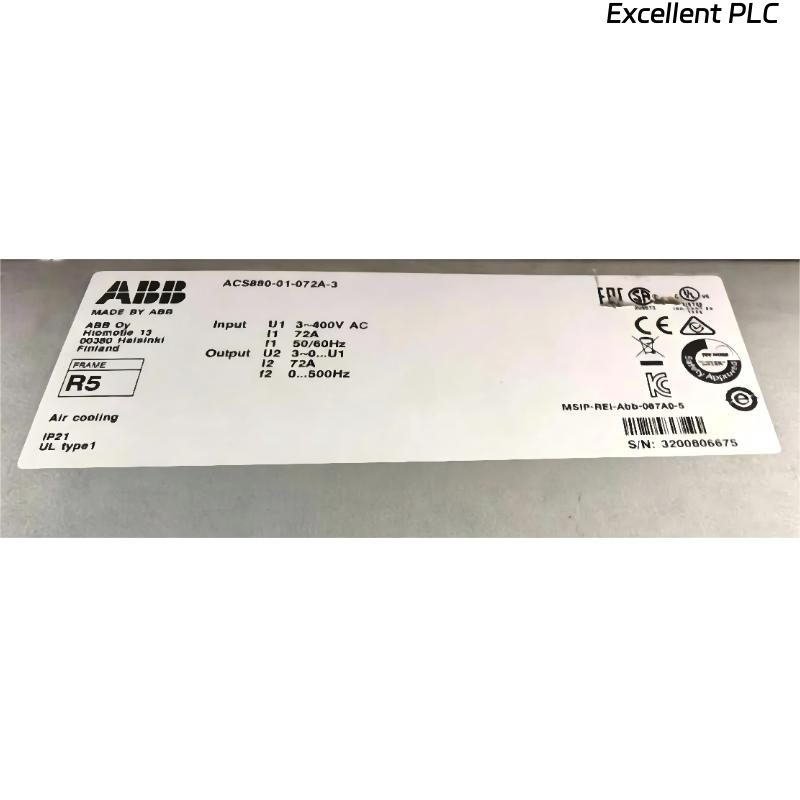

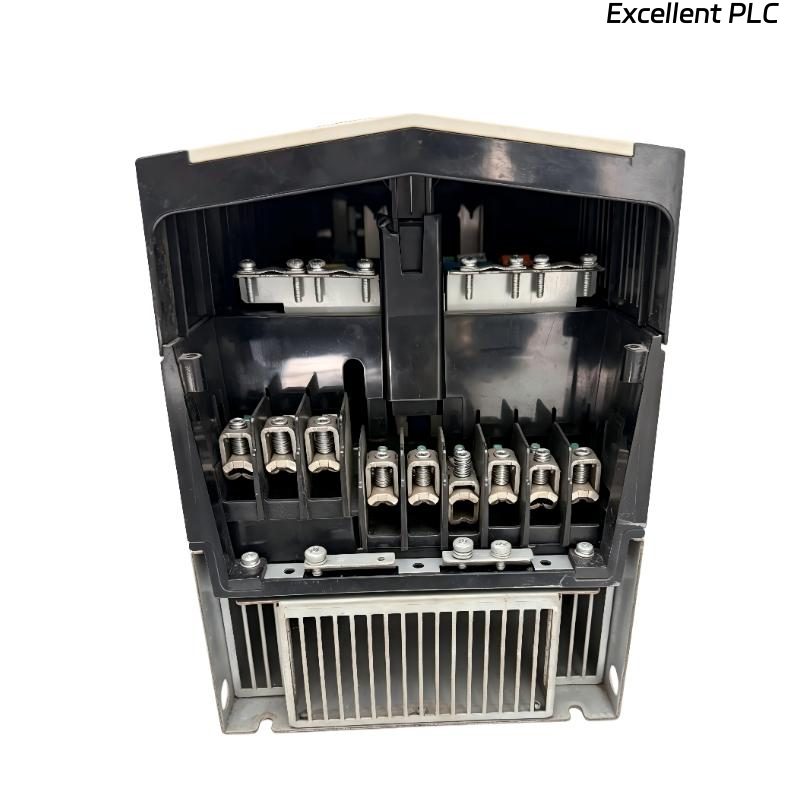

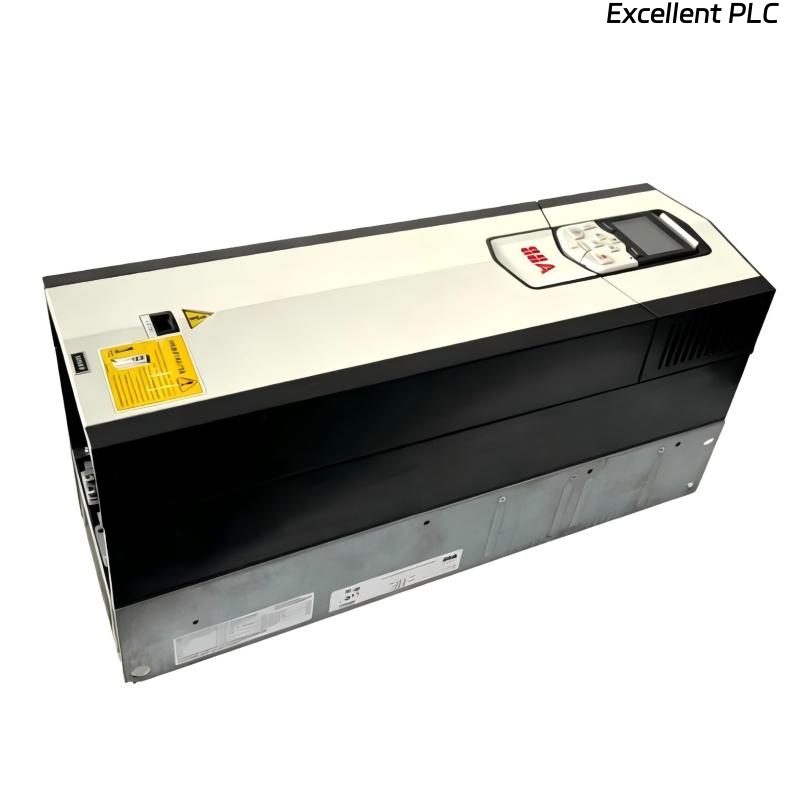

ABB ACS880-01-072A-3 3ABD00035948-D Frequency Converter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
ABB ACS880-01-072A-3 3ABD00035948-D Frequency Converter is a high-performance industrial drive designed to provide precise motor speed control, stable torque output, and reliable operation for demanding automation applications. Built with ABB’s advanced drive technology, it delivers excellent control accuracy, energy-efficient operation, and dependable long-term performance across a wide range of industrial processes.
Designed for three-phase 380…415 V power systems, this frequency converter provides a rated output current of 72 A and a normal duty output power of 37 kW. Its R5 frame, wall-mounted construction, and IP21 enclosure allow easy installation while ensuring reliable protection in indoor industrial environments.
The ACS880-01-072A-3 is widely applied in pumps, fans, compressors, conveyors, mixers, packaging machinery, and manufacturing equipment that require accurate variable speed control and continuous, reliable operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | ABB ACS880-01-072A-3 |
| Part Number | 3ABD00035948-D |
| Product Type | Frequency Converter |
| Brand | ABB |
| Number of Phases | Three-phase |
| Protection Class | IP21 |
| NEMA Enclosure Type | Type 1 |
| Frequency (f) | 47.5 … 63 Hz |
| Frame Size | R5 |
| Input Voltage (U in) | 380…415 V |
| Mounting Type | Wall-mounted |
| Output Current, Normal Use (I n) | 72 A |
| Output Current, Light Overload Use (ILD) | 68 A |
| Output Current, Heavy Duty Use (I HD) | 61 A |
| Output Power, Normal Use (Pn) | 37 kW |
| Output Power, Light Overload Use (PLD) | 37 kW |
| Output Power, Heavy Duty Use (PHD) | 30 kW |
| Efficiency Level | IE2 |
| Dimensions | 730 × 203 × 274 mm |
| Weight | 23 kg |
Applications
• Industrial Pump Systems
Provides accurate speed regulation for water treatment, fluid transfer, and process pumping applications while improving energy efficiency.
• Fan and Ventilation Equipment
Maintains stable airflow and reduces energy consumption through intelligent variable speed motor control.
• Conveyor Systems
Ensures smooth acceleration, controlled deceleration, and reliable speed adjustment for material handling equipment.
• Compressors and Processing Machinery
Supports stable motor operation for compressors, mixers, and industrial processing equipment under varying load conditions.
• Manufacturing Automation
Suitable for production lines and automated machinery requiring precise motor control, dependable operation, and flexible speed regulation.
Advantages
• Precise Speed and Torque Control
Provides accurate motor regulation to improve process consistency and overall equipment performance.
• Flexible Operating Capability
Supports normal-duty, light-overload, and heavy-duty applications to meet a variety of industrial operating requirements.
• Compact Wall-Mounted Design
The R5 frame simplifies installation while reducing cabinet space requirements.
• High Energy Efficiency
The IE2 efficiency level helps optimize motor performance and reduce operating costs.
• Reliable Industrial Protection
The IP21 and NEMA Type 1 enclosure provide dependable protection for indoor industrial environments.
FAQ
- How does the ABB ACS880-01-072A-3 regulate motor speed?
The drive continuously adjusts output frequency and voltage to maintain precise motor speed and stable torque under changing operating conditions. - What industrial equipment is compatible with this frequency converter?
It is suitable for pumps, fans, conveyors, compressors, mixers, packaging equipment, and other industrial machinery requiring variable speed control. - What is the advantage of having multiple load ratings?
The different operating ratings allow the drive to support normal-duty, light-overload, and heavy-duty applications while maintaining reliable performance. - How does this converter improve energy efficiency?
It adjusts motor speed according to process demand, reducing unnecessary power consumption and improving overall system efficiency. - What protection does the IP21 enclosure provide?
The enclosure protects against accidental contact and vertically falling water droplets, making it suitable for indoor industrial installations. - Can this converter operate continuously in industrial applications?
Yes. It is designed for continuous-duty operation, providing reliable motor control and consistent performance during long production cycles. - Why is the wall-mounted design beneficial?
Wall mounting simplifies installation, reduces cabinet space requirements, and provides convenient access for maintenance. - What electrical supply is required for this model?
The converter operates with a three-phase 380…415 V AC power supply and supports an input frequency range of 47.5 to 63 Hz. - Can the ACS880-01-072A-3 be integrated into automation systems?
Yes. It is designed for seamless integration into industrial automation systems requiring precise motor speed regulation and dependable operation. - What should be considered before selecting this frequency converter?
Motor power, application requirements, operating conditions, electrical supply, environmental factors, and system compatibility should all be evaluated.
Related Models
| Model | Description |
|---|---|
| ABB ACS880-01-061A-3 | Industrial frequency converter for medium-power motor control and automation systems. |
| ABB ACS880-01-087A-3 | High-performance drive designed for demanding industrial motor applications. |
| ABB ACS880-01-105A-3 | Reliable frequency converter providing precise speed regulation for production equipment. |
| ABB ACS880-01-145A-3 | High-capacity industrial drive for heavy-duty manufacturing processes. |
| ABB ACS880-01-169A-3 | Advanced motor drive suitable for high-power industrial automation. |
| ABB ACS880-01-206A-3 | Industrial frequency converter developed for large motor control applications. |
Popular Models
| Model | Description |
|---|---|
| ABB ACS580-01-073A-4 | General-purpose frequency converter for pumps, fans, and industrial machinery. |
| ABB ACS550-01-072A-4 | Reliable industrial drive for variable speed motor control applications. |
| ABB ACS355-03E-75A0-4 | Compact frequency converter for OEM equipment and factory automation. |
| ABB ACS380-04-072A-4 | Flexible industrial drive designed for manufacturing and processing systems. |
| ABB ACH580-01-072A-4 | Energy-efficient frequency converter optimized for HVAC and pump applications. |
| ABB ACS880-01-087A-3 | High-performance industrial drive delivering precise speed and torque control. |
