Product Introduction

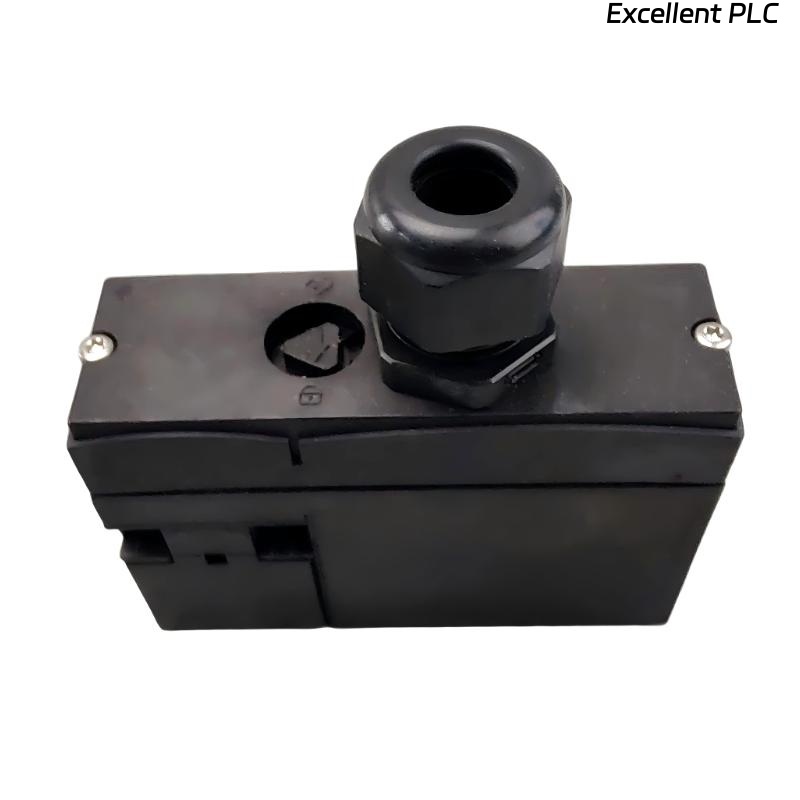

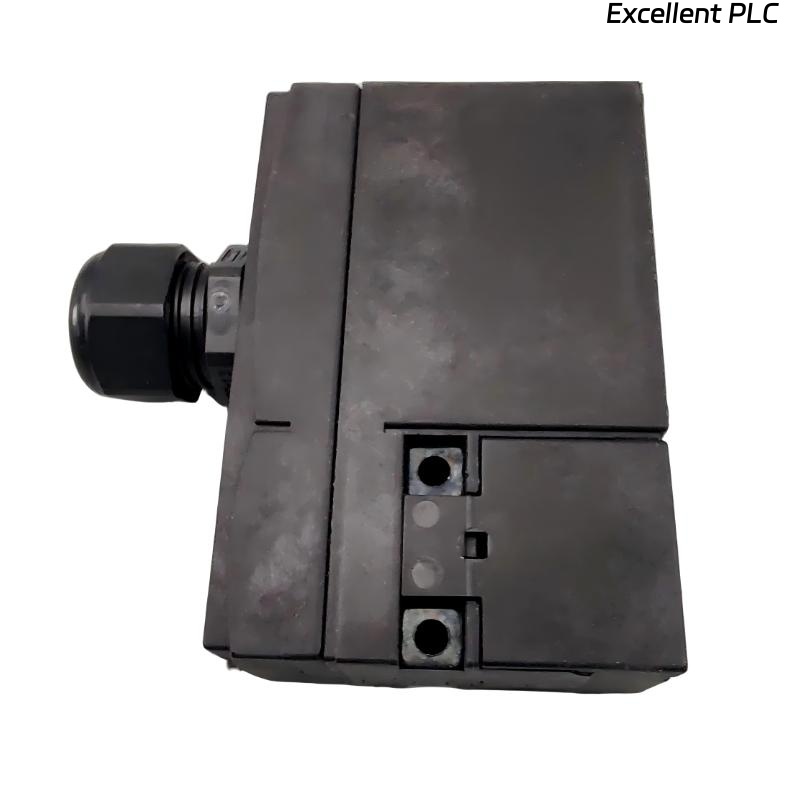

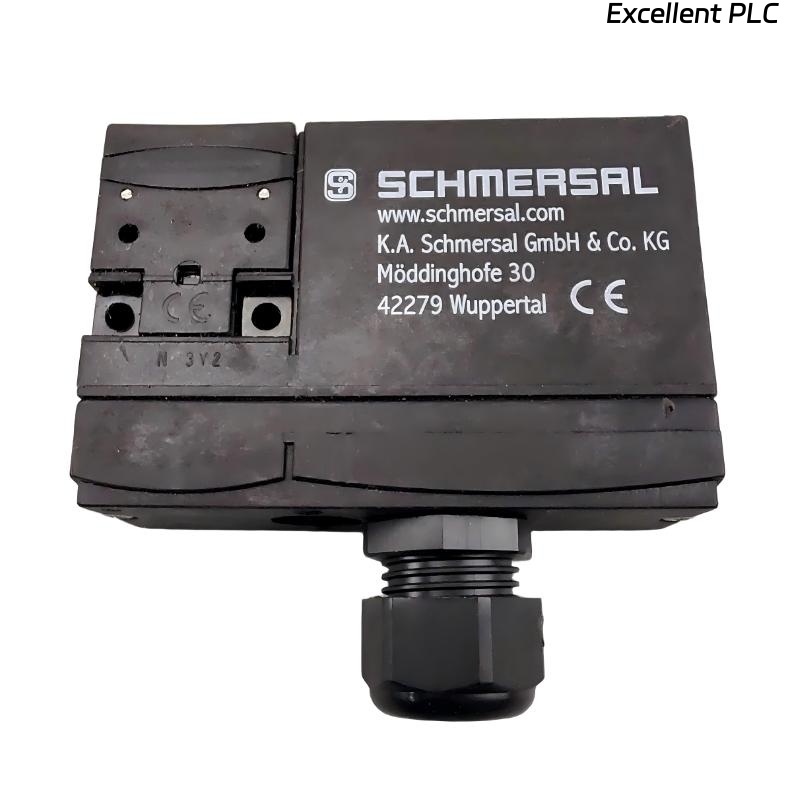

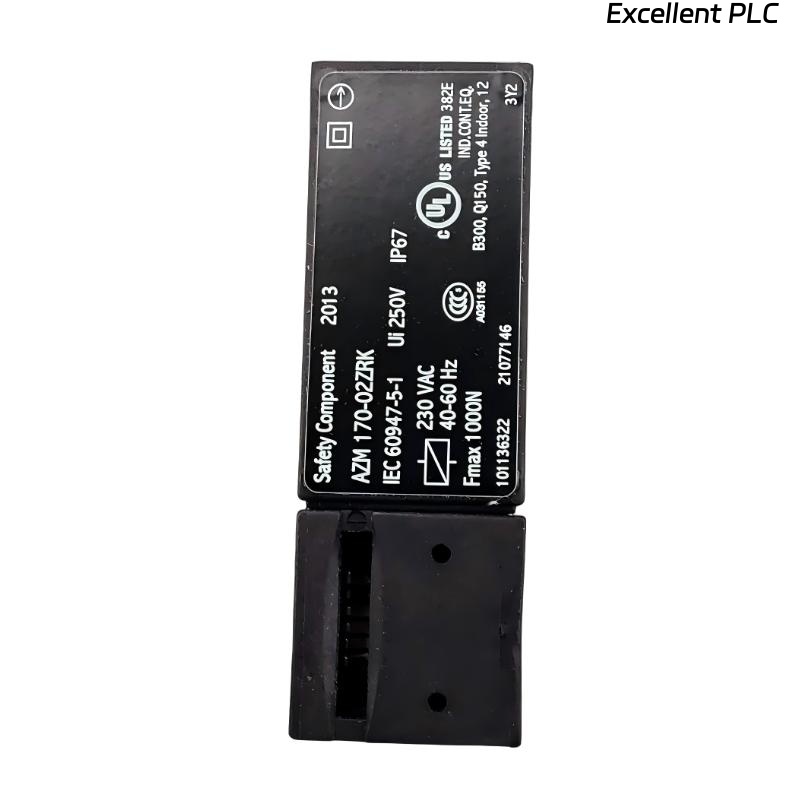

The ABB AZM 170-02ZRK 3BHB006872P0002 Safety Lock is a compact industrial safety interlocking device designed to ensure machine protection and operator safety in automated systems. It is widely used in safety-critical applications where access to hazardous machine areas must be controlled and monitored. The device provides reliable locking and unlocking functions based on machine status, helping to prevent accidental access during operation.
Engineered with ABB’s industrial safety standards, the AZM 170 series ensures stable performance, strong mechanical durability, and consistent electrical safety signaling. Its compact housing allows easy installation on doors, guards, and safety enclosures in various industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | AZM 170-02ZRK 3BHB006872P0002 |
| Function | Safety Lock / Interlocking Device |
| Contact Configuration | 2NC / 0NO (typical safety switching setup) |
| Actuation Type | Mechanical key-operated locking system |
| Locking Principle | Power-to-unlock safety mechanism |
| Material | Industrial-grade reinforced housing |
| Protection Class | IP67 (dust-tight and waterproof design) |
| Electrical Rating | Industrial safety circuit compatible |
| Mounting Type | Screw-mounted on safety doors/guards |
| Operating Environment | Industrial automation and machinery safety |
| Dimensions | 90 × 25 × 60 mm |
| Weight | 0.3 kg |
Applications
• Machine Safety Systems:
Used to prevent access to dangerous machine areas during operation, ensuring operator protection.
• Industrial Automation Lines:
Provides controlled interlocking for robotic cells, conveyors, and automated production equipment.
• Safety Guard Doors:
Ensures machinery stops or enters safe state when protective doors are opened.
• Manufacturing Equipment Protection:
Used in CNC machines, presses, and packaging systems to enforce safety access control.
• Process Industry Safety Control:
Applies in chemical, energy, and heavy industrial environments requiring strict safety interlocking.
Advantages
• High Safety Reliability:
Designed to meet industrial safety requirements with consistent locking performance under demanding conditions.
• Robust Mechanical Structure:
Strong housing ensures resistance against vibration, impact, and harsh industrial environments.
• Fail-Safe Operation:
Power-to-unlock mechanism enhances safety, ensuring locked state during power loss or system faults.
• Compact Design:
Small footprint allows installation in tight spaces without affecting machine layout.
• Easy Integration:
Compatible with standard safety control circuits and industrial automation systems.
• Long-Term Durability:
Built for continuous industrial use with stable performance over long operational cycles.
