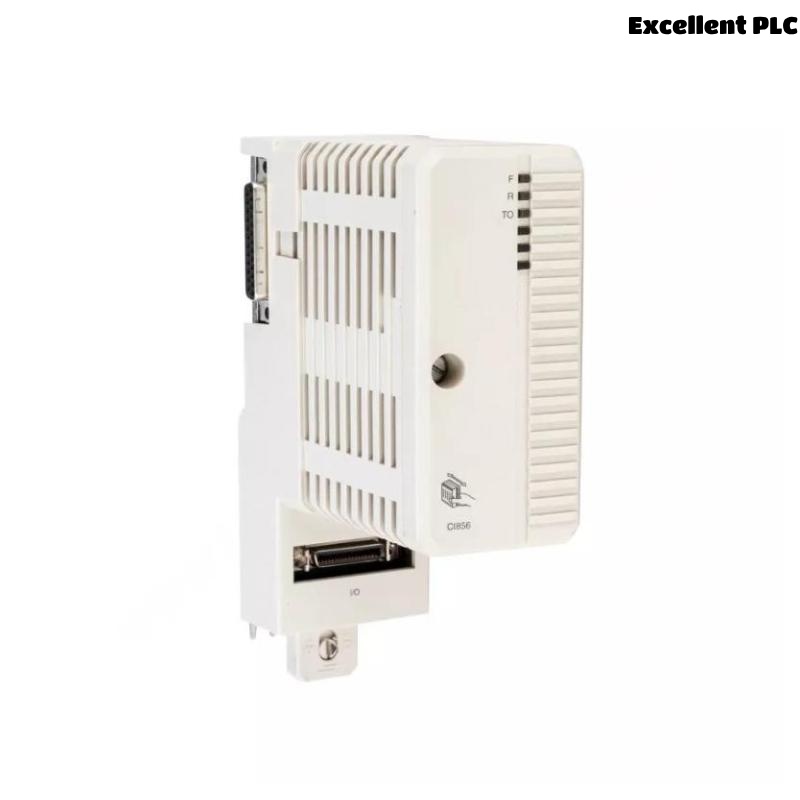

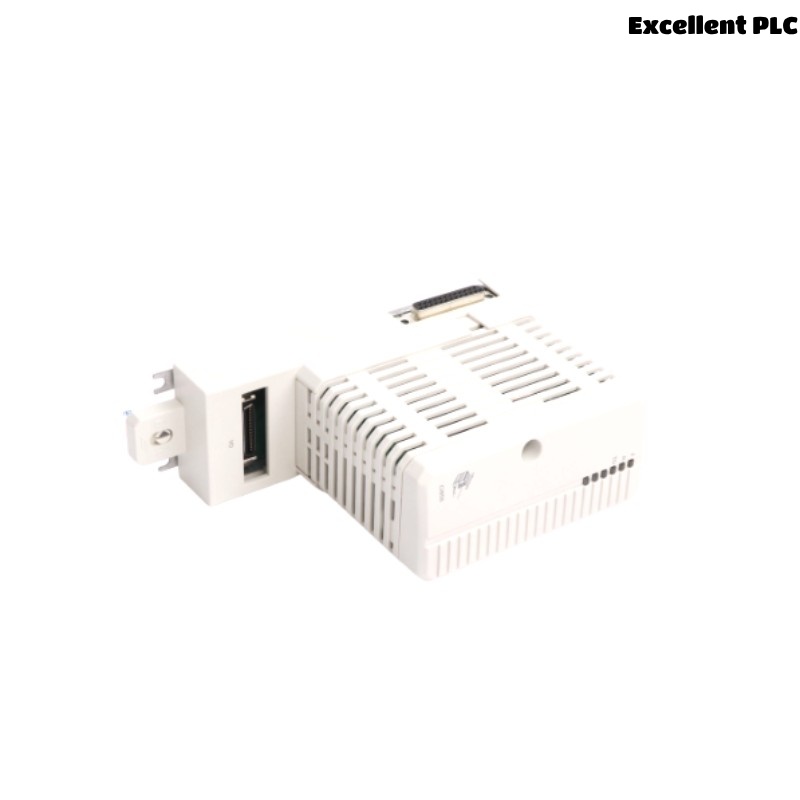

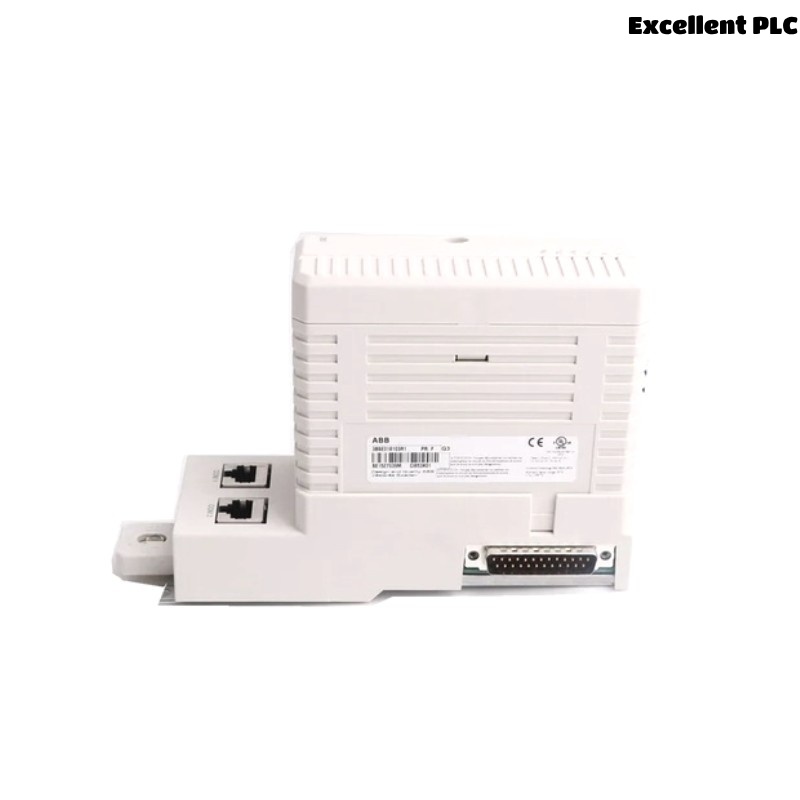

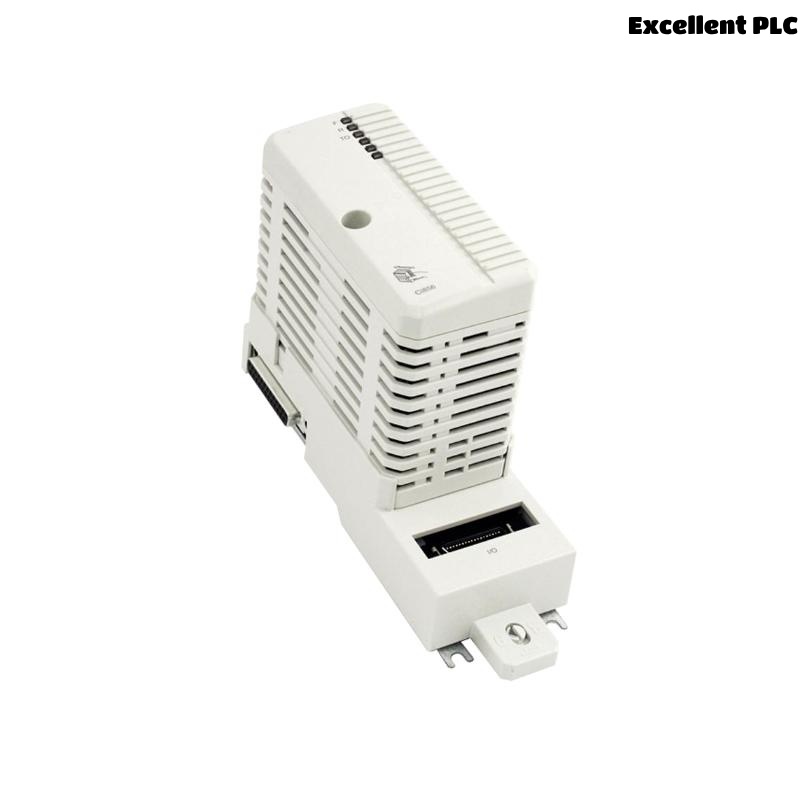

ABB CI856K01 3BSE026055R1 AC 800M Communication Interface Module
Product Overview
The ABB CI856K01 is a communication interface module designed for integration of S100 I/O into the AC 800M control system via the CEX-Bus. It plays a crucial role in reusing existing ABB Master and Advant OCS installations by supporting connectivity to up to five S100 I/O racks. The CI856 module enables a seamless transition to modern control without major rewiring or hardware overhaul.
Technical Specifications
| Parameter | Description |
|---|---|
| Article Number | 3BSE026055R1 |
| Communication Protocol | ABB S100 I/O |
| Operating Mode | Master |
| Hot Swap Support | Yes |
| Max Units on CEX Bus | 12 |
| Connector Type | 36-pin Miniribbon |
| Typical 24 V Consumption | 120 mA |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Corrosion Protection | G3 (ISA 71.04) Compliant |
| Protection Class | IP20 (EN60529, IEC 529) |
| CE Marking | Yes |
| RoHS Compliance | Yes (Directive 2011/65/EU) |
| WEEE Compliance | Yes (Directive 2012/19/EU) |
| Dimensions (W x H x D) | 59 x 186 x 127.5 mm |
| Weight | 0.7 kg |
Applications
-
Integration of S100 I/O racks in ABB AC 800M control systems
-
Upgrade of legacy ABB Master or Advant OCS systems
-
Use in industrial automation requiring DIN-rail mounted modular control
-
Ideal for plants focusing on minimizing rewiring and maintaining field wiring continuity
-
Connection of up to 5 S100 I/O racks, each supporting up to 20 boards
Advantages
-
Legacy Investment Protection: Retains field wiring and I/O hardware from existing systems.
-
Simple Mounting: Designed for DIN rail installation using TP856 baseplate.
-
No External Power Supply: Powered directly from the CEX-Bus.
-
Scalable Connectivity: Supports multiple I/O racks (up to five) per module.
-
Hot-Swappable Design: Enables module replacement without system shutdown.
-
Secure Component Matching: Code-locking to prevent incorrect hardware insertion.
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the CI856K01 module?
A1: It is used to connect ABB’s AC 800M controller to S100 I/O racks, enabling reuse of legacy I/O hardware.
Q2: How many I/O racks can be connected to a single CI856?
A2: Up to five I/O racks can be connected to one CI856 module.
Q3: Does the CI856K01 support hot swapping?
A3: Yes, it supports hot swap functionality.
Q4: What kind of connector is used on the CI856 module?
A4: A 36-pin Miniribbon connector is used for S100 I/O communication.
Q5: Is external power required for CI856 operation?
A5: No, it is powered through the CEX-Bus by the processor unit.
Q6: Is CI856 compatible with Advant OCS systems?
A6: Yes, it is designed to support legacy systems including Advant OCS.
Q7: What environmental standards does the CI856 comply with?
A7: It meets IP20 protection class, G3 corrosion protection, CE, RoHS, and WEEE standards.
Q8: What is the module’s power consumption?
A8: Typical 24 V consumption is approximately 120 mA.
Q9: Can CI856 be used in redundant system configurations?
A9: No, module redundancy is not supported.
Q10: What is the physical size and weight of the CI856?
A10: Dimensions are 59 x 186 x 127.5 mm, and weight is 0.7 kg.
Related ABB Models (Same Series or Related Function)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| CI853K01 | PROFIBUS DP Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| CI854AK01 | FOUNDATION Fieldbus Interface Module | 59 x 186 x 127.5 | 0.7 kg |
| CI860K01 | MODBUS Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| CI865K01 | Ethernet/IP Adapter Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| CI867K01 | PROFINET IO Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| TP856 | Baseplate for CI856 with Ribbon Connector | 59 x 186 x 127.5 | 0.2 kg |
Popular ABB Modules
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| PM866K01 | AC 800M CPU Module | 59 x 186 x 127.5 | 0.7 kg |
| PM864A | AC 800M Controller | 59 x 186 x 127.5 | 0.7 kg |
| AI810 | Analog Input Module (4–20 mA) | 59 x 186 x 127.5 | 0.7 kg |
| DO810 | Digital Output Module (24 VDC) | 59 x 186 x 127.5 | 0.7 kg |
| DI810 | Digital Input Module (24 VDC) | 59 x 186 x 127.5 | 0.7 kg |
| TU810V1 | Terminal Unit for I/O Modules | 59 x 186 x 127.5 | 0.2 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the CI856K01 module?
A1: It is used to connect ABB’s AC 800M controller to S100 I/O racks, enabling reuse of legacy I/O hardware.
Q2: How many I/O racks can be connected to a single CI856?
A2: Up to five I/O racks can be connected to one CI856 module.
Q3: Does the CI856K01 support hot swapping?
A3: Yes, it supports hot swap functionality.
Q4: What kind of connector is used on the CI856 module?
A4: A 36-pin Miniribbon connector is used for S100 I/O communication.
Q5: Is external power required for CI856 operation?
A5: No, it is powered through the CEX-Bus by the processor unit.
Q6: Is CI856 compatible with Advant OCS systems?
A6: Yes, it is designed to support legacy systems including Advant OCS.
Q7: What environmental standards does the CI856 comply with?
A7: It meets IP20 protection class, G3 corrosion protection, CE, RoHS, and WEEE standards.
Q8: What is the module’s power consumption?
A8: Typical 24 V consumption is approximately 120 mA.
Q9: Can CI856 be used in redundant system configurations?
A9: No, module redundancy is not supported.
Q10: What is the physical size and weight of the CI856?
A10: Dimensions are 59 x 186 x 127.5 mm, and weight is 0.7 kg.
Related ABB Models (Same Series or Related Function)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| CI853K01 | PROFIBUS DP Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| CI854AK01 | FOUNDATION Fieldbus Interface Module | 59 x 186 x 127.5 | 0.7 kg |
| CI860K01 | MODBUS Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| CI865K01 | Ethernet/IP Adapter Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| CI867K01 | PROFINET IO Communication Interface | 59 x 186 x 127.5 | 0.7 kg |
| TP856 | Baseplate for CI856 with Ribbon Connector | 59 x 186 x 127.5 | 0.2 kg |
Popular ABB Modules
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| PM866K01 | AC 800M CPU Module | 59 x 186 x 127.5 | 0.7 kg |
| PM864A | AC 800M Controller | 59 x 186 x 127.5 | 0.7 kg |
| AI810 | Analog Input Module (4–20 mA) | 59 x 186 x 127.5 | 0.7 kg |
| DO810 | Digital Output Module (24 VDC) | 59 x 186 x 127.5 | 0.7 kg |
| DI810 | Digital Input Module (24 VDC) | 59 x 186 x 127.5 | 0.7 kg |
| TU810V1 | Terminal Unit for I/O Modules | 59 x 186 x 127.5 | 0.2 kg |
