Product Introduction

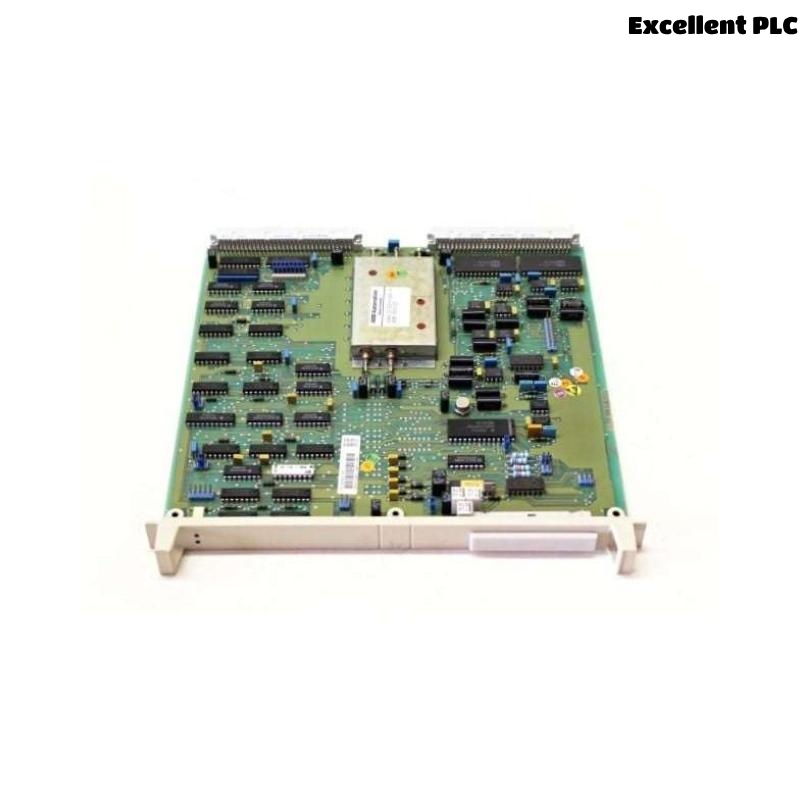

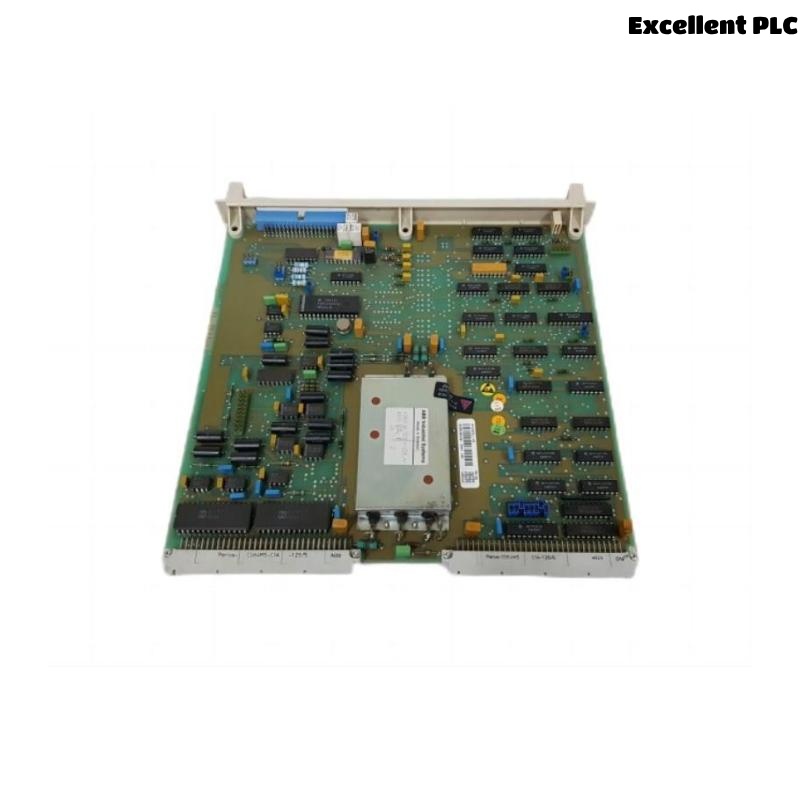

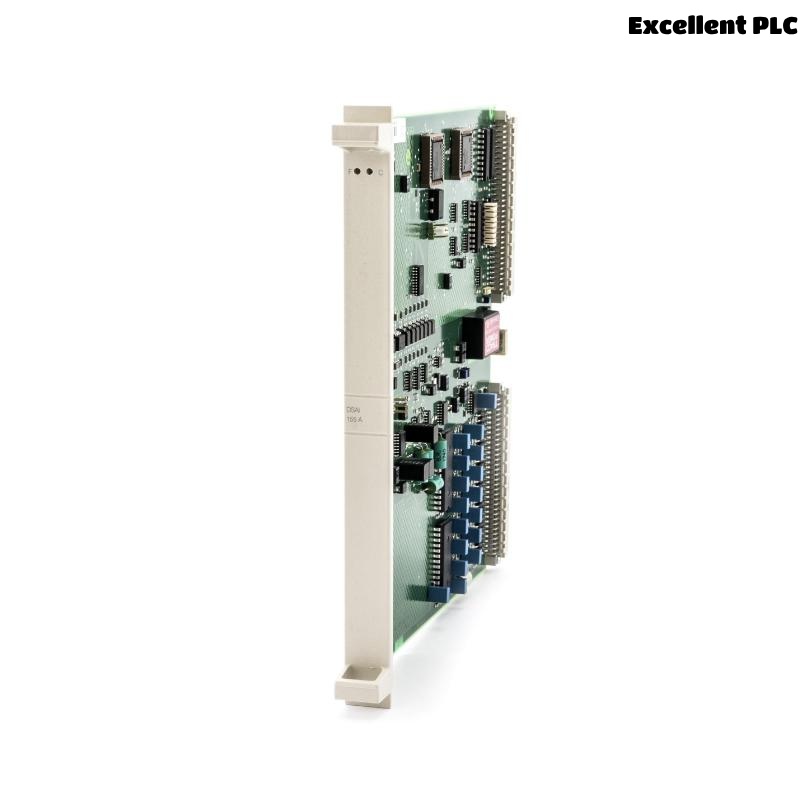

The DSAI 155 DS Analog Input Unit is a high-performance module designed for various industrial automation systems. It offers precise and reliable analog input processing, supporting a wide range of input signals such as voltage, current, and resistance. With its exceptional accuracy and easy integration, this unit ensures optimal operation in process control and monitoring applications.
The compact and robust design makes it suitable for environments where space and reliability are key. The unit integrates seamlessly with control systems, making it an ideal choice for applications that require continuous monitoring and precise data handling.
Product Parameters
| Parameter | Value |
|---|---|
| Model | DSAI 155 |
| Dimensions | 255 x 15 x 363 mm |
| Weight | 0.5 kg |
| Input Channels | 16 (Differential) |
| Signal Type | Voltage, Current, Resistance |
| Input Range | -10V to +10V, 0-20mA, 4-20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% FS |
| Power Supply | 24V DC |
| Mounting Type | Rail Mount |
Product Applications
The DSAI 155 is used in a wide variety of industries, including:
-
Process Control – Accurate measurement of variables such as temperature, pressure, and flow in manufacturing plants and chemical processes.
-
Automated Systems – Ideal for converting analog sensor signals into readable data for integration with central control systems.
-
Industrial Equipment Monitoring – Real-time monitoring of machinery and equipment to ensure continuous, efficient operations.
-
Building Automation – Used to control and monitor systems such as HVAC, lighting, and energy consumption in building management systems.
Product Advantages
-
High Accuracy – Provides 16-bit resolution and high ±0.1% FS accuracy, ensuring precise readings.
-
Wide Input Range – Supports various input signals including voltage, current, and resistance, providing versatility for different applications.
-
Compact Design – The compact size of 255 x 15 x 363 mm ensures easy installation in confined spaces.
-
Reliable Performance – Designed to withstand industrial environments while delivering consistent performance.
-
Energy Efficient – Operates with a low 24V DC power supply, ensuring energy savings.
-
Seamless Integration – Easily integrates into existing control and automation systems, ensuring smooth operation.
FAQs
Q1: What types of signals does the DSAI 155 handle?
A1: The unit handles voltage, current, and resistance signals.
Q2: What is the input range of the DSAI 155?
A2: The input range includes -10V to +10V, 0-20mA, and 4-20mA.
Q3: What is the resolution of the DSAI 155?
A3: The resolution is 16-bit, providing high precision.
Q4: Can the DSAI 155 be used in hazardous environments?
A4: Yes, it is designed to function in industrial environments, but additional safety precautions may be necessary depending on the application.
Q5: What power supply does the DSAI 155 require?
A5: The unit operates with a 24V DC power supply.
Q6: How is the DSAI 155 mounted?
A6: It is designed for rail mounting, making installation simple and space-efficient.
Q7: What is the accuracy of the DSAI 155?
A7: The accuracy is ±0.1% FS, ensuring precise data conversion.
Q8: How much does the DSAI 155 weigh?
A8: The unit weighs 0.5 kg.
Q9: Is the DSAI 155 compatible with all control systems?
A9: Yes, it is compatible with most control systems, including third-party and ABB systems.
Q10: How many input channels does the DSAI 155 support?
A10: The unit supports 16 differential input channels.
