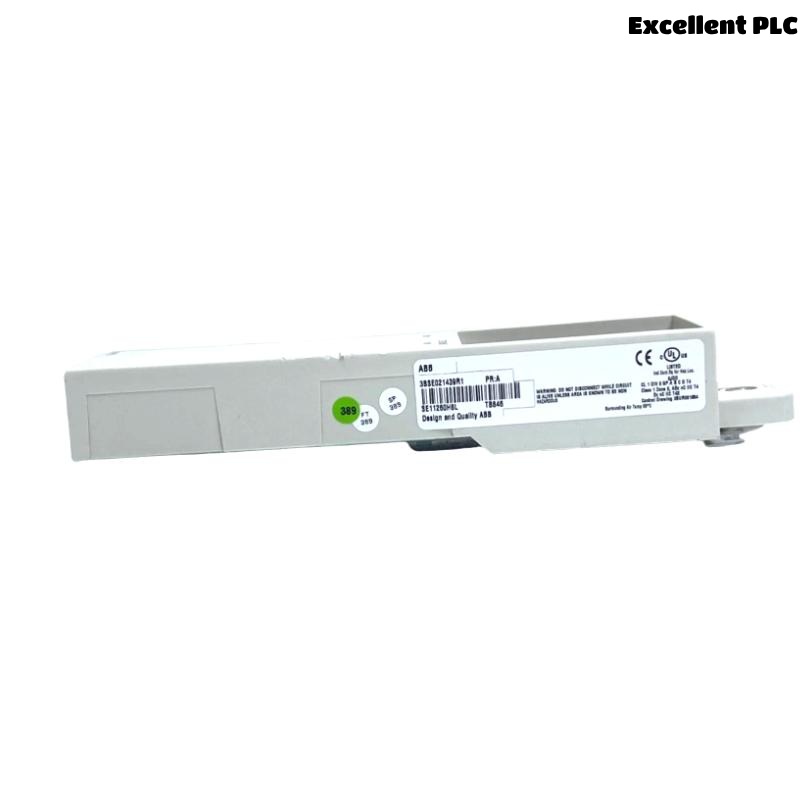

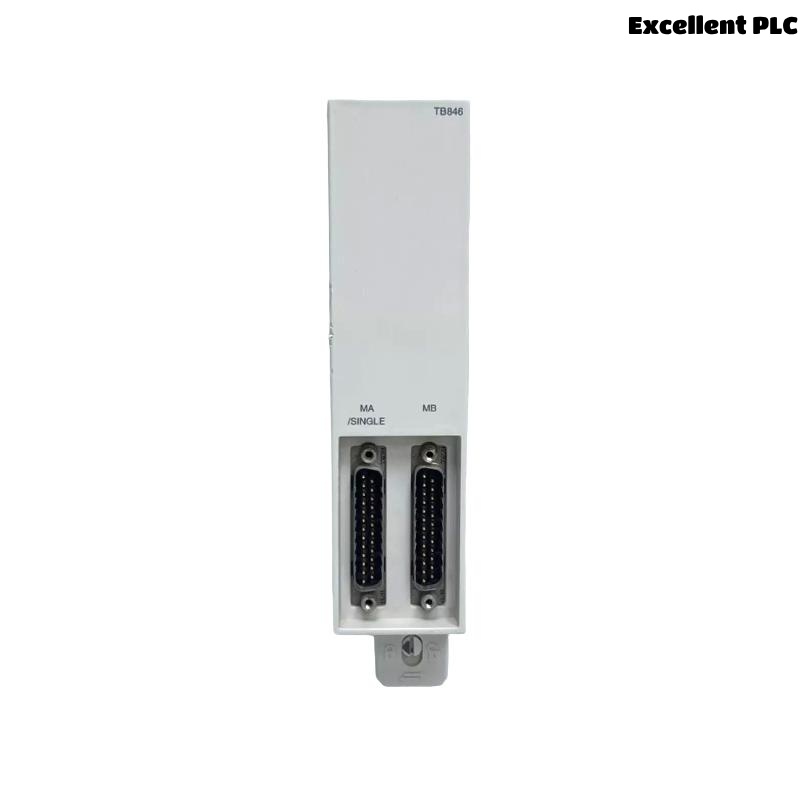

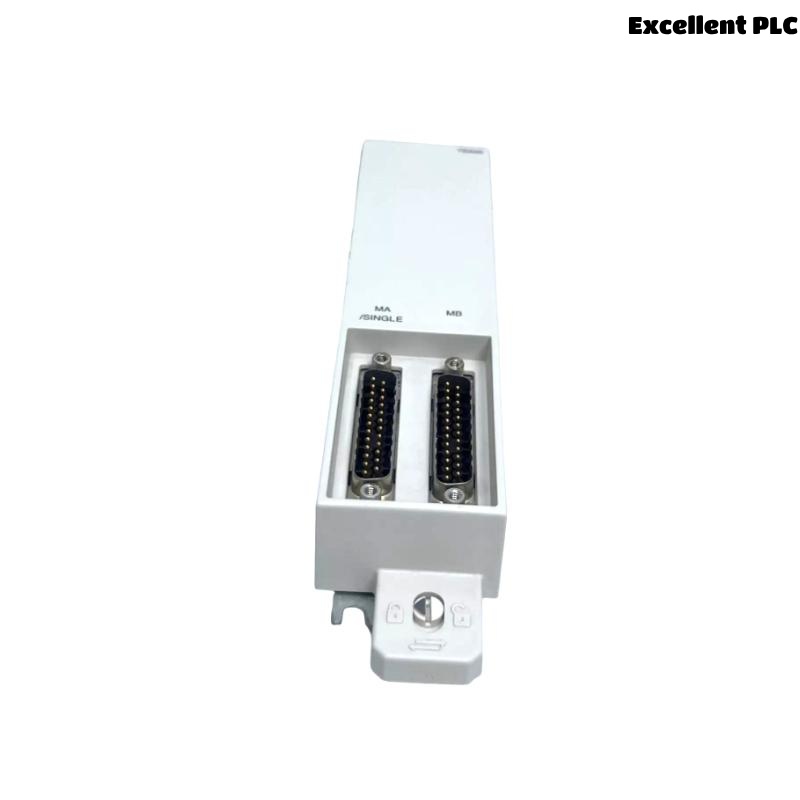

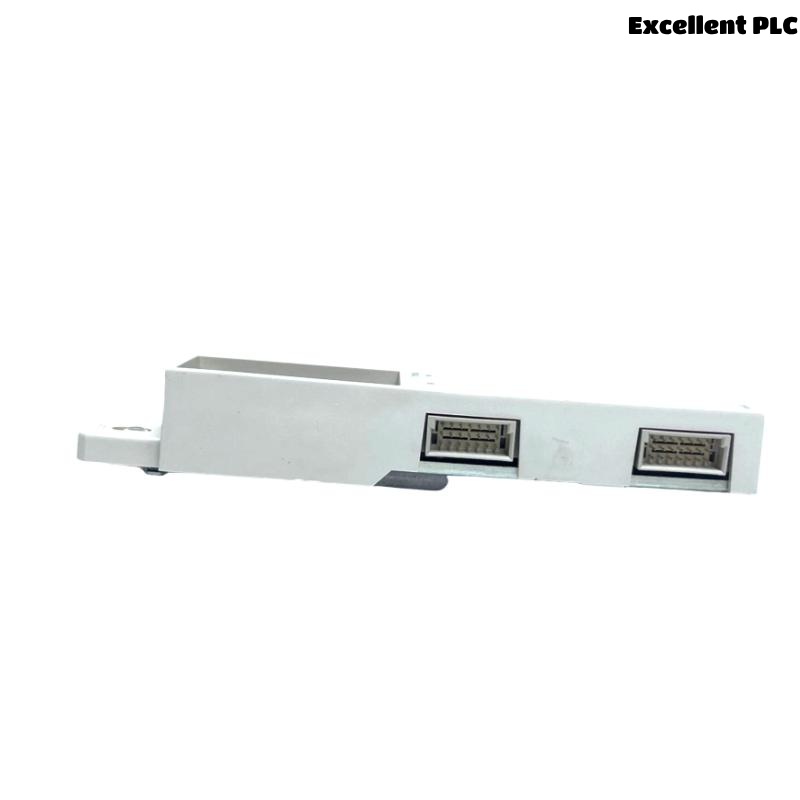

ABB TB846 3BSE021439R1 Redundant ModuleBus Cable Adaptor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The ABB TB846 3BSE021439R1 is a redundant ModuleBus cable adaptor designed for use within the ABB Ability™ System 800xA® architecture. It facilitates redundant and extended ModuleBus connectivity when used with components such as TB845 and TK801V0xx cables. It also supports optical extension with TB842.
Product Features and Advantages
-
Enables redundant ModuleBus extension.
-
Supports distributed I/O modules across multiple DIN rails.
-
Compatible with both electrical and optical extension configurations.
-
Certified for harsh environments including marine and hazardous locations.
-
High reliability due to robust industrial design.
Applications
-
Distributed control systems in industrial automation.
-
Process control networks requiring extended or redundant I/O configurations.
-
Environments requiring secure and certified bus communication, including marine and hazardous areas.
-
ABB System 800xA and Symphony Plus installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Redundant ModuleBus Cable Adaptor |
| Article Number | 3BSE021439R1 |
| System Compatibility | ABB Ability™ System 800xA®, Symphony Plus |
| Interface | Used with TB845 and TK801V0xx, or TB842 |
| Dimensions (W × D × H) | 43 × 31.5 × 186 mm |
| Weight | 0.18 kg |
| Protection Class | IP20 (IEC 60529) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Humidity | 5 to 95% RH (non-condensing) |
| Safety Standards | IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| EMC Compliance | EN 61000-6-4, EN 61000-6-2 |
| Hazardous Location Compliance | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certifications | ABS, BV, DNV, LR |
| Corrosion Protection | ISA-S71.04 G3 |
| Overvoltage Category | IEC/EN 60664-1 |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
