ABB DSQC 236G YB560103-CD Servo Axis Drive Unit

Product Description

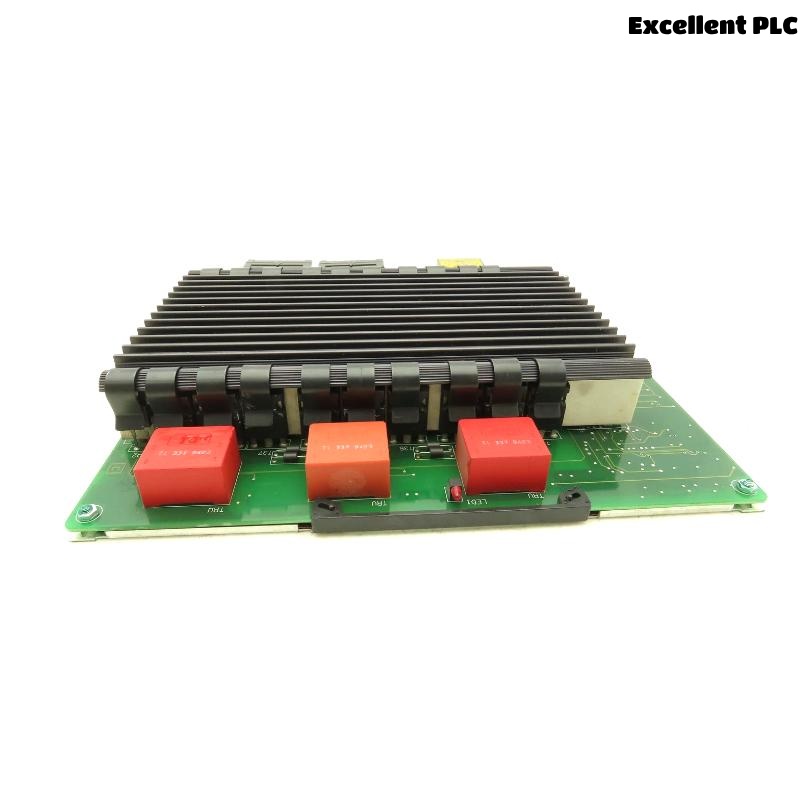

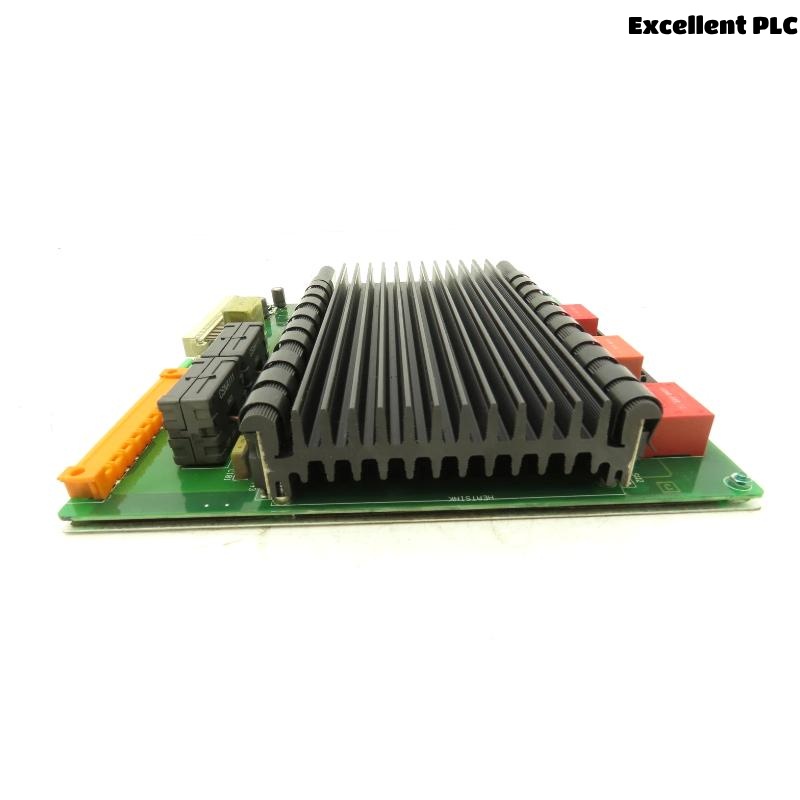

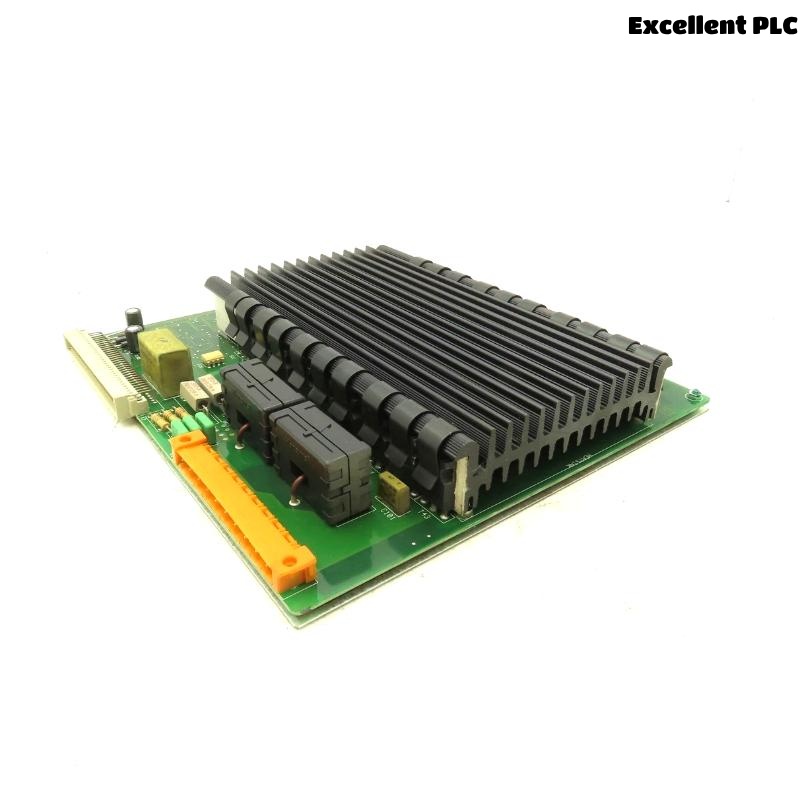

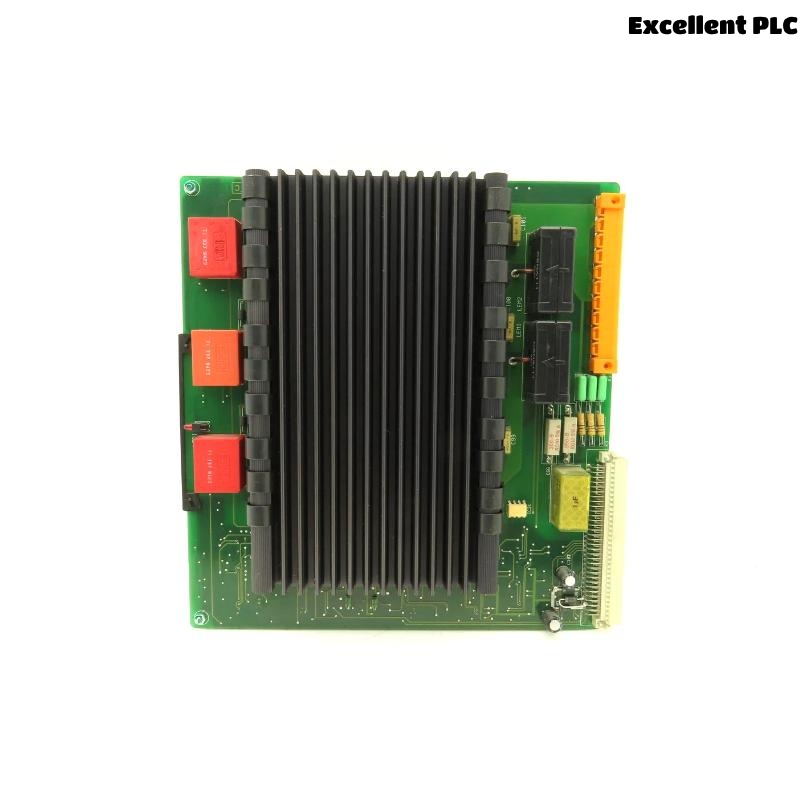

The ABB DSQC 236G YB560103-CD is a servo axis drive unit used in ABB industrial robot systems, particularly within the IRB 6400 series with S4 control systems. It manages precise motor control, ensuring accurate and stable axis movement during robotic operations. It is integral to closed-loop motion systems.

---

Technical Specifications

---

Applications

• ABB IRB6400 industrial robot series

• Motion control for servo-driven robot joints

• High-precision multi-axis automation

• Automotive assembly and welding

• General industrial manufacturing robotics

---

Advantages

• High compatibility with ABB S4 systems

• Reliable axis control for precise motion

• Compact design for efficient panel space usage

• Integrates with ABB’s comprehensive safety chain

• Built-in diagnostics via system LEDs

• Easy maintenance and replacement procedures

---

FAQ (Frequently Asked Questions)

Q1: What system is the DSQC 236G compatible with?
A1: It is specifically designed for ABB IRB6400 robots with the S4 controller system.

Q2: Can I use DSQC 236G with newer robot models?
A2: No, it is primarily intended for legacy systems like the IRB6400. Compatibility with newer models is not guaranteed.

Q3: Is the DSQC 236G hot-swappable?
A3: No. Always power down and discharge the system before replacing the unit to avoid damage or injury.

Q4: What type of motors does it control?
A4: It controls ABB servo motors that operate using resolver feedback and PWM drives.

Q5: Does it support diagnostics?
A5: Yes, it uses onboard LED indicators for status and fault conditions.

Q6: What is the importance of resolver feedback?
A6: Resolver feedback allows for accurate, real-time positioning data, essential for precision control.

Q7: Is the DSQC 236G still in production?
A7: Contact Us.

Q8: Can multiple DSQC 236G units be installed in a system?
A8: Yes, typically one unit per robot axis is used in the control system.

Q9: What are the safety considerations when replacing the unit?
A9: Ensure full system lockout/tagout, and use ESD protection to prevent component damage.

Q10: How do I identify a faulty DSQC 236G?
A10: Check for fault LEDs, irregular axis behavior, or fault logs in the teach pendant system.

---
