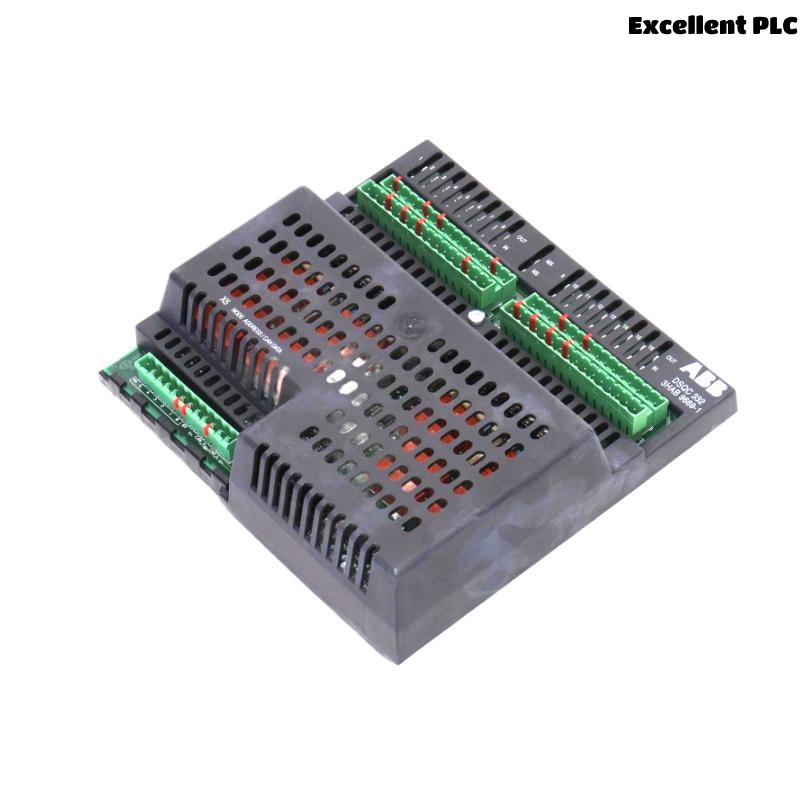

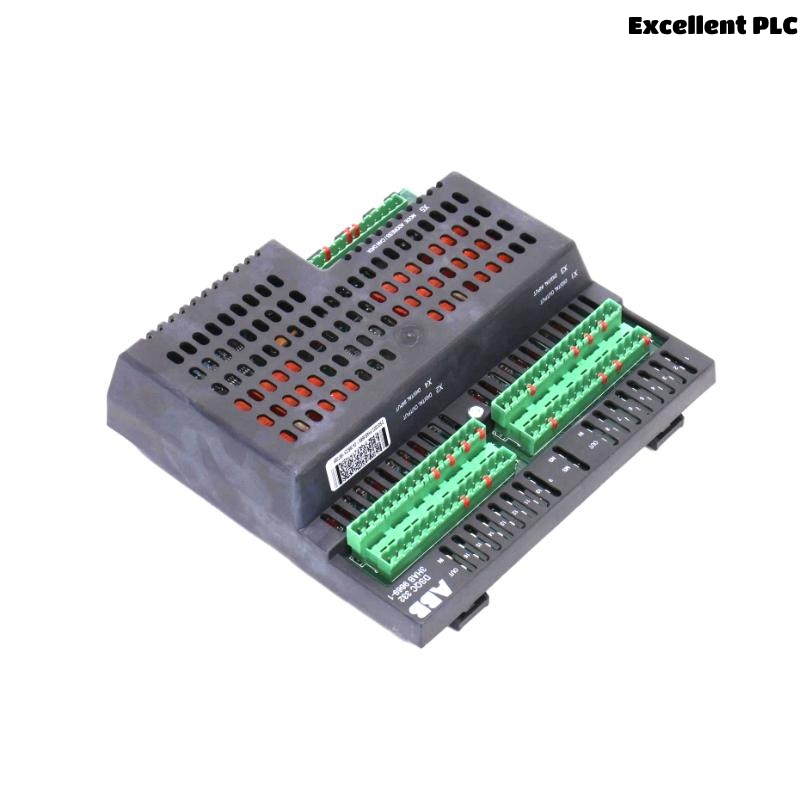

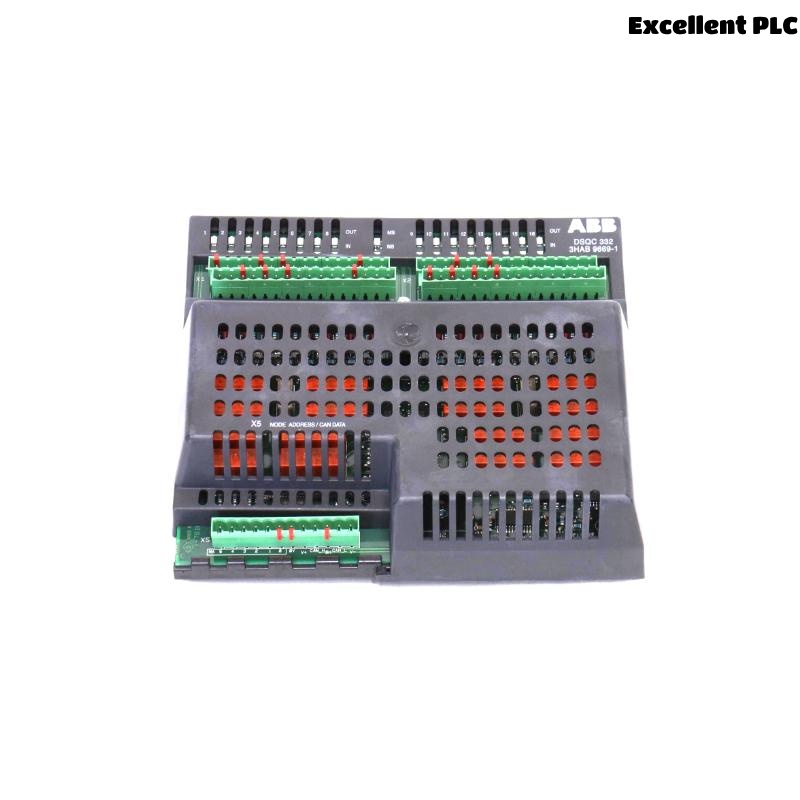

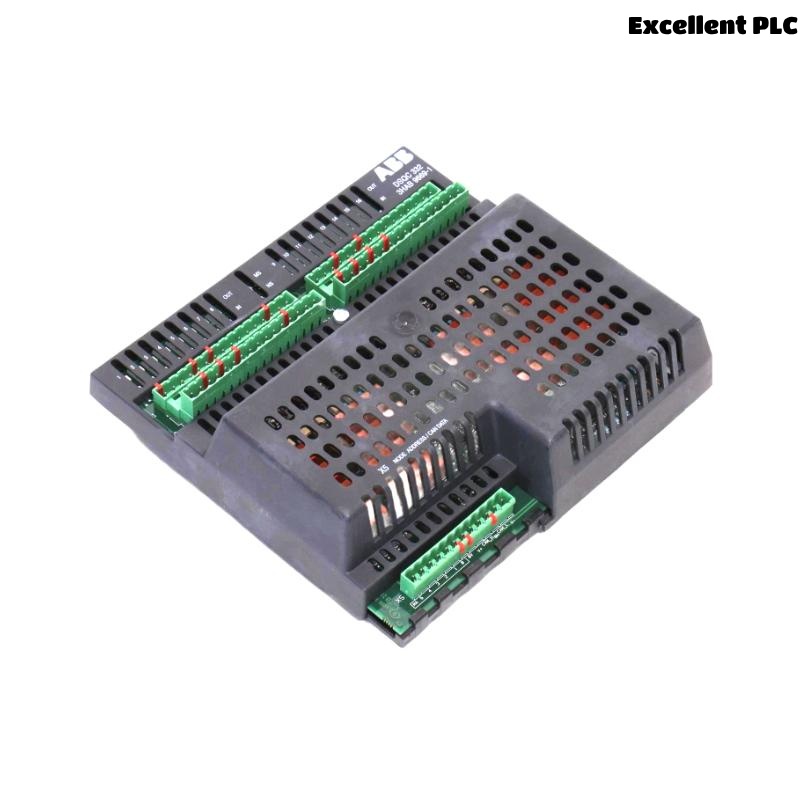

ABB DSQC 332 3HAB9669-1 I/O Unit
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The ABB DSQC 332 3HAB9669-1 is a digital I/O unit designed for use with ABB’s IRC5 robot controller systems. It provides reliable and high-speed digital input and output functionality, allowing the controller to communicate efficiently with external devices such as sensors, actuators, and switches.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | DSQC 332 |
| ABB Code | 3HAB9669-1 |
| I/O Type | Digital I/O |
| Number of Channels | Typically 32 (Input/Output) |
| Compatible System | ABB IRC5 Robot Controller |
| Communication | Serial Channel |
| Power Supply | 24 VDC |
| Dimensions (L×W×H) | 254 x 51 x 254 mm |
| Weight | 0.6 kg |
Applications
-
Integration with ABB IRC5 robotic systems
-
Used in robotic automation for I/O signal handling
-
Ideal for manufacturing, packaging, and automotive industries
-
Supports machine safety interlocks and sensor input processing
Advantages
-
Seamless integration with IRC5 controller
-
Compact and lightweight for easy panel mounting
-
Fast response digital input/output functionality
-
High reliability with ABB standard industrial design
-
Simplified diagnostics via LED indicators
-
Supports high-speed signal processing
Frequently Asked Questions (FAQ)
Q1: What is the main function of the DSQC 332 I/O Unit?
A1: It provides digital input and output interfaces for ABB IRC5 controllers, connecting the robot to external field devices.
Q2: Is the DSQC 332 compatible with all IRC5 controllers?
A2: Yes, it is specifically designed to integrate seamlessly with ABB’s IRC5 control architecture.
Q3: What type of signals can the unit process?
A3: It supports digital input and output signals, typically 24 VDC.
Q4: How many I/O channels does it support?
A4: It typically provides up to 32 channels (combined input and output), depending on the configuration.
Q5: Can this unit be hot-swapped?
A5: No, it must be powered down during installation or replacement to avoid damage.
Q6: Are there any diagnostics indicators?
A6: Yes, the front panel features LEDs to indicate I/O status and operational conditions.
Q7: Is this unit sensitive to ESD?
A7: Yes, it requires ESD precautions during handling and installation.
Q8: What kind of wiring is recommended?
A8: Use shielded, industrial-grade wiring per ABB’s electrical installation standards.
Q9: Can the DSQC 332 be used in safety-rated applications?
A9: It is suitable for standard industrial I/O but not certified for SIL-rated safety loops.
Q10: Does it require ABB-specific connectors?
A10: Yes, it uses ABB-approved connectors and cables for reliable communication and power.
Related Models (Same Series)
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| DSQC 327A | Analog I/O Unit | 254 x 51 x 254 | 0.6 kg |
| DSQC 328A | Digital Output Unit | 254 x 51 x 254 | 0.6 kg |
| DSQC 377A | DeviceNet I/O Adapter | 254 x 51 x 254 | 0.6 kg |
| DSQC 663 | Power Supply Unit | 254 x 51 x 254 | 0.8 kg |
| DSQC 662 | I/O Extension Module | 254 x 51 x 254 | 0.6 kg |
| DSQC 604 | Power Distribution Module | 254 x 51 x 254 | 0.9 kg |
