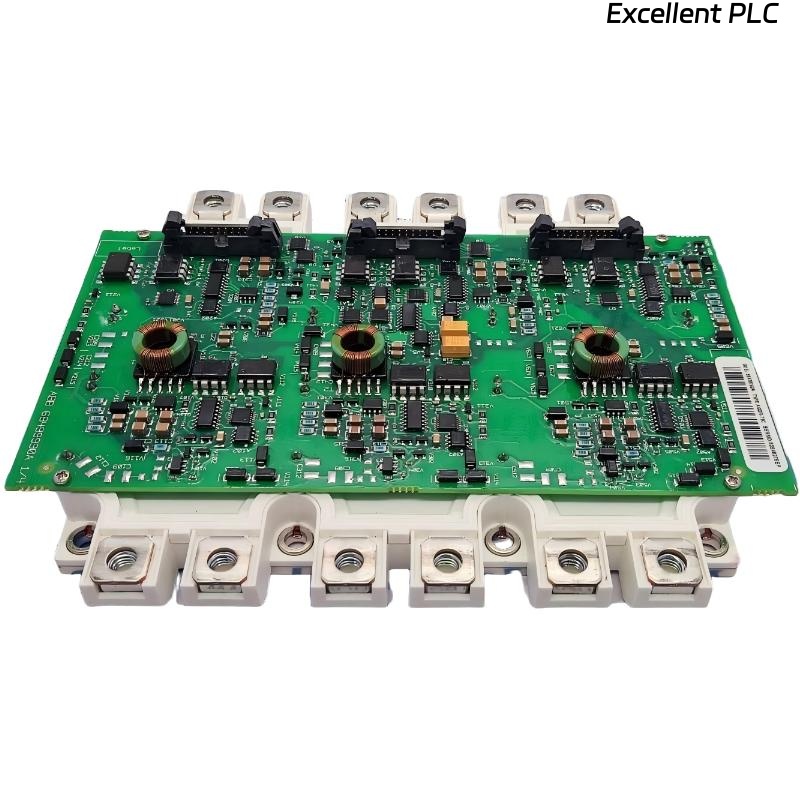

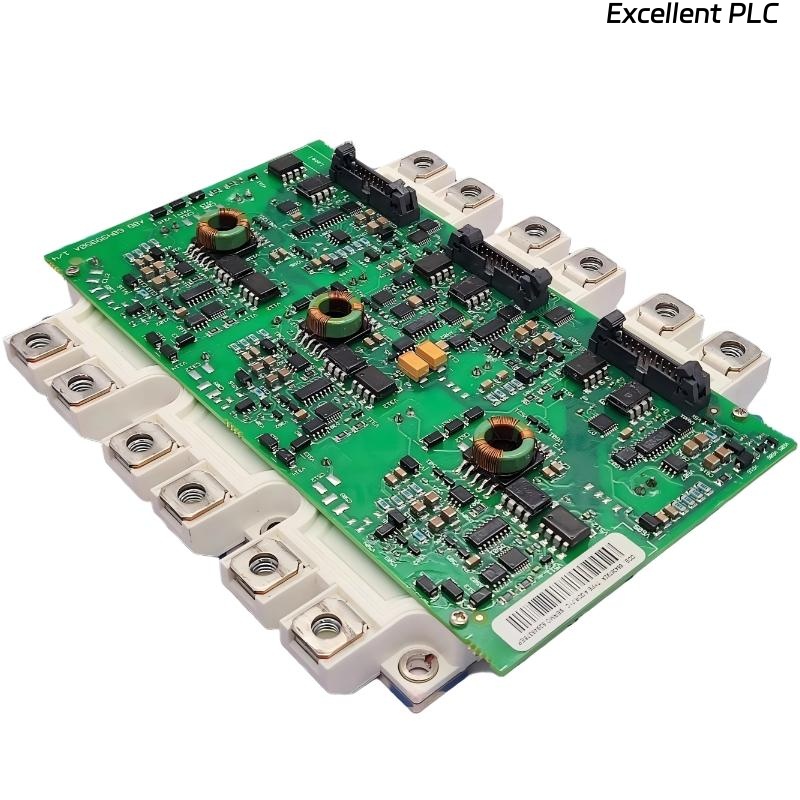

ABB FS450R17KE3/AGDR-71C 68444217 IGBT Kit
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ABB FS450R17KE3/AGDR-71C (Part Number: 68444217) is an IGBT kit designed for industrial drive systems. It provides precise gate drive signals for high-power IGBT modules, ensuring reliable switching in inverters and motor control applications.
This module functions as an interface between the drive control electronics and the power stage, converting digital control commands into conditioned gate signals. It is engineered for continuous industrial operation, emphasizing robustness, electrical isolation, and stable performance in demanding environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | IGBT Kit |
| Model | FS450R17KE3/AGDR-71C |
| Part Number | 68444217 |
| Manufacturer | ABB |
| Primary Function | Gate drive and switching of IGBT modules |
| Compatible Devices | FS450R17KE3 IGBT modules |
| Control Signal Input | Digital signals from drive control unit |
| Signal Isolation | Galvanic isolation between control and power sections |
| Protection Coordination | Supports fault and protection signal transmission |
| Installation | Internal mounting in drive cabinet |
| Operating Environment | Industrial electrical control systems |
| Cooling Method | Natural convection |
| Dimensions | 162 × 150 × 20.5 mm |
| Weight | 1 kg |
Applications
• Used in ABB high-power inverter systems for precise IGBT switching
• Applied in industrial motor control cabinets requiring accurate and stable gate signals
• Integrated into power conversion and automation systems for pumps, fans, compressors, and conveyors
• Suitable for process automation in chemical, oil & gas, and metallurgical industries
• Employed in maintenance, retrofit, and spare replacement of ABB drive modules
Advantages
• Stable gate drive performance, ensuring consistent IGBT operation
• Galvanic isolation, protecting control electronics from high-voltage disturbances
• High immunity to electrical noise, suitable for harsh industrial environments
• Compact, robust design, simplifying integration into drive cabinets
• Optimized for ABB drive systems, ensuring predictable and reliable operation
• Supports continuous industrial duty, improving system uptime and reliability
FAQ
-
What is the primary function of this IGBT kit?
It provides gate drive signals to control high-power IGBT modules in inverter systems. -
How does the module ensure stable switching?
By maintaining accurate timing and voltage levels for the gate signals. -
Can the board operate in electrically noisy environments?
Yes, galvanic isolation and signal conditioning maintain signal integrity. -
How does it interface with the control system?
It receives digital control signals and generates corresponding gate drive outputs. -
Is it suitable for fast-switching applications?
Yes, it supports the rapid signal transitions required in modern inverters. -
Does it handle protection and fault signals?
Yes, it coordinates the transmission of fault and protection signals to the system. -
Why is isolation important in this module?
Isolation protects low-voltage control electronics from high-voltage disturbances. -
Does stable gate driving help protect power devices?
Yes, it reduces abnormal switching and minimizes electrical stress. -
Is the module designed for continuous operation?
Yes, it is intended for long-term use in industrial drive systems. -
What should be checked during installation?
Correct wiring, grounding, and compatibility with connected IGBT modules.
Related Models
| Model | Description |
|---|---|
| FS450R17KE3/AGDR-71C S | Base IGBT driver module |
| FS450R17KE3/AGDR-72C | Enhanced gate driver for high-power stages |
| FS450R17KE3/AGDR-81C | Advanced driver module for inverter applications |
| FS450R17KE3/AGDR-91C | High-reliability continuous-duty IGBT kit |
| FS450R17KE3/AGDR-11C | Compact driver module for legacy systems |
| FS450R17KE3/AGDR-32C | Specialized driver kit for industrial power converters |
Popular Models
| Model | Description |
|---|---|
| ABB RDCU-12C | Drive control unit for ABB variable speed drives |
| ABB RINT-5511C | Power interface module |
| ABB RIFC-51 | Field communication interface board |
| ABB RIO-01 | Digital I/O expansion module |
| ABB ACS800 Control Board | Core control unit for ACS800 series |
| ABB AGPS-21C | Power supply board for ABB drive systems |
