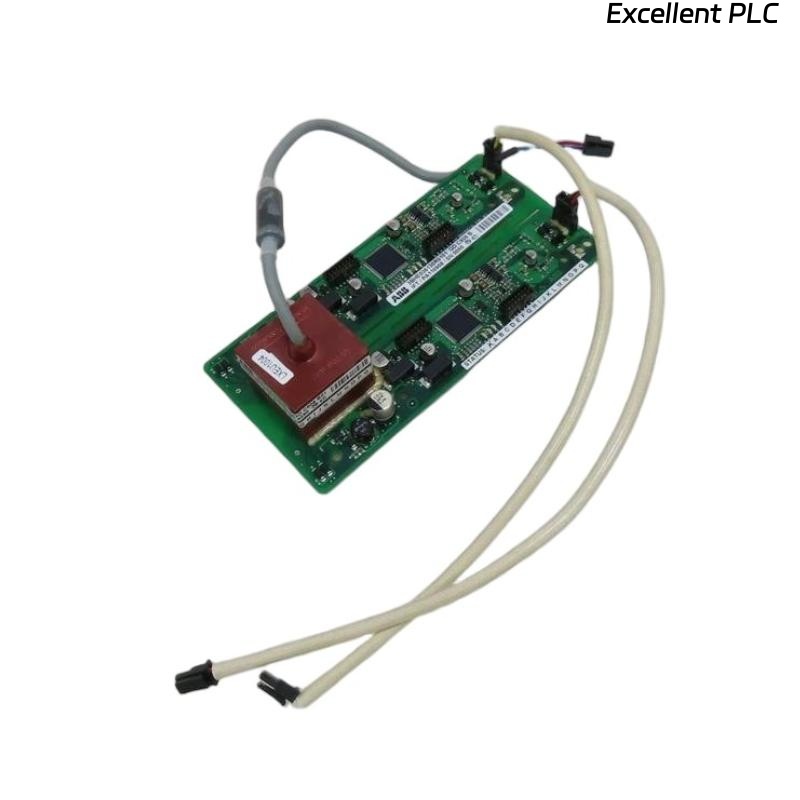

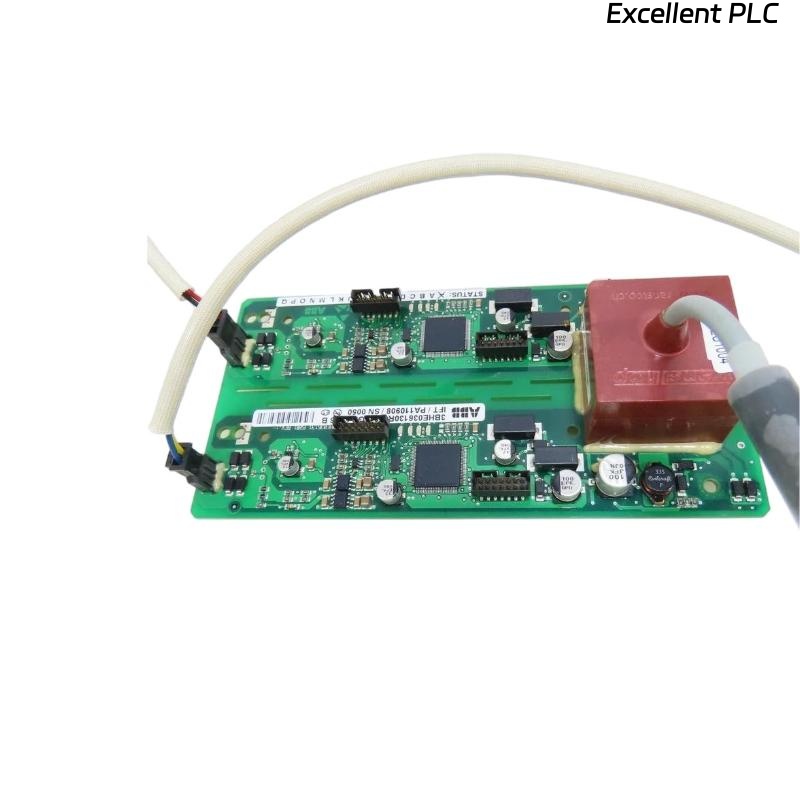

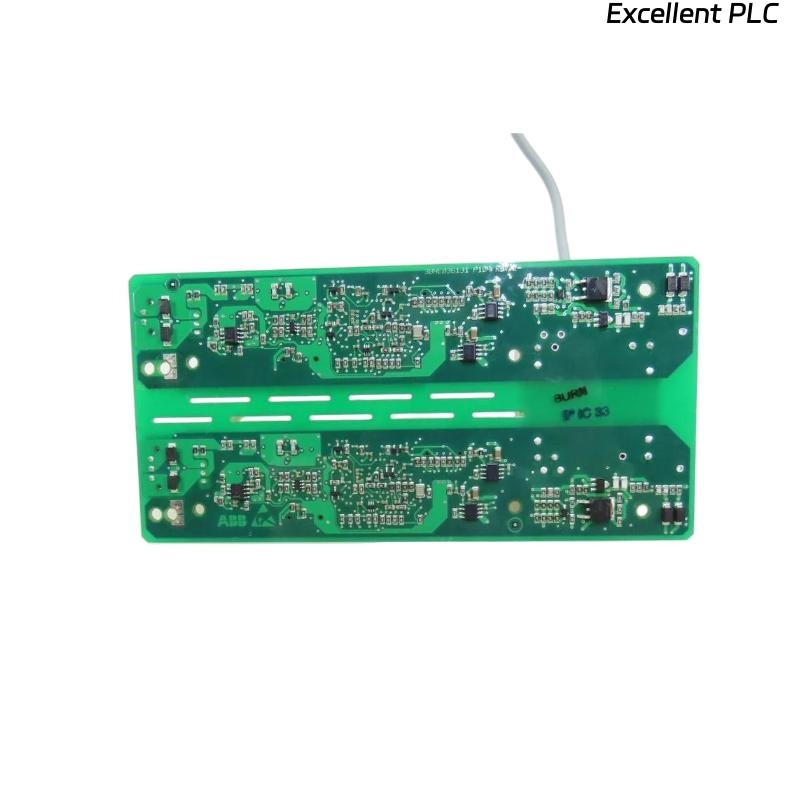

ABB GD C806 B01 3BHE036290R0001 Gate Drive Unit
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The ABB GD C806 B01 3BHE036290R0001 Gate Drive Unit is a high-performance electronic module designed for controlling power semiconductor devices in industrial automation and drive applications. It provides precise gate control for IGBT and other power modules, ensuring reliable switching, protection, and optimized performance in medium- and high-power systems.
Key Features
-
High-performance gate drive unit for ABB power modules
-
Provides precise control of IGBT and other semiconductor devices
-
Compact and robust design for industrial applications
-
LED indicators for status, diagnostics, and fault monitoring
-
Supports protection features such as short-circuit and overcurrent protection
-
Facilitates integration with ABB drives, converters, and automation systems
-
Enhances system efficiency and reliability
Technical Specifications
| Specification | Details |
|---|---|
| Model | GD C806 B01 / 3BHE036290R0001 |
| Type | Gate Drive Unit |
| Controlled Devices | IGBT, MOSFET, and other power semiconductors |
| Supply Voltage | 24 VDC / 48 VDC (depending on configuration) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Output Current | Up to 10 A peak gate drive |
| Switching Frequency | Up to 20 kHz (depending on application) |
| Indicators | Status, fault, and diagnostic LEDs |
| Mounting | Standard panel or rack mount |
| Dimensions | 120 × 100 × 25 mm |
| Weight | 0.25 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the GD C806 B01 Gate Drive Unit?
It provides precise gate control for IGBT and other power semiconductor devices in ABB drive and automation systems.
2. Which devices can this unit control?
IGBTs, MOSFETs, and other compatible power semiconductors.
3. What is the supply voltage?
24 VDC or 48 VDC depending on configuration.
4. What is the peak output current?
Up to 10 A for gate drive.
5. What is the operating temperature range?
0 °C to +60 °C.
6. Does the unit have diagnostic indicators?
Yes, it includes status, fault, and diagnostic LEDs.
7. How is the unit installed?
It can be mounted on a standard panel or in a compatible rack.
8. Can it support high-frequency switching?
Yes, it supports switching frequencies up to 20 kHz depending on application.
Related ABB Models
| Model | Description |
|---|---|
| GD C806 B01 | Gate Drive Unit |
| 3BHE036290R0002 | High-current gate drive unit |
| 3BHE036291R0001 | Gate drive unit with advanced diagnostics |
| 3BHE036292R0001 | Compact gate drive module |
| 3BHE036293R0001 | High-speed switching gate drive unit |
