Product Introduction

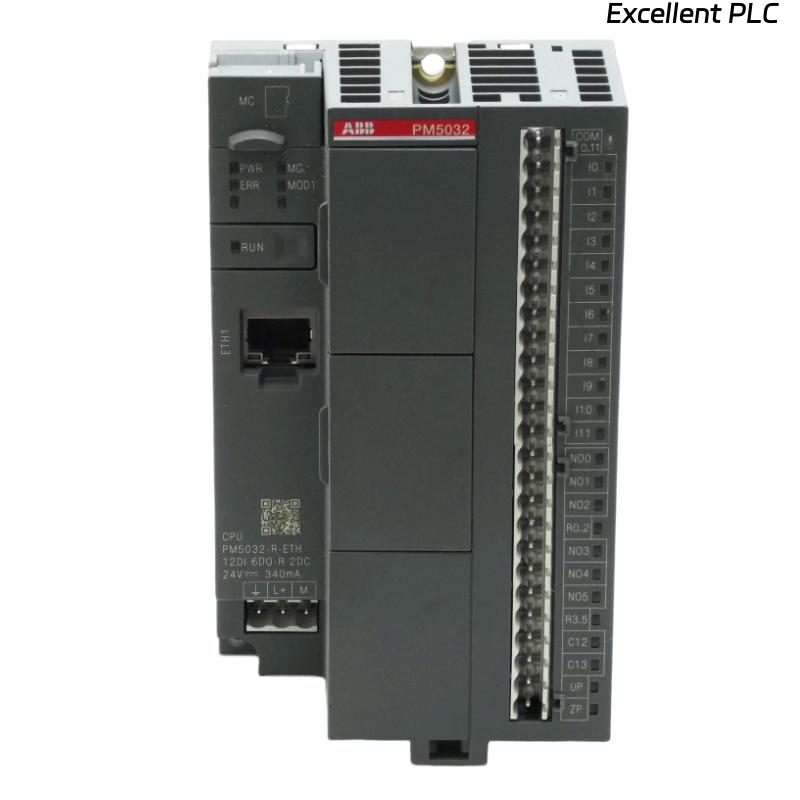

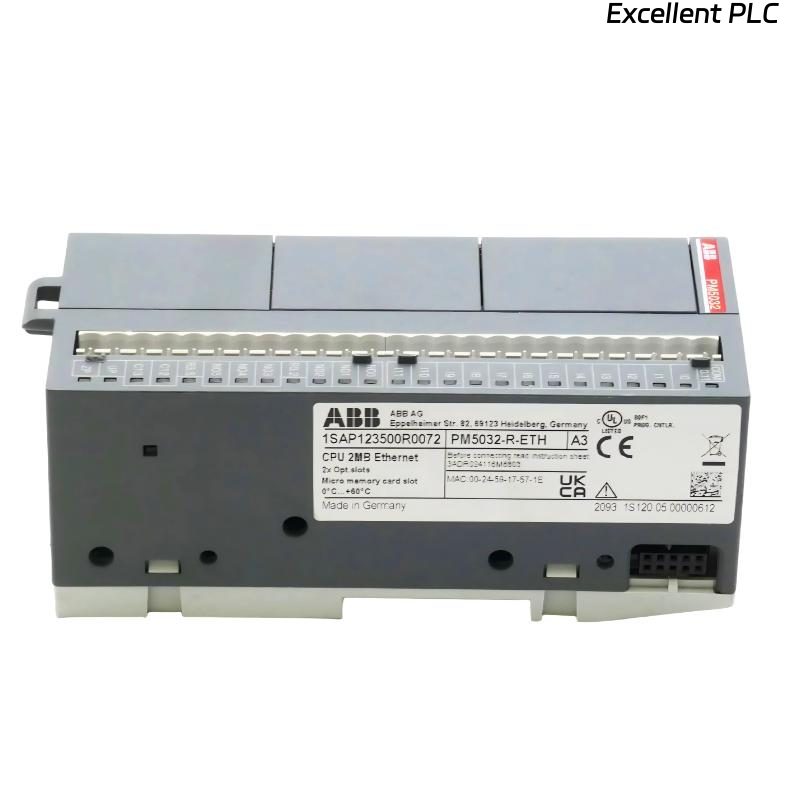

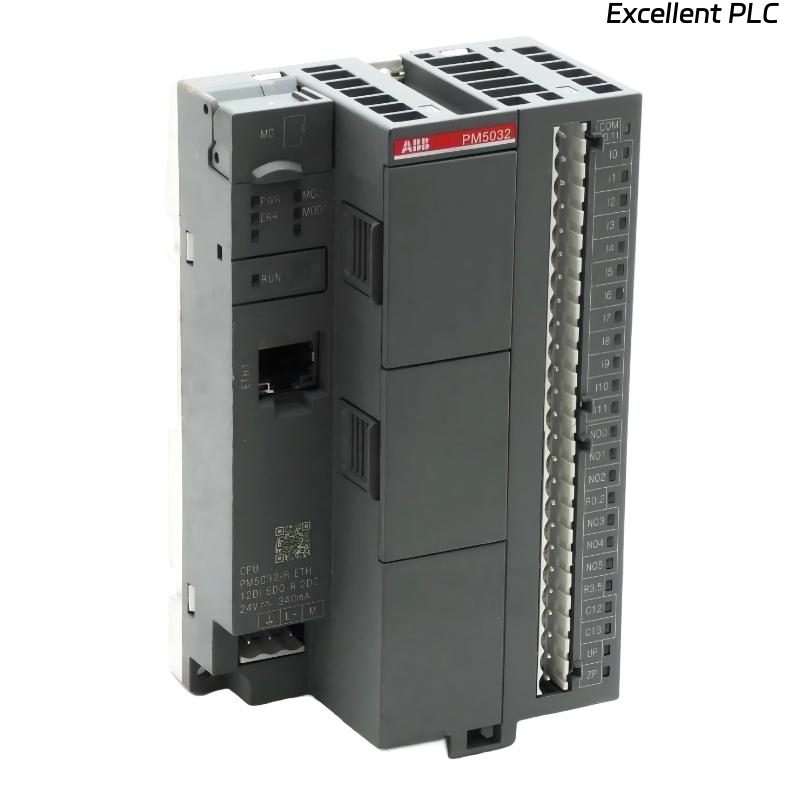

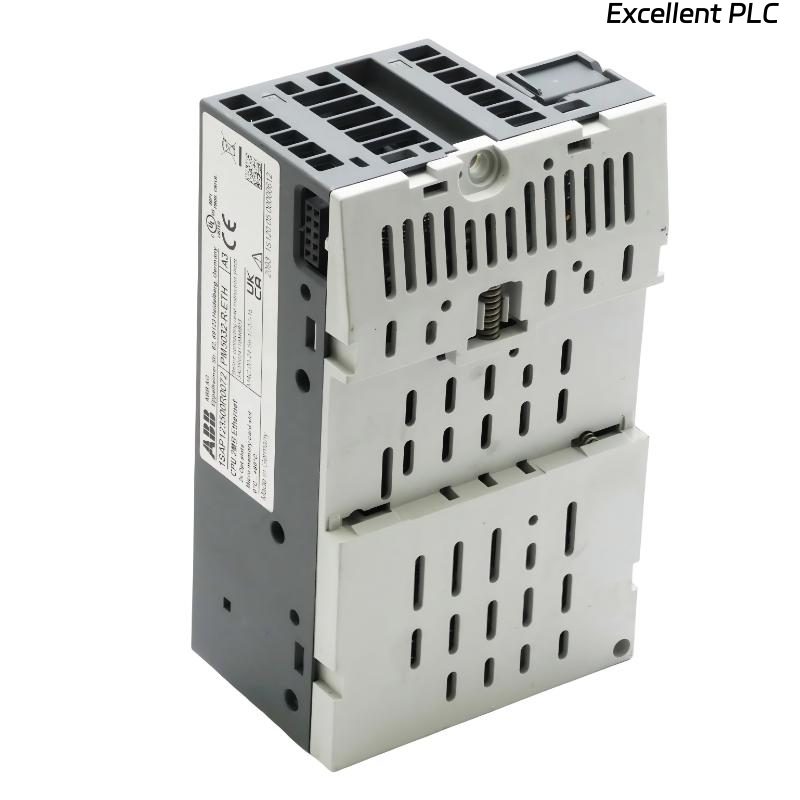

The ABB PM5032-R-ETH 1SAP123500R0072 Processor Module is a high-performance programmable controller designed for industrial automation systems that require expanded I/O capacity, flexible communication, and reliable control performance. As part of ABB’s controller family, this module integrates processing capability, digital inputs and relay outputs, and Ethernet connectivity into a compact and efficient unit.
Equipped with 2 MB of memory, the PM5032-R-ETH provides enhanced capacity for complex control programs, data processing, and communication tasks. It includes 12 digital inputs (24 VDC) and 6 relay digital outputs, along with 2 auxiliary 24 VDC outputs, enabling direct connection to a wide range of field devices such as sensors, actuators, and control relays.
The built-in Ethernet interface supports seamless communication with HMIs, SCADA systems, and other industrial network components. With two available option slots, the module offers greater flexibility for expansion, allowing additional communication or I/O modules to be integrated as system requirements grow.
Its compact design and industrial-grade construction make it suitable for machine control, process automation, and distributed control applications where performance and scalability are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PM5032-R-ETH |
| Part Number | 1SAP123500R0072 |
| Brand | ABB |
| Type | Processor Module |
| Memory Capacity | 2 MB |
| Digital Inputs | 12 DI, 24 VDC |
| Digital Outputs | 6 DO, Relay |
| Auxiliary Outputs | 2 × 24 VDC |
| Output Type | Relay |
| Communication Interface | Ethernet |
| Option Slots | 2 Expansion Slots |
| Application | Industrial Automation & Machine Control |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Environment | Industrial Grade |
| Controller Function | Logic Processing & Communication |
| Dimensions | 135 × 74 × 82 mm |
| Weight | 0.268 kg |
Applications
• Machine automation systems, providing advanced control with expanded I/O capability.
• Manufacturing production lines, supporting complex logic and device integration.
• Process control systems, enabling stable monitoring and control of industrial processes.
• Packaging and material handling equipment, ensuring reliable control and coordination.
• Building and utility automation, managing electrical and mechanical systems efficiently.
Advantages
• Enhanced memory capacity (2 MB) supports more complex control programs and data handling.
• Expanded I/O configuration allows direct connection of multiple field devices.
• Relay outputs provide flexible control for various industrial loads.
• Integrated Ethernet interface enables fast and reliable communication.
• Dual option slots offer high flexibility for system expansion and customization.
• Compact and robust design ensures reliable performance in industrial environments.
