ABB PM564-T 1TNE968900R1100 Prog Logic Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

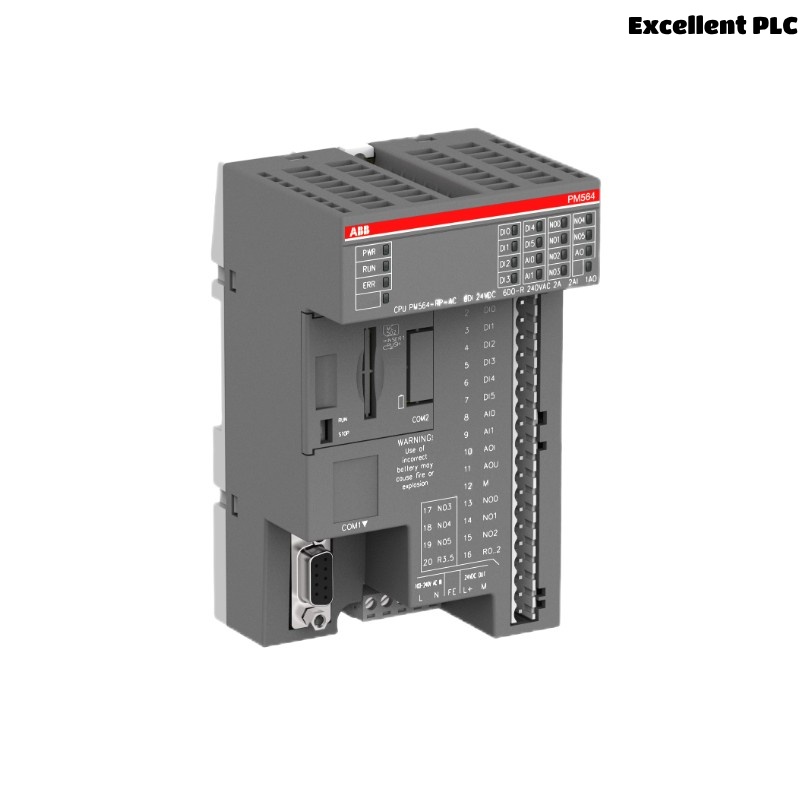

The ABB PM564-T (1TNE968900R1100) is a powerful and compact Programmable Logic Controller (PLC) belonging to ABB’s AC500-eCo series, designed for cost-effective, modular automation solutions in both discrete and process industries. This CPU module offers integrated I/O, Ethernet communication, and user-friendly programming via Automation Builder, making it a popular choice for small to medium-sized control applications.
The PM564-T is suitable for stand-alone control or as part of a scalable distributed system. It offers reliable performance, wide protocol support, and long-term availability, allowing OEMs and end users to build flexible automation architectures with confidence. Its robust design makes it ideal for machine builders, building automation, water/wastewater, and more.
Product Specifications
| Parameter | Details |
|---|---|
| Model Name | PM564-T |
| Part Number | 1TNE968900R1100 |
| Product Type | Programmable Logic Controller (PLC) |
| Series | AC500-eCo |
| Manufacturer | ABB |
| Processor | 32-bit RISC processor |
| Program Memory | 128 KB (flash) |
| Data Memory | 32 KB (RAM) |
| Digital Inputs | 8 channels (24 VDC, sink/source selectable) |
| Digital Outputs | 6 channels (24 VDC, transistor type) |
| Analog Inputs | 2 channels (0–10 V or 0–20 mA selectable) |
| Communication Ports | 1x RS-232, 1x Ethernet (10/100 Mbps), 1x USB (programming) |
| Programming Software | ABB Automation Builder (CoDeSys-based) |
| Supported Protocols | Modbus TCP, Modbus RTU, SNTP, FTP |
| Real-Time Clock | Yes (with battery backup option) |
| Power Supply Voltage | 24 VDC (18–30 VDC range) |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Protection Class | IP20 (for cabinet installation) |
| Mounting Type | DIN rail mount |
| Dimensions | 135 x 74 x 82 mm |
| Weight | 0.3 kg |
| Certifications | CE, UL, cULus, RoHS, IEC 61131 |
| Expandable | Yes, with AC500-eCo I/O and communication modules |
Applications
The PM564-T is ideal for compact control applications that demand reliable performance, communication capability, and flexibility within tight space and budget constraints:
-
OEM Machine Automation
Used in packaging, conveying, textile, and woodworking machines. -
Building Automation
Controls HVAC systems, lighting, access control, and energy monitoring. -
Water & Wastewater Management
Suitable for pump control, filtration systems, tank monitoring, and level regulation. -
Material Handling Systems
Automates conveyors, lifts, sorters, and warehouse management equipment. -
Renewable Energy Systems
Manages solar inverters, wind turbine subsystems, and data logging. -
Agricultural and Irrigation Systems
Controls valve operations, irrigation timing, and climate monitoring in greenhouses.
Product Advantages
-
Compact All-in-One Design
Integrates CPU, I/O, and communication in one small footprint, reducing panel space. -
Affordable and Scalable
Entry-level cost with expansion options to match growing automation needs. -
Flexible Communication
Built-in Ethernet and serial ports allow easy integration with SCADA and HMI systems. -
IEC 61131 Compliant Programming
Supports structured text, ladder logic, and function block diagram programming via Automation Builder. -
High Noise Immunity
Designed to operate reliably in harsh electrical environments. -
Industrial-Grade Reliability
Proven design for continuous 24/7 operation in industrial settings. -
Fast Commissioning
Quick setup using intuitive engineering tools and configuration wizards.
Frequently Asked Questions (FAQ)
-
What is the primary use of the PM564-T?
It is a programmable controller used to automate and control machinery or processes in small to mid-sized systems. -
Can I expand the I/O on the PM564-T?
Yes, it supports expansion via AC500-eCo I/O modules. -
Which programming environment is used for PM564-T?
It is programmed using ABB Automation Builder, which is based on CoDeSys. -
Does the unit support Modbus communication?
Yes, it supports both Modbus TCP and Modbus RTU protocols. -
Is there a real-time clock onboard?
Yes, it includes a real-time clock with optional battery backup for time-sensitive applications. -
Can I connect the PLC to an HMI or SCADA system?
Absolutely. Ethernet and serial interfaces make it compatible with most HMI/SCADA platforms. -
Is the unit suitable for harsh environments?
While the unit is rugged, it should be installed in a protected control cabinet. -
Can this PLC operate standalone?
Yes, the PM564-T can function independently or as part of a distributed system. -
How do I perform firmware updates?
Firmware updates are performed via USB or Ethernet using ABB’s configuration tools. -
Is it suitable for beginners in PLC programming?
Yes, it is user-friendly and ideal for both educational and industrial environments.
Related Models from the Same Series (AC500-eCo)
| Model Number | Description | I/O Configuration | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| PM554-T | Compact PLC with Ethernet | 8 DI / 6 DO / 2 AI | 142 x 90 x 58 | 0.36 |
| PM564-R-ETH | PLC with relay outputs and Ethernet | 8 DI / 6 DO (Relay) | 142 x 90 x 58 | 0.40 |
| PM554-RP | Basic PLC with RS-485 & Pulse I/O | 8 DI / 6 DO / 2 Pulse | 142 x 90 x 58 | 0.38 |
| PM582-ETH | Mid-range PLC with more memory | 16 DI / 16 DO | 150 x 120 x 60 | 0.50 |
| PM591-ETH | High-performance AC500 PLC CPU | Modular (no onboard I/O) | 180 x 130 x 60 | 0.65 |
| PM556-TP | Economy model with transistor outputs | 8 DI / 6 DO / 2 AI | 142 x 90 x 58 | 0.36 |
Popular ABB PLC and Automation Modules
| Model Number | Product Name | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| PM864AK01 | AC500 High-End CPU Module | Advanced logic processing | 186 x 120 x 60 | 0.65 |
| DI524 | Digital Input Module (16-ch, 24 VDC) | Input signal capture | 142 x 100 x 40 | 0.45 |
| DO524 | Digital Output Module (16-ch, 24 VDC) | Digital control output | 142 x 100 x 40 | 0.48 |
| CI531 | Modbus Communication Module | Fieldbus gateway | 130 x 90 x 45 | 0.40 |
| AI523 | Analog Input Module (8-ch, 0–10V/4–20mA) | Process signal acquisition | 142 x 100 x 40 | 0.46 |
| CP600-ECO | HMI Panel (7”) | Operator interface for PLCs | 200 x 150 x 45 | 0.75 |
Frequently Asked Questions (FAQ)
-
What is the primary use of the PM564-T?
It is a programmable controller used to automate and control machinery or processes in small to mid-sized systems. -
Can I expand the I/O on the PM564-T?
Yes, it supports expansion via AC500-eCo I/O modules. -
Which programming environment is used for PM564-T?
It is programmed using ABB Automation Builder, which is based on CoDeSys. -
Does the unit support Modbus communication?
Yes, it supports both Modbus TCP and Modbus RTU protocols. -
Is there a real-time clock onboard?
Yes, it includes a real-time clock with optional battery backup for time-sensitive applications. -
Can I connect the PLC to an HMI or SCADA system?
Absolutely. Ethernet and serial interfaces make it compatible with most HMI/SCADA platforms. -
Is the unit suitable for harsh environments?
While the unit is rugged, it should be installed in a protected control cabinet. -
Can this PLC operate standalone?
Yes, the PM564-T can function independently or as part of a distributed system. -
How do I perform firmware updates?
Firmware updates are performed via USB or Ethernet using ABB’s configuration tools. -
Is it suitable for beginners in PLC programming?
Yes, it is user-friendly and ideal for both educational and industrial environments.
Related Models from the Same Series (AC500-eCo)
| Model Number | Description | I/O Configuration | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| PM554-T | Compact PLC with Ethernet | 8 DI / 6 DO / 2 AI | 142 x 90 x 58 | 0.36 |
| PM564-R-ETH | PLC with relay outputs and Ethernet | 8 DI / 6 DO (Relay) | 142 x 90 x 58 | 0.40 |
| PM554-RP | Basic PLC with RS-485 & Pulse I/O | 8 DI / 6 DO / 2 Pulse | 142 x 90 x 58 | 0.38 |
| PM582-ETH | Mid-range PLC with more memory | 16 DI / 16 DO | 150 x 120 x 60 | 0.50 |
| PM591-ETH | High-performance AC500 PLC CPU | Modular (no onboard I/O) | 180 x 130 x 60 | 0.65 |
| PM556-TP | Economy model with transistor outputs | 8 DI / 6 DO / 2 AI | 142 x 90 x 58 | 0.36 |
Popular ABB PLC and Automation Modules
| Model Number | Product Name | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| PM864AK01 | AC500 High-End CPU Module | Advanced logic processing | 186 x 120 x 60 | 0.65 |
| DI524 | Digital Input Module (16-ch, 24 VDC) | Input signal capture | 142 x 100 x 40 | 0.45 |
| DO524 | Digital Output Module (16-ch, 24 VDC) | Digital control output | 142 x 100 x 40 | 0.48 |
| CI531 | Modbus Communication Module | Fieldbus gateway | 130 x 90 x 45 | 0.40 |
| AI523 | Analog Input Module (8-ch, 0–10V/4–20mA) | Process signal acquisition | 142 x 100 x 40 | 0.46 |
| CP600-ECO | HMI Panel (7”) | Operator interface for PLCs | 200 x 150 x 45 | 0.75 |
