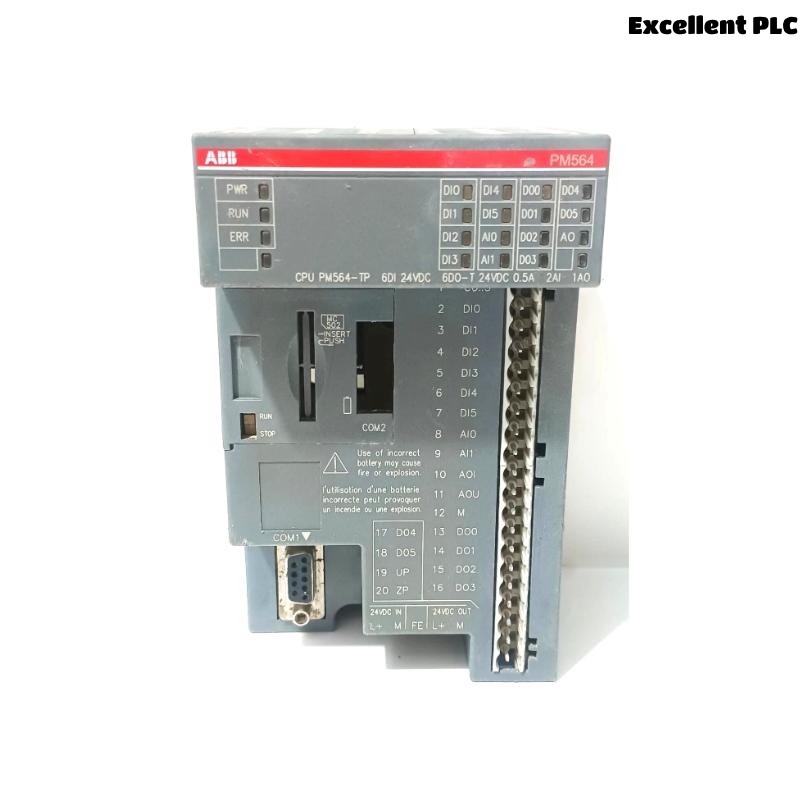

ABB PM564-TP 1SAP120900R0001 AC500 Programmable Logic Controller (PLC)

Product Overview

The ABB PM564-TP is a compact, cost-efficient programmable logic controller (PLC) from the AC500-eCo series. It features integrated digital and analog inputs/outputs, ideal for small to medium automation tasks. It provides high reliability and ease of programming for industrial applications.

---

Technical Specifications

---

Applications

• Machine control in small and medium factories

• Building automation

• Packaging lines

• Pump and compressor control

• Material handling systems

---

Advantages

• Compact design for space-saving installations

• Integrated I/O reduces additional hardware costs

• Supports multiple IEC 61131-3 programming languages

• Simple maintenance with pluggable terminal blocks

• Reliable and robust for industrial environments

---

FAQ

Q1: What power supply does the PM564-TP require?
A1: It requires a 24 V DC power supply.

Q2: How many digital inputs and outputs does it have?
A2: It has 6 digital inputs and 6 transistor-type digital outputs.

Q3: Does it support Ethernet communication?
A3: The standard PM564-TP does not include Ethernet; for Ethernet use, the PM564-TP-ETH variant is recommended.

Q4: What is the maximum operating temperature?
A4: It can operate up to +60 °C when mounted horizontally.

Q5: Can it be mounted vertically?
A5: Yes, but with reduced output load (50% per group).

Q6: What programming languages are supported?
A6: IL, FBD, LD, SFC, ST, and CFC are supported.

Q7: Is a real-time clock available?
A7: Yes, an optional RTC can be added with accessory TA561-RTC.

Q8: Does it have onboard analog inputs and outputs?
A8: Yes, 2 analog inputs and 1 analog output are integrated.

Q9: Is it suitable for marine applications?
A9: Yes, it meets IEC 61131-2 standards, suitable for industrial and marine use.

Q10: What is the protection level?
A10: It has an IP20 protection class when fully assembled.

---
