Product Overview

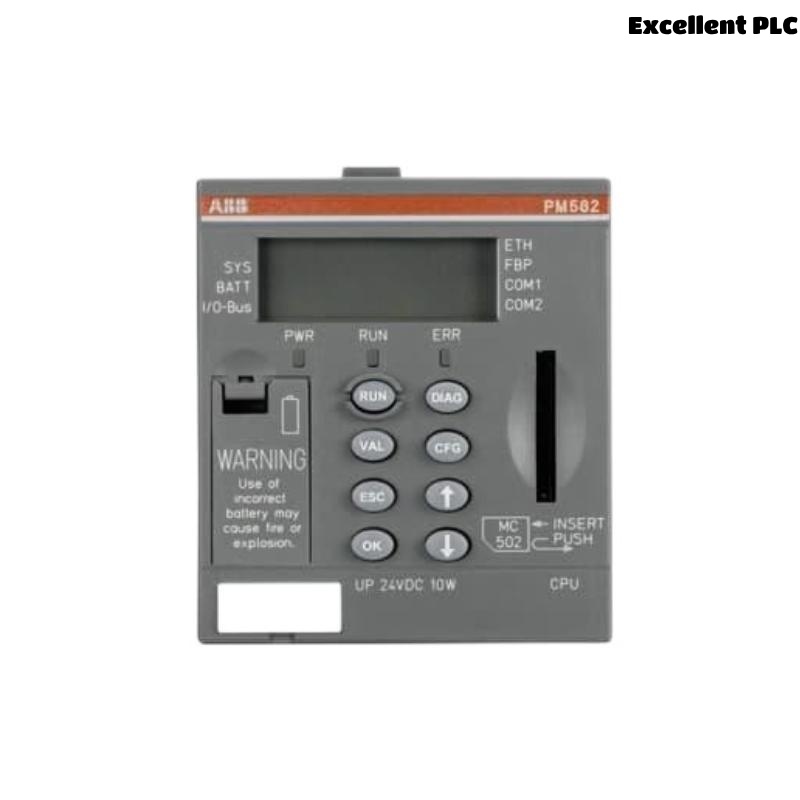

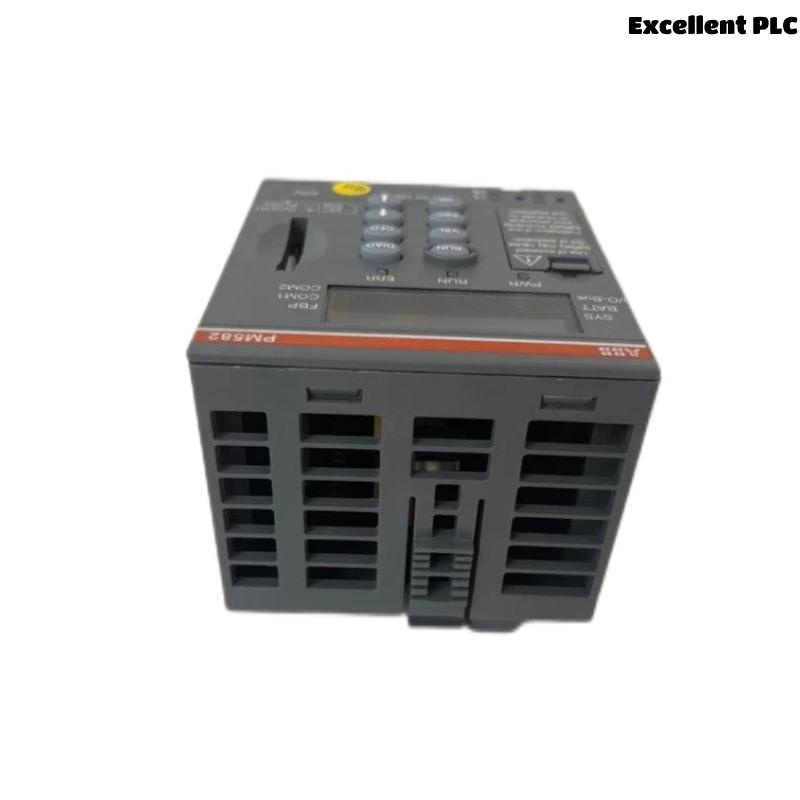

The ABB PM582 1SPA140200R0201 Processor Module is a powerful, modular Central Processing Unit (CPU) designed for demanding automation and process control applications. As part of ABB’s highly reliable AC500 PLC (Programmable Logic Controller) platform, the PM582 provides robust computing performance, real-time logic execution, and flexible system integration for mid to large-scale industrial control environments.
Built to meet the needs of complex automation systems, the PM582 supports a broad range of communication protocols, extensive memory resources, and advanced system diagnostics. It is ideal for applications that require high processing speed, modular scalability, and dependable operation in harsh industrial conditions.
Key Features
-
High-performance CPU for advanced control tasks
-
Modular design enables flexible system expansion
-
Optimized for real-time logic execution and process automation
-
Supports multiple communication protocols for seamless system integration
-
Integrated Ethernet interface for remote programming and monitoring
-
Large memory capacity for complex automation programs
-
DIN rail mounting for easy installation in standard control panels
-
Rugged industrial-grade construction for harsh environments
-
CE, UL, and RoHS compliant for global applications
-
Compatible with ABB Automation Builder engineering tools
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | ABB PM582 Processor Module |
| Part Number | 1SPA140200R0201 |
| System Compatibility | ABB AC500 PLC Automation Platform |
| Processor Type | High-Speed Industrial CPU |
| Program Memory | 512 kB Program Memory |
| Data Memory | 128 kB Data Memory |
| Communication Interfaces | 1 × Ethernet 10/100 Mbps, 1 × Serial Port (RS485), System Bus |
| Digital I/O Capacity | Modular, expandable with I/O modules |
| Maximum Program Execution | Approx. 0.1 µs per instruction |
| Integrated Diagnostics | System LEDs, Status Monitoring, Error Detection |
| Input Voltage | 24 VDC Nominal Supply |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity Range | 5% to 95% Non-condensing |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, UL, RoHS Compliant |
| Mounting Type | DIN Rail |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.134 kg |
Product Advantages
-
High-Performance Processing: Ideal for real-time automation in complex industrial environments
-
Scalable System Architecture: Supports modular expansion for I/O, communication, and functional upgrades
-
Integrated Communication Interfaces: Ethernet and RS485 ports provide reliable system connectivity
-
Large Program Memory: Accommodates complex control logic and automation programs
-
Industrial-Grade Reliability: Designed to operate continuously in harsh, high-vibration, and electrically noisy conditions
-
Flexible Integration: Compatible with ABB AC500 hardware, I/O modules, and engineering software
-
Space-Efficient Design: DIN rail mounting simplifies integration into existing control panels
-
Certified for Global Markets: CE, UL, and RoHS compliance ensures suitability for worldwide deployment
-
Energy-Efficient Operation: Low power consumption contributes to reduced system operating costs
-
Reduced Downtime: Built-in diagnostics facilitate fast troubleshooting and system maintenance
Industry Applications
The ABB PM582 1SPA140200R0201 Processor Module is suitable for use across a wide range of industries, including:
-
Process Automation: Advanced control for chemical plants, refineries, and batch production
-
Manufacturing and Assembly: High-performance control for production lines, robotics, and packaging systems
-
Energy and Utilities: Reliable system control for power distribution, renewable energy, and water treatment
-
Building Automation: Centralized management of HVAC, lighting, and security systems
-
Transportation Infrastructure: Controls for tunnels, railways, and traffic management systems
-
Food and Beverage: Ensures precise, hygienic, and efficient production processes
-
Material Handling: Control of automated warehouses, conveyors, and sorting equipment
-
Metals, Mining, and Heavy Industry: Robust control in harsh, heavy-duty industrial applications
Frequently Asked Questions (FAQ)
Q1: What control platform is the PM582 designed for?
The PM582 is part of ABB’s AC500 PLC system, providing modular automation control.
Q2: Does the PM582 support Ethernet communication?
Yes, it includes a 10/100 Mbps Ethernet interface for programming and network connectivity.
Q3: Can the PM582 be expanded with additional modules?
Yes, it supports modular expansion with digital/analog I/O, communication modules, and accessories.
Q4: Is the PM582 suitable for real-time control?
Yes, its fast processing speed allows precise real-time control of automation processes.
Q5: What is the recommended power supply for the PM582?
It operates on a nominal 24 VDC supply voltage.
Q6: How compact is the PM582 Processor Module?
The dimensions are 62 × 76 × 67.5 mm, allowing for space-efficient installation.
Q7: Can the PM582 operate in harsh environments?
Yes, it is designed to handle high vibration, electrical noise, and temperature variations in industrial environments.
Q8: What programming tools are compatible with the PM582?
It is programmed using ABB’s Automation Builder engineering suite.
Q9: What certifications does the PM582 hold?
The module is CE, UL, and RoHS compliant for use in global industrial markets.
Q10: Does the PM582 include diagnostics?
Yes, integrated status LEDs and system monitoring functions assist with fault detection and maintenance.
