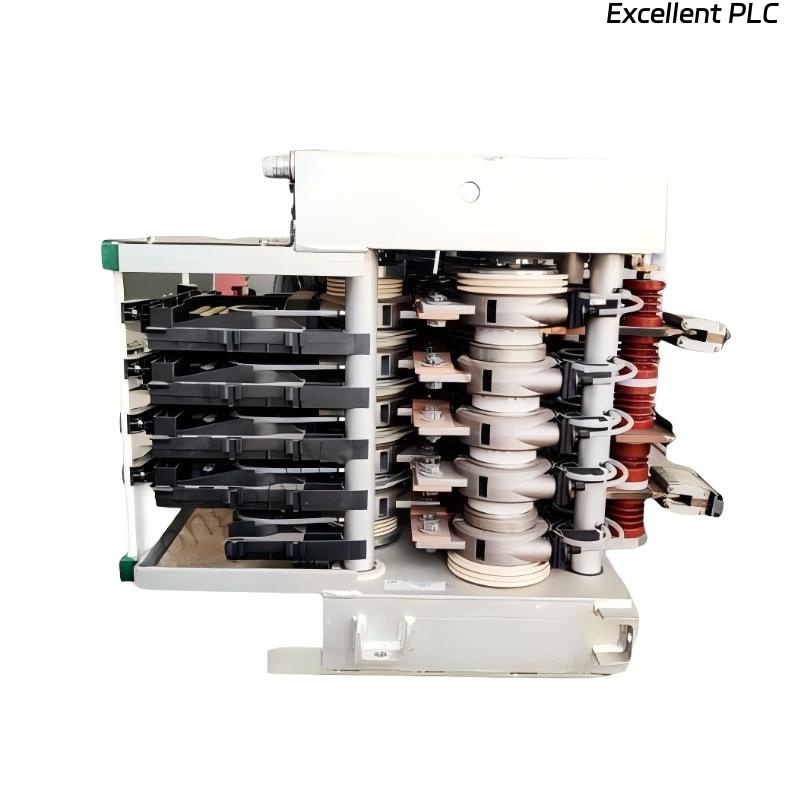

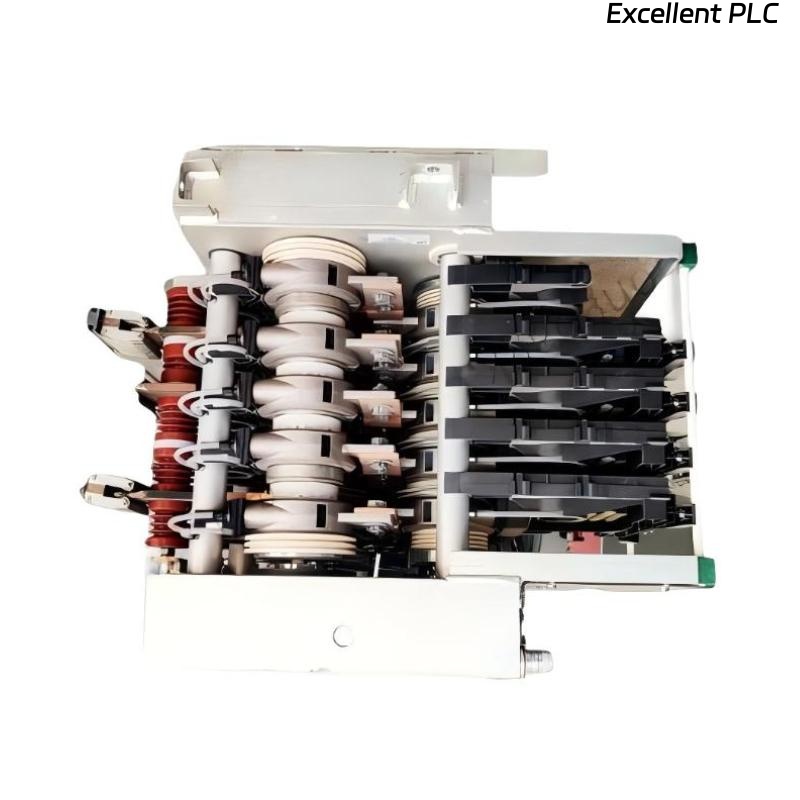

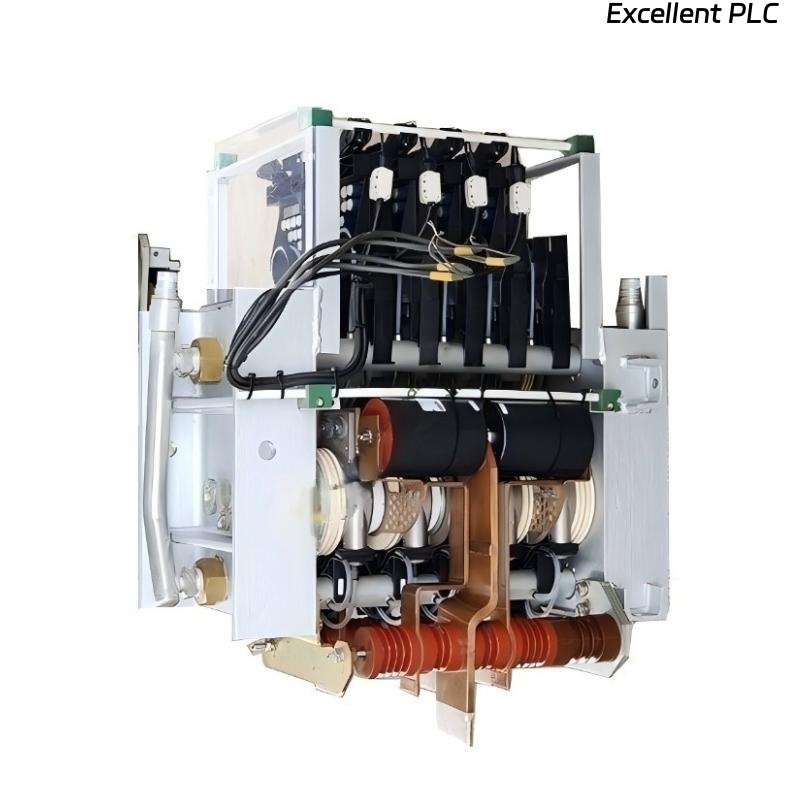

ABB S-097H 3BHB009885R0052 Phase Module

Product Introduction

The ABB S-097H 3BHB009885R0052 Phase Module is an advanced and highly reliable power electronic component used in ABB drive systems and industrial automation platforms. It functions as a key element in the inverter or rectifier section of variable frequency drives (VFDs), enabling precise control of electrical power phases for motors and industrial processes.

Built to meet ABB’s rigorous standards, the S-097H module combines robust design with superior electrical performance, offering efficient power switching, high-speed response, and optimized energy conversion. It ensures minimal electrical losses, stable operation under high current loads, and protection against transient voltage spikes.

This phase module is a crucial component in ACS and DCS series drives, supporting both AC and DC drive configurations. Designed for heavy-duty environments, it delivers dependable operation in industrial applications such as mining, steel manufacturing, energy generation, and process control systems.

Technical Specifications

Applications

The ABB S-097H Phase Module is designed for use in high-performance industrial drives and automation systems where precise control and efficient power management are essential. It plays a key role in converting and controlling electrical energy for heavy-duty equipment.

• Variable Frequency Drives (VFDs): Ensures stable control of motor torque and speed across industrial motors.

• DC to AC Inverters: Converts DC link voltage to three-phase AC output for motor operation.

• Process Automation Systems: Used in steel mills, chemical plants, and paper manufacturing to maintain precise motor synchronization.

• Energy Generation Systems: Applied in wind and hydro turbine control systems for optimized phase balancing.

• Pumping and Compressor Systems: Delivers smooth and efficient energy flow for large industrial pumps.

• Marine and Transportation Applications: Integrated into propulsion and auxiliary systems requiring stable drive performance.

Product Advantages

• High Efficiency and Low Loss: Uses advanced IGBT technology for reduced switching losses and improved thermal stability.

• Precise Phase Control: Enables accurate synchronization of power phases in high-speed motor control applications.

• Enhanced Protection Design: Built-in safeguards protect against overcurrent, overvoltage, and overheating conditions.

• Compact and Modular Construction: Optimized design allows easy integration into ABB drive cabinets and modular systems.

• Superior Thermal Management: Equipped with a high-efficiency heat sink ensuring consistent cooling under heavy loads.

• Wide Operating Temperature Range: Performs reliably in demanding industrial and outdoor environments.

• Optimized Compatibility: Fully compatible with ABB ACS and DCS series drive systems for seamless operation.

• Long Operational Stability: Designed for continuous 24/7 operation in critical production processes.

• Low Electromagnetic Interference (EMI): Designed to meet strict EMI/EMC compliance standards.

• Maintenance-Friendly: Simplified modular structure allows for easy replacement and reduced downtime.

FAQ

1. What type of power semiconductor technology is used in the ABB S-097H module?
The module utilizes insulated-gate bipolar transistor (IGBT) technology to achieve efficient and rapid power switching with minimal losses.

2. Can the S-097H phase module be used in both inverter and rectifier configurations?
Yes, it supports bidirectional power control and can be configured for both inverter and rectifier applications within ABB drive systems.

3. What is the maximum switching frequency supported by the S-097H?
The phase module can operate at switching frequencies up to 20 kHz, depending on the thermal and load conditions.

4. Does the module provide isolation between input and output circuits?
Yes, it has a dielectric isolation rating of 2500 VAC between input and output to ensure safety and electrical separation.

5. How does the S-097H handle thermal management during continuous operation?
It features an aluminum heat sink and is designed for forced air or optional liquid cooling to maintain stable thermal conditions.

6. Is the phase module compatible with ABB’s ACS drive control architecture?
Yes, it is specifically designed to integrate seamlessly with ABB’s ACS and DCS series drive control boards.

7. What protection features are incorporated in the S-097H?
It includes overcurrent, short-circuit, overtemperature, and phase imbalance protection mechanisms.

8. Can this module be used in regenerative drive systems?
Yes, the S-097H is suitable for regenerative applications that require power feedback to the grid or DC bus.

9. What is the typical response time of the module during transient events?
The typical electrical response time is under 10 microseconds, ensuring precise dynamic control.

10. Is the S-097H phase module compliant with industrial safety standards?
Yes, it complies with CE, UL, and IEC 61800-5-1 safety standards for industrial power modules.
