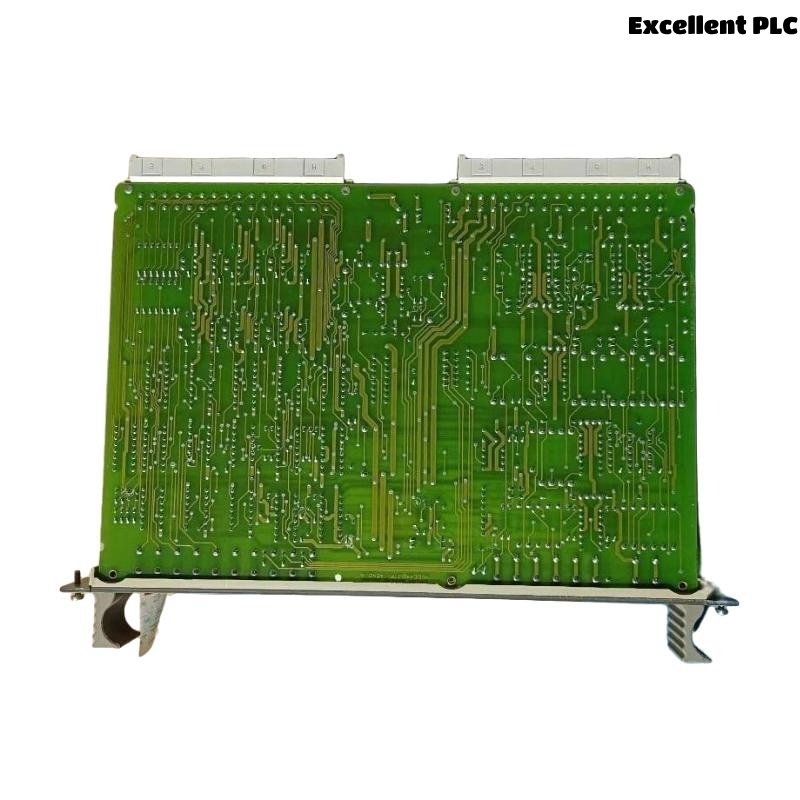

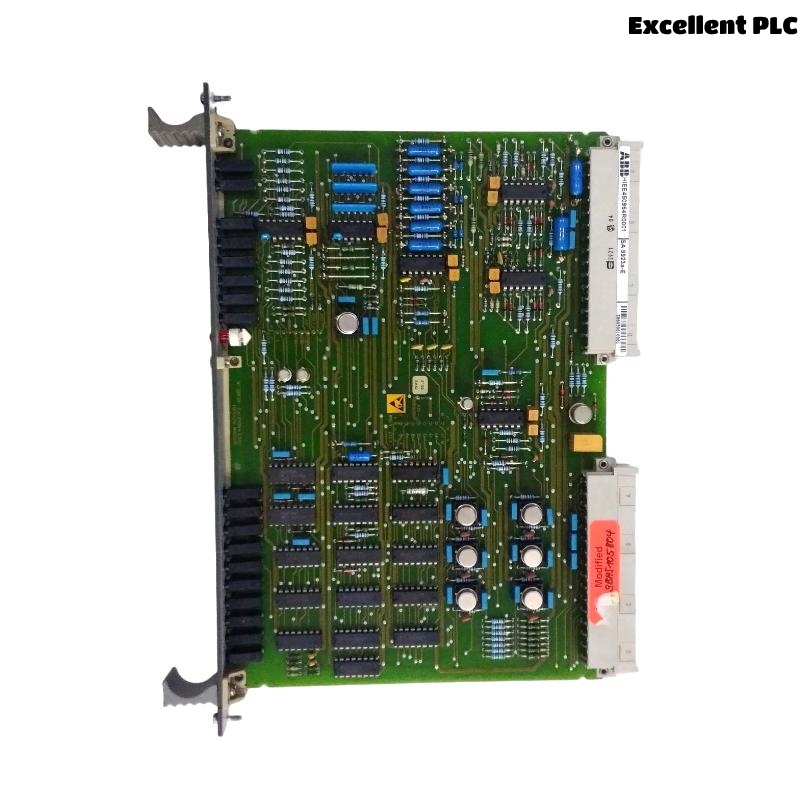

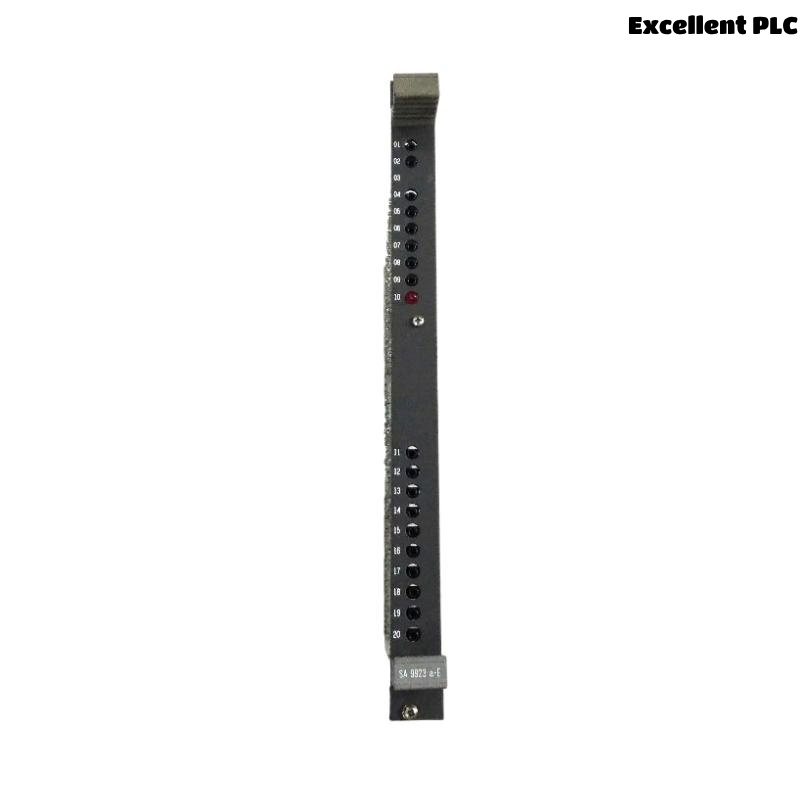

ABB SA 9923A-E HIEE450964R1 High Voltage Control Board

Product Introduction

The ABB SA 9923A-E HIEE450964R1 High Voltage Control Board is a precision-engineered module designed to provide advanced control, protection, and monitoring of high-voltage circuits in industrial automation, power distribution, and heavy-duty drive systems. This board integrates ABB’s proven engineering with robust insulation and real-time diagnostics to ensure system stability and safety.

It serves as a critical interface between high-voltage equipment and control logic, offering reliable voltage regulation, fault detection, and communication with supervisory systems. With a compact form factor and industrial-grade durability, the SA 9923A-E HIEE450964R1 is ideal for demanding environments requiring uninterrupted operation.

Product Specifications

Product Applications

• High-Voltage Drive Control: Provides precise control and protection for large motors and VSD systems.

• Power Distribution Systems: Integrates into switchgear and substation automation panels.

• Industrial Process Automation: Ensures stable voltage regulation in chemical, mining, and heavy industries.

• Renewable Energy Solutions: Used in solar and wind inverter high-voltage control circuits.

• Safety and Protection Systems: Monitors high-voltage circuits to prevent faults and system failures.

• Test and Measurement Platforms: Used in high-voltage diagnostic and testing applications.

Product Advantages

• Industrial-Grade Reliability: Designed for 24/7 continuous operation in harsh environments.

• Fast and Accurate Control: Provides sub-10 ms response for voltage fluctuation detection.

• Advanced Protection: Integrated surge suppression and thermal management safeguard equipment.

• Comprehensive Diagnostics: Built-in self-test routines and fault detection for proactive maintenance.

• Seamless ABB Integration: Fully compatible with ABB drives, controllers, and fieldbus systems.

• High Insulation Design: Ensures safe operation in high-voltage conditions.

• Compact Modular Form: Fits easily into control cabinets without compromising performance.

• Energy Efficient: Low power consumption reduces operational overhead.

FAQ

1. What is the maximum voltage rating supported by the SA 9923A-E HIEE450964R1 board?
   It can control and monitor systems with voltages up to 6.6 kV.

2. Does this board provide galvanic isolation between control and power sections?
   Yes, it is designed with complete galvanic isolation to enhance safety.

3. How quickly does the board respond to voltage anomalies?
   It detects and reacts to fluctuations within 10 ms.

4. Can this board be integrated with ABB high-voltage drive systems?
   Yes, it is fully compatible with ABB’s high-voltage drive and motor controllers.

5. What type of diagnostics are available on this control board?
   It features overvoltage detection, short circuit monitoring, and self-test functionality.

6. Is this board suitable for use in renewable energy high-voltage applications?
   Yes, it supports solar, wind, and other renewable HV control systems.

7. Does the board include surge protection as standard?
   Yes, integrated surge suppression is part of the design.

8. Can the SA 9923A-E be mounted in both racks and control cabinets?
   Yes, it supports both mounting configurations for flexible installation.

9. What type of communication protocols are supported?
   It works with ABB proprietary communication and standard industrial fieldbus interfaces.

10. Is this control board compliant with industrial safety standards?
    Yes, it meets IEC 61010, IEC 61800-5-1, and CE/RoHS directives.
