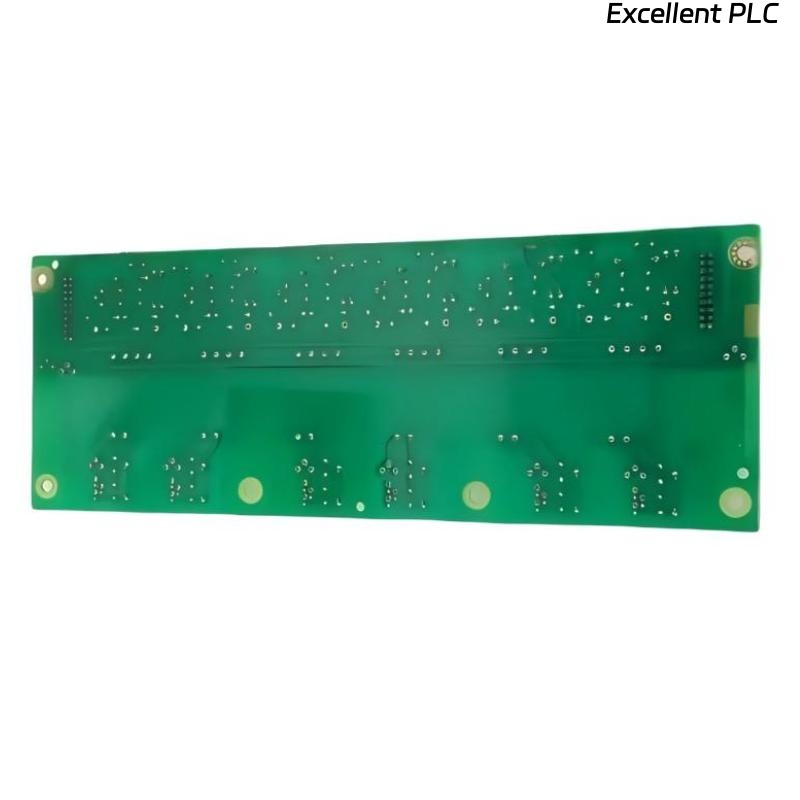

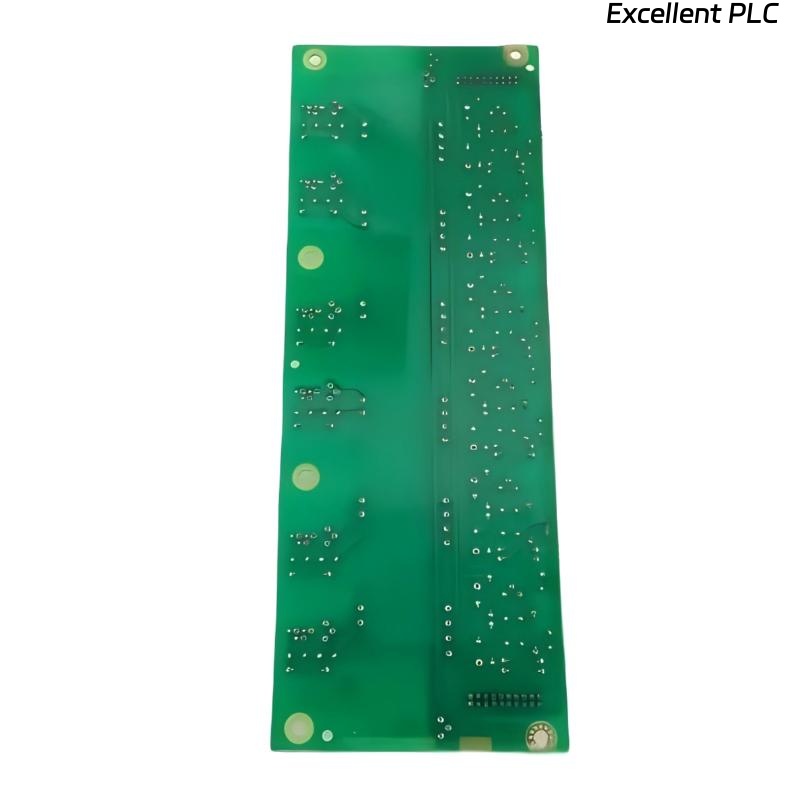

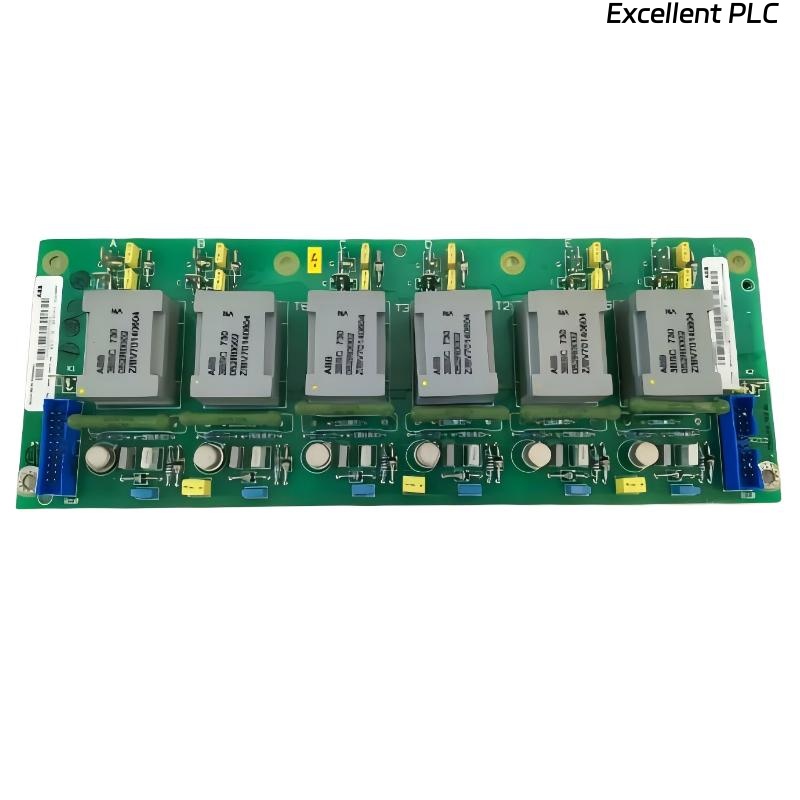

ABB SDCS-PIN-H41 3ADT320600R1501 Firing Pulse Transformer Board
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ABB SDCS-PIN-H41 Firing Pulse Transformer Board is a high-performance module designed to generate and deliver precise firing pulses for controlled power devices such as thyristors and SCRs in industrial drive and power control systems. It ensures accurate and reliable pulse transmission, which is critical for maintaining proper timing, synchronization, and performance of power electronics.
This board is engineered to operate in demanding industrial environments, providing electrical isolation, noise immunity, and precise voltage and timing control for downstream switching devices. The SDCS-PIN-H41 is widely used in applications such as motor drives, power converters, and controlled rectifiers, enhancing the efficiency, stability, and safety of electrical systems.
Its compact and robust design allows easy integration into control cabinets and existing firing control modules, while its lightweight construction reduces mechanical stress on mounting and connections.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Firing Pulse Transformer Board |
| Model | SDCS-PIN-H41 |
| ABB Part Number | 3ADT320600R1501 |
| Function | Generates firing pulses for thyristors and SCRs |
| Input Signal Voltage | Compatible with standard control signals (e.g., 24 V DC logic) |
| Output Pulse Voltage | Designed to trigger industrial thyristors and SCRs |
| Pulse Frequency | Optimized for power control applications |
| Isolation | Galvanic isolation between input and output circuits |
| Protection Features | Overvoltage and short-circuit protection integrated with connected devices |
| Operating Temperature | -10°C to +60°C |
| Mounting Type | Panel or module-mounted |
| Cooling Method | Passive convection |
| Dimensions | 130 × 100 × 20 mm |
| Weight | 0.24 kg |
Applications
• Motor drive systems, providing precise firing pulses to thyristors for controlled speed and torque
• Controlled rectifiers, ensuring accurate SCR triggering for voltage and current regulation
• Power converters, maintaining stable timing and synchronization in industrial applications
• Industrial automation systems, supporting reliable and repeatable switching of power devices
• OEM and retrofit projects, integrating with existing firing control modules for enhanced performance
Advantages
• Precise pulse generation, ensuring accurate and reliable triggering of power electronics
• Electrical isolation, protecting control circuits from high-voltage disturbances
• Compact and lightweight, facilitating easy installation in control panels
• High reliability, designed for continuous operation in demanding industrial environments
• Noise immunity, maintaining stable operation in electrically noisy conditions
• Seamless integration, compatible with ABB power control and drive systems
FAQ
-
What is the main function of the SDCS-PIN-H41?
It generates precise firing pulses for thyristors and SCRs in power control systems. -
What types of devices can it trigger?
It is designed for controlled switching of industrial thyristors and SCRs. -
Does it provide electrical isolation?
Yes, it offers galvanic isolation between input control signals and output pulses. -
Can it handle high-frequency pulse applications?
Yes, it is optimized for industrial pulse frequencies used in motor drives and power converters. -
Is it suitable for continuous industrial operation?
Yes, the board is built for reliable long-term operation in industrial environments. -
Does it include protection features?
Protection is provided in combination with connected power devices, including overvoltage and short-circuit safeguards. -
Can it be integrated into existing ABB firing control modules?
Yes, it is designed for easy integration with ABB drive and rectifier modules. -
What is the operating temperature range?
It operates between -10°C and +60°C under standard industrial conditions. -
Is active cooling required?
No, passive convection cooling is sufficient for normal operation. -
Can it be used in OEM or retrofit applications?
Yes, it can be installed in new or existing industrial control systems requiring precise firing pulse control.
Related Models
| Model | Function | Key Feature |
|---|---|---|
| SDCS-PIN-H40 | Firing Pulse Board | Standard pulse generation for SCR/thyristor control |
| SDCS-PIN-H42 | High-precision firing | Enhanced timing accuracy for sensitive applications |
| SDCS-PIN-H43 | Extended frequency | Supports higher pulse frequency for fast control systems |
| SDCS-PIN-H44 | EMC optimized | Improved noise immunity in electrically noisy environments |
| SDCS-PIN-H45 | High-current applications | Designed for higher current thyristor/rectifier modules |
| SDCS-PIN-H46 | OEM modular integration | Optimized for easy integration into custom control panels |
Popular Models
| Model | Series | Typical Application | Key Feature |
|---|---|---|---|
| SDCS-PIN-H41 | SDCS-PIN | Motor drives and power converters | Accurate firing pulses for SCRs and thyristors |
| SDCS-PIN-H40 | SDCS-PIN | General industrial drives | Standard pulse generation with robust performance |
| SDCS-PIN-H42 | SDCS-PIN | Sensitive control systems | High-precision timing for critical switching |
| ZPOW-591 | ZPOW | Power supply for modules | Stable regulated DC output for control electronics |
| ZFC2-571 | ACS580 | Drive EMC filtering | Reduces harmonics and improves EMC compliance |
| CCU-24-S | CCU | Industrial control and monitoring | Flexible logic and relay outputs for automation |
