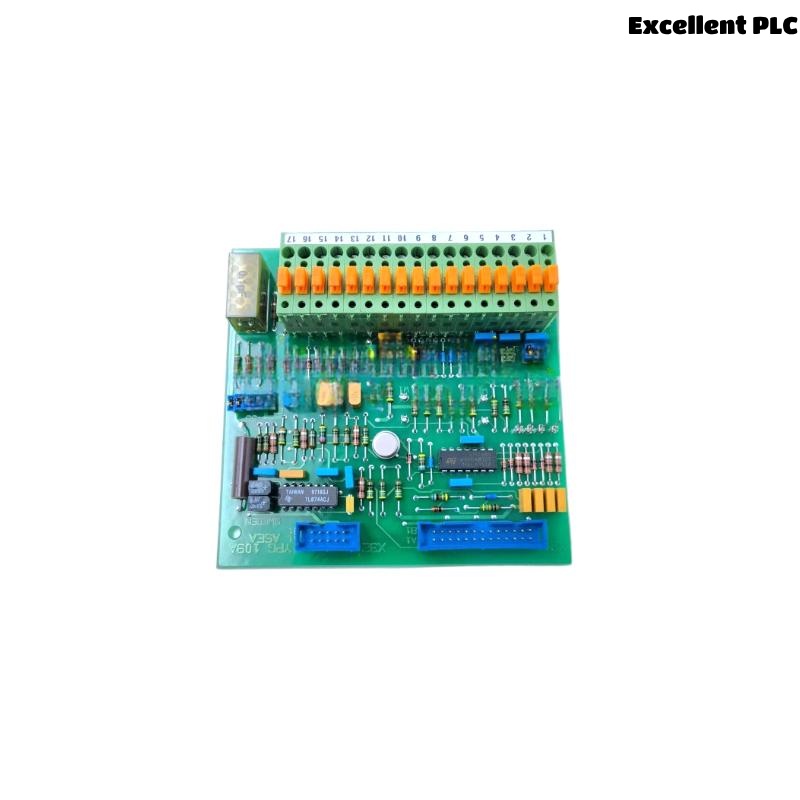

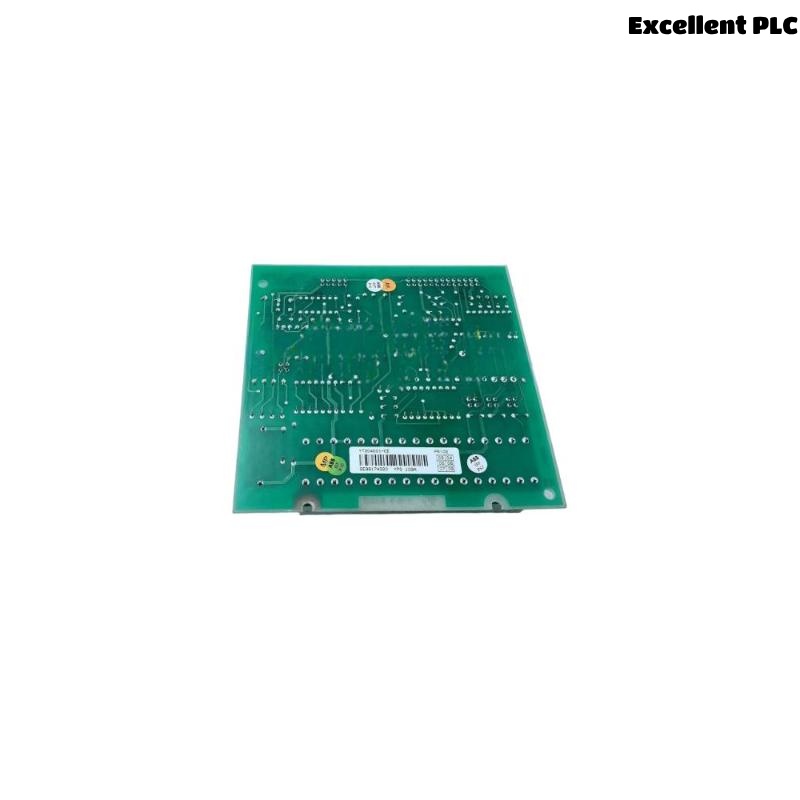

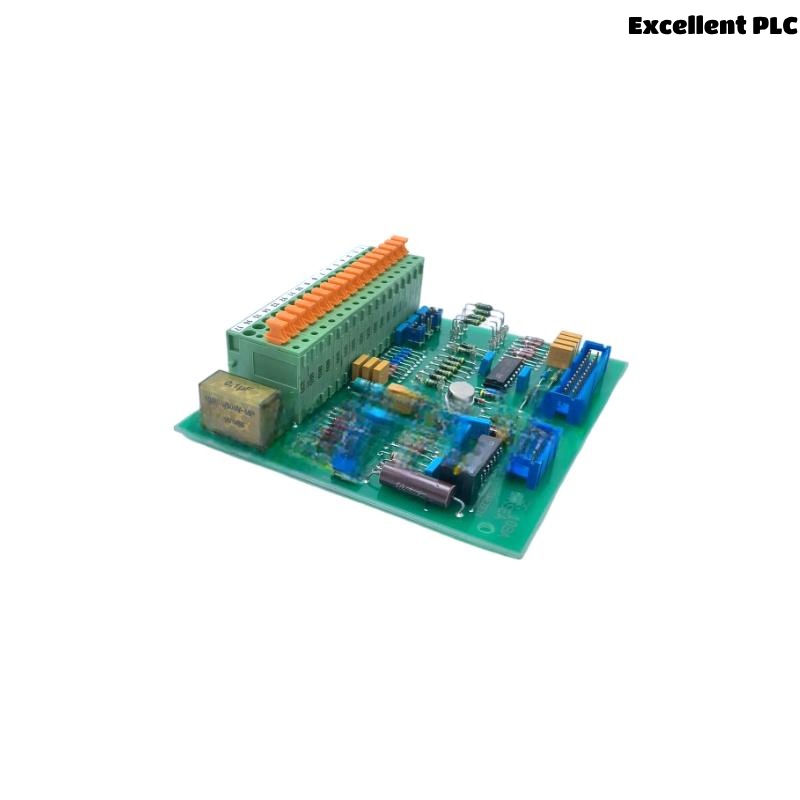

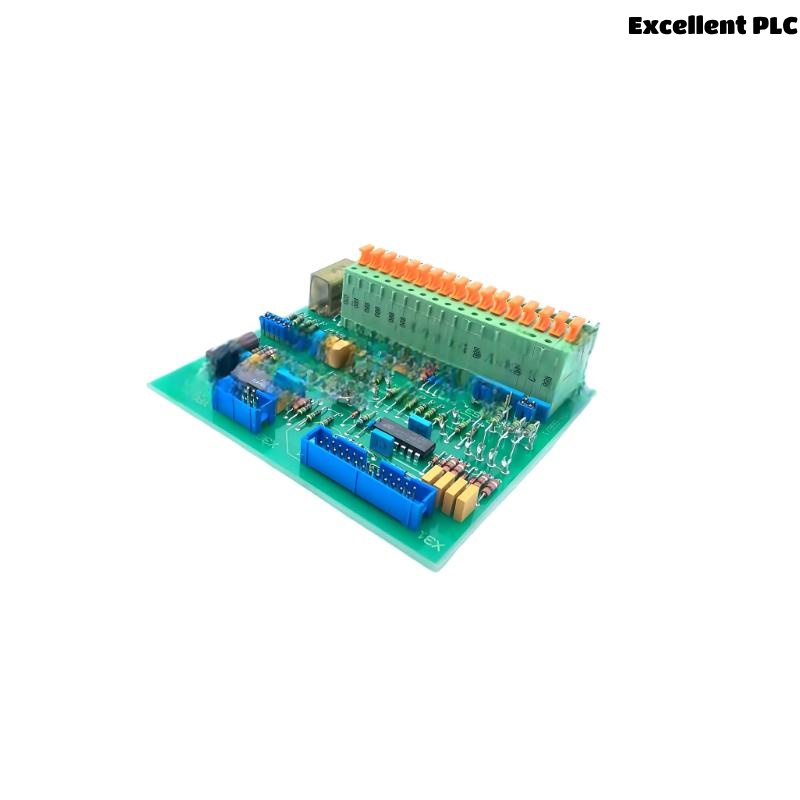

ABB YPG 109B YT204001-JU Analog Input Module

Product Overview:

The ABB YPG 109B YT204001-JU is an advanced analog input module designed for industrial automation systems. This module is engineered to efficiently process analog signals and provide precise data for process monitoring, measurement, and control. It supports a range of field instruments and sensors, offering seamless integration with ABB’s advanced Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).

With its high-precision signal conversion, the YPG 109B is perfect for applications that require reliable and continuous real-time monitoring. It provides highly accurate measurements for variables such as temperature, pressure, level, and flow in industries such as oil & gas, chemical processing, power generation, and manufacturing.

Its compact design, featuring a size of 110 x 85 x 25 mm, ensures that the module can be used in space-constrained environments, while its lightweight construction (only 0.12 kg) allows for easy handling and installation. The YPG 109B module is designed to offer enhanced performance, ensuring continuous uptime and the highest level of process efficiency.

Product Specifications:

Applications:

The ABB YPG 109B YT204001-JU analog input module is widely used in process control systems for continuous monitoring and data acquisition. Some of its primary applications include:

1. Temperature Monitoring: Used in temperature sensing applications across industries like power plants to convert signals from thermocouples or RTDs for precise control.

2. Pressure Measurement: In chemical processing and oil & gas, this module processes signals from pressure transmitters, ensuring reliable system operation.

3. Level Measurement: Ideal for water treatment plants or oil storage systems, it monitors the level of liquids, ensuring the proper operation of tanks and vessels.

4. Flow Measurement: For food & beverage and pharmaceuticals, the module monitors flow rates to ensure correct operation and prevent process failures.

5. Process Control Integration: The module seamlessly integrates into both PLC and DCS systems, enabling automated control of various process parameters.

6. Power Plant Control: In power generation, it monitors crucial parameters such as voltage, current, and frequency, ensuring smooth operation and preventing failures.

7. HVAC Systems: The YPG 109B module is used for continuous monitoring and control of temperature, humidity, and pressure within HVAC systems.

8. Manufacturing Automation: It enables real-time monitoring in automated factories, improving productivity and reducing downtime by tracking variables such as temperature, flow, and pressure.

Product Advantages:

1. High-Precision Signal Conversion: The YPG 109B offers ±0.1% full-scale accuracy, delivering precise data for critical control and monitoring applications.

2. Wide Input Range: With an input range of -10V to +10V for voltage and 0 to 20mA for current, it supports a wide variety of sensors and field instruments.

3. Compact and Lightweight: The module’s 110 x 85 x 25 mm size and 0.12 kg weight make it ideal for installations in compact spaces and for easy handling.

4. Fast Analog-to-Digital Conversion: The module ensures real-time data processing, enabling quick responses to changes in process parameters.

5. Versatile Applications: The wide input range allows the YPG 109B to be used in diverse industries for monitoring a variety of process parameters.

6. Wide Temperature Range: The module operates efficiently in environments ranging from -10°C to +55°C, making it suitable for use in both cold and hot environments.

7. IP20 Protection: The IP20 rating ensures the module is protected from dust and small foreign objects, making it suitable for industrial environments.

8. Low Power Consumption: The 24V DC power supply ensures the module operates efficiently without consuming unnecessary energy.

9. Seamless Integration: The YPG 109B can easily integrate into both PLC and DCS systems for enhanced automation and control.

10. Durability and Reliability: Built to withstand harsh environments, the YPG 109B is a reliable and long-lasting solution for continuous process monitoring.

FAQs:

1. What are the dimensions of the ABB YPG 109B YT204001-JU analog input module?
   The module’s dimensions are 110 x 85 x 25 mm.

2. How much does the ABB YPG 109B weigh?
   The module weighs 0.12 kg.

3. What is the input signal range for the YPG 109B module?
   The input range is -10V to +10V for voltage and 0 to 20mA for current.

4. What type of output does the YPG 109B module provide?
   The module provides 16-bit digital output.

5. What power supply does the YPG 109B require?
   The module requires a 24V DC power supply.

6. What is the temperature range for the YPG 109B?
   The module operates in temperatures ranging from -10°C to +55°C.

7. What is the environmental protection rating of the YPG 109B?
   The YPG 109B has an IP20 rating, providing protection against dust and foreign objects.

8. Can the YPG 109B be used in process control systems?
   Yes, it is designed for use in process control systems and integrates seamlessly into PLC and DCS systems.

9. What industries can benefit from using the YPG 109B module?
   The module is ideal for industries such as oil & gas, power generation, chemical processing, HVAC, and manufacturing.

10. Is the YPG 109B easy to integrate into existing systems?
    Yes, it can be easily integrated into both PLC and DCS systems for efficient and automated control.
