Product Introduction

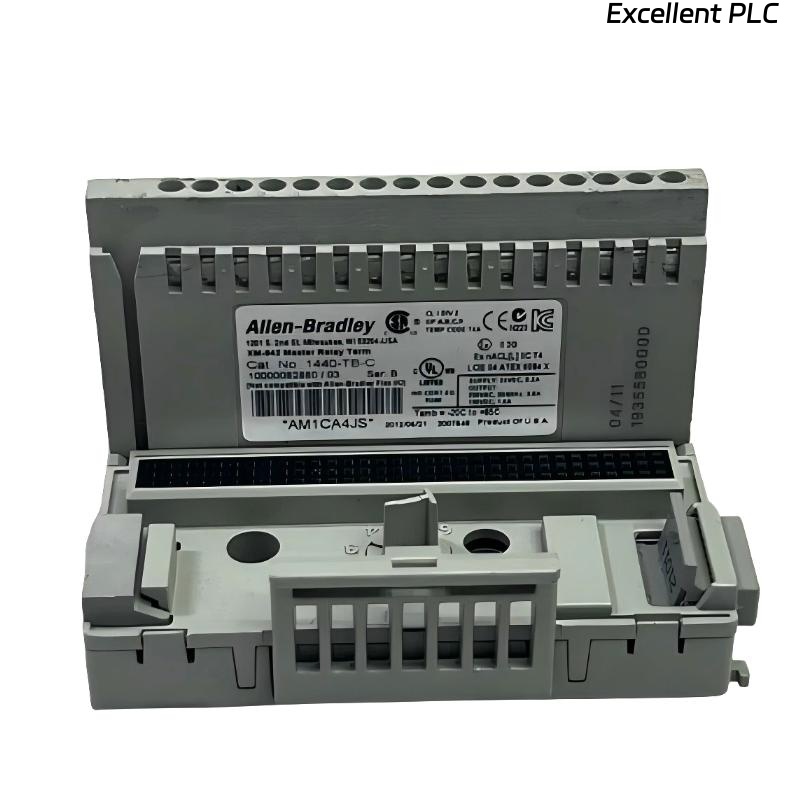

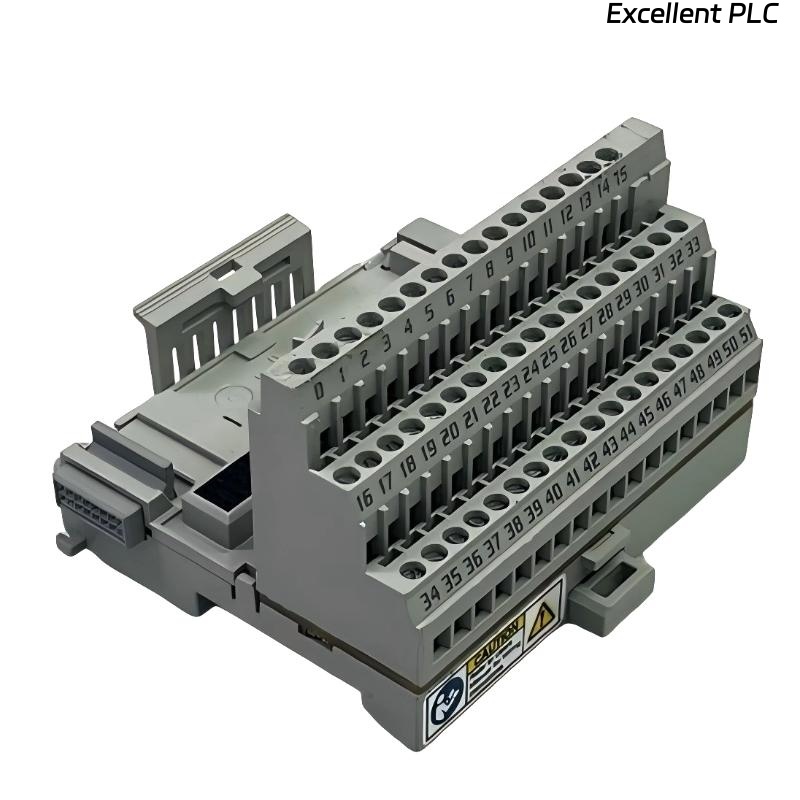

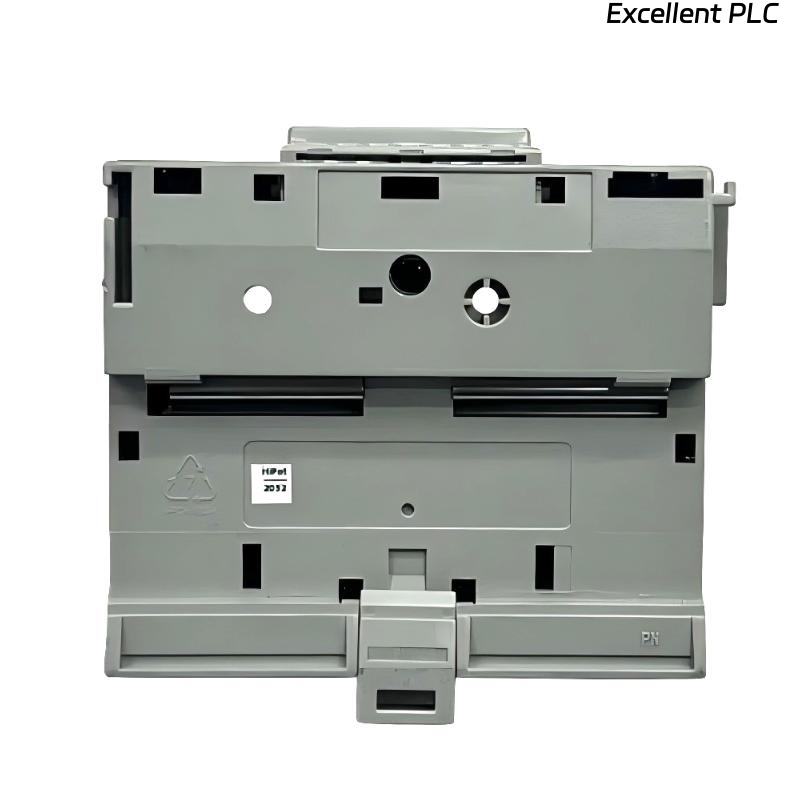

The Allen Bradley 1440-TB-C Screw Clamp C Terminal Base is engineered for reliable connection and interconnection of Allen Bradley 1440 series measurement modules.
It provides a robust screw clamp interface and side connector that ensures secure electrical contact and reliable transmission of power, communication signals, and expansion signaling between adjacent modules.
The terminal base is designed to support tight installation spaces with a single-slot layout, making it suitable for compact industrial panels. Terminal screws are rated for 0.8 N·m torque, providing stable and vibration-resistant connections for all wiring.
It accepts 24 V DC input from a Class 2 supply and facilitates proper distribution of primary power and DeviceNet protocol power across connected modules.
Built for industrial environments, the 1440-TB-C can operate under wide temperature ranges and withstand high relative humidity when noncondensing, making it suitable for process monitoring, distributed I/O systems, and other demanding control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Terminal Base |
| Connection Type | Screw Clamp with Side Connector |
| Compatibility | 1440 Series Measurement Modules |
| Input Voltage | 24 V DC (Class 2 Supply) |
| Mounting Method | Rail Mounting |
| Terminal Torque Rating | 0.8 N·m |
| Material | Industrial-grade insulating material |
| Operating Temperature | -20 °C to +70 °C |
| Environmental Humidity | High relative humidity (noncondensing) |
| Dimensions | 97 × 94 × 94 mm |
| Weight | 0.172 kg |
Product Applications
• Connecting and interconnecting 1440 series measurement modules securely.
• Distributing primary power, DeviceNet power, and expansion signaling to adjacent modules.
• Supporting compact and organized wiring layouts in control panels.
• Integration in distributed I/O systems for industrial automation.
• Use in process monitoring and measurement systems for reliable operation.
• Suitable for high humidity and temperature-variable industrial environments.
Product Advantages
• Screw clamp terminals and side connectors ensure secure and vibration-resistant connections.
• Single-slot layout allows compact installation in tight panel spaces.
• Supports power and communication signaling across multiple modules for modular control systems.
• Terminal screws rated to 0.8 N·m ensure stable wire retention.
• Industrial-grade insulating materials provide electrical isolation and durability.
• Facilitates organized wiring, simplifies troubleshooting, and reduces maintenance time.
