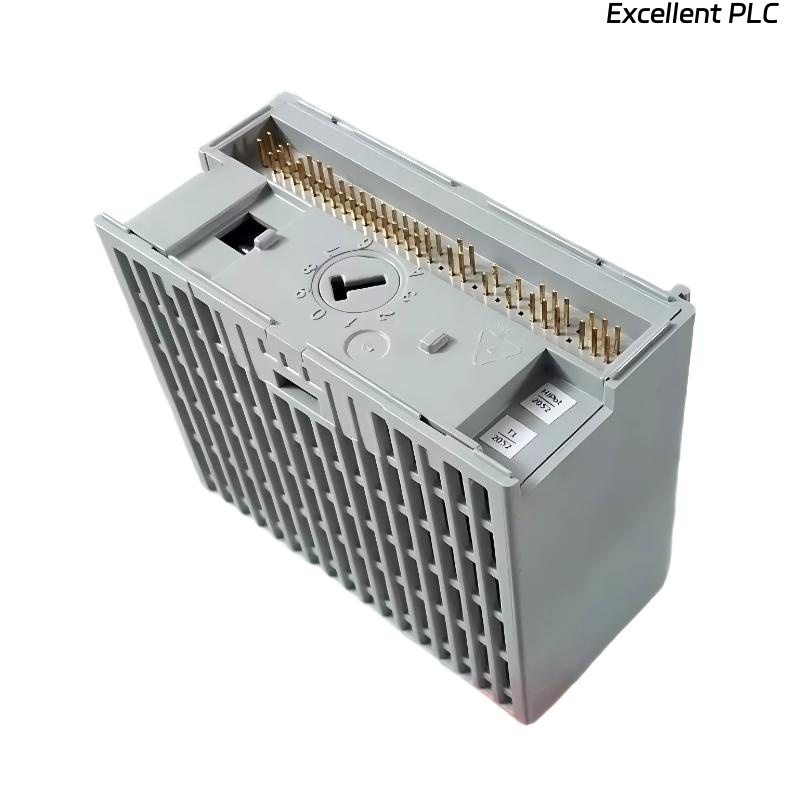

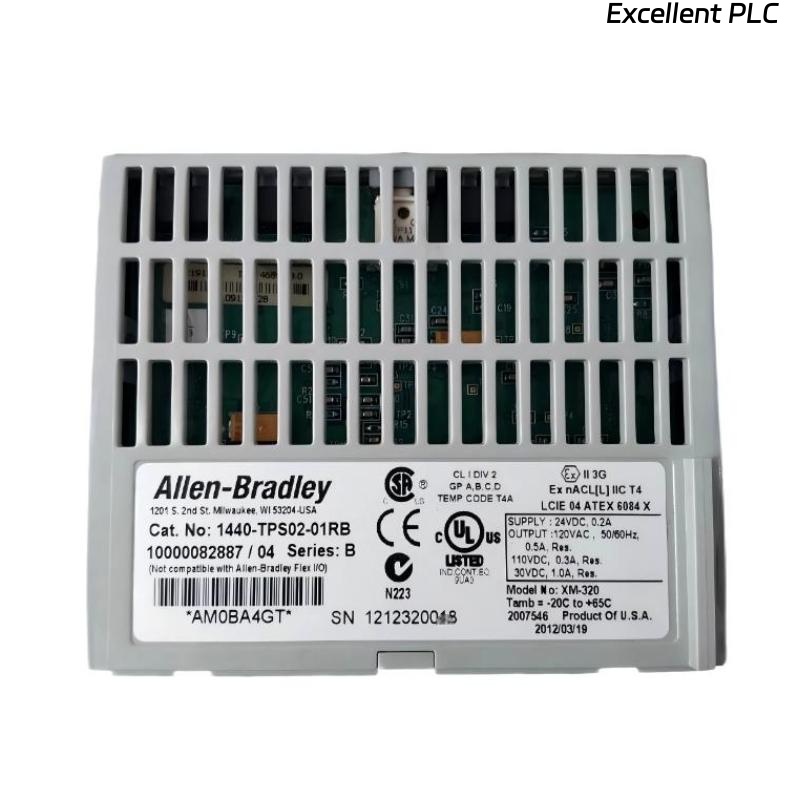

Allen Bradley 1440-TPS02-01RB Position Measurement Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1440-TPS02-01RB Position Measurement Module (XM-320) is a high-precision industrial module designed for accurate position monitoring and control in automation systems.
It provides two 4–20 mA analog outputs for process feedback, DPDT control outputs for direct device control, and integrated communication interfaces including DeviceNet and RS-232 serial. This combination allows seamless integration into distributed I/O and centralized control architectures.
The module operates on 24 V DC and is engineered for reliable industrial performance. Its robust construction ensures consistent signal accuracy, dependable control outputs, and durable operation under variable environmental conditions.
The 1440-TPS02-01RB is ideal for applications requiring real-time position monitoring, process feedback, and precise control of actuators or machinery, offering high reliability, flexible connectivity, and simplified system integration.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Position Measurement Module |
| Model | XM-320 |
| Analog Outputs | 2 × 4–20 mA |
| Control Outputs | DPDT |
| Communication | DeviceNet, RS-232 Serial |
| Supply Voltage | 24 V DC |
| Mounting Method | Rail or panel mounting |
| Material | Industrial-grade components |
| Operating Temperature | -20 °C to +70 °C |
| Dimensions | 97 × 94 × 94 mm |
| Weight | 0.172 kg |
Product Applications
• Real-time position monitoring of industrial actuators and valves.
• Integration into distributed I/O networks using DeviceNet.
• Process feedback with 4–20 mA analog outputs for control loops.
• Driving devices directly via DPDT control outputs.
• Communication with PLCs and SCADA systems via RS-232 serial interface.
• Use in control and automation systems requiring reliable process feedback and device actuation.
Product Advantages
• Dual 4–20 mA analog outputs provide precise feedback for control loops.
• Integrated DPDT control outputs enable direct device operation.
• Flexible communication options with DeviceNet and RS-232 enhance system integration.
• Robust industrial-grade construction ensures long-term reliable operation.
• Simplifies wiring and reduces the need for additional interface modules.
• Facilitates modular system designs with reliable feedback and control signals.
FAQ
-
What are the analog output capabilities of this module?
It provides two 4–20 mA outputs for real-time process feedback. -
Which control outputs are available?
The module includes DPDT (Double-Pole Double-Throw) control outputs. -
What communication interfaces does the module support?
DeviceNet and RS-232 serial communication are supported for system integration. -
What supply voltage is required?
The module operates on 24 V DC from a standard Class 2 supply. -
Can the module be mounted on a rail?
Yes, it supports both rail and panel mounting. -
Is the module suitable for industrial environments?
Yes, it is designed for reliable operation under temperature and humidity variations typical in industrial settings. -
Can the module provide simultaneous analog and control outputs?
Yes, analog outputs and DPDT control outputs can operate concurrently. -
Which PLC systems is this module compatible with?
It integrates seamlessly with Allen Bradley 1440 series PLCs and compatible I/O systems. -
Does the module support system feedback for automated control loops?
Yes, dual 4–20 mA analog outputs provide accurate process feedback for control loops. -
Can this module be used in distributed I/O networks?
Yes, it supports DeviceNet communication for integration in distributed control systems.
Recommended Related Models (Same Series or Functionally Related)
| Model | Type | Description |
|---|---|---|
| Allen Bradley 1440-TPS01-01RB | Position Measurement Module | XM-220 variant with single analog output |
| Allen Bradley 1440-TB-A | Terminal Base | Screw Clamp A interface for module connection |
| Allen Bradley 1440-TB-B | Terminal Base | Screw Clamp B variant |
| Allen Bradley 1440-TB-C | Terminal Base | Screw Clamp C variant |
| Allen Bradley 1440-RA | Relay Adapter | Compatible adapter for module connections |
| Allen Bradley 1492-W2 | Wire Duct | Complementary wiring organization solution |
Recommended Popular Allen Bradley Models
| Model | Category | Application Focus |
|---|---|---|
| Allen Bradley 1402-LS51 | Line Synchronization Module | Power system line synchronization |
| Allen Bradley 140ACI03010 | Analog Input Module | Industrial analog signal acquisition |
| Allen Bradley 1442-OB16 | Output Module | Discrete output control |
| Allen Bradley 1734-IB8 | Compact I/O Input Module | Distributed I/O systems |
| Allen Bradley 1734-OB8 | Compact I/O Output Module | Distributed discrete output control |
| Allen Bradley 1492-FB | Fuse Block | Protective component for control circuits |
