Product Introduction

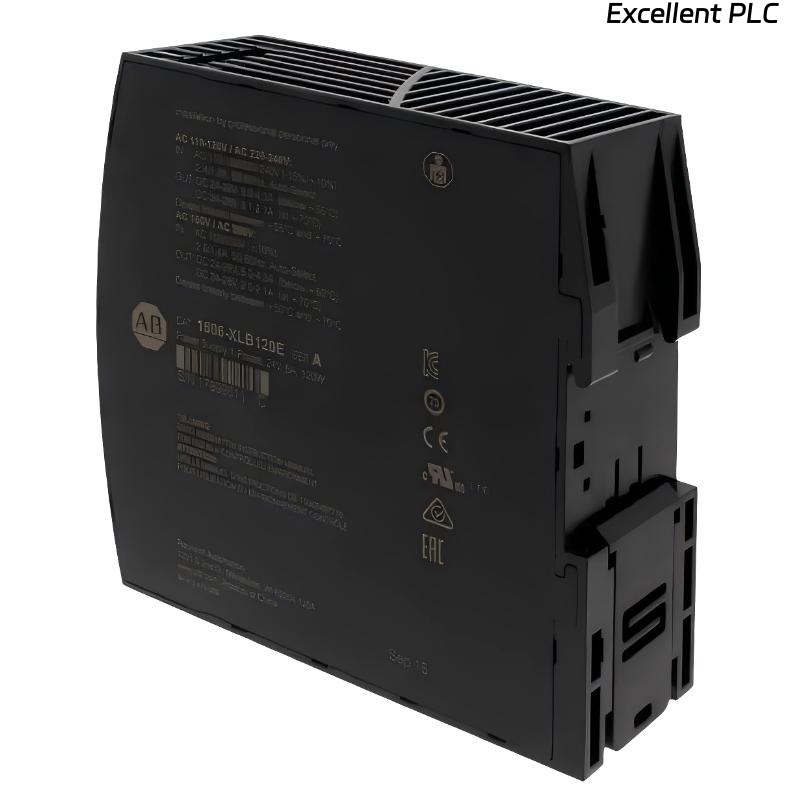

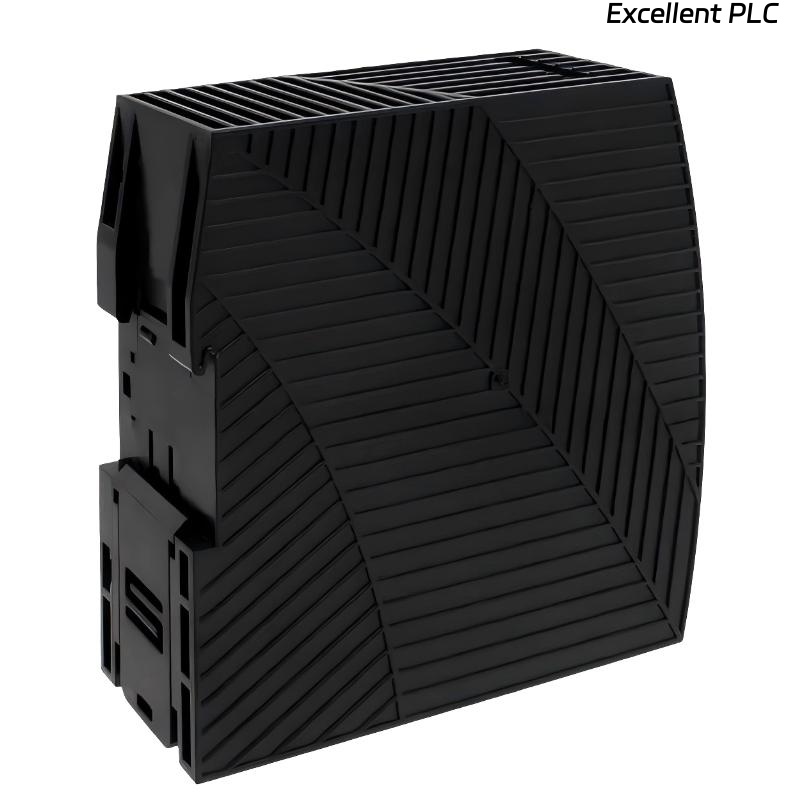

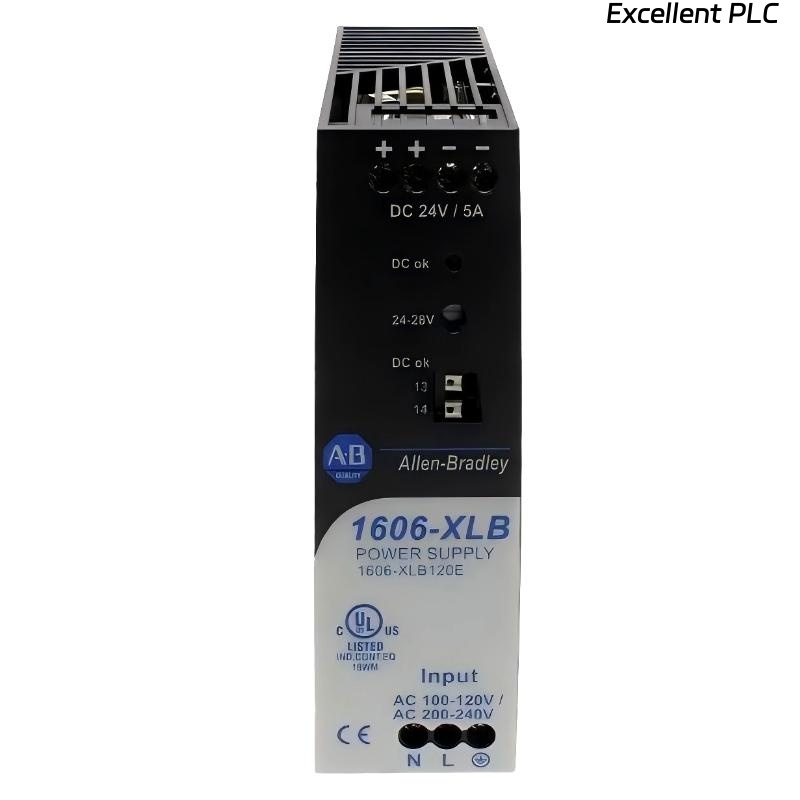

The Allen-Bradley 1606-XLB120E Power Supply is a compact switched-mode power supply designed to deliver reliable 24 V DC power for industrial control systems. It belongs to the 1606 series, known for combining efficiency, flexibility, and durability in a space-saving design.
This unit supports a wide AC/DC input voltage range, making it suitable for global applications and varying power conditions. With built-in power boost capability and high efficiency, it ensures stable operation even during peak load demands. Its compact housing makes it ideal for installations where panel space is limited.
Engineered for industrial environments, the 1606-XLB120E includes protective features and LED status indication, helping users monitor operation and maintain system reliability. It is well-suited for powering PLCs, sensors, and other automation components.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1606-XLB120E |
| Manufacturer | Allen-Bradley |
| Product Type | Switched Mode Power Supply |
| Rated Output Power | 120 W |
| Input Voltage | 85 – 264 V AC / DC |
| Frequency | 50 / 60 Hz |
| Output Voltage | 24 – 28 V DC |
| Rated Output Current | 5 A |
| Efficiency | 92.3 % |
| Starting Current | 33 A (max) |
| Power Consumption | 10 VA |
| Connection Type | Screw connection |
| Indication | LED status display |
| Mounting Method | DIN rail mounting |
| Protection Rating | IP20 |
| Application Role | Power supply for industrial automation |
| Dimensions | 124 × 39 × 124 mm |
| Weight | 0.37 kg |
Applications
• PLC control systems
Supplies stable DC power for controllers and I/O modules.
• Industrial automation equipment
Powers sensors, relays, and actuators in production lines.
• Control panels
Ideal for compact cabinet installations due to its slim design.
• Packaging and assembly machines
Ensures consistent operation of low to medium power loads.
• General industrial use
Suitable for a wide range of automation and control applications.
Advantages
• Wide input voltage range
Compatible with both AC and DC inputs, allowing flexible installation.
• Compact and space-saving design
Slim form factor fits easily into crowded control panels.
• High efficiency performance
Reduces energy loss and heat generation during operation.
• Reliable output stability
Maintains consistent voltage for sensitive industrial devices.
• LED status indication
Provides clear visual feedback for quick diagnostics and monitoring.
• Industrial durability
Designed for long-term use in demanding environments.
