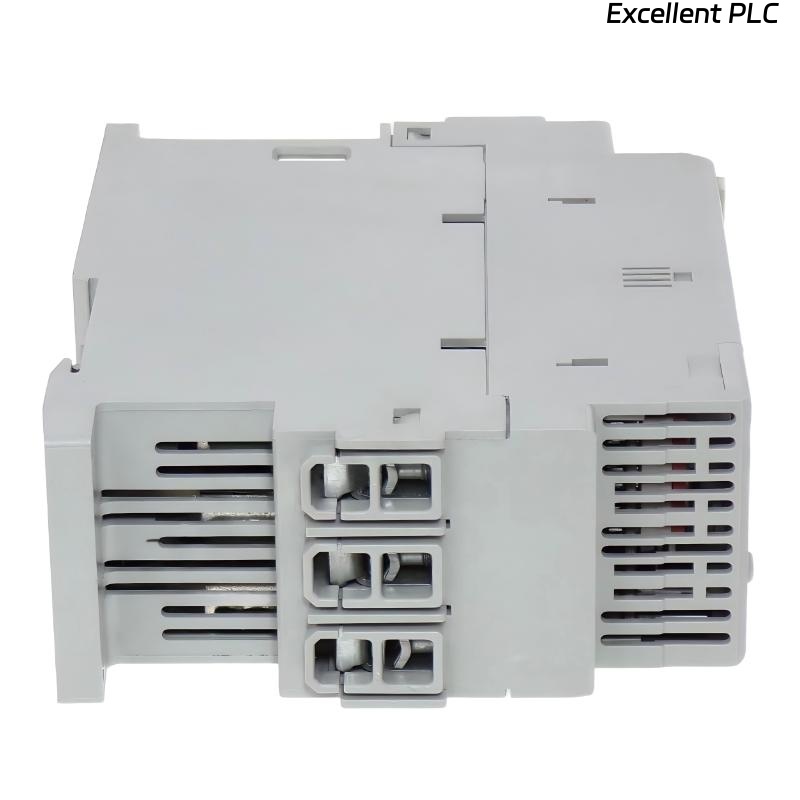

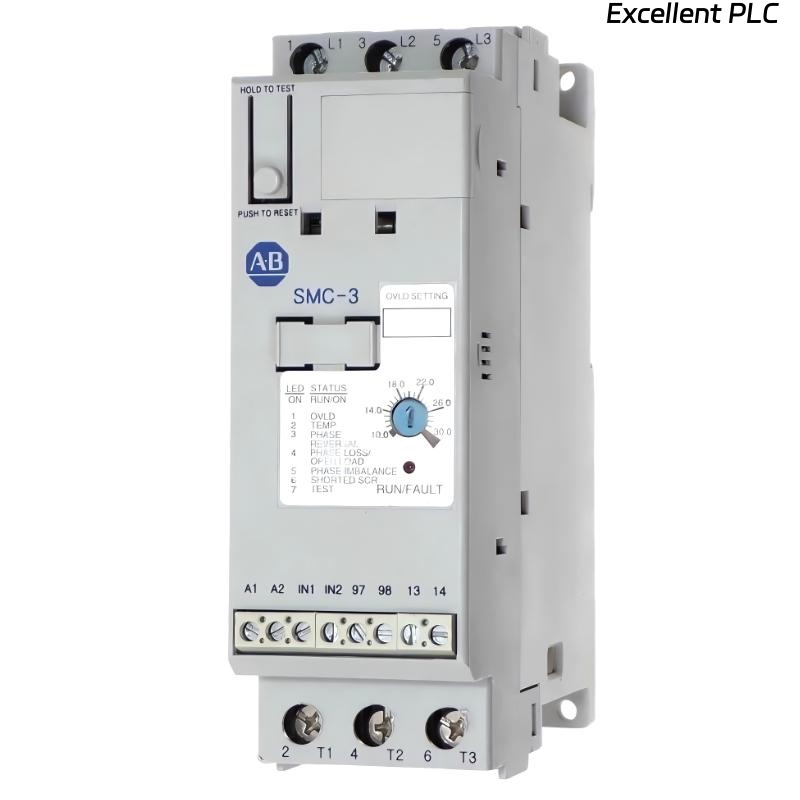

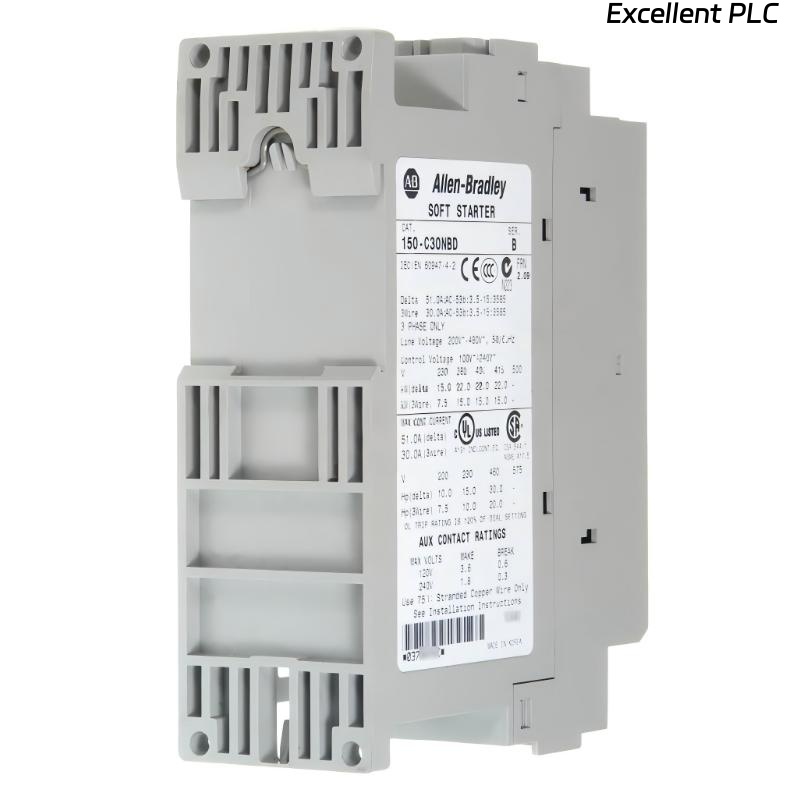

Allen Bradley 150-C30NBD SMC-3 Smart Motor Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 150-C30NBD SMC-3 Smart Motor Controller is a compact soft starter designed to provide controlled acceleration and deceleration of three-phase induction motors. It is part of the SMC-3 series, which is widely recognized for delivering reliable motor starting performance in a cost-effective and space-saving design.
In industrial systems, direct-on-line motor starting can introduce mechanical stress and electrical disturbances. This controller addresses those challenges by gradually ramping voltage during startup and stopping, reducing wear on mechanical components and minimizing current surges. As a result, it helps extend equipment life and improve overall system stability.
The 150-C30NBD is particularly suited for applications where simplicity and reliability are key. With built-in overload protection, integral bypass functionality, and basic diagnostic capabilities, it provides essential motor protection without the complexity of more advanced drive systems. Its open-type design makes it suitable for installation inside control panels where environmental conditions are managed.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 150-C30NBD |
| Manufacturer | Allen-Bradley |
| Product Type | SMC-3 Smart Motor Controller (Soft Starter) |
| Rated Current | 30 A |
| Input Line Voltage | 200 – 460 V AC, 3-Phase |
| Frequency | 50 / 60 Hz |
| Control Voltage | 100 – 240 V AC |
| Control Method | 3-Wire Control |
| Enclosure Type | Open Type |
| Motor Type | Three-phase induction motor |
| Starting Method | Solid-state soft start |
| Bypass Feature | Integral bypass included |
| Protection Features | Overload protection, diagnostics |
| Application Role | Motor acceleration and deceleration control |
| Dimensions | 139.7 × 44.8 × 100 mm |
| Weight | 0.86 kg |
Applications
• Pump systems
Provides smooth motor startup, reducing hydraulic shock and extending pump lifespan.
• Fan and blower control
Ensures gradual acceleration, minimizing mechanical stress on belts and shafts.
• Conveyor systems
Enables controlled starting and stopping, preventing material spillage and mechanical wear.
• Compressor applications
Reduces inrush current and torque spikes, improving system reliability.
• General industrial motor control
Suitable for applications requiring cost-effective motor starting without complex speed control.
Advantages
• Reduced mechanical stress
Soft start and stop functions help protect motors and connected equipment from sudden torque changes.
• Lower electrical impact
Minimizes inrush current, reducing stress on the power supply network.
• Compact and efficient design
Saves panel space while delivering reliable motor control performance.
• Built-in protection features
Includes overload protection and diagnostic capabilities, enhancing system safety.
• Integral bypass function
Improves efficiency by reducing heat generation once the motor reaches full speed.
• Cost-effective solution
Offers essential soft starting features without the complexity and cost of full variable frequency drives.
FAQ
- What is the main purpose of the 150-C30NBD soft starter?
It is used to control the acceleration and deceleration of three-phase motors, reducing mechanical and electrical stress during startup and stopping. - How does a soft starter differ from a variable frequency drive?
A soft starter controls voltage during startup and stopping, while a variable frequency drive controls both voltage and frequency for full speed regulation. - What is the benefit of integral bypass in this controller?
It reduces power losses and heat generation by bypassing the solid-state components once the motor reaches full speed. - Is this controller suitable for continuous operation?
Yes, it is designed for industrial environments where motors operate continuously or frequently start and stop. - What type of motors can be used with this device?
It is designed for standard three-phase induction motors. - How does it protect the motor from overload conditions?
It includes built-in overload protection that monitors current and prevents damage due to excessive load. - Can it reduce electrical disturbances in the system?
Yes, by limiting inrush current, it helps maintain stable voltage levels across the power network. - Is it suitable for retrofit applications?
Yes, its compact design and simple wiring make it ideal for upgrading existing motor control systems. - What kind of control wiring does it use?
It uses a 3-wire control method, which is commonly used in industrial motor control circuits. - What advantages does it provide over direct-on-line starting?
It offers smoother startup, reduced stress on equipment, improved system reliability, and lower electrical impact.
Related Models
| Model | Description |
|---|---|
| 150-C16NBD | Lower current SMC-3 soft starter |
| 150-C25NBD | Mid-range current soft starter |
| 150-C37NBD | Higher capacity SMC-3 controller |
| 150-C43NBD | Extended load handling model |
| 150-C60NBD | High current soft starter |
| 150-C85NBD | Heavy-duty SMC-3 controller |
