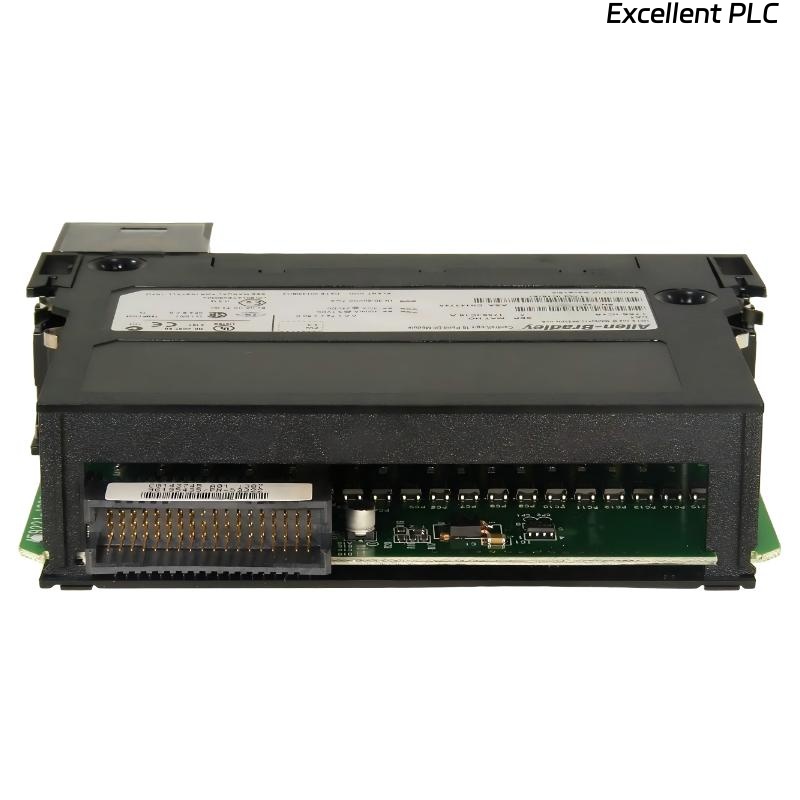

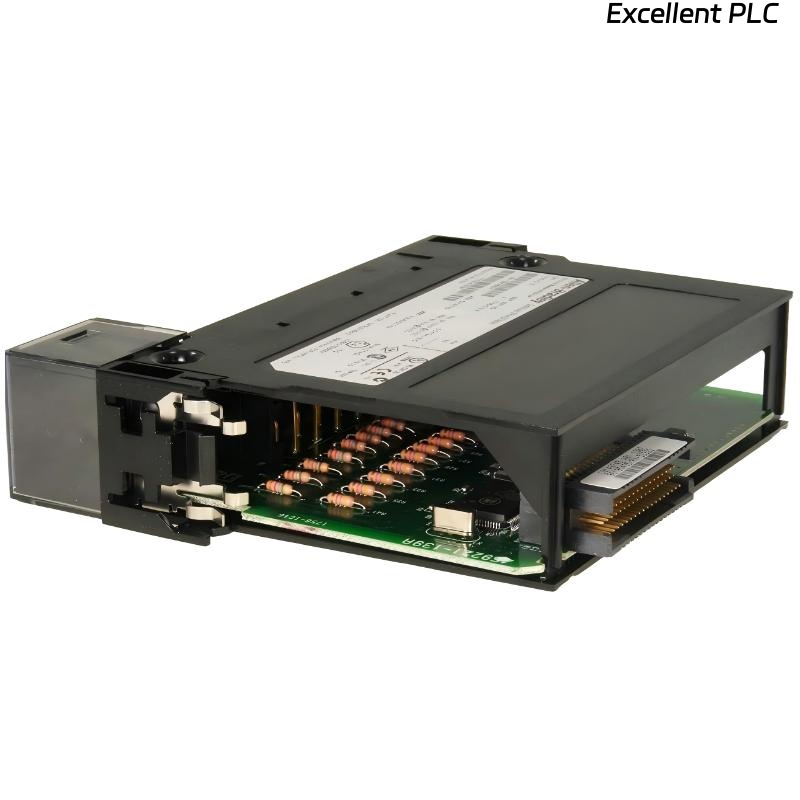

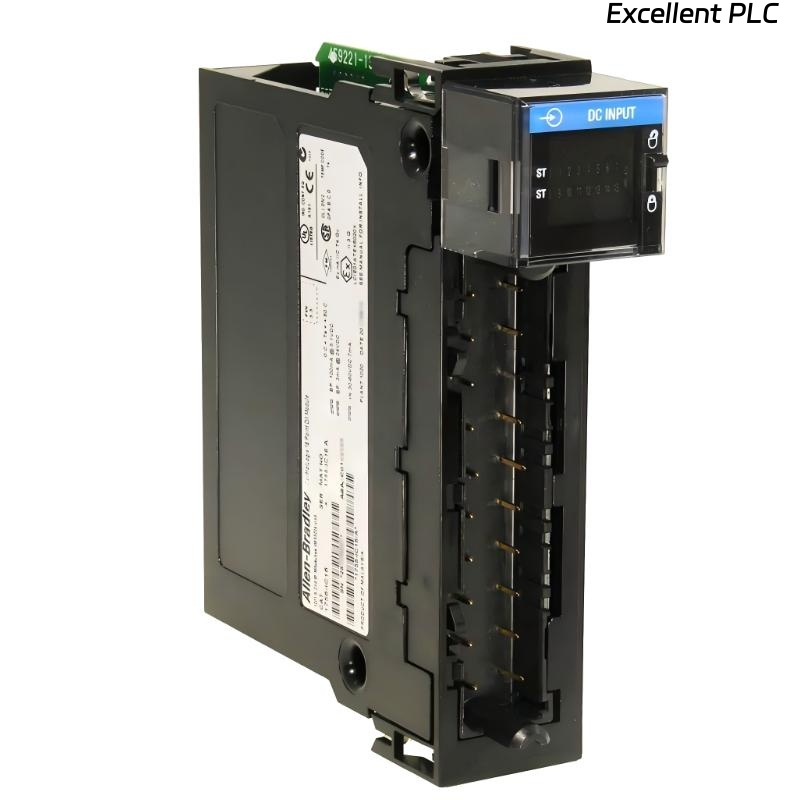

Allen Bradley 1756-IC16 ControlLogix Digital Input Module

Product Introduction

The Allen Bradley 1756-IC16 ControlLogix Digital Input Module is a 16-point DC input module designed for high-voltage DC applications within ControlLogix automation systems. Supporting a 30–60 VDC input range, it provides reliable monitoring of field devices such as sensors, switches, and discrete inputs.

The module includes a communication status and module health display, allowing operators to quickly verify connectivity and module condition. Its chassis-mounted design ensures secure installation and integration into ControlLogix systems.

---

Product Specifications

---

Applications

• High-Voltage DC Signal Acquisition
Monitors sensors and devices operating on 30–60 VDC for process control and automation.

• Machine-Level Monitoring
Provides real-time input status for operational verification and control.

• Process Automation Systems
Captures discrete signals to ensure reliable automation in high-voltage DC environments.

• Diagnostics and Status Monitoring
The built-in status and health indicators allow operators to quickly detect faults or communication issues.

• Distributed I/O Architectures
Integrates with other ControlLogix modules for scalable digital input networks.

• Industrial Automation Integration
Supports applications requiring high-voltage DC monitoring with robust system feedback.

---

Advantages

• High-Voltage DC Compatibility
Designed for input ranges of 30–60 VDC, suitable for a wide range of industrial devices.

• Module Health and Status Indicators
Built-in displays enable easy monitoring of module and communication status.

• Compact Design
16 digital input points in a chassis-mounted module save cabinet space.

• Seamless ControlLogix Integration
Directly mounts in the ControlLogix chassis and communicates via the backplane.

• Reliable Industrial Operation
Supports continuous monitoring in standard industrial environments.

• Efficient System Monitoring
Provides accurate input acquisition for diagnostics, alarms, and control applications.

FAQ

1. What is the primary function of the 1756-IC16 module?
   It provides 16-point high-voltage DC input acquisition for ControlLogix systems, enabling accurate monitoring of field devices operating at 30–60 VDC.

2. What voltage range does the module support?
   The module supports a 30–60 VDC input range.

3. How many input points does it have?
   It has 16 independent DC input points.

4. Does it have status indicators?
   Yes, it provides input status, communication status, and module health display for real-time monitoring.

5. Is the module suitable for industrial operation?
   Yes, it is designed for reliable operation under standard industrial conditions.

6. Can it integrate with other ControlLogix modules?
   Yes, it communicates via the ControlLogix backplane for seamless system integration.

7. What types of applications benefit from this module?
   High-voltage DC input monitoring, machine-level control, diagnostics, and process automation benefit from its features.

8. Does it help with system diagnostics?
   Yes, the status and health displays allow operators to detect faults or communication issues quickly.

9. What is the mounting method for this module?
   It is chassis-mounted for secure installation in ControlLogix systems.

10. What is the advantage of using this module over standard DC input modules?
    It supports higher DC voltages (30–60 VDC) and provides built-in status and health indicators for enhanced monitoring.
