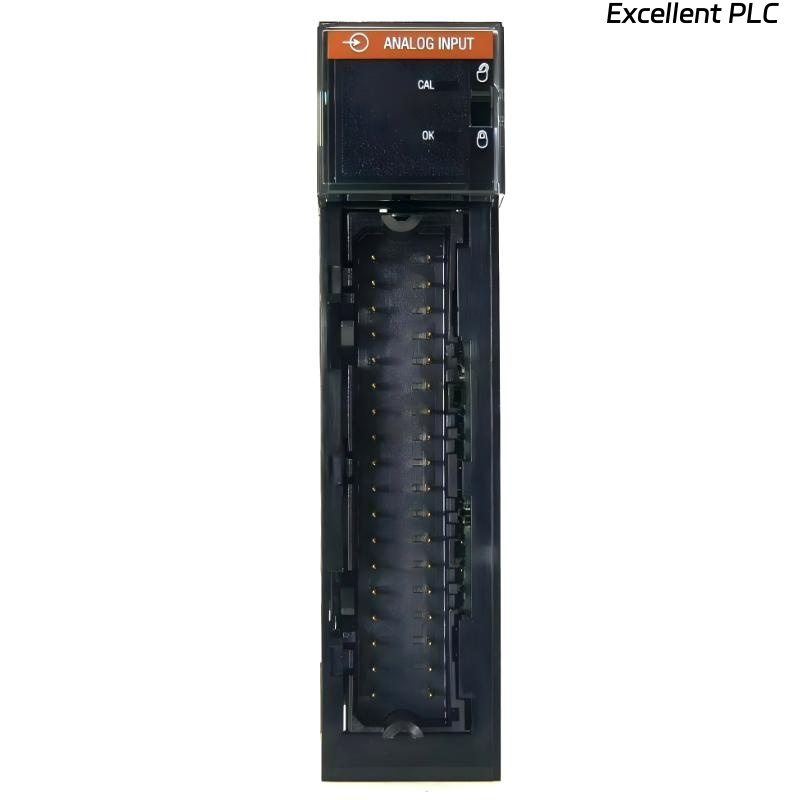

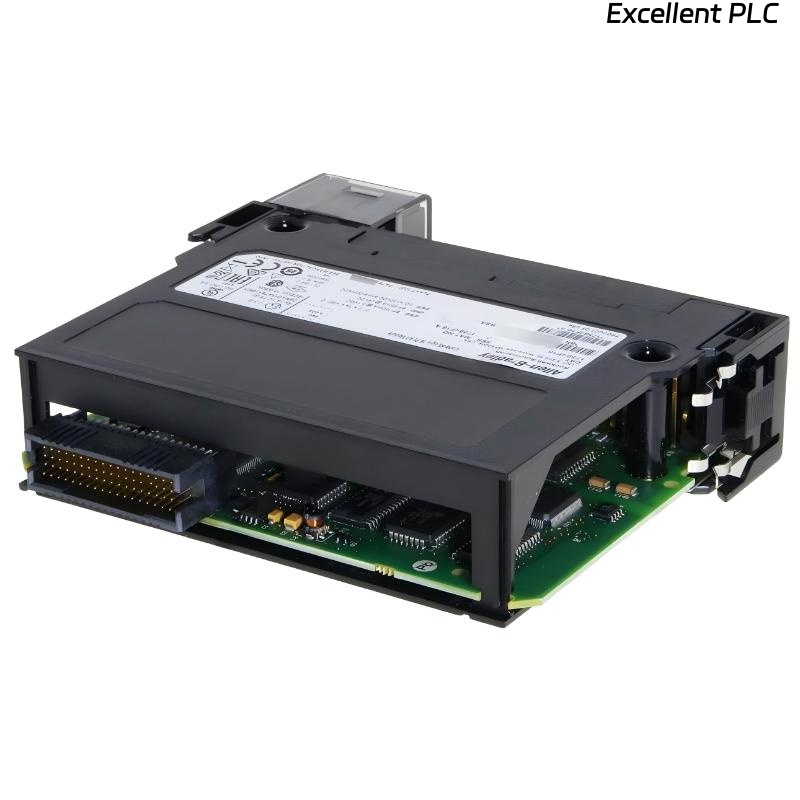

Allen Bradley 1756-IF16 ControlLogix Analog Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1756-IF16 ControlLogix Analog Input Module is a 16-point analog input module designed for precise acquisition of process signals within ControlLogix automation systems. Supporting 16 single-ended, 8 differential, and 4 high-speed differential inputs, it provides versatile analog monitoring for current-based signals (4–20 mA).
The module features 16-bit resolution for high-accuracy measurement and a low input current requirement, ensuring reliable data acquisition while minimizing power consumption. It is suitable for industrial environments with operating temperatures ranging from 0 to 60 °C.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| Manufacturer | Allen Bradley |
| Series | ControlLogix |
| Model / Part Number | 1756-IF16 |
| Number of Input Points | 16 |
| Input Signal Type | 4–20 mA |
| Input Configuration | 16 Single-Ended, 8 Differential, 4 High-Speed Differential |
| Resolution | 16-Bit |
| Input Current | 4–20 mA |
| Backplane Current | 120 mA @ 5.1 VDC / 0 mA @ 24 VDC |
| Operating Temperature Range | 0–60 °C |
| Mounting Type | Chassis mount |
| Control Platform | ControlLogix backplane |
| Industrial Application Level | Precision analog signal acquisition |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.322 kg |
Applications
• Process Signal Acquisition
Monitors 4–20 mA analog signals from sensors, transmitters, and control devices.
• Industrial Automation
Captures high-precision analog input data for process control and monitoring systems.
• High-Speed Differential Measurement
Supports high-speed differential inputs for dynamic measurement applications.
• Distributed I/O Architectures
Integrates with other ControlLogix modules for comprehensive analog monitoring.
• Diagnostics and System Monitoring
Provides real-time measurement for system verification, calibration, and predictive maintenance.
• Precision Process Control
Ensures accurate data for feedback loops in industrial control systems.
Advantages
• High Accuracy 16-Bit Resolution
Ensures precise measurement of analog signals.
• Versatile Input Configurations
Supports single-ended, differential, and high-speed differential inputs for diverse applications.
• Low Input Current
Minimizes power usage while maintaining reliable data acquisition.
• Seamless ControlLogix Integration
Directly mounts in the ControlLogix chassis and communicates via the backplane.
• Industrial Reliability
Designed for continuous operation in industrial environments.
• Real-Time System Monitoring
Provides accurate analog data for diagnostics, control, and feedback loops.
FAQ
-
What types of analog inputs does the 1756-IF16 module support?
It supports 16 single-ended, 8 differential, and 4 high-speed differential inputs for 4–20 mA signals. -
What is the input signal range?
The module operates with 4–20 mA current signals, standard for industrial process devices. -
How many inputs are available?
It provides 16 total input points with various configurations for flexibility. -
What is the measurement resolution?
The module provides 16-bit resolution for precise analog data acquisition. -
What is the backplane current requirement?
120 mA at 5.1 VDC, and 0 mA at 24 VDC. -
Is the module suitable for industrial operation?
Yes, it operates reliably in the 0–60 °C temperature range. -
Can it integrate with other ControlLogix modules?
Yes, it communicates via the ControlLogix backplane for seamless system integration. -
Does it support high-speed measurement?
Yes, 4 channels are configured for high-speed differential inputs for dynamic measurements. -
What types of applications benefit from this module?
Industrial process control, system diagnostics, calibration, and precision feedback loops benefit from its capabilities. -
What is the mounting method for this module?
It is chassis-mounted for easy installation in ControlLogix systems.
Related Models
| Model Number | Description |
|---|---|
| 1756-IF8 | 8-Point Analog Input Module |
| 1756-IF16B | High-Precision Analog Input Module |
| 1756-IB16 | 16-Point DC Digital Input Module |
| 1756-IA16 | AC Digital Input Module |
| 1756-OB16E | Digital Output Module |
| 1756-HSC | High Speed Counter Module |
Popular Models
| Model Number | Description |
|---|---|
| 1756-IF16 | 16-Point Analog Input Module |
| 1756-IF8 | 8-Point Analog Input Module |
| 1756-IB16 | 16-Point DC Digital Input Module |
| 1756-OB16E | Digital Output Module |
| 1756-HSC | High Speed Counter Module |
| 1756-TIME | Time Synchronization Module |
