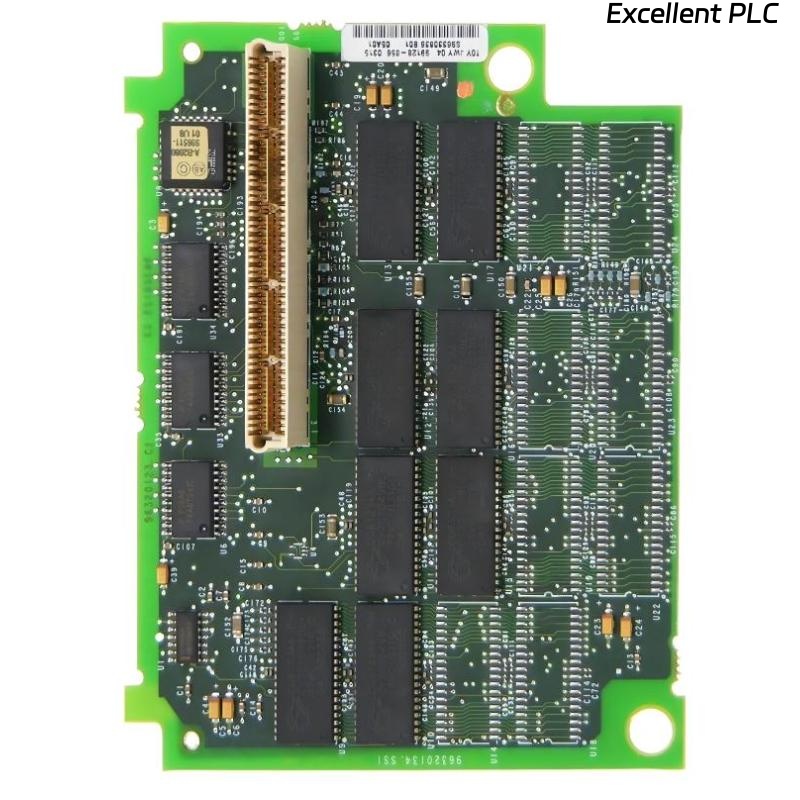

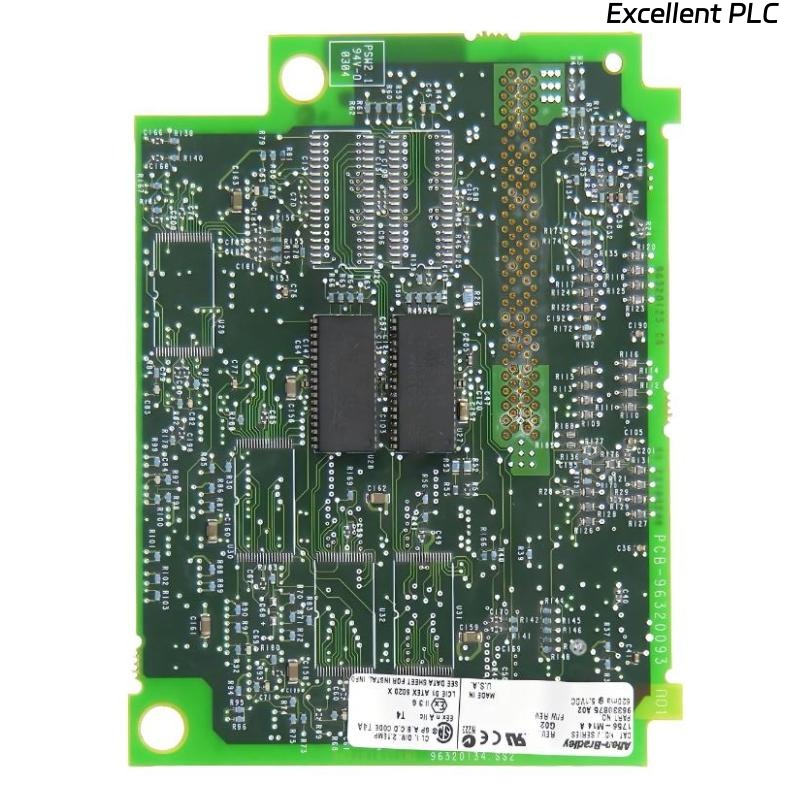

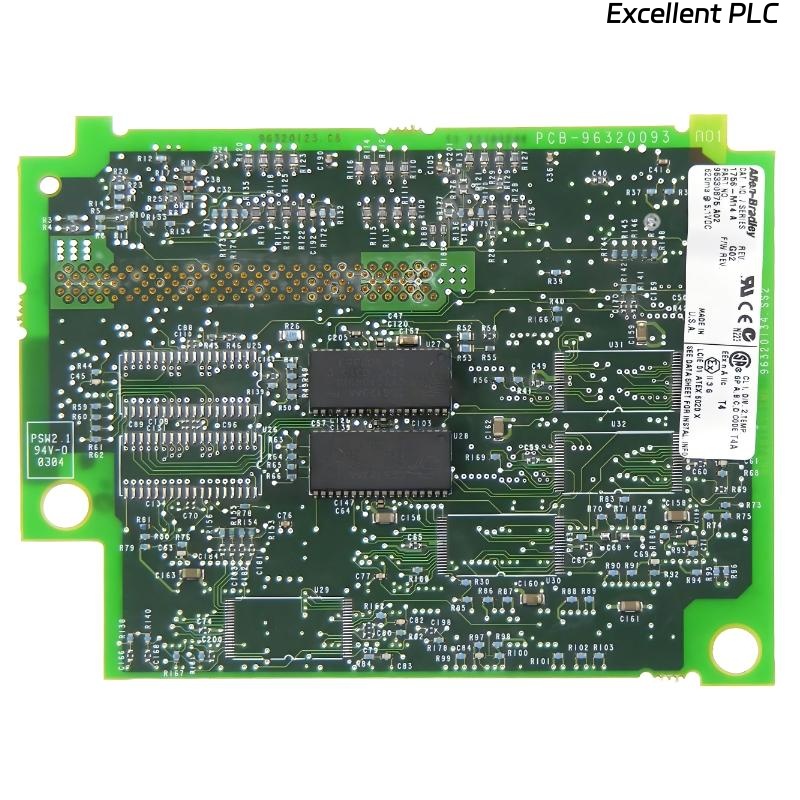

Allen Bradley 1756-M14 ControlLogix Logix5555 Memory Module

Product Introduction

The Allen Bradley 1756-M14 ControlLogix Logix5555 Memory Module is a high-capacity memory expansion module for Logix5555 controllers within the ControlLogix automation platform. With 3.5 MB of memory, it allows larger automation programs, more extensive data storage, and advanced control routines without requiring an upgrade to the main processor.

Designed for industrial environments, the 1756-M14 integrates seamlessly into a standard 1756 ControlLogix chassis. It is ideal for applications where program complexity or data storage requirements exceed the onboard memory of the primary Logix5555 controller.

---

Product Specifications

---

Applications

• Expands memory for large automation programs

• Supports complex data logging and variable storage

• Ideal for distributed control systems and advanced process automation

• Suitable for machine automation tasks exceeding standard controller memory

• Enables seamless integration with Logix5555 controllers

• Provides flexibility for industrial control systems with growing program requirements

---

Advantages

• Provides 3.5 MB additional memory for Logix5555 controllers

• Enables larger and more complex control programs without replacing the processor

• Compact design fits standard 1756 ControlLogix chassis

• Reliable operation within industrial operating and storage conditions

• Supports data logging, program expansion, and variable storage

• Reduces the need for controller upgrades due to memory limitations

FAQ

1. What is the purpose of the 1756-M14 module?
   It expands the memory of Logix5555 controllers to support larger programs and additional data storage.

2. What is the memory capacity of this module?
   The module provides 3.5 MB of memory.

3. Is it compatible with all ControlLogix processors?
   It is specifically designed for Logix5555 controllers.

4. What is the operating temperature range?
   The module operates safely from 0 to 60 deg C.

5. What is the storage temperature range?
   The module can be stored in temperatures from -40 to 85 deg C.

6. Can it be used for complex process automation tasks?
   Yes, it supports programs and data that exceed standard memory limitations.

7. Can multiple modules be used together?
   Yes, multiple expansion modules can be added as supported by the Logix5555 controller.

8. Does it require software configuration?
   No additional configuration is needed; the controller automatically recognizes the memory expansion.

9. How is the module installed?
   It installs directly into a standard 1756 ControlLogix chassis slot.

10. Is it suitable for industrial environments?
    Yes, it is designed for reliable operation under industrial operating and storage conditions.
